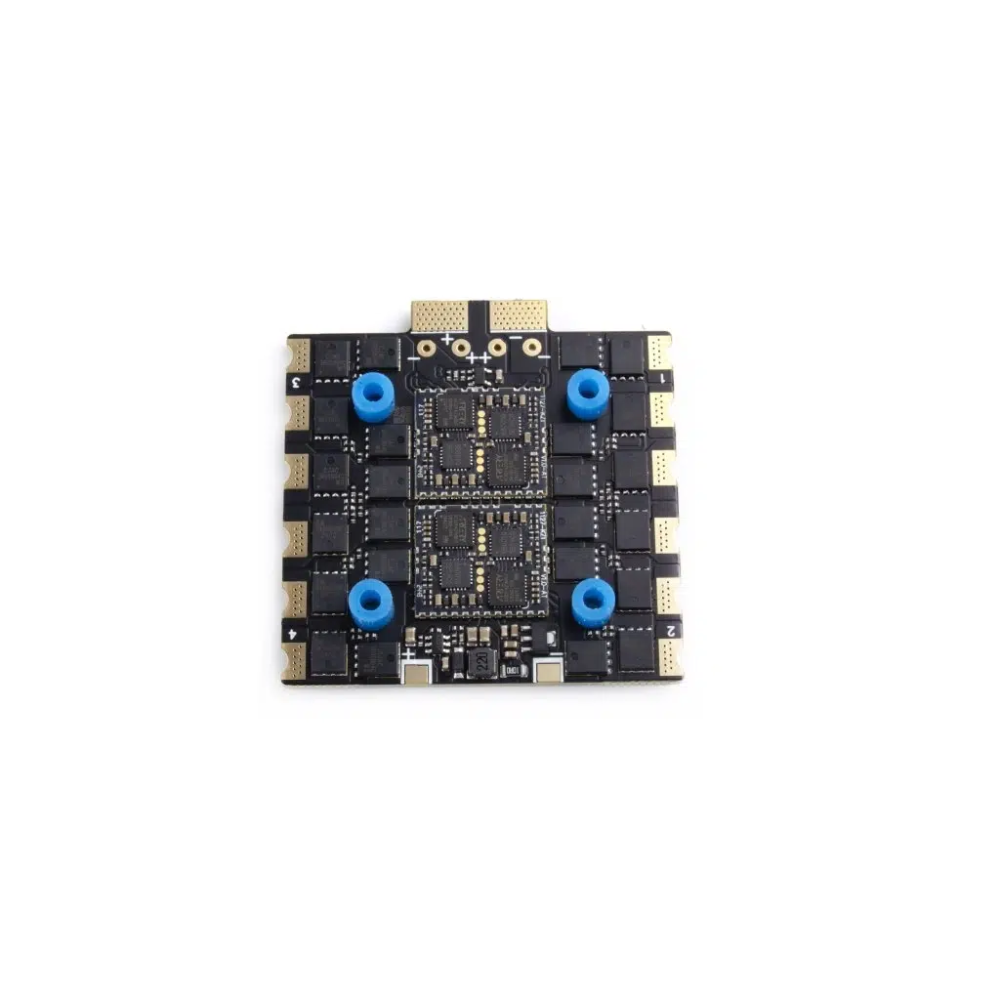

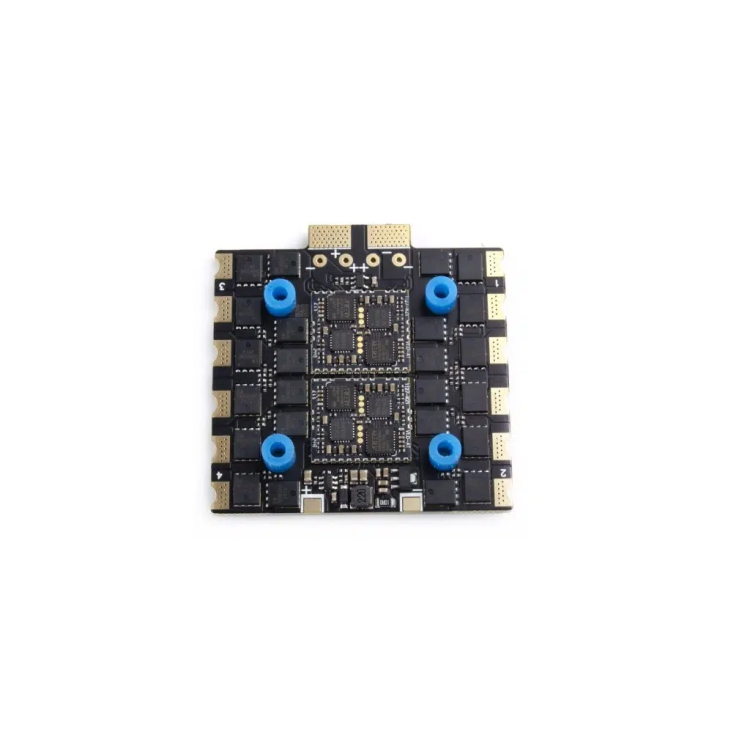

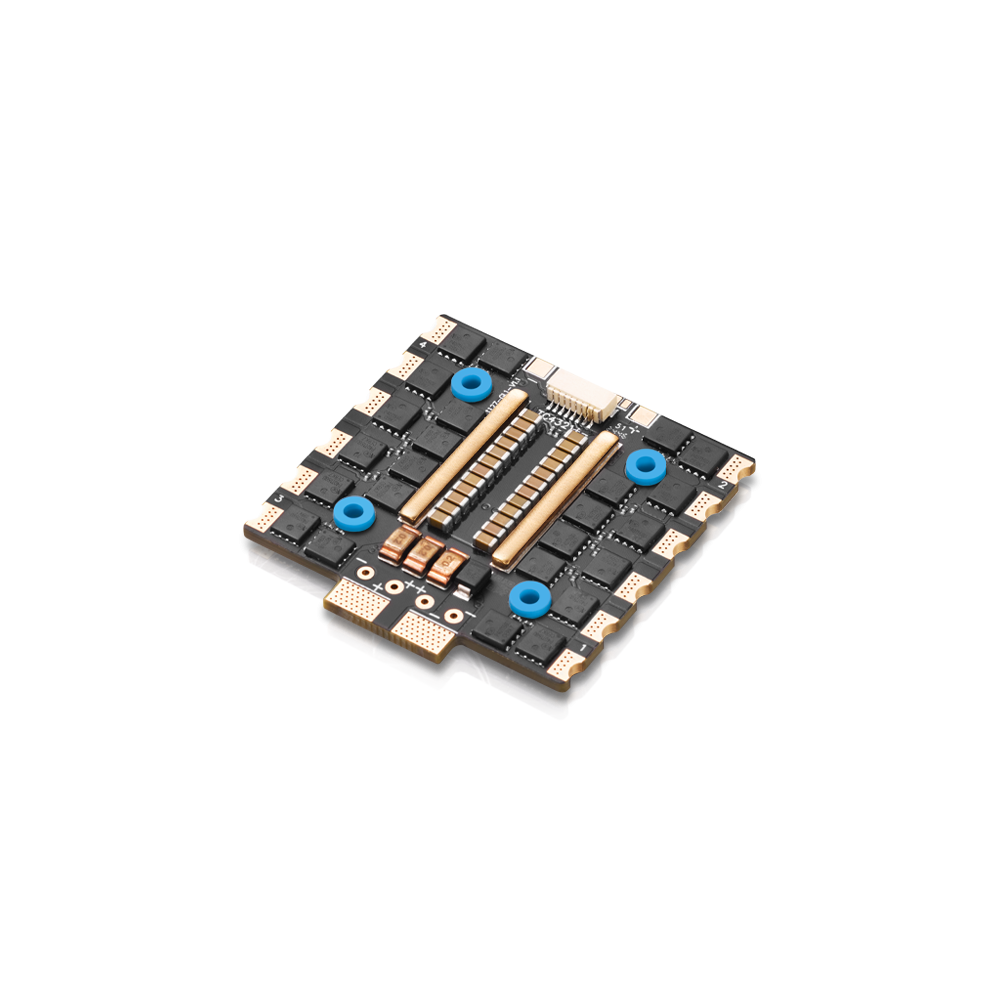

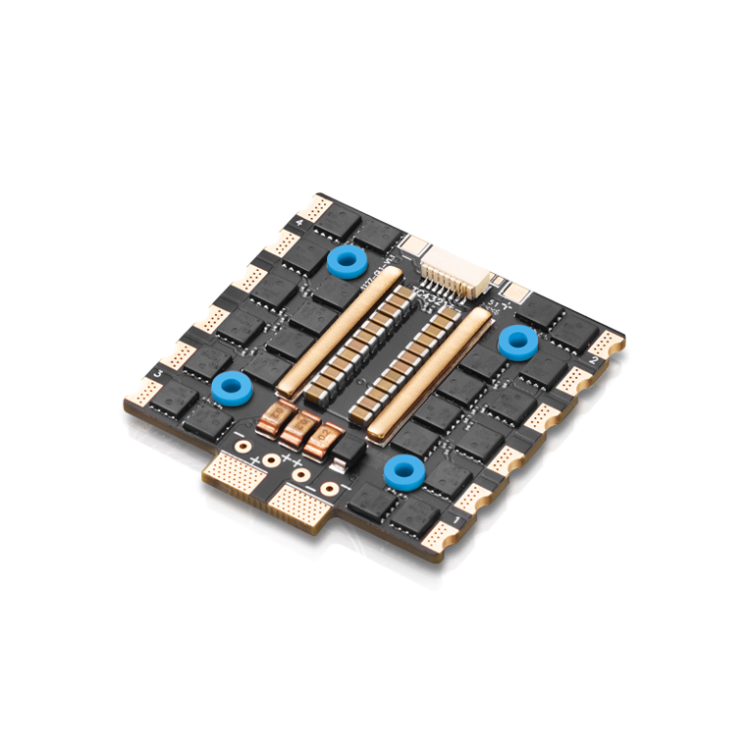

The Hobbywing XRotor 80A 4in1 Lite BLS RTF is a high-performance 32-bit ESC designed for powerful FPV racing and freestyle drones. Built for 130–300 mm FPV platforms, it delivers high current capacity, fast throttle response, and reliable motor control in a compact 4-in-1 design.
With imported MOSFETs, high-quality ceramic capacitors, 3-ounce copper, and a 6-layer PCB structure, the XRotor 80A 4in1 Lite BLS RTF is engineered for lower heat generation, improved efficiency, and stable performance under demanding flight conditions.
High-Current Performance
The XRotor 80A 4in1 Lite BLS RTF supports up to 80 A continuous current per channel.
With a maximum current of 100 A ×4, it provides strong power handling for high-performance FPV drones.
Its compact and lightweight design makes it suitable for powerful builds requiring both efficiency and durability.
Fast & Precise Throttle Response
The ESC features a 128 kHz PWM frequency that can be dynamically adjusted for precise throttle control.
This allows smoother motor response, better control feel, and improved performance during aggressive flight maneuvers.
Reliable Electronic Design
Imported MOSFETs provide improved voltage and current endurance.
The 3-in-1 drive ICs, high-quality ceramic capacitors, 3-ounce copper, and 6-layer PCB design help reduce heat and improve efficiency.
This construction supports stable performance during high-load FPV racing or freestyle use.
Compact & Lightweight Integration
The compact 4-in-1 layout simplifies wiring and keeps the build clean.
With 30.5 × 30.5 mm mounting holes, it is compatible with standard FPV stack mounting patterns.
The RTF version is supplied without packaging for direct integration and replacement use.
Technical Specifications
Product: Hobbywing XRotor 80A 4in1 Lite BLS RTF
Application: FPV racing and freestyle drones
Recommended Frame Size: 130–300 mm FPV drones
ESC Type: 32-bit 4-in-1 ESC
Battery: 4–8S LiPo
Continuous Current: 80 A ×4
Maximum Current: 100 A ×4
PWM Frequency: 128 kHz
Firmware / PWM Range: BLHeli-S
Weight: 41.3 g
Size: 56.1 × 52 × 7 mm
Mounting Holes: 30.5 × 30.5 mm
PCB: 6-layer PCB
Copper: 3-ounce copper
RTF Version: Supplied without package
What’s Included
1× ESC
