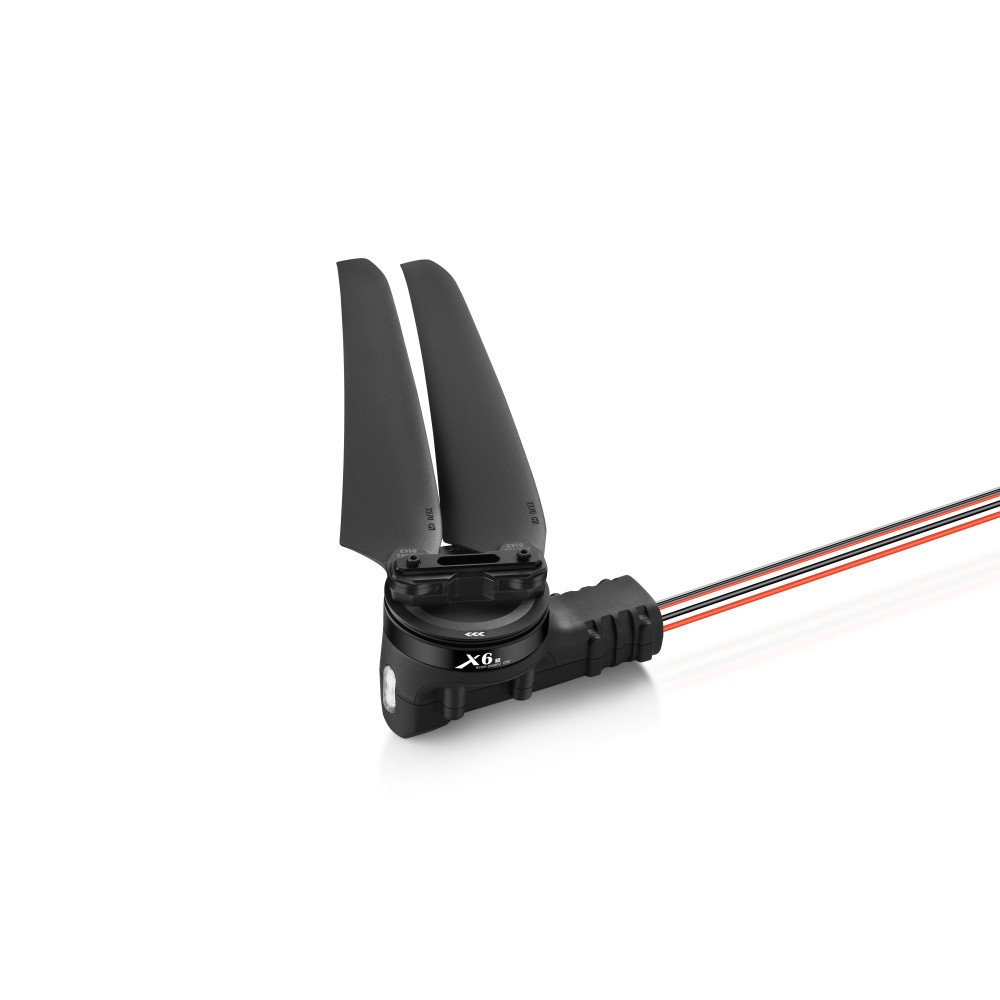

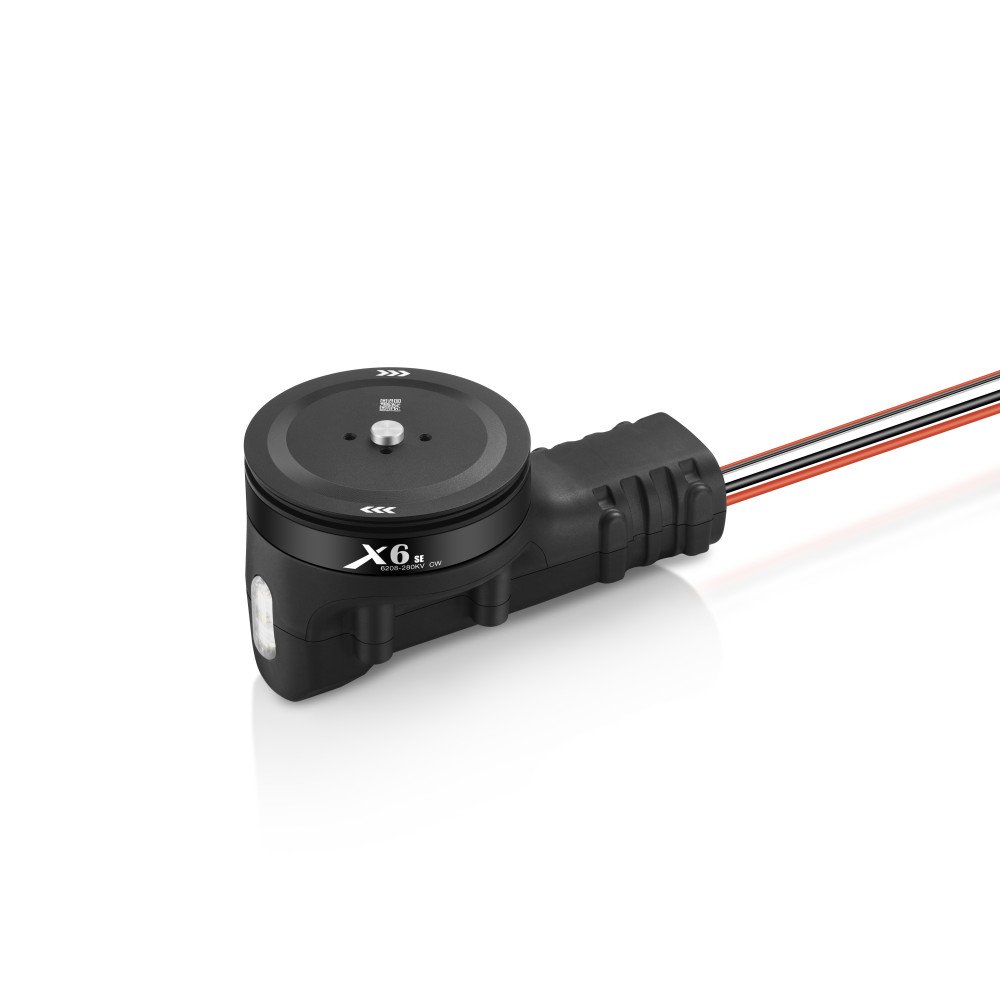

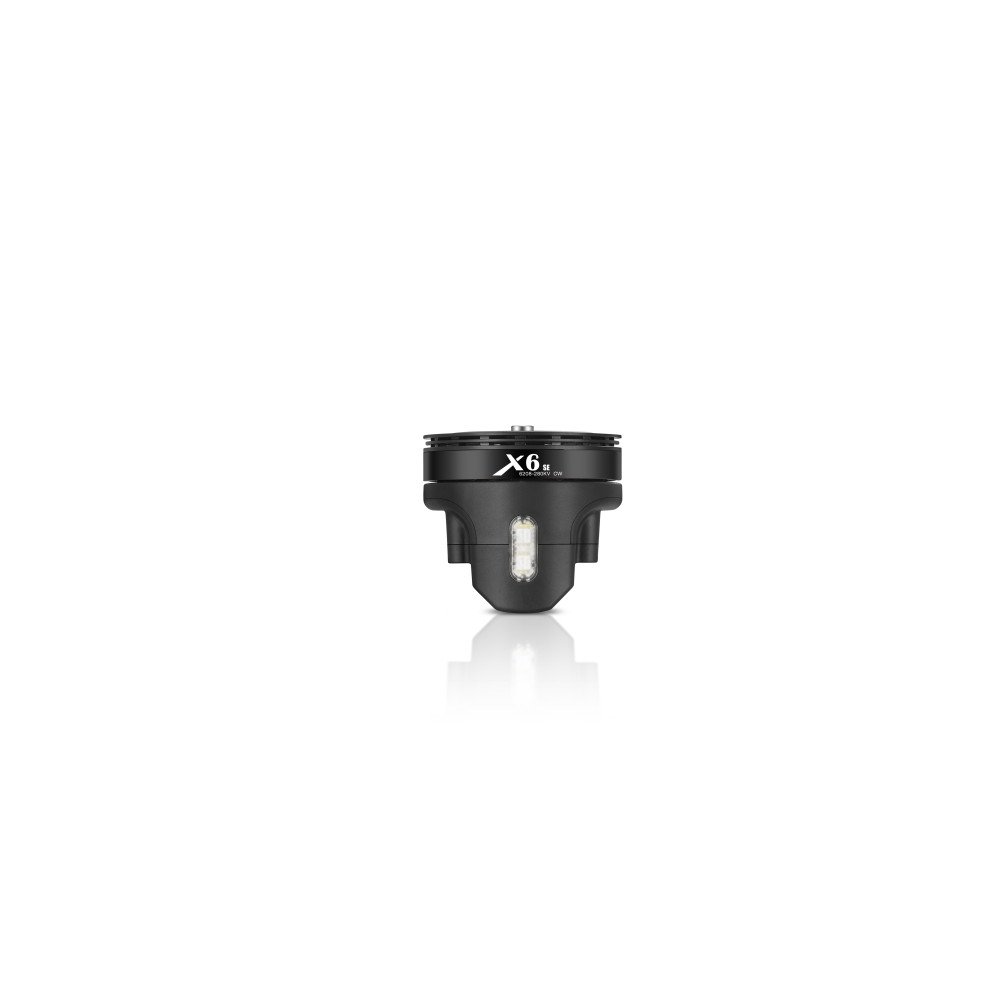

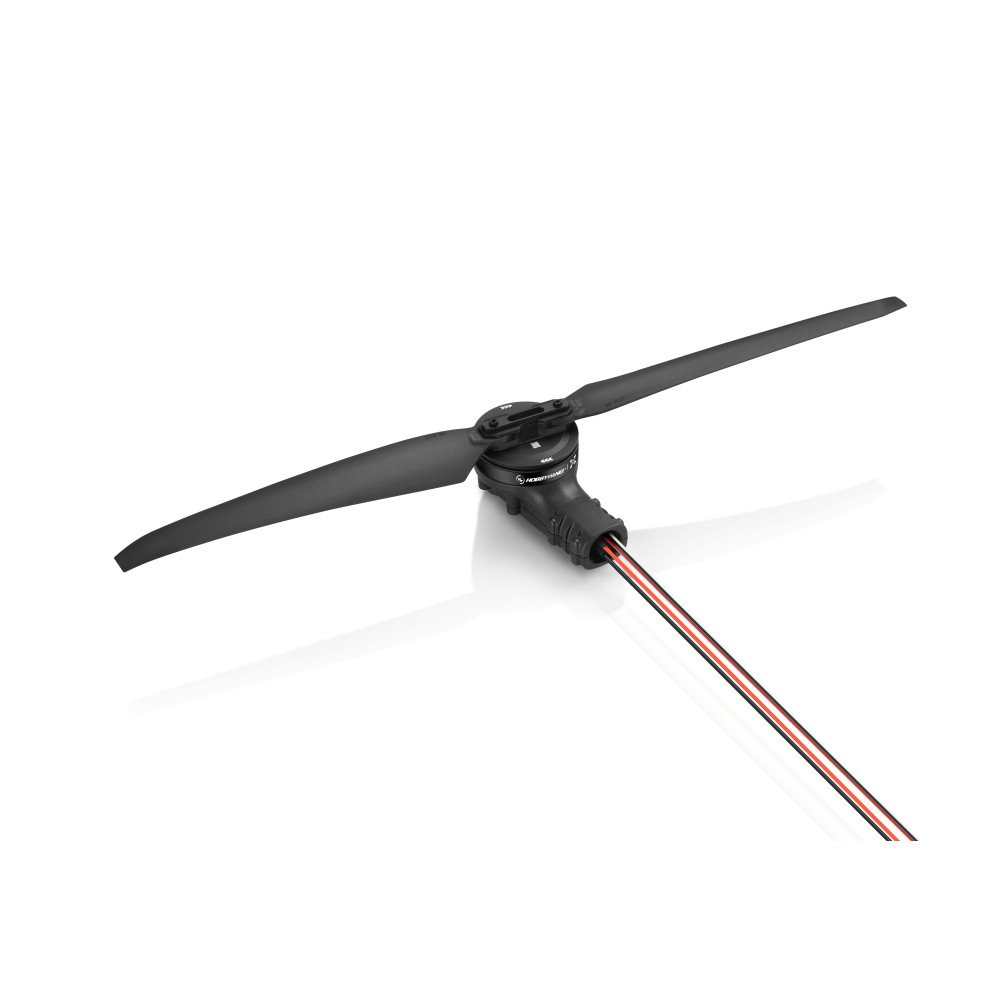

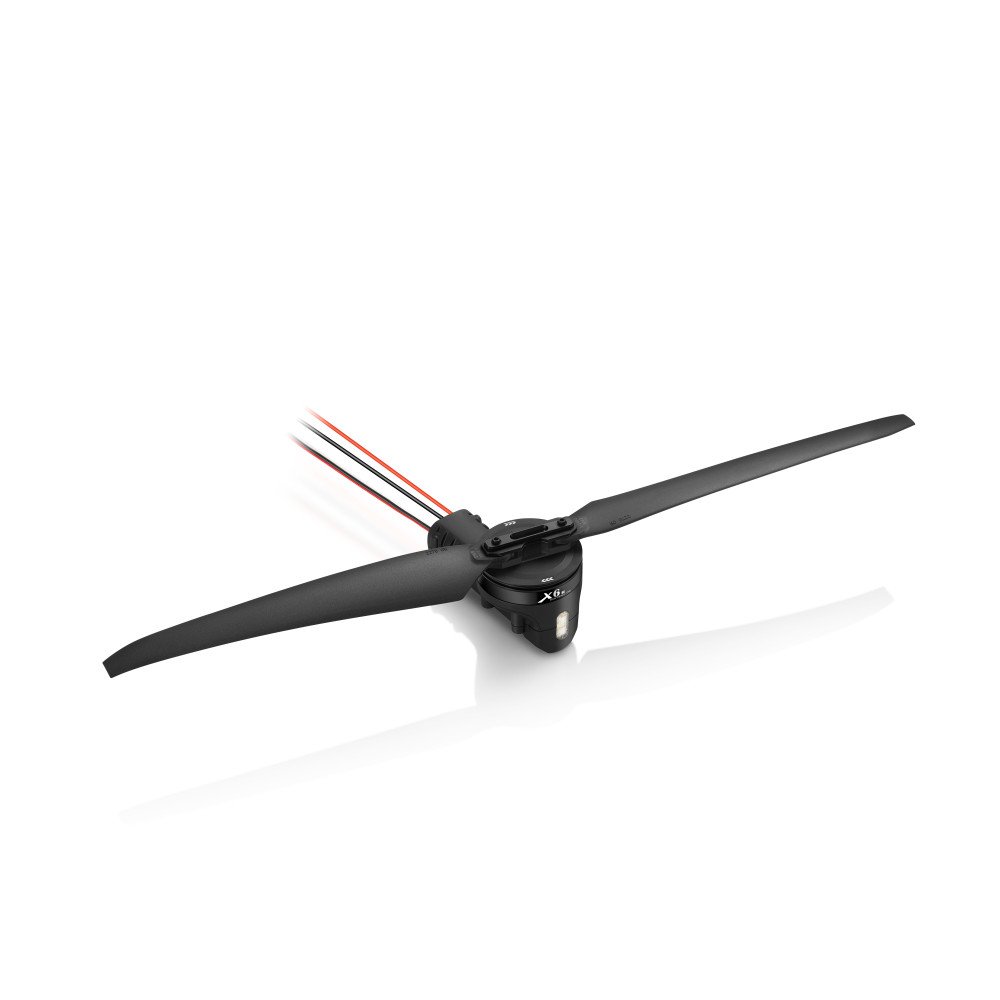

The Hobbywing CM X6 SE is a cost-effective and multi-functional propulsion system designed for UAV training, education, and versatile industry applications. Combining powerful thrust, long endurance, and easy maintenance, it is ideal for universities, training institutions, and professional drone operators.
Tailored for Training & Education
The CM X6 SE is optimized for UAV professional education and training programs.
It ensures high compatibility and stable performance for both classroom demonstrations and field operations.
Cost-Effective Platform
The low-voltage 6S LiPo design helps reduce investment costs.
The carbon-plastic motor mount and propellers keep expenses low while maintaining good durability for regular use.
Minimal Maintenance Costs
The system is designed for user-friendly installation and simplified operation.
Efficient diagnostics and a low failure rate provide reliable long-term use.
Affordable spare parts help reduce operational expenses.
Versatile Applications
The CM X6 SE is suitable for aerial photography, mapping, surveying, security, and law enforcement drones.
It can also adapt to a wide range of industry applications beyond education and training.
Two Propeller Options
The 280 KV version is compatible with 22×7.0″ folding propellers.
The 380 KV version is compatible with 18×6.0″ folding propellers.
This flexible configuration allows users to choose the best option based on frame size and application requirements.
Lightweight & Long-Endurance
The system weighs only 373 g with propellers.
With an industry-leading thrust-to-weight ratio of 16:1, it delivers strong performance in a compact format.
The recommended single-axis takeoff weight is 2–2.5 kg.
System efficiency can reach up to 10 g/W, supporting flight times of over 60 minutes per battery.
Compact & Compatible

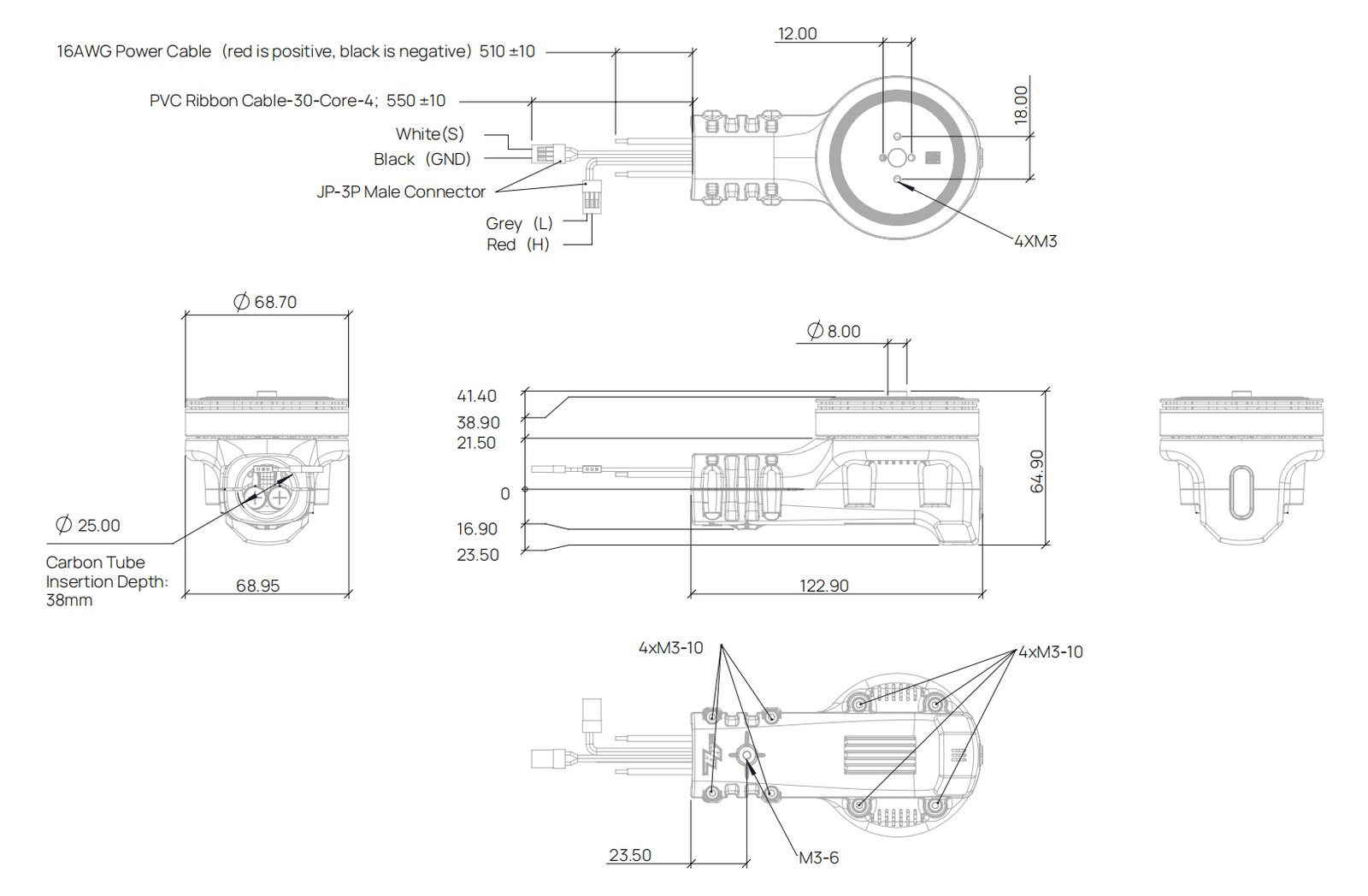

The CM X6 SE is designed for 25 mm arm tubes.
It is compatible with mainstream quadcopter, hexacopter, and octocopter frames.

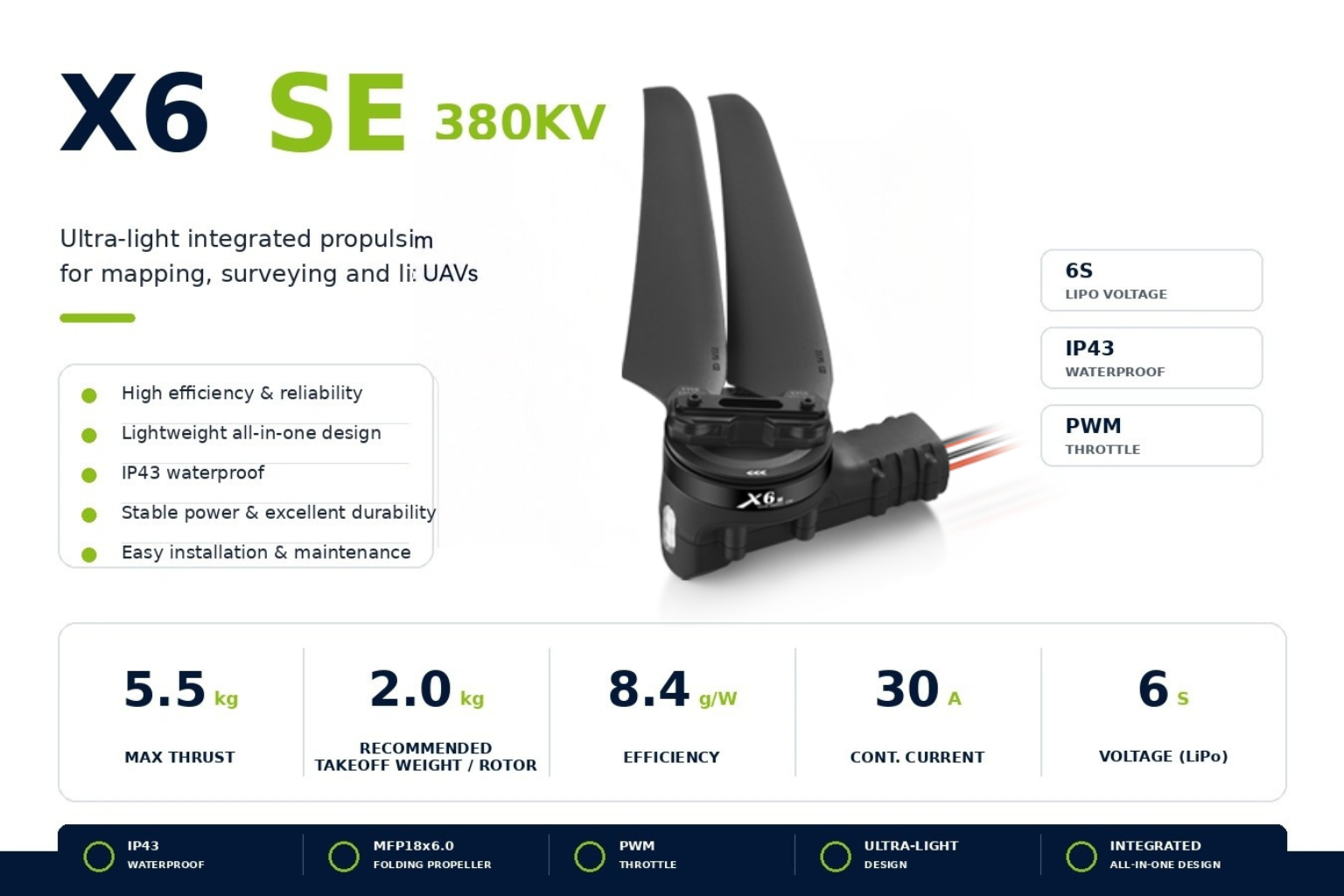

Technical Specifications
Product: Hobbywing CM X6 SE UAV Propulsion System
Application: UAV training, education, aerial photography, mapping, surveying, security, and law enforcement
Battery: 6S LiPo
Arm Tube Diameter: 25 mm
Weight with Propellers: 373 g
Recommended Takeoff Weight per Axis: 2–2.5 kg
Thrust-to-Weight Ratio: 16:1
Maximum Efficiency: Up to 10 g/W
Flight Time: Over 60 minutes per battery
Version 1: 280 KV
Recommended Propeller for 280 KV Version: 22×7.0″ folding propeller
Version 2: 380 KV
Recommended Propeller for 380 KV Version: 18×6.0″ folding propeller
Compatible Frames: Quadcopter, hexacopter, and octocopter frames
Propellers are sold separately.
