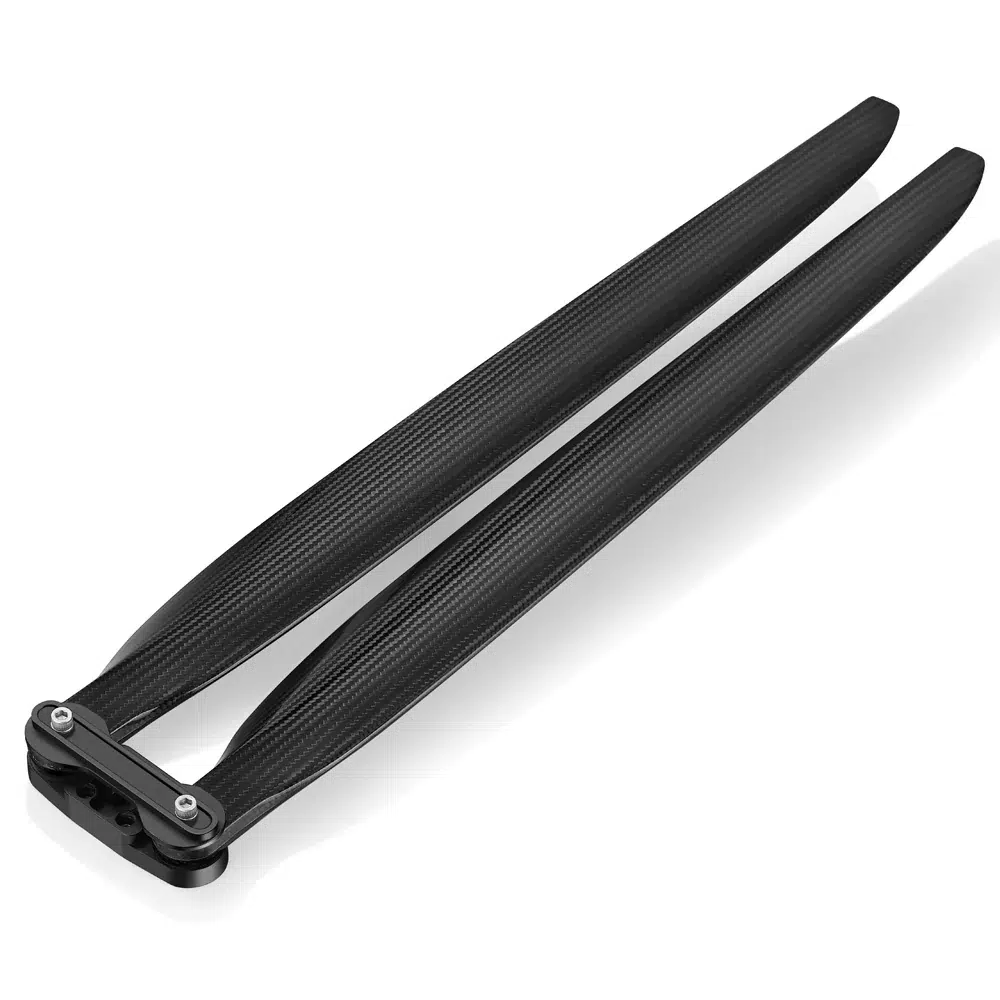

The Hobbywing MFC 48x17.5 Carbon Fiber Folding Propeller is a professional UAV propeller designed for heavy-lift drones, agricultural UAVs, industrial multirotors, and professional aerial platforms requiring strong thrust, high efficiency, and reliable flight stability.
Built from carbon fiber and epoxy resin, the MFC 48x17.5 combines lightweight construction, excellent rigidity, and long-term durability for demanding drone operations in harsh environments.
Strong & Efficient Propulsion
The MFC 48x17.5 propeller is engineered for large UAV propulsion systems requiring efficient power conversion, stable thrust output, and reliable performance.
With a recommended thrust range of 8–32 kg and a maximum thrust of up to 43 kg, this propeller is ideal for professional agricultural drones, industrial UAVs, heavy-lift multirotors, field operation drones, and mission-critical aerial platforms.
Its 48-inch diameter and 17.5-inch pitch provide strong lifting capability while maintaining efficient propulsion performance for demanding UAV applications.
CW & CCW Configuration
The Hobbywing MFC 48x17.5 is designed for professional drone setups using forward and reverse propeller configurations.
This makes it suitable for CW and CCW motor layouts, allowing correct integration into multirotor drones, coaxial UAV systems, and heavy-lift propulsion platforms.
Using the correct CW propeller and CCW propeller is essential for safe installation, stable flight control, and balanced thrust distribution.
Premium Carbon Fiber Construction
The MFC 48x17.5 folding propeller is manufactured from carbon fiber and epoxy resin, offering a strong balance between low weight, high strength, and resistance to deformation.
This premium material helps maintain stable aerodynamic performance under load and improves durability during intensive UAV operations.
The propeller adapter is made from aluminum alloy, providing a solid and reliable mounting solution for professional drone propulsion systems.
Aerodynamic Efficiency & Low Noise
The Hobbywing MFC 48x17.5 features an optimized aerodynamic profile with a tip winglet design to help reduce air resistance and improve efficiency.
This design helps deliver smooth flight performance, low vibration, and reduced propeller noise, making the MFC 48x17.5 well suited for agricultural spraying drones, industrial inspection UAVs, cargo drones, and professional heavy-lift platforms.
Reliable Performance in Harsh Environments
The MFC 48x17.5 Carbon Fiber Folding Propeller is designed to perform in demanding outdoor conditions.
Its carbon fiber structure supports reliable operation in environments exposed to rain, high temperatures, salt fog, dust, and sandstorms, making it suitable for agricultural work, industrial field missions, mountain operations, and all-weather UAV applications.
Folding Design for Professional UAV Integration
The MFC 48x17.5 uses a folding propeller design, making it easier to transport, store, and integrate on large UAV frames.
The folding structure is especially useful for large agricultural drones, coaxial multirotors, industrial UAVs, and heavy-lift drone platforms where compact storage and reliable installation are important.
Optimized for Hobbywing Heavy-Lift Systems
The Hobbywing MFC 48x17.5 Carbon Fiber Folding Propeller is recommended for use with Hobbywing V11122motor configurations.
This pairing is designed to provide efficient thrust, stable torque response, and reliable propulsion performance for professional UAV operations.
Technical Specifications
Product: Hobbywing MFC 48x17.5 Carbon Fiber Folding Propeller
Propeller Size: 48×17.5 inch
Rotation Versions: CW and CCW configurations
Propeller Type: Folding propeller
Main Material: Carbon fiber + epoxy resin
Propeller Adapter Material: Aluminum alloy
Single Blade Weight: 117 g
Total Weight: 416 g including propeller adapter
Recommended Speed Range: 1700–2500 RPM
Maximum RPM: 2900 RPM
Recommended Thrust Range: 8–32 kg
Maximum Thrust: 43 kg
Operating Temperature: -40°C to 65°C
Storage Temperature: -10°C to 35°C
Storage Humidity: ≤85%
Recommended Motor: Hobbywing V11122
Recommended Use: Agricultural drones, heavy-lift UAVs, industrial drones, coaxial multirotor platforms and professional UAV propulsion systems
