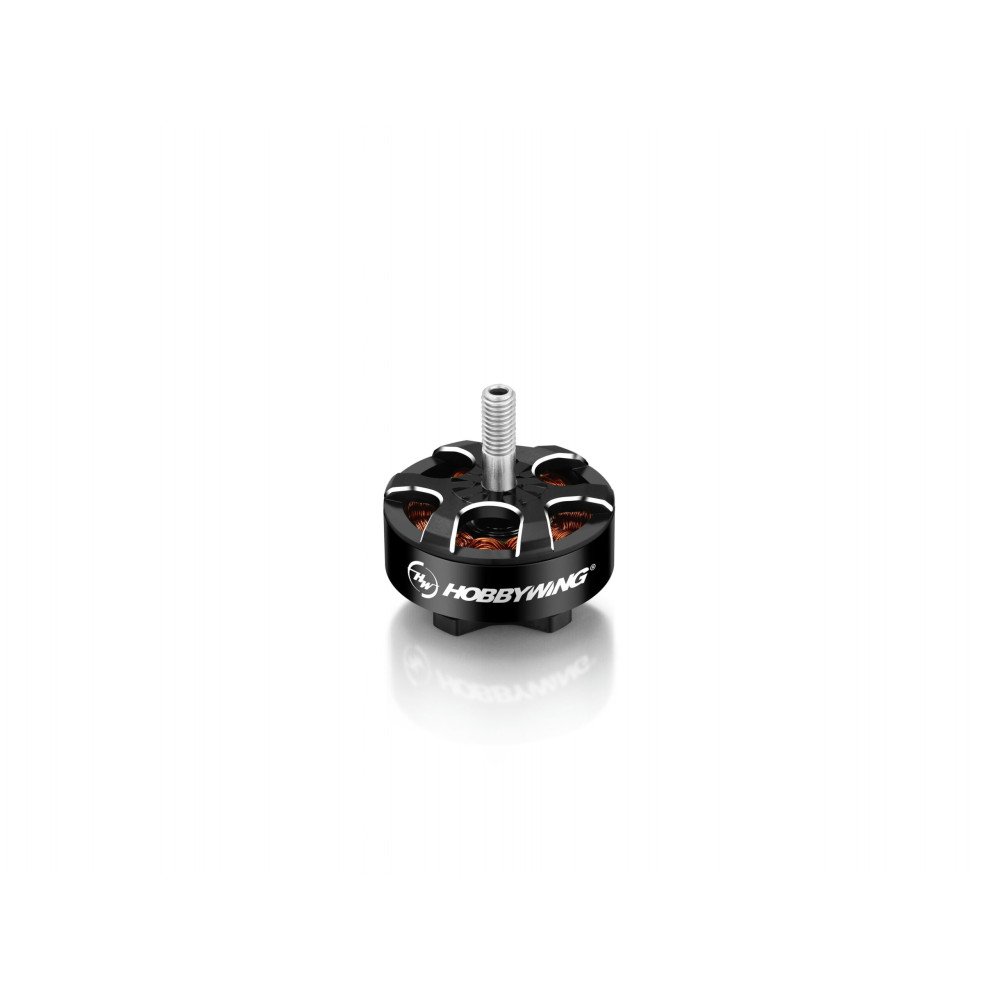

The Hobbywing XRotor 2207.5 1780KV is a high-efficiency FPV brushless motor designed for freestyle and high-performance FPV drones. With strong low-RPM torque, excellent throttle linearity, and smooth power delivery, it provides confident control for precise and dynamic flying.
Built with premium materials, optimized electromagnetic design, and efficient heat dissipation, the XRotor 2207.5 1780KV offers reliable performance, stable response, and long service life for demanding FPV applications.
Smooth & Precise Freestyle Performance
The 1780KV version is optimized for high torque and confident control.
It is ideal for smooth freestyle flying, offering precise throttle response and stable power delivery across the throttle range.
Excellent Linearity & Efficiency
The optimized electromagnetic design provides more torque at lower RPM.
This improves maneuverability, control feel, and overall flight precision during freestyle and technical flying.
Efficient Heat Dissipation
The motor features a self-cooling propeller mount design to help dissipate coil heat during flight.
This supports lower operating temperatures, improved efficiency, and extended motor lifespan.
Premium Materials
The XRotor 2207.5 uses high-performance 0.2 mm stator laminations for improved efficiency and reliability.
Its 220°C high-temperature resistant enameled wire helps improve durability under high-load FPV operation.
Strong arc-shaped magnets increase magnetic flux density and provide powerful, responsive motor output.
Anti-Slip Propeller Mount
The innovative anti-slip tooth structure on the propeller mount helps prevent propeller slippage.
This improves safety, reduces rotation loss, and ensures more consistent thrust delivery during aggressive flying.
Technical Specifications
Product: Hobbywing XRotor 2207.5 1780KV FPV Brushless Motor
Application: FPV freestyle and high-performance FPV drones
KV: 1780 KV
Battery: 6S LiPo
No-Load Current: 2.7 A / 24 V
Maximum Current: 41 A / 3 s
Rated Power Output: 130 W
Maximum Power: 988 W / 3 s
Maximum Thrust: 1827 g
Weight with Wires: 38 g
Motor Size: Φ28 × H19.9 mm
Stator Size: Φ22.5 × 7.6 mm
Motor Structure: 12N14P
Wire Size: 20 AWG
Wire Length: 150 mm
Internal Resistance: 76 mΩ
Shaft Diameter: Φ5 mm + M5
Shaft Length: 12 mm
Motor Mounting Dimensions: 4×M3 @ Φ16 mm
Recommended ESC: XRotor FPV G2 65A 4in1 ESC
Recommended Propellers: GF51466 / GF51477 / HQ 4.9×3.7×3 / HQ 5.1×4×3

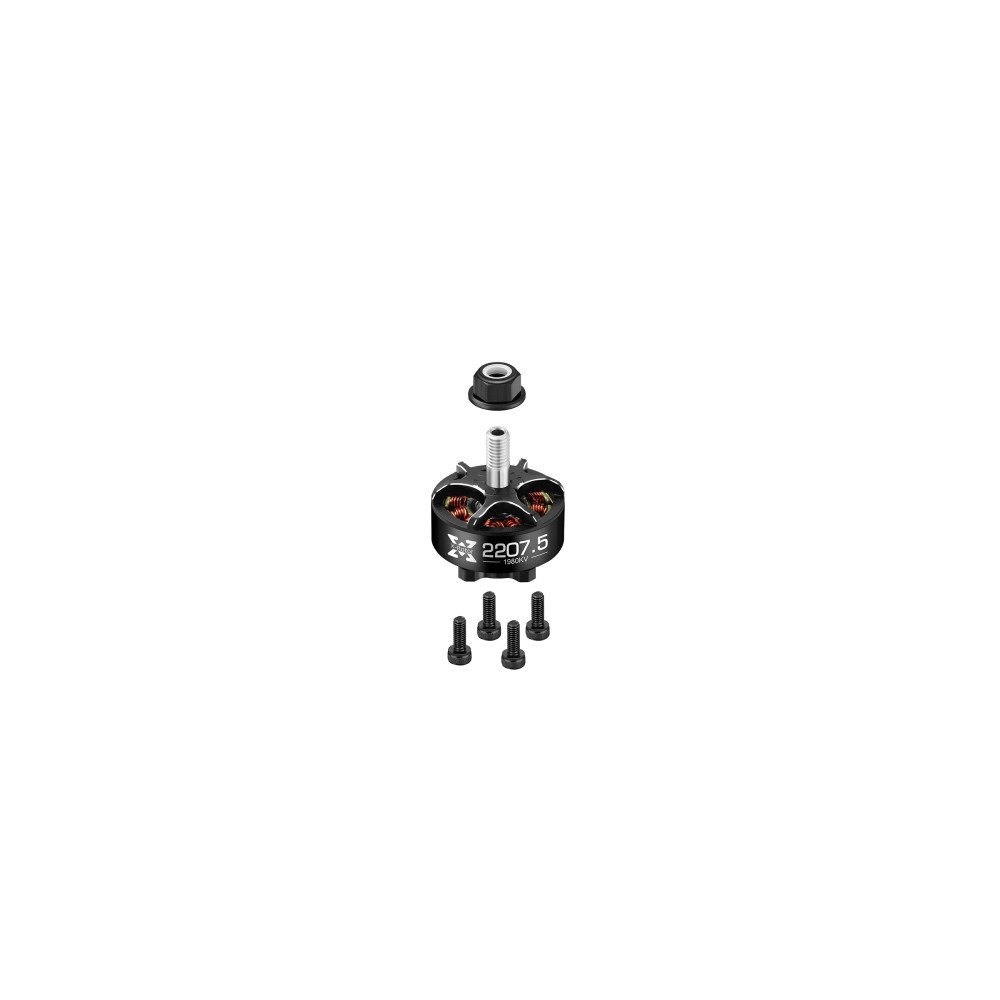

What’s Included
1× Motor
Propellers are sold separately.
