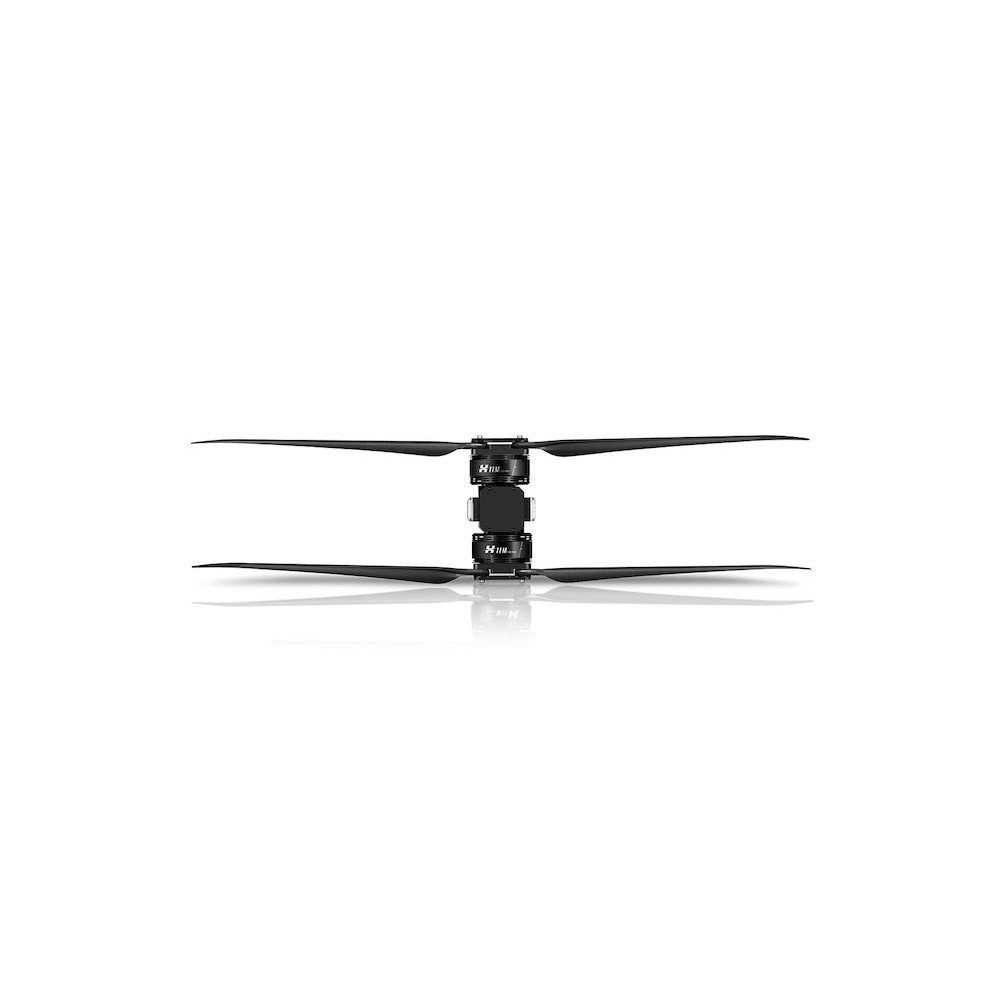

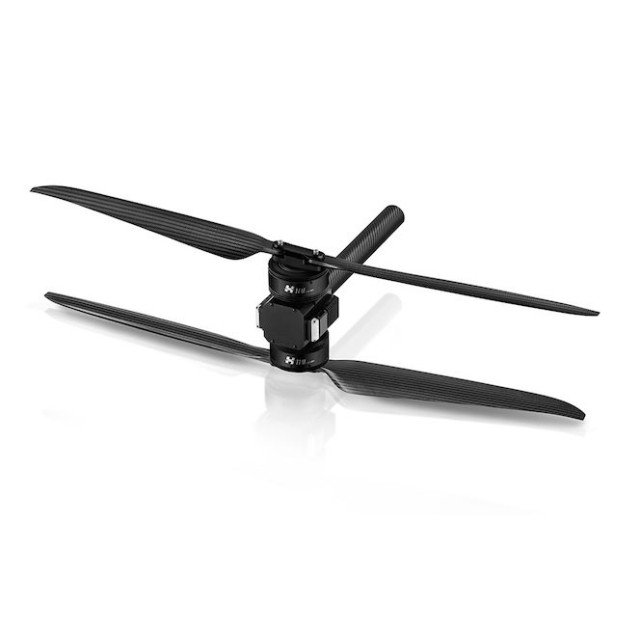

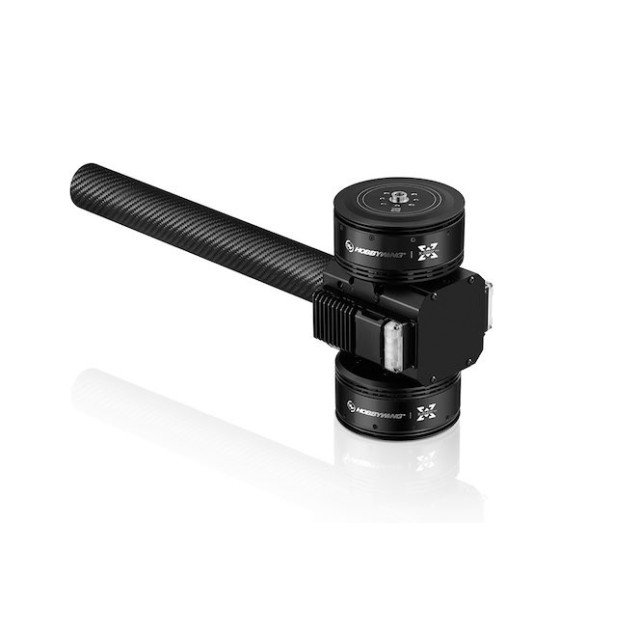

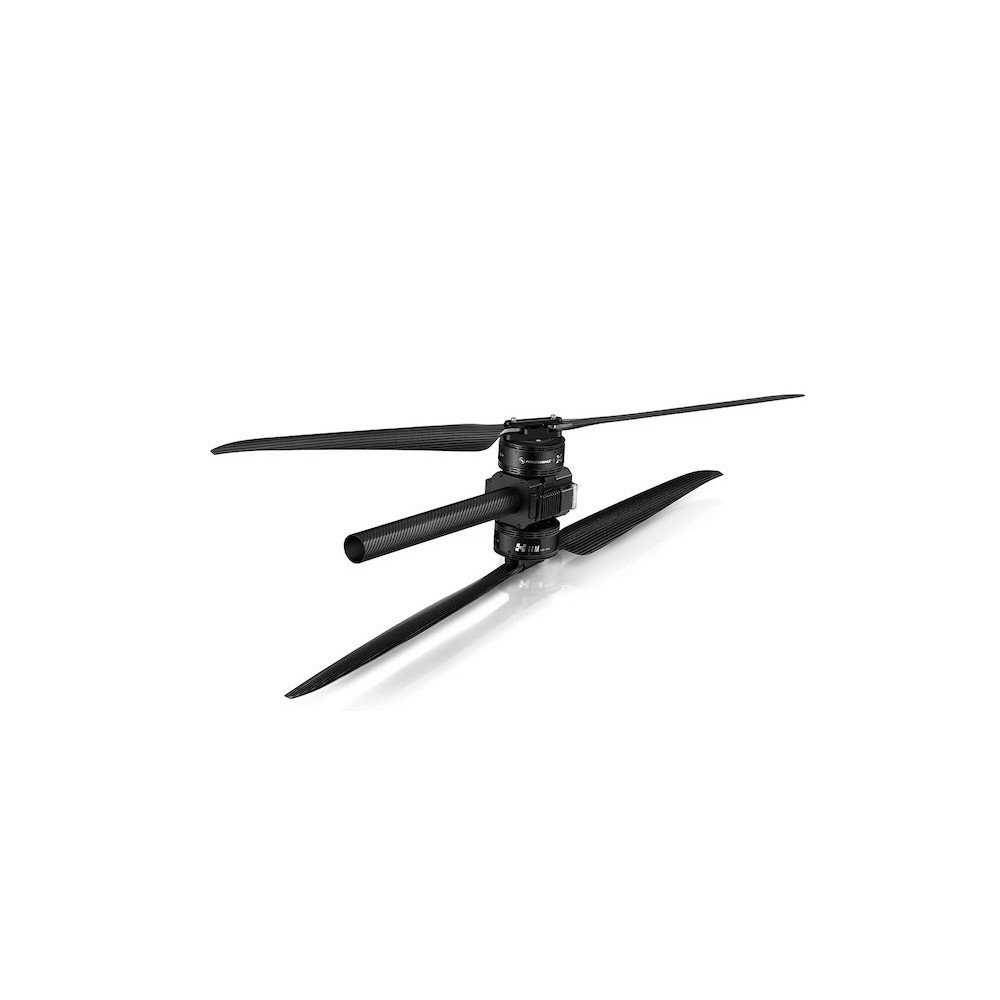

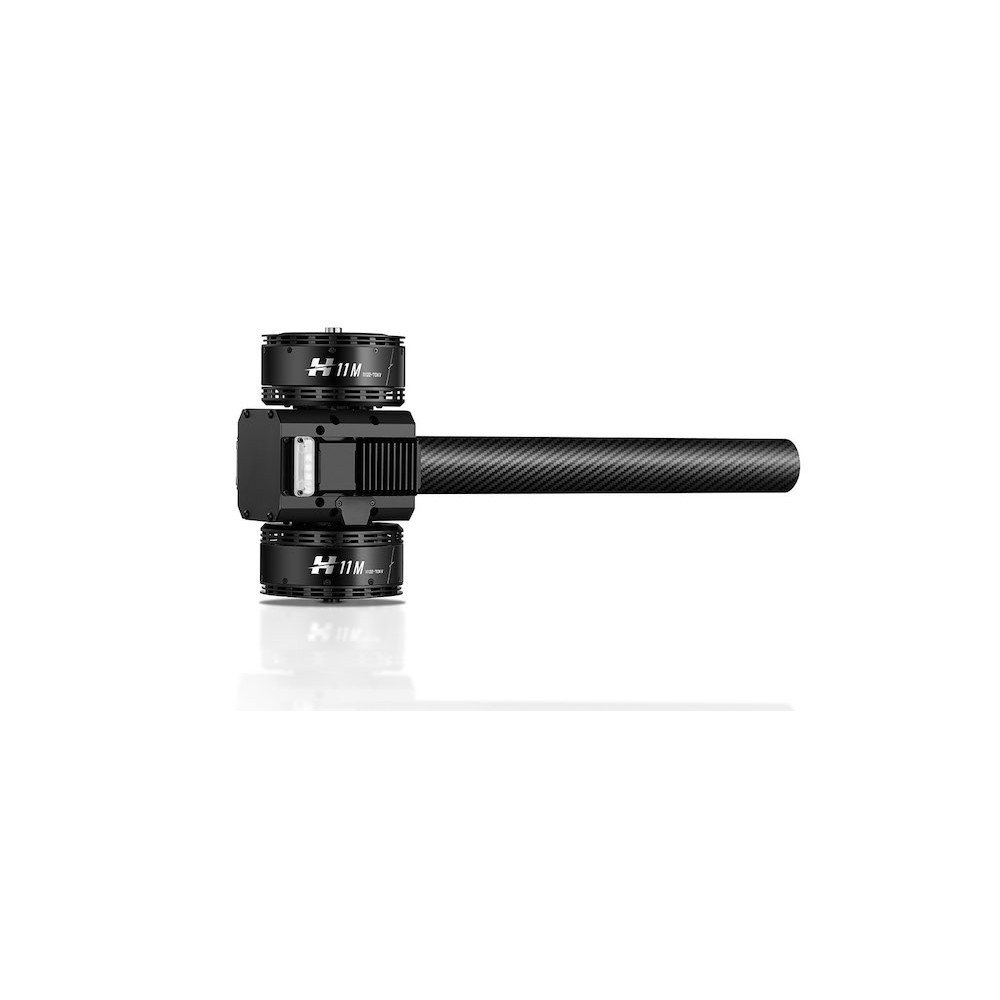

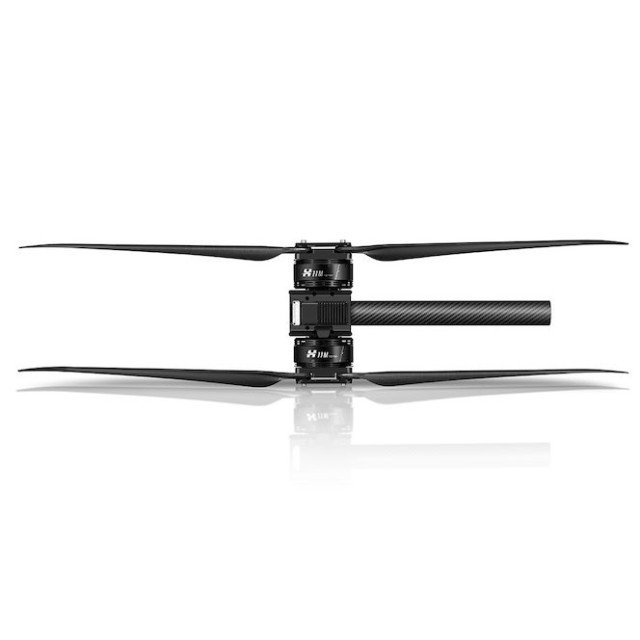

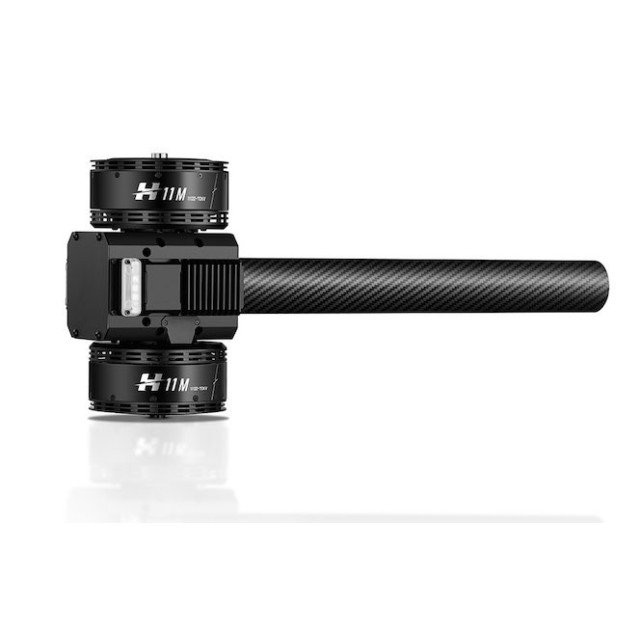

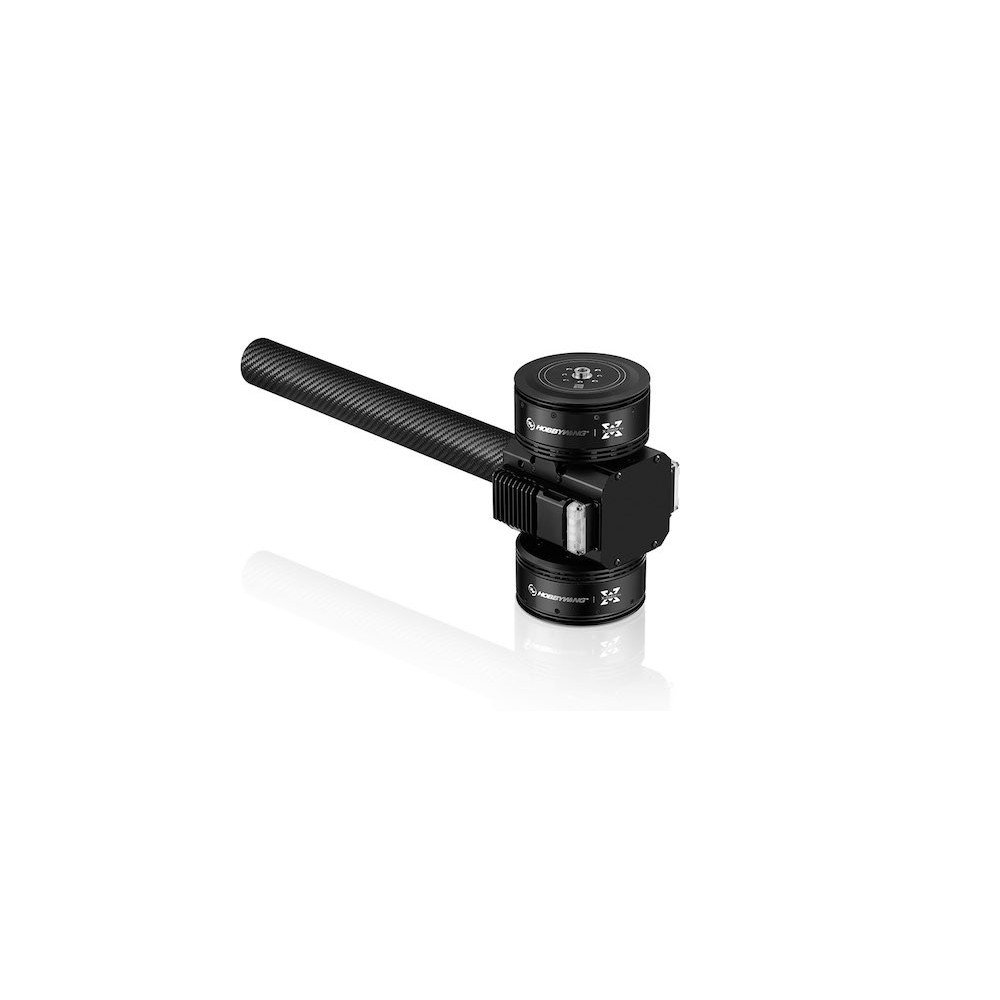

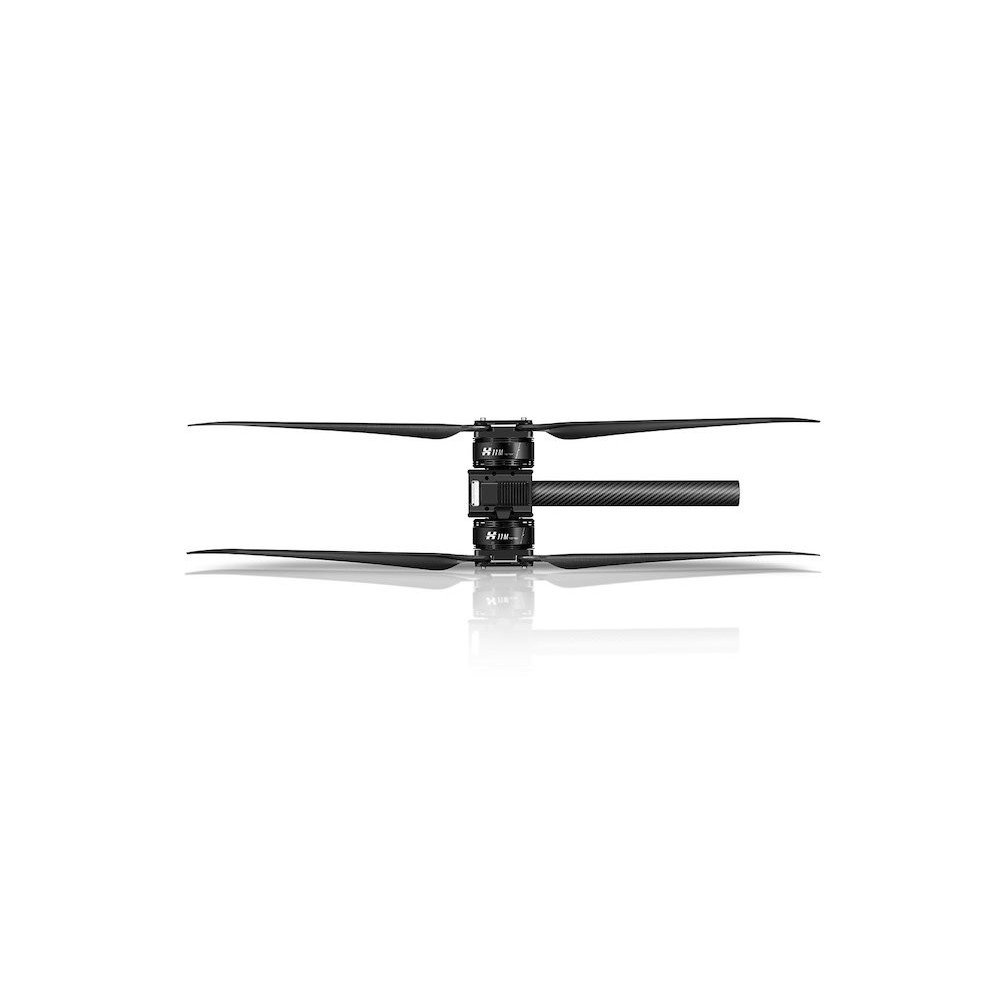

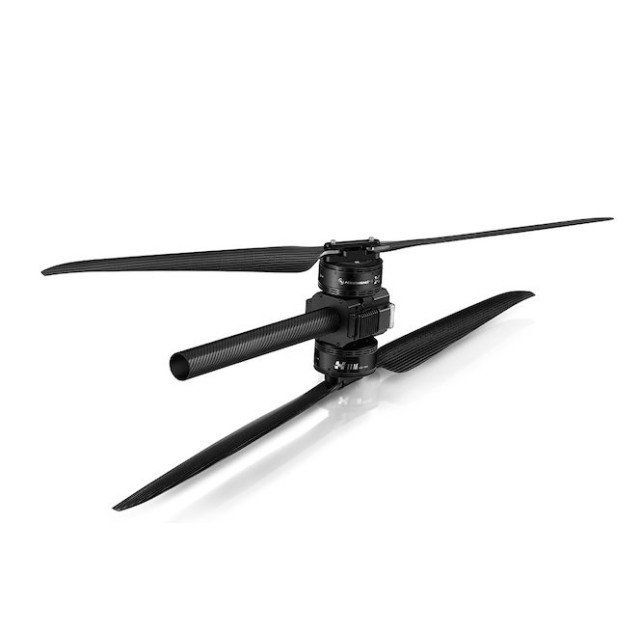

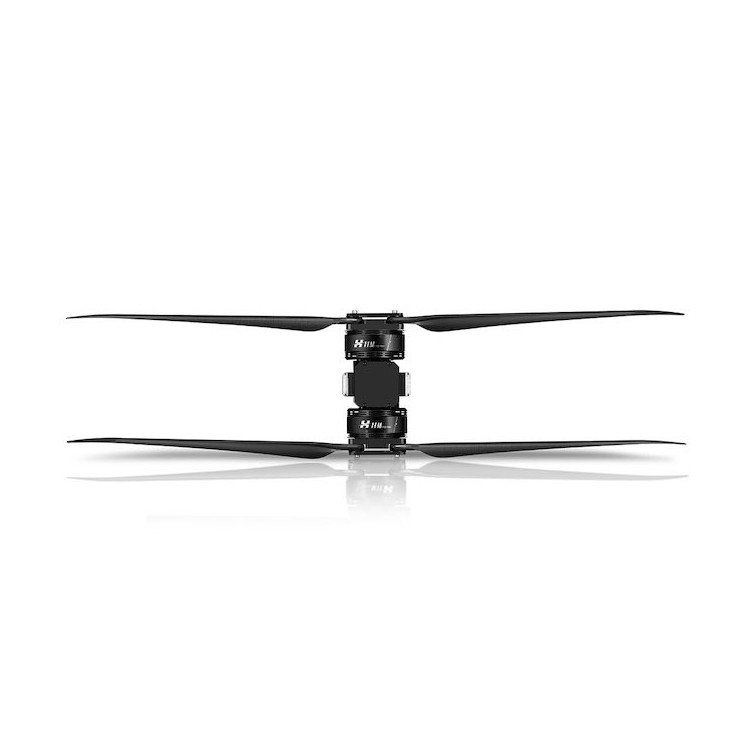

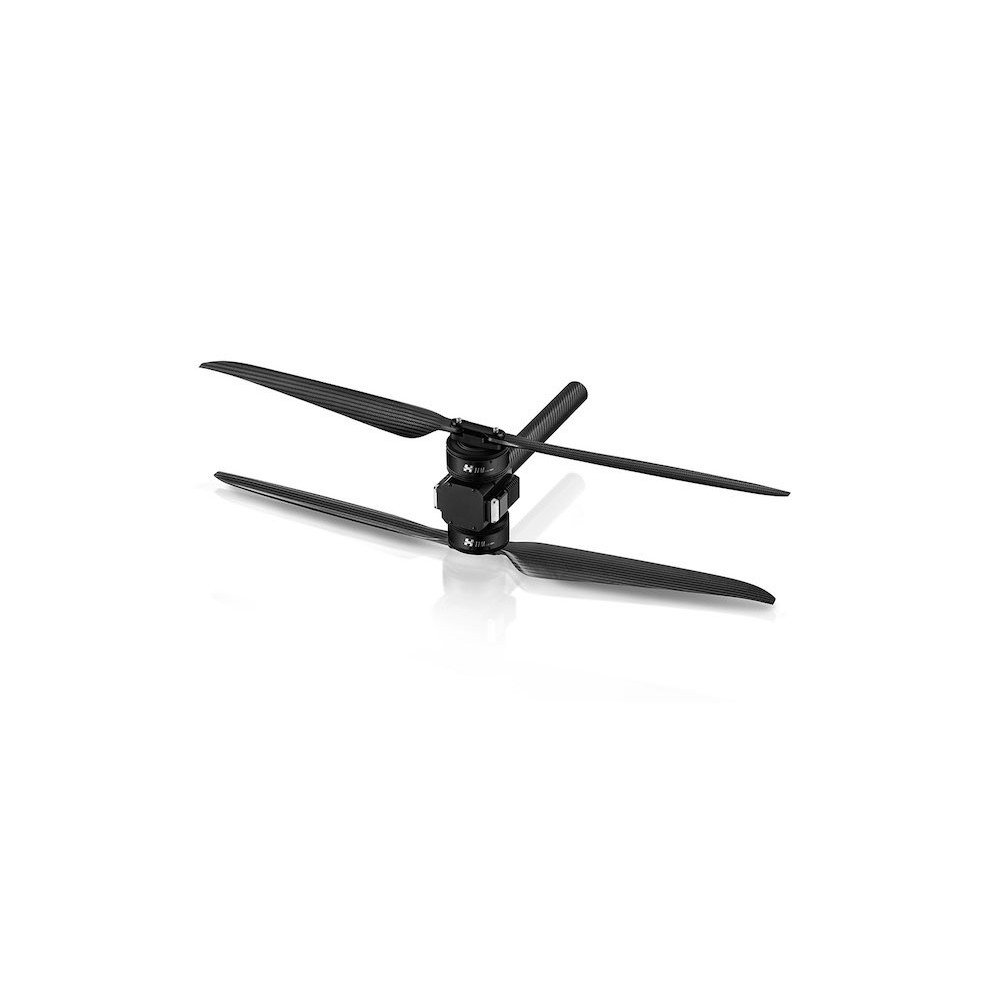

Hobbywing H11M Integrated Propulsion System

The Hobbywing H11M integrated propulsion system is designed for industrial heavy-lift drones, offering powerful thrust, high efficiency, and reliable operation in demanding environments. Ideal for logistics, emergency rescue, and long-endurance missions, it combines advanced motor, ESC, and propeller technologies into a ready-to-fly package.

Key Features

Heavy-Lift Performance

• Max thrust: 57.5 kg per axis

• Thrust per rotor: 25–28 kg

• Rated power input: 3600 W | Output: 3100 W

High-Efficiency Powertrain

• 14S LiPo battery compatibility

• 150A FOC sine wave ESC for precision control

• 48" carbon fiber propellers for stable, efficient flight

Reliability & Safety

• Dual throttle redundancy (PWM + CAN) for fail-safe control

• Real-time monitoring of voltage, current, temperature, and ESC status

• Fault storage and lifetime maintenance reminders

Rugged & Durable

• Operating temperature: -20°C to +50°C

• Ingress protection rating: IP45

• Waterproof bearings, UH-grade magnets, and anti-rust treated iron core

Optimized Design

• Dual centrifugal fan rotor for efficient cooling and dust prevention

• CD pattern motor housing for improved recognition and heat dissipation

• Lightweight construction: 4.35 kg (without propellers)
