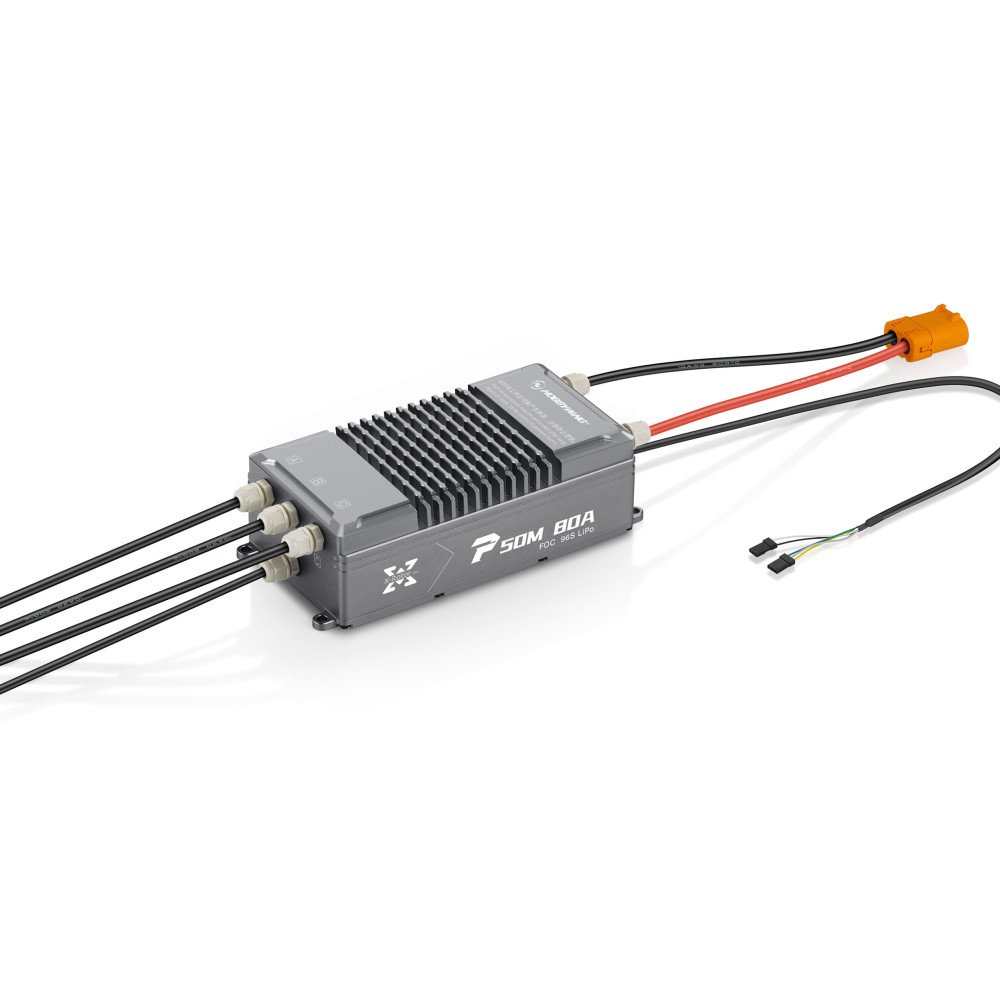

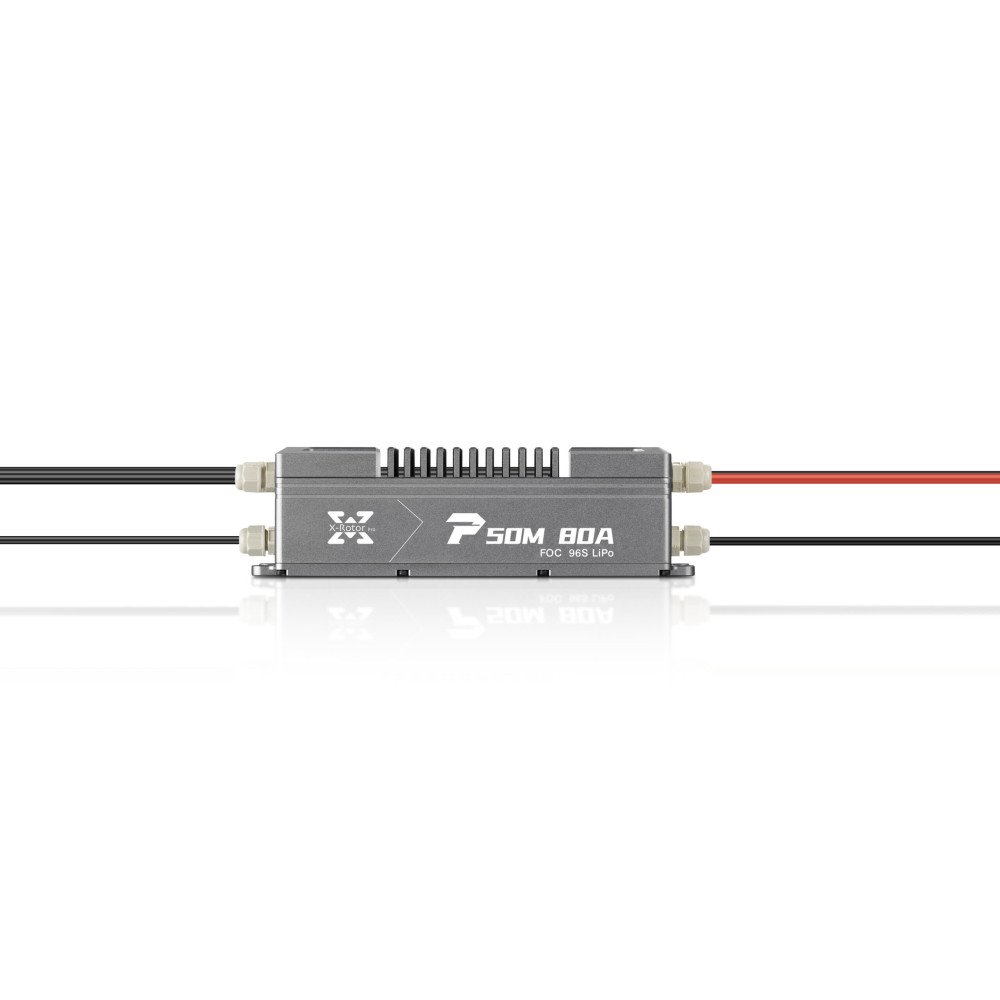

The Hobbywing XRotor Pro 80A 96S FOC P50M5423 is a high-voltage FOC ESC designed for large industrial UAV propulsion systems. Built for P50M power units and heavy-duty multirotor platforms, it provides precise motor control, real-time telemetry, and reliable operation for demanding professional drone applications.
With dual bus communication, triple throttle control modes, and sensored drive technology, the XRotor Pro 80A 96S FOC P50M5423 is engineered to improve propulsion reliability, flight safety, and system monitoring.
High-Voltage FOC ESC Design
The XRotor Pro 80A 96S FOC P50M5423 is designed for high-voltage UAV propulsion systems.
Its FOC control architecture provides precise motor driving, smooth throttle response, and stable power delivery for demanding industrial drone platforms.
The system supports high-voltage operation, with a normal flight operating voltage range from 280 V DC to 450 V DC.
Dual Bus Communication
The ESC supports dual bus communication protocols, including CAN and RS485.
This allows compatibility with professional UAV control systems and enables real-time data transmission during operation.
Triple Throttle Control Modes
The XRotor Pro 80A 96S FOC P50M5423 supports three throttle control configurations.
Available control modes include CAN + RS485, CAN + PWM, and RS485 + PWM.
This flexible architecture allows easier integration with different UAV control systems and professional propulsion setups.
Real-Time Telemetry & Monitoring
The ESC can transmit key propulsion data in real time.
Monitoring data includes RPM, throttle position, current, voltage, and temperature.
This helps improve system diagnostics, fault analysis, and overall flight safety.
Dual-Signal Redundancy
The dual signal channels enable real-time switching to improve propulsion system reliability.
This redundancy helps maintain safer operation in demanding UAV missions where signal stability is critical.
Sensored Drive Technology
The ESC uses sensored motor control to directly obtain motor speed data for precise motor driving.
This architecture improves control accuracy, response consistency, and overall propulsion reliability.
Technical Specifications
Product: Hobbywing XRotor Pro 80A 96S FOC P50M5423
Application: Large industrial UAV propulsion systems and P50M power units
ESC Type: High-voltage FOC ESC
Voltage Class: 96S
Normal Operating Voltage Range: 280–450 V DC
Hovering Thrust Voltage Range: 315–450 V DC
Maximum Thrust Voltage Range: 336–450 V DC
Continuous Current: 80 A
Current Specification: 130 A
BEC: None
Communication Protocol: CAN + RS485 / CAN + PWM / RS485 + PWM
CAN Protocol: Yes
Throttle Pulse Width: 1100–1940 μs
Throttle Calibration: Not supported
Drive Type: Sensored FOC drive
Telemetry: RPM, throttle position, current, voltage, and temperature
Parameter Adjustment: DEO on/off
Weight with Cable: 1,200 g
Size: 96.5 × 46 × 23.5 mm
What’s Included
1× ESC
