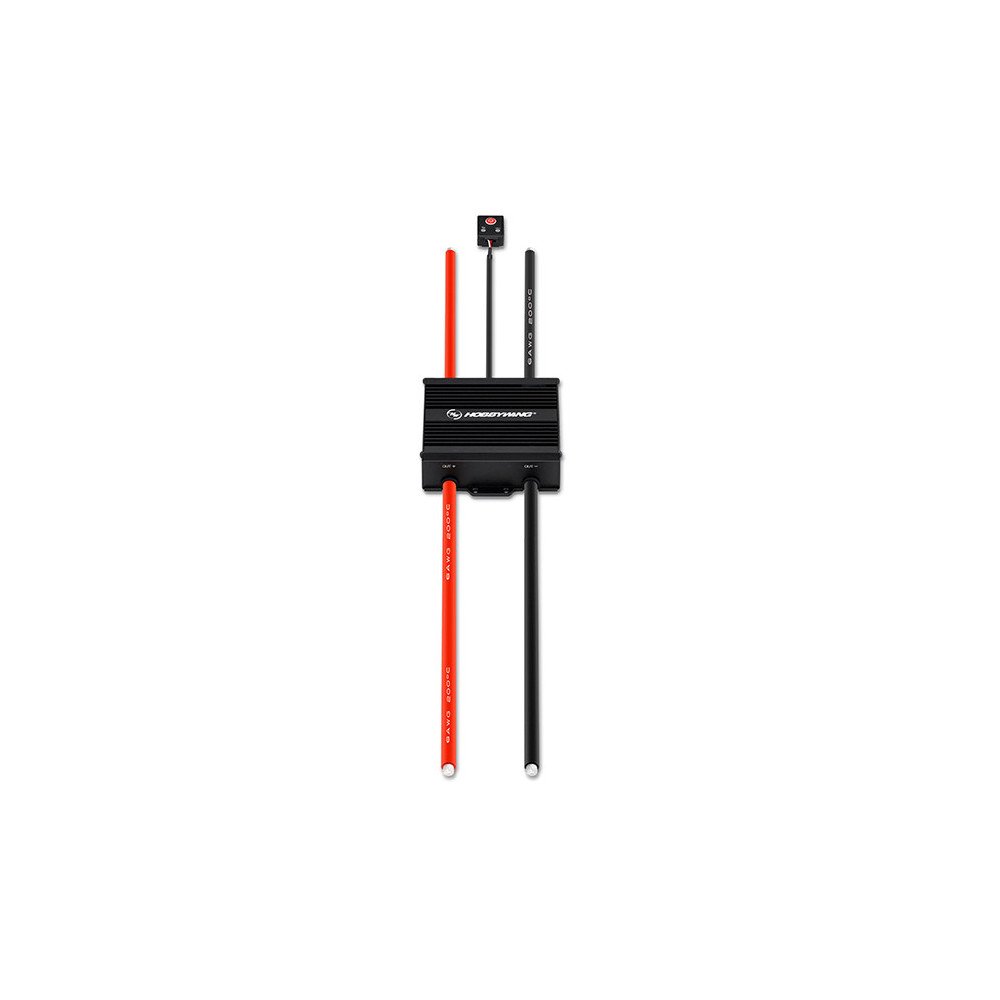

SEPS 250A-24S

The Hobbywing SEPS 250A-24S Safety E-Power Switch is a professional high-voltage anti-spark electronic switchdesigned for industrial UAVs, heavy-lift drones, FPV systems, agricultural drones, and high-power electric propulsion platforms.

Engineered for demanding aerial applications, the SEPS 250A-24S provides safe power switching, stable current delivery, and reliable protection for high-voltage drone power systems.

High-Voltage 24S Power Compatibility

The SEPS 250A-24S supports high-voltage lithium polymer batteries up to 24S, with an input voltage range of 54–104.4V.

This makes it suitable for large UAV propulsion systems, heavy-lift drones, industrial multirotors, and professional aerial platforms using high-voltage battery configurations.

250A Continuous Current Capability

Designed for high-power applications, the Hobbywing SEPS 250A-24S supports up to 250A continuous current under good heat dissipation conditions.

This stable current capability helps ensure reliable power delivery to ESCs and propulsion systems during demanding UAV missions, heavy payload flights, and high-current operation.

Anti-Spark 4-Second Power-On Delay

The SEPS 250A-24S features anti-spark technology with a 4-second delayed power-on function.

After activation, power delivery starts after approximately 4 seconds, helping eliminate sparks and noise during start-up.

This protects battery connectors, ESCs, and electronic components, making the system safer and more reliable for professional drone use.

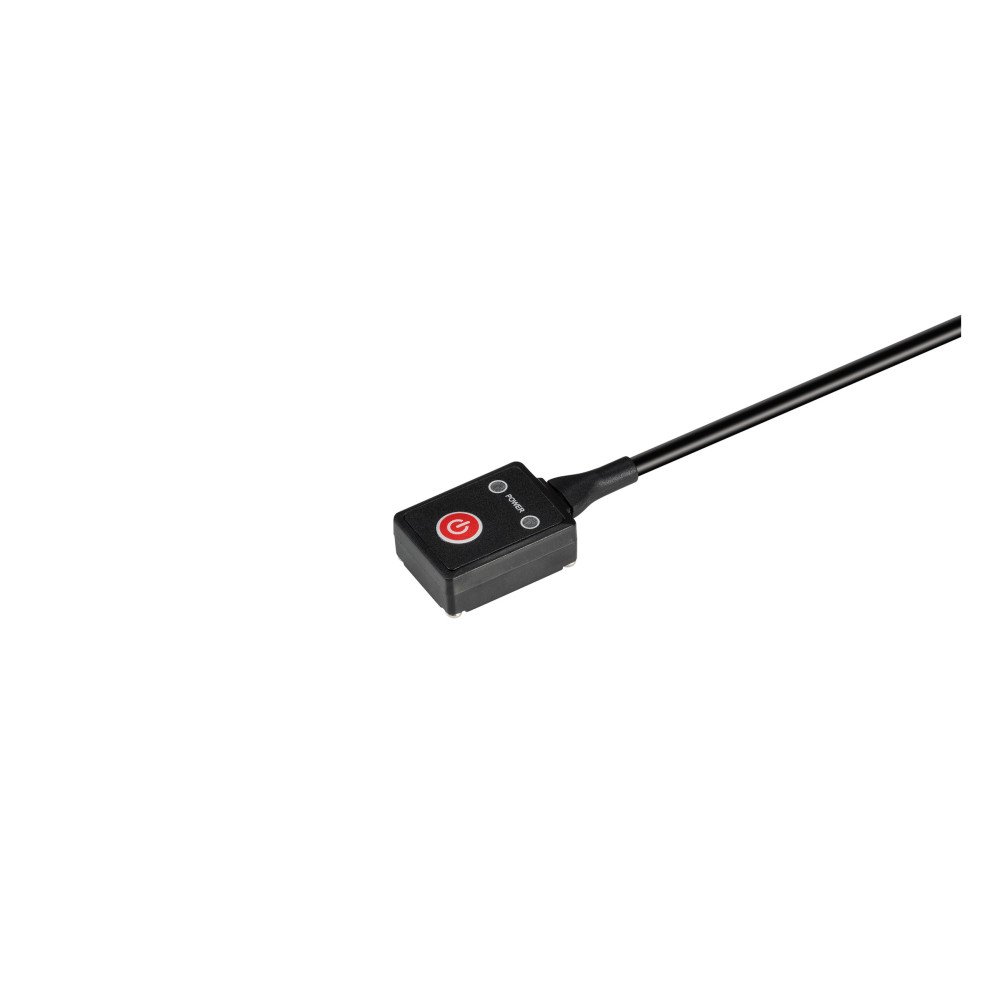

Safe Electronic Switching

The Hobbywing SEPS 250A-24S Safety E-Power Switch allows controlled connection and disconnection of the power circuit.

This helps reduce accidental power-up risks and improves safety during drone preparation, maintenance, battery connection, and field operation.

Its electronic switching system is designed for timely and reliable circuit control in professional UAV environments.

IP67 Waterproof & Dustproof Protection

The SEPS 250A-24S is built with IP67-rated protection, offering strong resistance against water, dust, and harsh operating environments.

This makes it suitable for outdoor UAV missions, agricultural drone operations, industrial inspection, field deployment, and heavy-duty professional use.

Industrial-Grade Reliability

Built with industrial-grade components, the Hobbywing SEPS 250A-24S is designed for long service life and stable operation.

The system has been validated through extensive reliability testing, including continuous power-on testing and flight testing, helping ensure safe and dependable performance in demanding UAV applications.

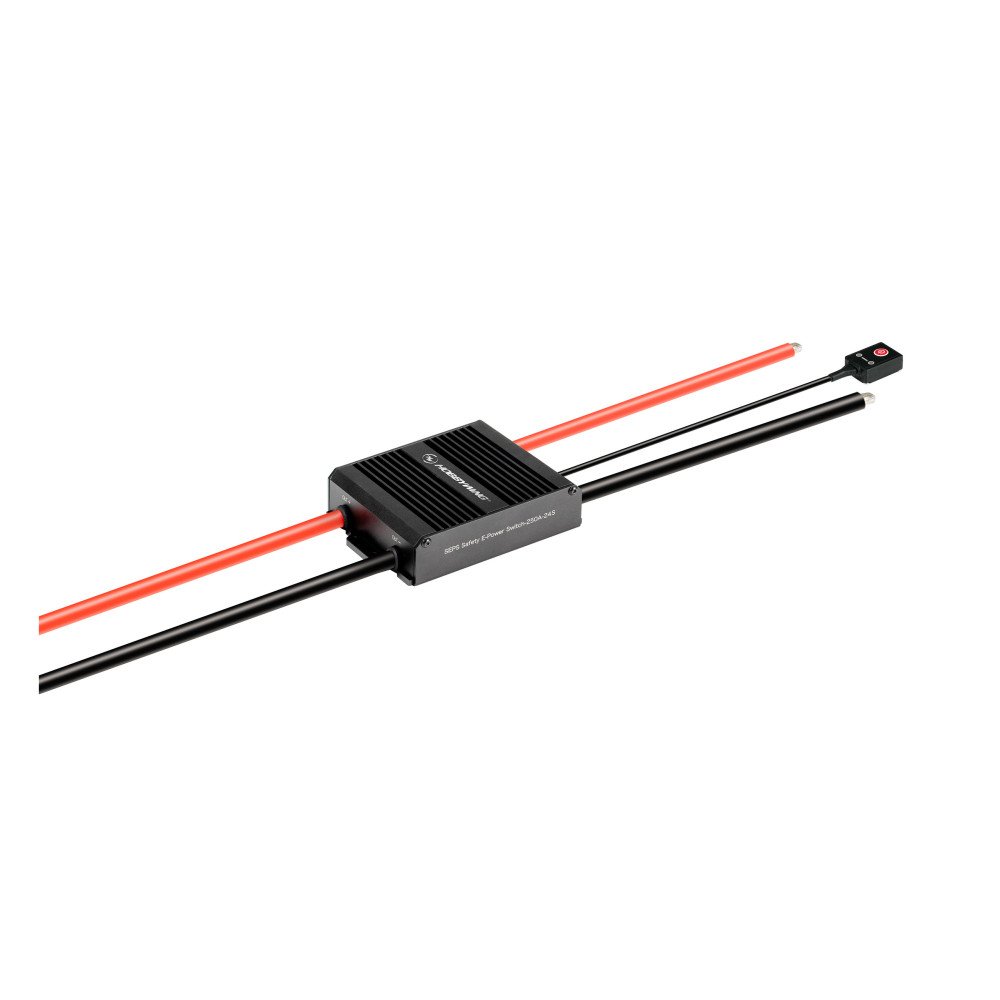

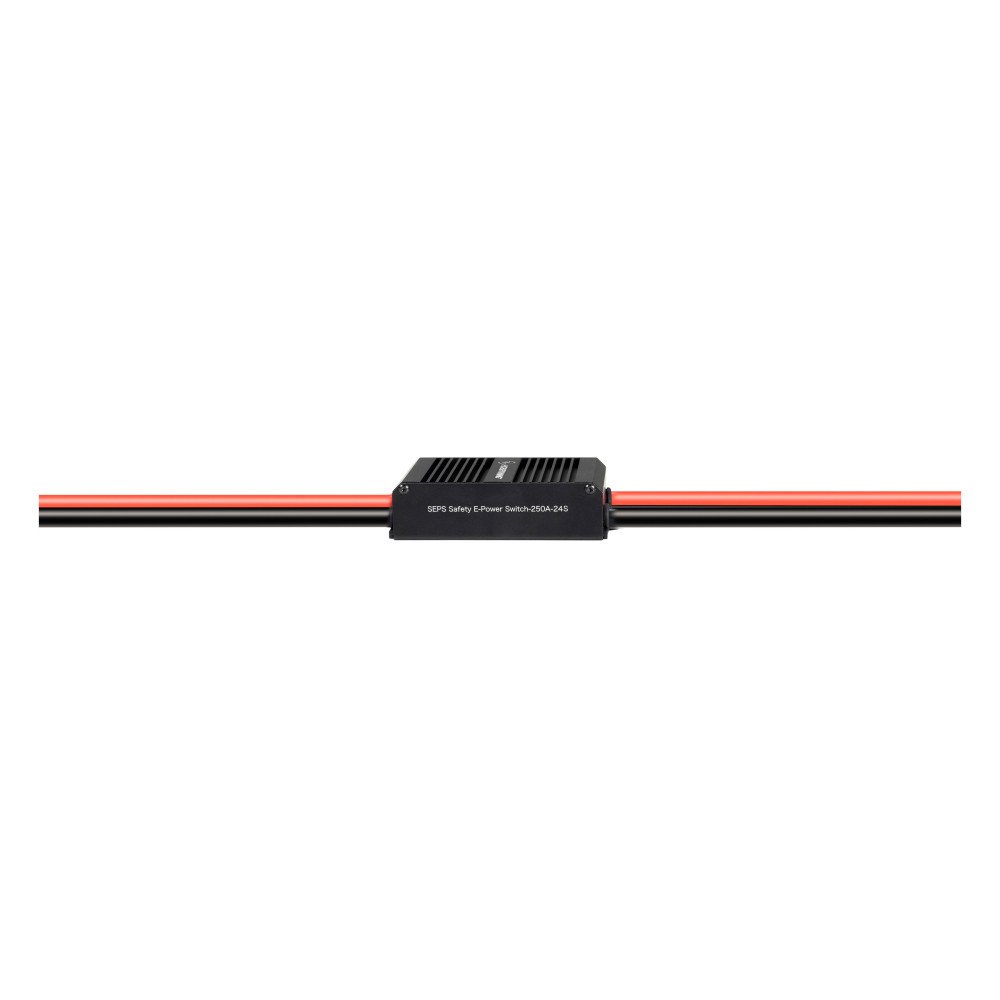

Compact & Robust Design

The SEPS 250A-24S uses a compact and robust housing with dimensions of 98 × 90 × 24 mm and a weight of 518.5 ±5 g.

Its 6AWG input and output wires are designed to support high-current power transmission, making the unit suitable for integration into professional high-voltage drone power systems.

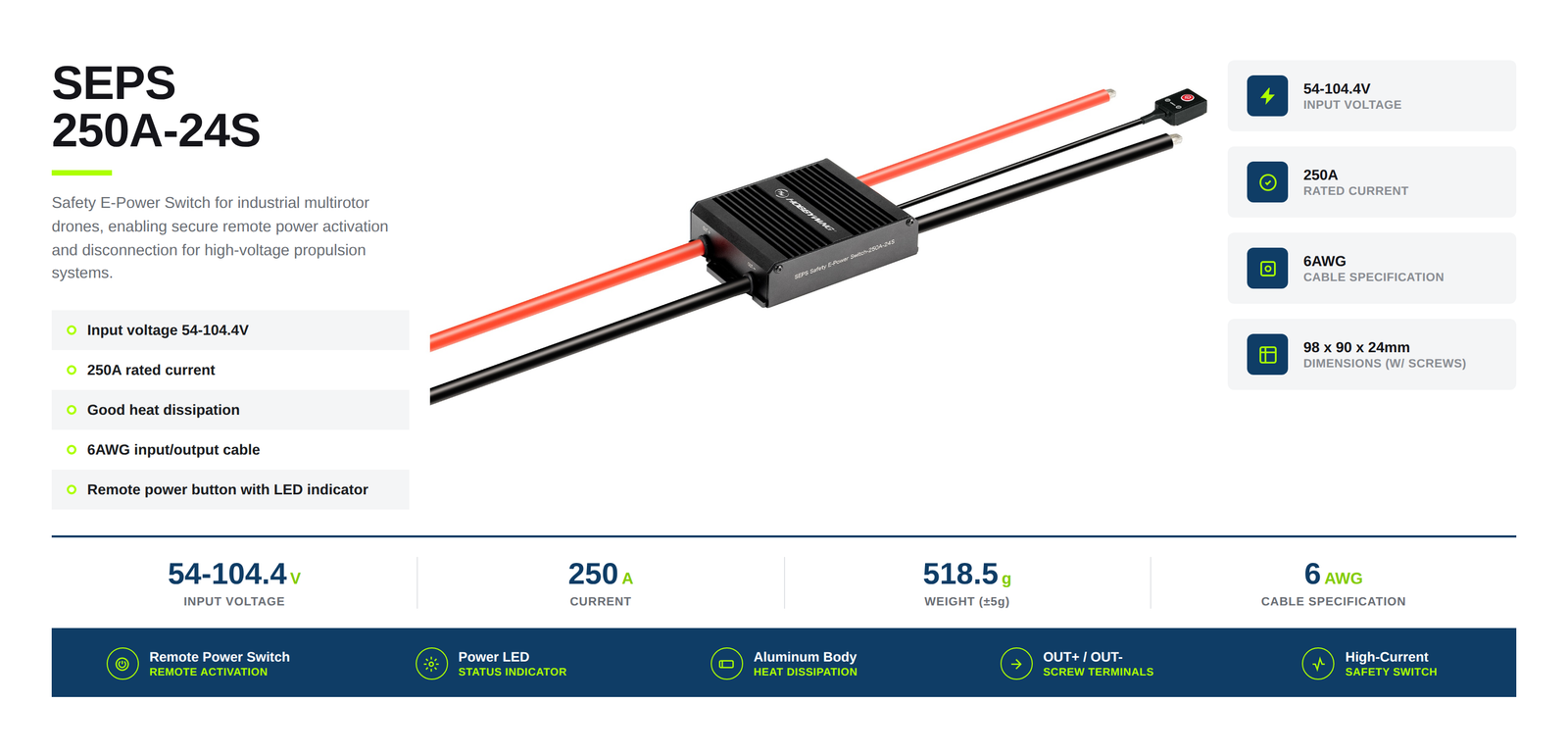

Technical Specifications

Product: Hobbywing SEPS 250A-24S Safety E-Power Switch
Product Type: Anti-spark electronic power switch
Battery Compatibility: Up to 24S LiPo
Input Voltage: 54–104.4V
Continuous Current: 250A with good heat dissipation
Power-On Function: 4-second delayed power-on
Protection Level: IP67 waterproof and dustproof
Input / Output Wire Specification: 6AWG
Dimensions: 98.0 × 90.0 × 24.0 mm with screw holes
Weight: 518.5 ±5 g
Recommended Use: High-voltage UAVs, industrial drones, heavy-lift platforms, FPV systems, agricultural UAVs and professional electric propulsion systems
