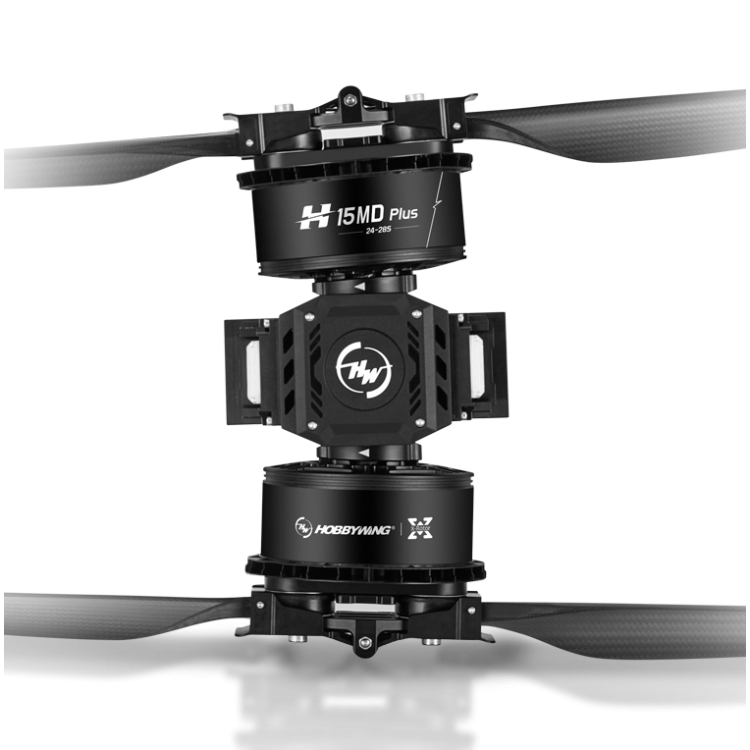

H15MD PLUS-24S

The Hobbywing H15MD Plus is the upgraded flagship of the H15 coaxial propulsion series, purpose-built for ultra-heavy-lift industrial UAVs. It delivers exceptional thrust, advanced control features, and reliable performance for the most demanding UAV missions.

Designed for 320 kg-class drones, the H15MD Plus is ideal for heavy logistics, material lifting, emergency rescue, firefighting, and operations in extreme environments.

Class-Leading Thrust Performance

The H15MD Plus delivers a rated thrust of 80 kg per axis.

With a maximum thrust of 195 kg per axis, it provides outstanding lift capability for ultra-heavy-lift industrial UAV platforms.

The system is compatible with 24S–28S LiPo batteries and has a total system weight of 14,550 ± 200 g without propellers.

Optimized Propeller Compatibility

The H15MD Plus is compatible with MSC 73×21 and MFC 73×23 carbon fiber propellers.

These large-diameter propellers are optimized for maximum efficiency under high-load operating conditions.

Advanced H15MD Platform Features

The system uses a self-developed FOC ESC with Hobbywing proprietary algorithms for precise and efficient motor control.

Intelligent Propeller Control, dual-throttle redundancy, and CAN communication provide stable and reliable operation.

Built-in 48-hour black box log storage and standard motor temperature monitoring help simplify diagnostics and maintenance.

The full protection suite includes overcurrent protection, stall protection, undervoltage protection, overvoltage protection, and temperature anomaly protection.

Heavy-Duty Industrial Design

The H15MD Plus is designed for 80 mm arm tubes with a 5 mm wall thickness.

The 3° tilt-angle motor base improves flight control authority and stability during heavy-lift operations.

With an operating temperature range from -40°C to +60°C and IPX6 waterproof protection, the system is built for harsh industrial environments.

Wide Industrial Applications

The H15MD Plus is suitable for ultra-heavy material lifting and mountain logistics transport.

It is also designed for emergency firefighting, large-scale rescue operations, and demanding industrial UAV missions.

Its robust design makes it suitable for high-altitude operations and extreme terrain environments.

Technical Specifications

Product: Hobbywing H15MD Plus Coaxial Propulsion System
Application: Ultra-heavy-lift industrial UAVs, logistics, lifting, firefighting, and rescue operations
Rated Thrust: 80 kg/axis
Maximum Thrust: 195 kg/axis
Drone Class: 320 kg-class UAVs
Battery: 24S–28S LiPo
System Weight without Propellers: 14,550 ± 200 g
Recommended Propellers: MSC 73×21 / MFC 73×23 carbon fiber propellers
ESC Type: Self-developed FOC ESC
Control Features: Intelligent Propeller Control, dual-throttle redundancy, and CAN communication
Log Storage: Built-in 48-hour black box
Monitoring: Motor temperature monitoring
Safety Protection: Overcurrent, stall, undervoltage, overvoltage, and temperature anomaly protection
Arm Tube Diameter: 80 mm
Arm Tube Wall Thickness: 5 mm
Motor Base Tilt Angle: 3°
Operating Temperature: -40°C to +60°C
Water Resistance: IPX6

Propellers are sold separately.
