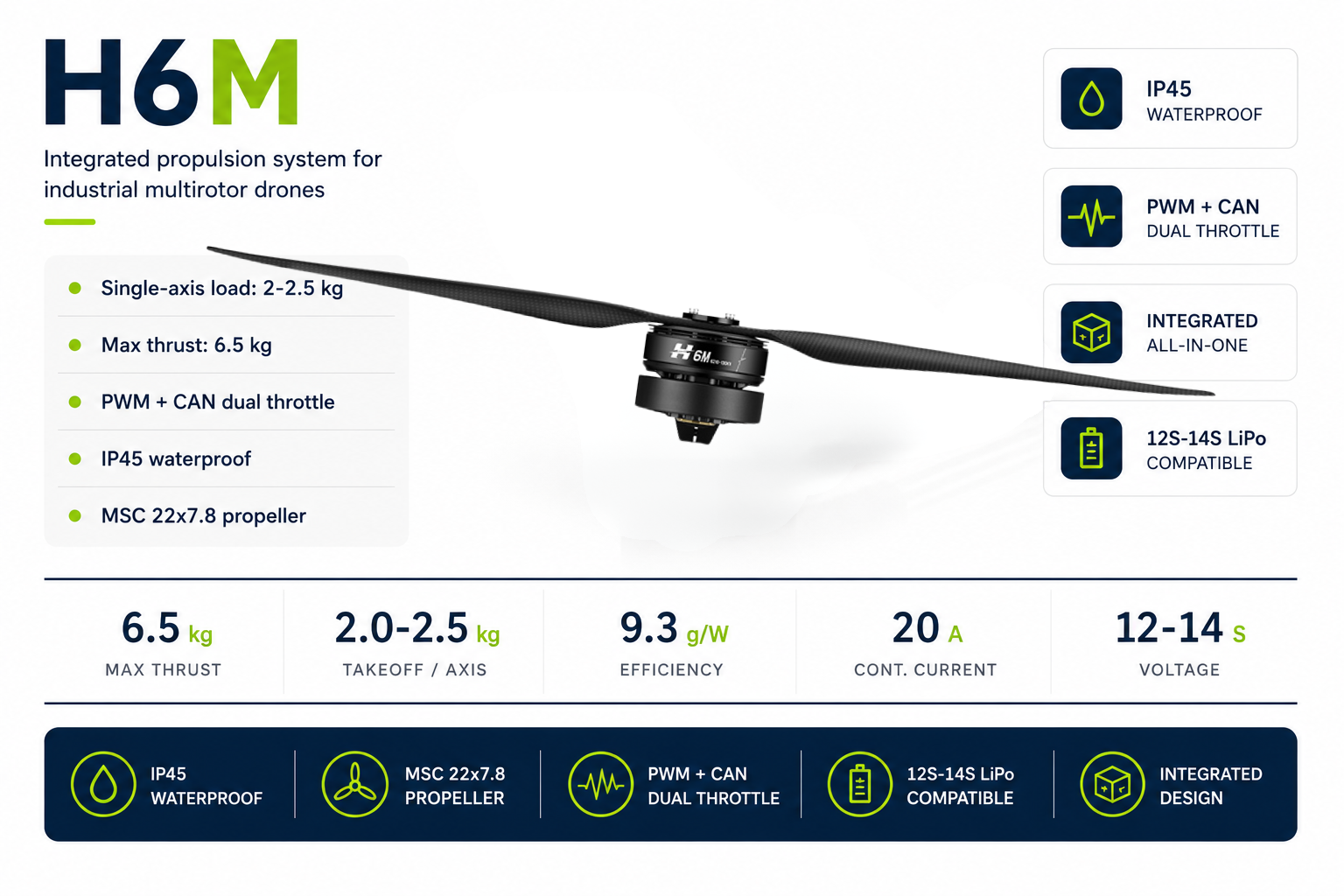

The Hobbywing H6M integrated propulsion system is engineered for professional multirotor drones. It combines the motor and ESC into a single compact unit for higher efficiency, improved reliability, and simplified installation.
Designed for industrial use, the H6M ensures safe and stable performance for aerial photography, mapping, inspection, and public safety missions.
Efficient & Reliable Performance
The H6M delivers a rated thrust of 2.5 kg per rotor with efficiency up to 9.3 g/W.
Its integrated motor and ESC design ensures smoother operation and simplified assembly.
The self-developed FOC sine wave ESC provides precise, quiet, and efficient control.
Redundant & Safe Control
Dual throttle redundancy with PWM and CAN control provides secure and fail-safe operation.
Seamless throttle switching in 16 ms or less helps ensure continuous flight safety.
Real-time fault storage and monitoring with automatic system logging simplify diagnostics and maintenance.
Advanced Cooling & Durability
The built-in centrifugal fan with cascading air outlets increases cooling efficiency by 20%.
The system operates 15–20°C cooler than conventional propulsion systems.
With an IP45 protection rating, the H6M is waterproof and dustproof for demanding operating environments.
Industrial-Grade Materials
The H6M uses H+ high-temperature resistant enameled wire rated above 200°C.
It is tested for extreme environments from -20°C to +65°C.
Its rugged design ensures long service life in demanding industrial conditions.
Optimized Design
The CD-pattern rotor design improves recognition and enhances heat dissipation.
The lightweight and modular structure allows easier maintenance and integration.
The system is compatible with Hobbywing DataLink for diagnostics, tuning, and system monitoring.
Technical Specifications
Product: Hobbywing H6M Integrated Propulsion System
Application: Aerial photography, mapping, inspection, and public safety UAVs
Rated Thrust: 2.5 kg/rotor
Maximum Efficiency: Up to 9.3 g/W
Design: Integrated Motor + ESC
ESC Type: Self-developed FOC sine wave ESC
Throttle Control: PWM + CAN
Throttle Switching Time: ≤16 ms
Cooling Improvement: +20%
Temperature Reduction: 15–20°C cooler than conventional systems
Ingress Protection: IP45
Operating Temperature: -20°C to +65°C
Wire Rating: H+ high-temperature resistant enameled wire >200°C
Diagnostics: Real-time fault storage and automatic system logging
Compatibility: Hobbywing DataLink
Propellers are sold separately.
