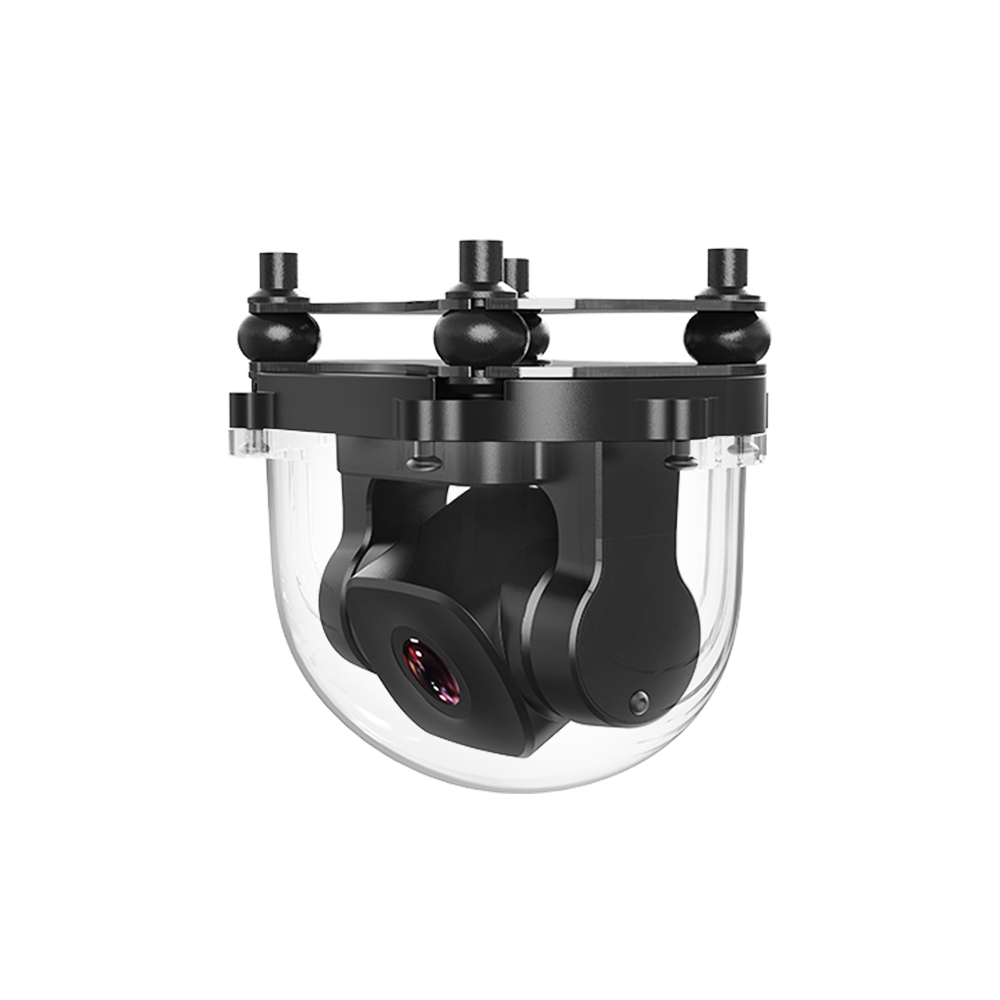

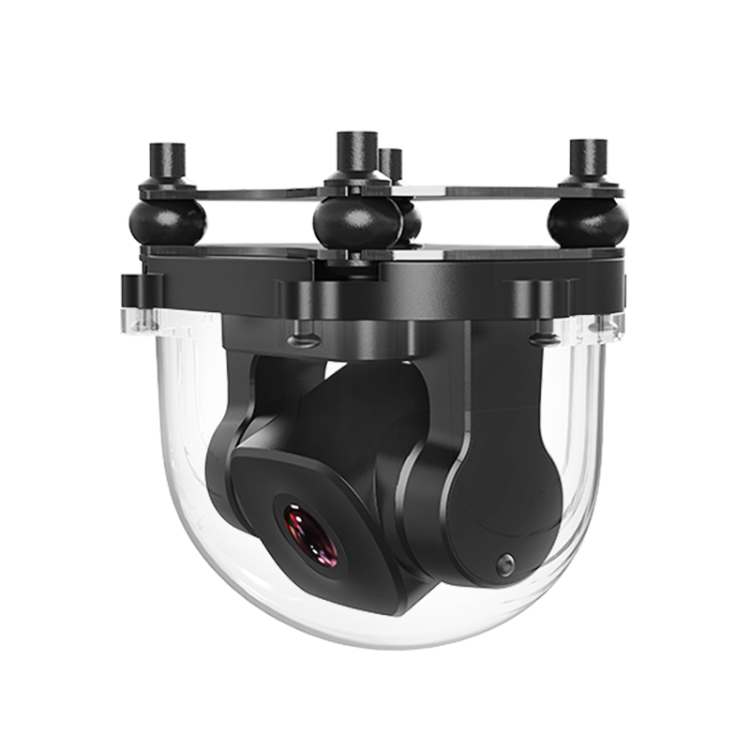

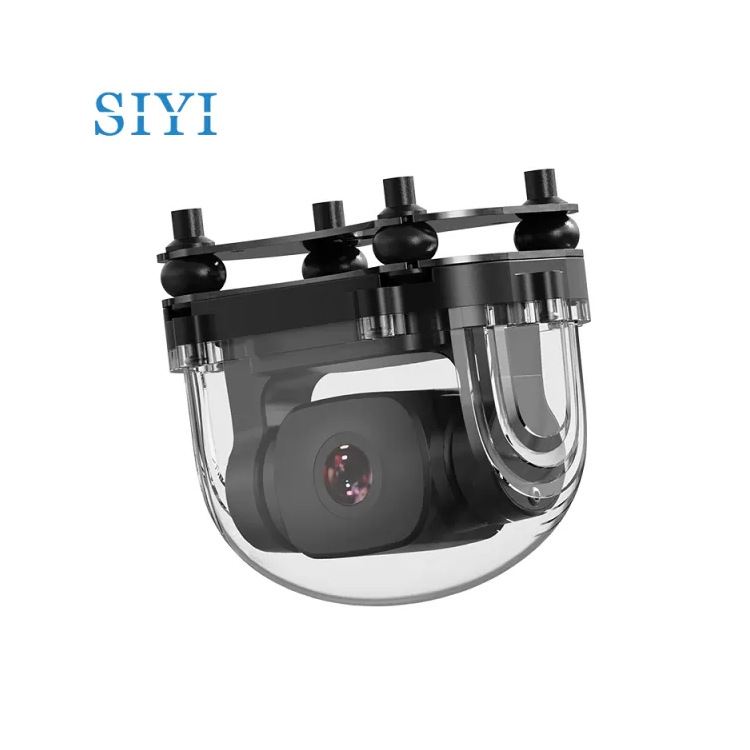

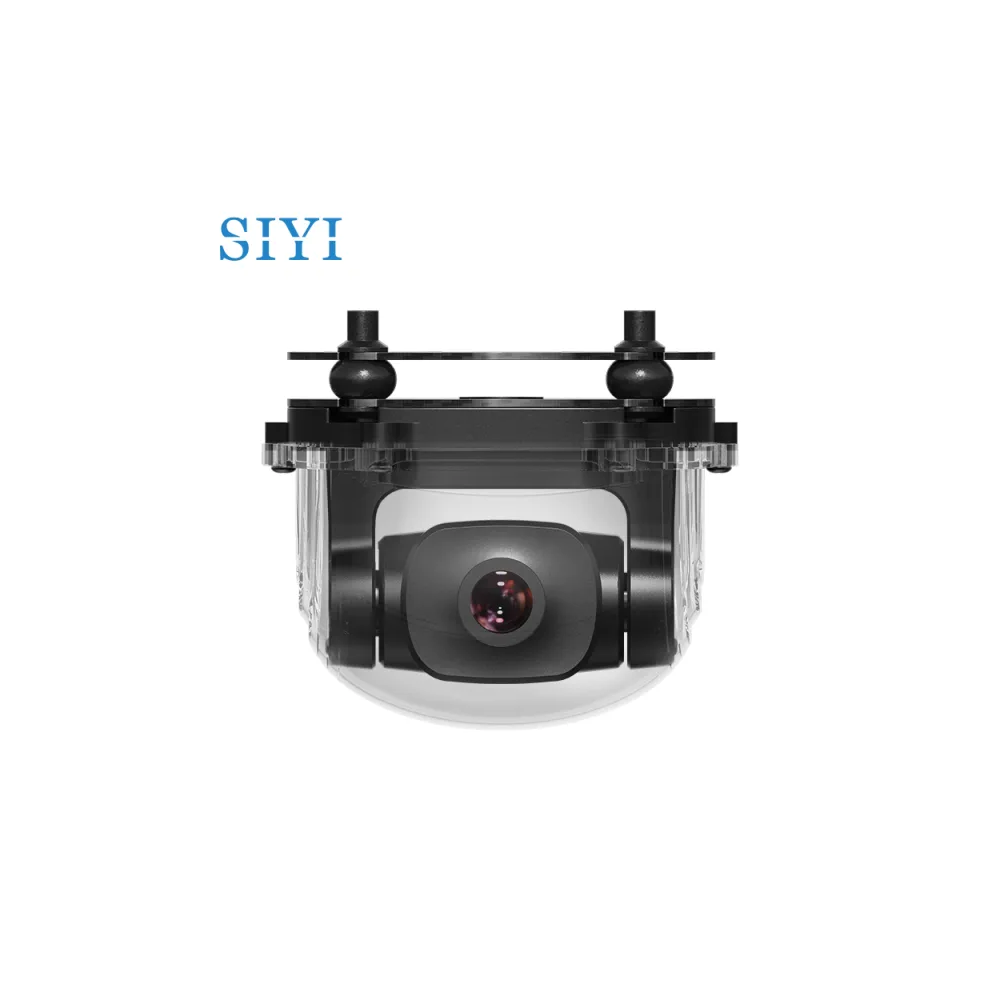

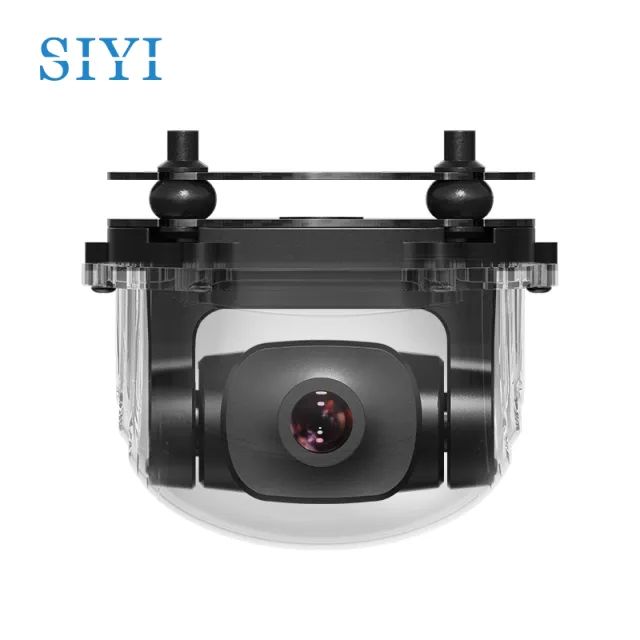

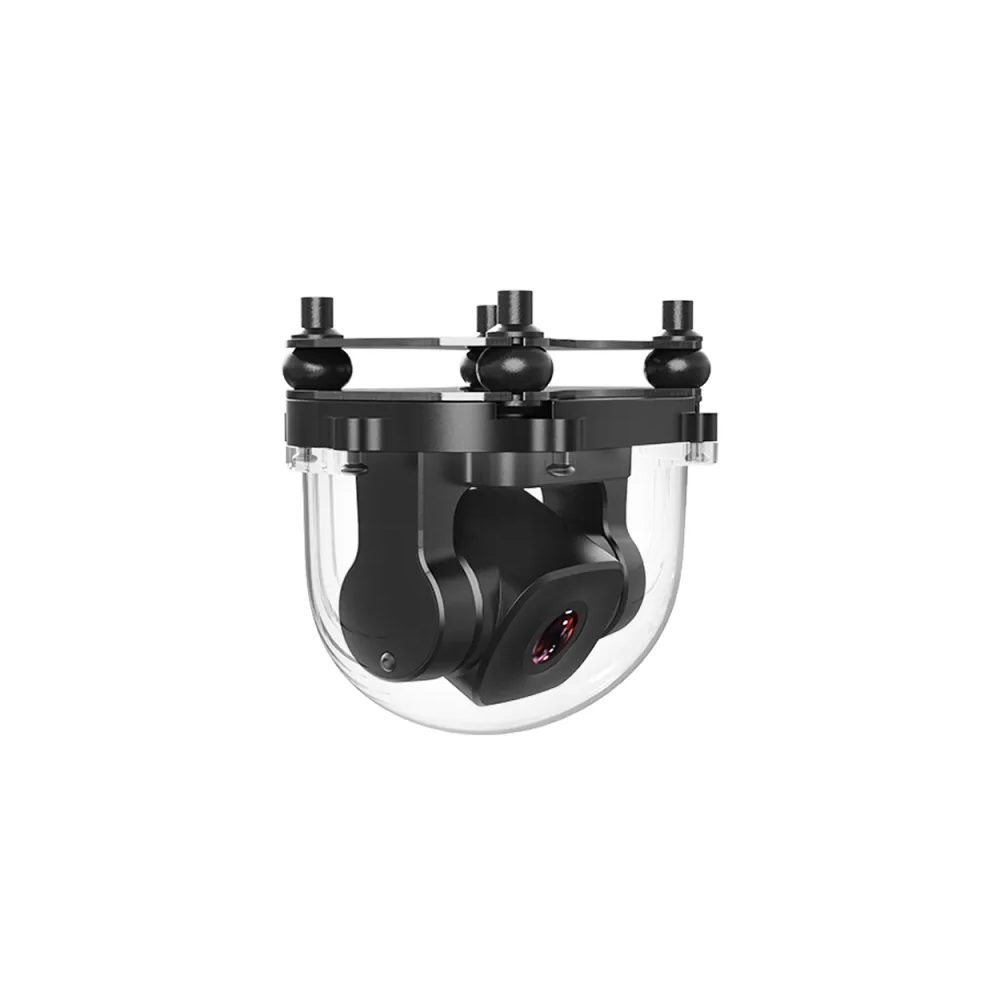

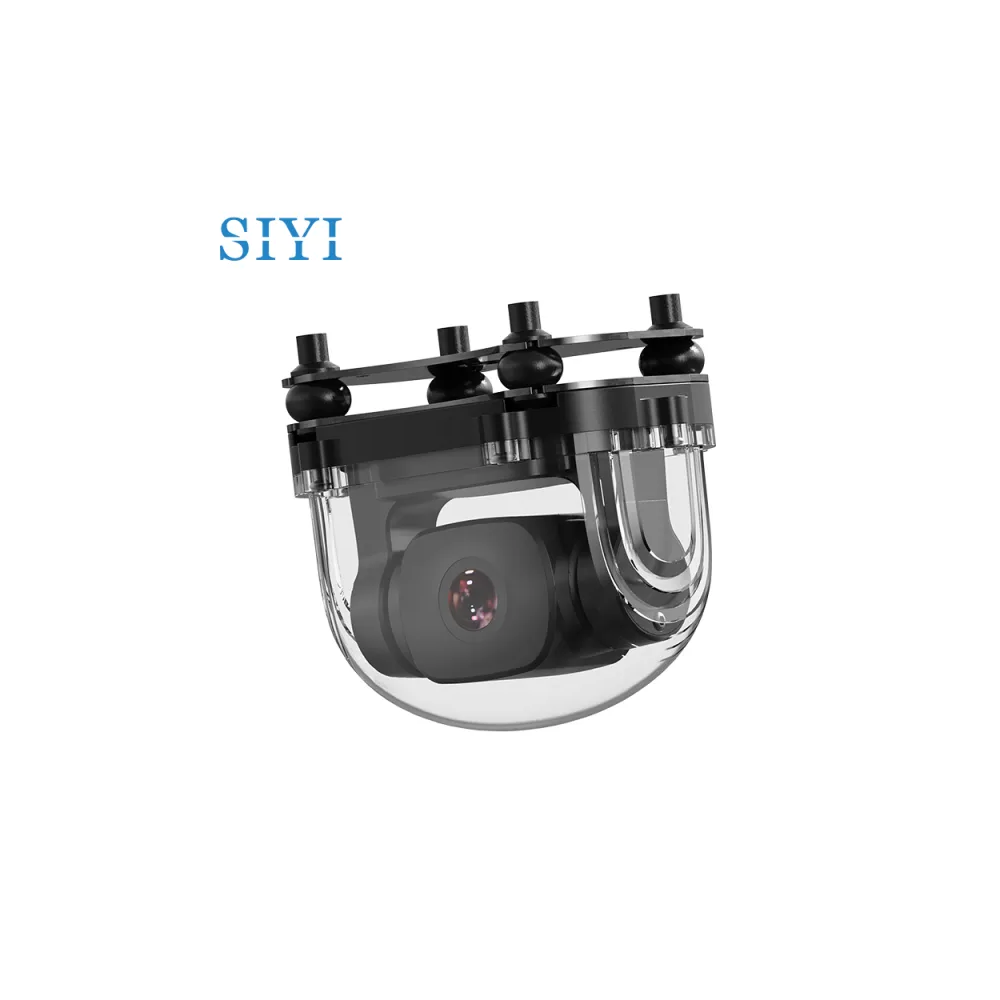

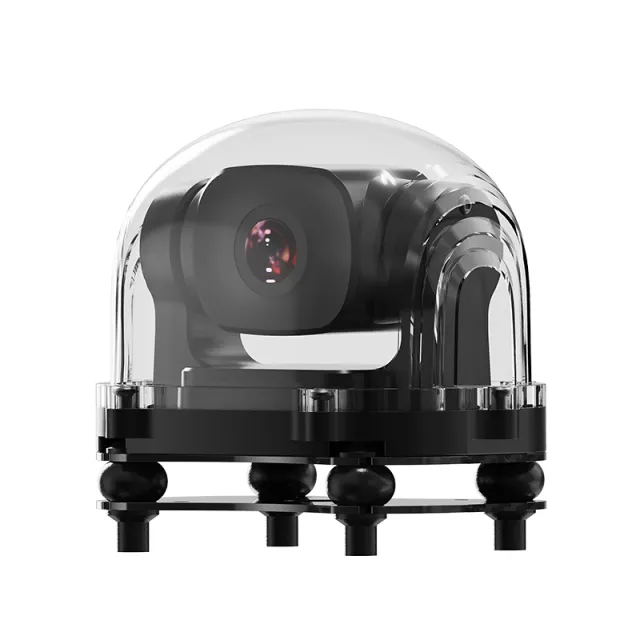

The SIYI A2 Mini Wide Angle FPV Gimbal is a compact ultra-wide-angle FPV camera designed for UAV, UGV, and robotic applications. With its 160° horizontal field of view, 1080p starlight camera, and single-axis tilt gimbal, it provides a wide and stable visual feed for professional remote operation.
Lightweight, compact, and protected for demanding environments, the A2 Mini is ideal for FPV monitoring, agricultural drones, inspection platforms, and industrial robotic systems.
Ultra-Wide-Angle FPV View
The A2 Mini features a 160° horizontal field of view for wide-area visibility.
This ultra-wide-angle design helps pilots and operators maintain better situational awareness during flight or remote vehicle operation.
Full HD Starlight Camera
Equipped with a 1/2.7-inch CMOS sensor and 2 MP effective resolution, the A2 Mini delivers clear 1080p FPV video.
The starlight camera design improves visibility in low-light conditions, making it suitable for demanding outdoor and industrial environments.
Single-Axis Tilt Gimbal
The single-axis tilt gimbal provides controllable pitch movement from -90° to +25°.
This allows the operator to adjust the camera angle during operation for better viewing flexibility and mission control.
Compact & Lightweight Design
With a weight of only 85 g and compact dimensions of 65 × 43 × 50 mm, the A2 Mini is easy to integrate into small and medium UAV platforms.
Its lightweight design helps reduce payload impact while maintaining reliable FPV performance.
Rugged Protection
The A2 Mini features industrial-grade IP67 protection for reliable use in harsh environments.
Its protected structure helps resist dust, water exposure, and demanding field conditions.
Flexible Integration
The camera supports Ethernet video output and multiple control input options, including S.Bus, PWM, and Ethernet UDP.
This makes it suitable for integration with SIYI link systems, UAV platforms, UGVs, and other robotic applications.

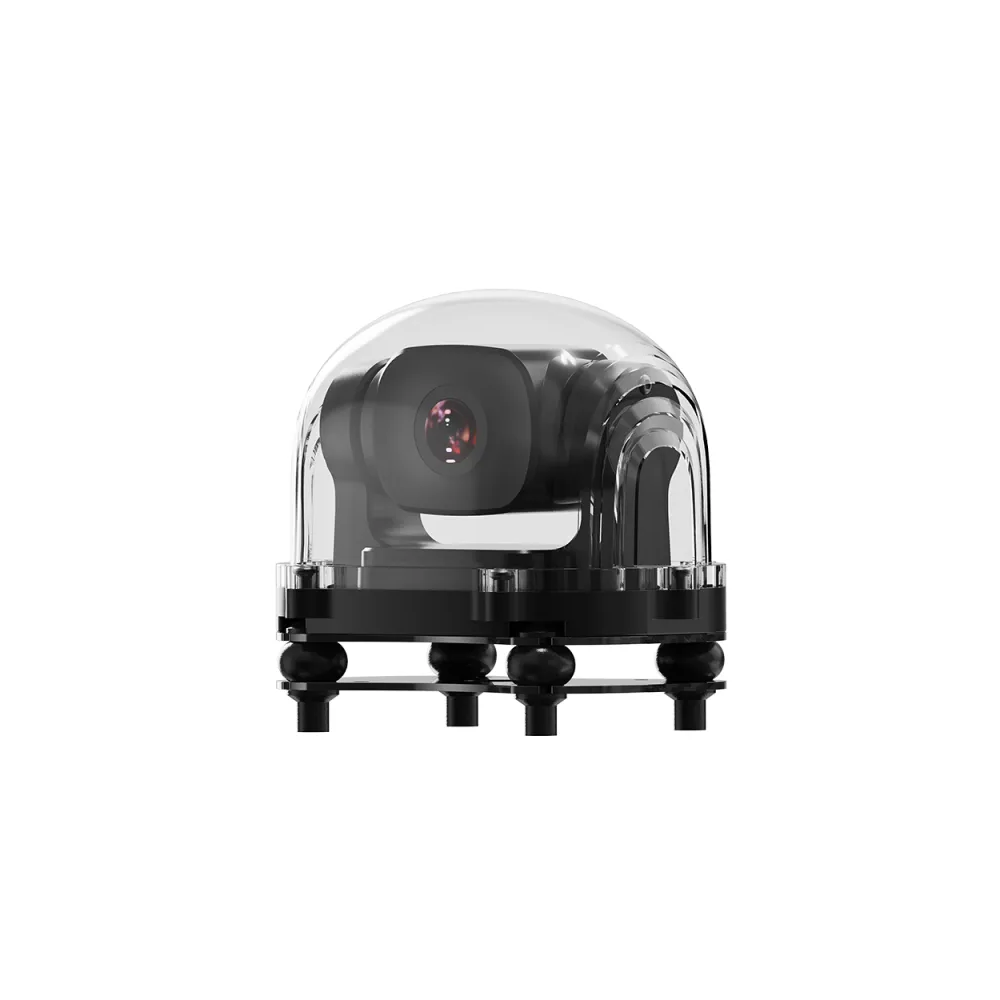

Upside Down Mode

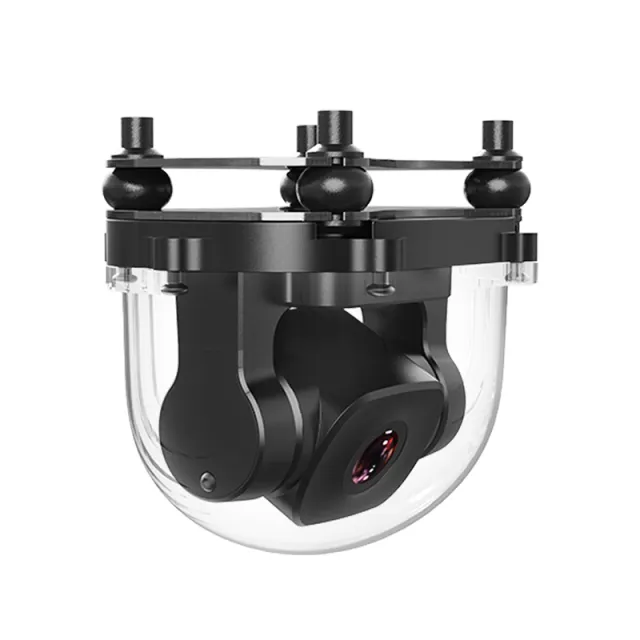

The A2 Mini supports Upside Down Mode for flexible mounting options.
This allows easier installation depending on the aircraft or vehicle layout.
Technical Specifications
Product: SIYI A2 Mini Wide Angle FPV Gimbal
Application: UAV, UGV, robotic platforms, FPV monitoring, inspection, and agricultural drones
Camera Type: Ultra-wide-angle FPV gimbal camera
Gimbal Type: Single-axis tilt gimbal
Image Sensor: 1/2.7-inch CMOS
Effective Resolution: 2 MP
Video Resolution: 1080p
Field of View: 160° horizontal
Controllable Pitch Angle: -90° to +25°
Video Output Port: Ethernet
Control Signal Input: S.Bus / PWM / Ethernet UDP
Working Voltage: 12 V
Power Consumption: 2 W average / 12 W peak
Working Temperature: -10°C to +50°C
Dimensions: 65 × 43 × 50 mm
Weight: 85 g
Protection Level: IP67
Special Mode: Upside Down Mode
What’s Included
1× SIYI A2 Mini Wide Angle FPV Gimbal
