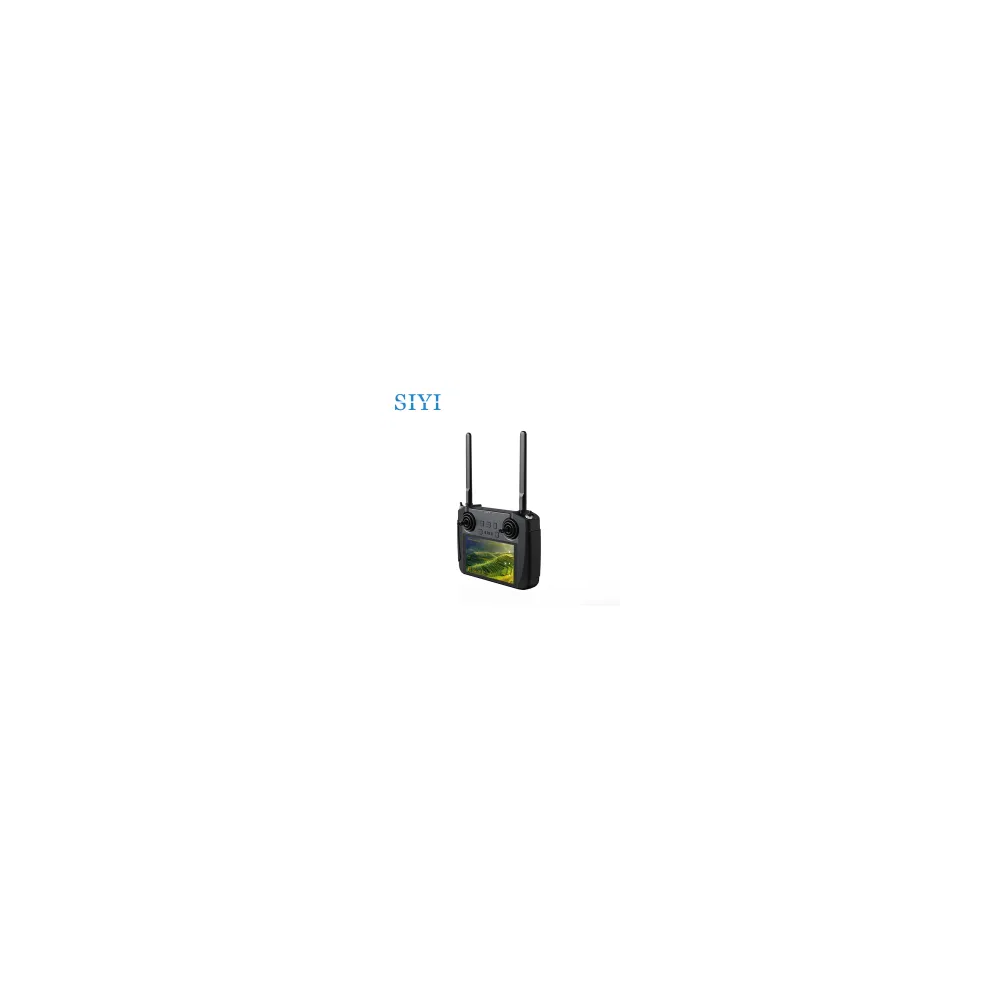

The SIYI MK15 Mini Handheld Ground Station Enterprise Standard Combo is a complete professional remote-control, telemetry datalink, and Full HD digital video transmission system designed for UAVs, UGVs, USVs, autonomous vehicles, inspection platforms, mapping aircraft, and industrial robotic applications.

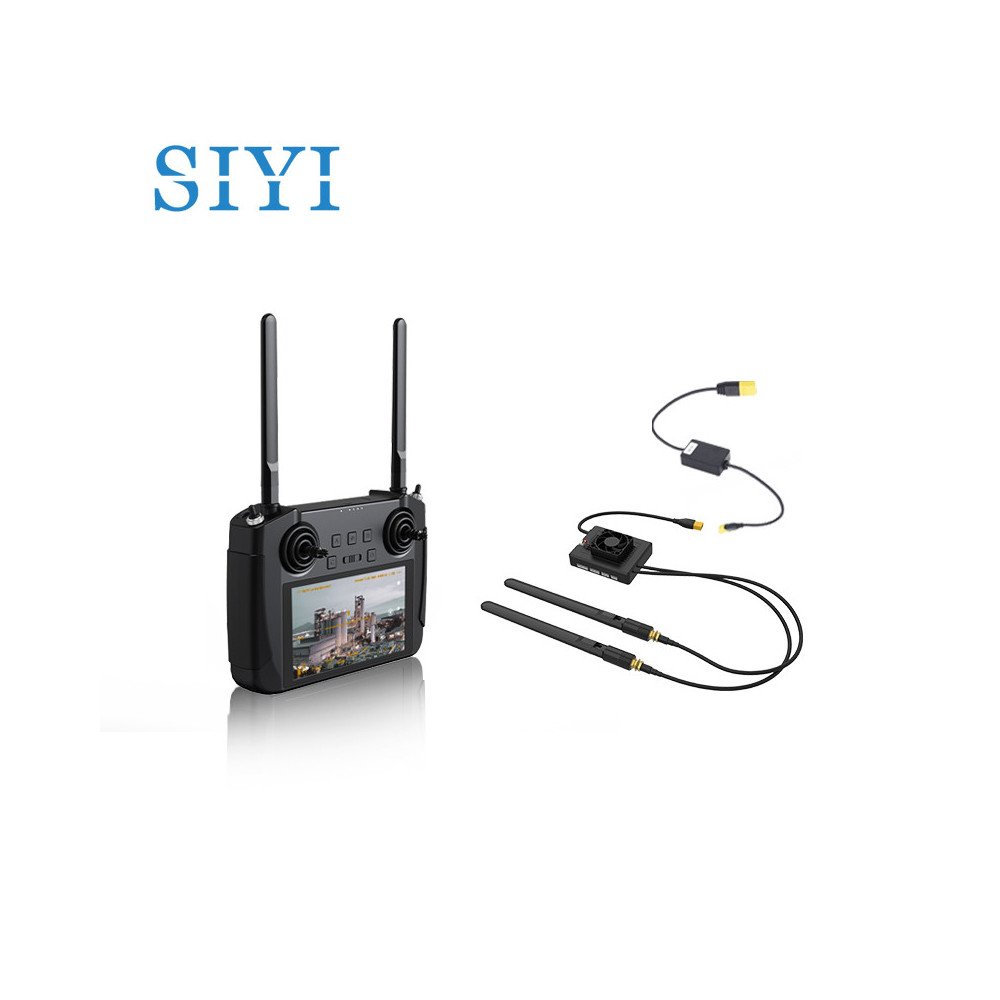

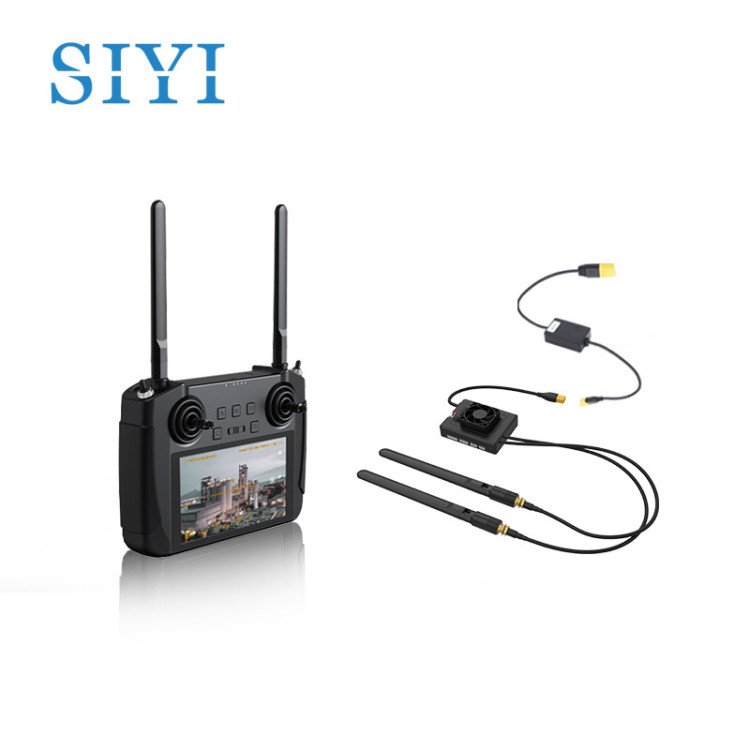

The Standard Combo combines the MK15 Enterprise Mini Handheld Ground Station, aircraft-side Air Unit, long-range antennas, high-voltage step-down power module, connection cables, and protective storage case.
Unlike the MK15 Enterprise HDMI Combo, the Standard Combo does not include the Air HDMI Input Converter.
Integrated Control, Datalink & Video Transmission
The MK15 Enterprise system combines three essential communication functions in one integrated platform:
Remote Control
Flight Telemetry Datalink
Dual Full HD Digital Video Transmission
This all-in-one architecture reduces the number of separate communication devices required and simplifies integration into professional UAV and robotic systems.
Up to 15 km Transmission Range
The MK15 Enterprise provides a maximum transmission range of up to 15 km under unobstructed and interference-free operating conditions.
The included long-range antennas help optimize communication performance for inspection, mapping, autonomous navigation, surveillance, emergency response, and professional UAV operations.
Actual range depends on local regulations, antenna installation, operating altitude, terrain, electromagnetic interference, aircraft configuration, and environmental conditions.
Dual 1080p Digital Video Transmission
The MK15 communication system supports two simultaneous Full HD video streams.
Its integrated Qualcomm processor supports hardware decoding of H.264 and H.265 video streams up to 1080p at 60 fps.
Low transmission latency of approximately 180 ms provides responsive real-time video for aircraft operation, payload monitoring, inspection, and autonomous vehicle control.
5.5-Inch High-Brightness Touchscreen

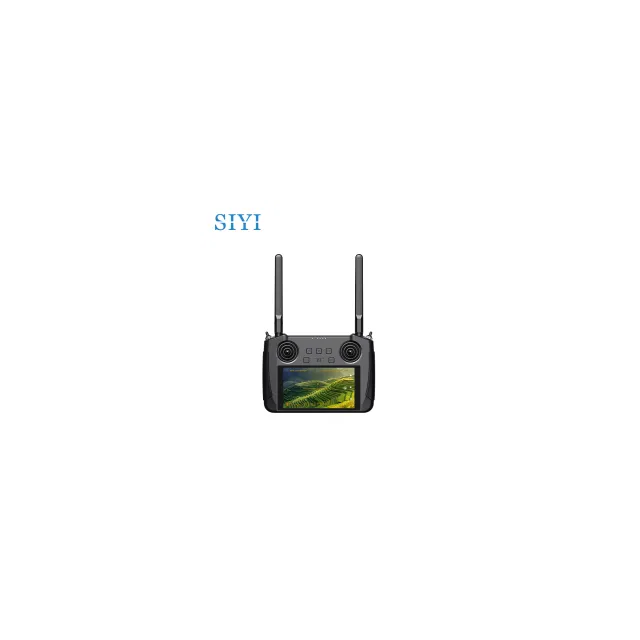

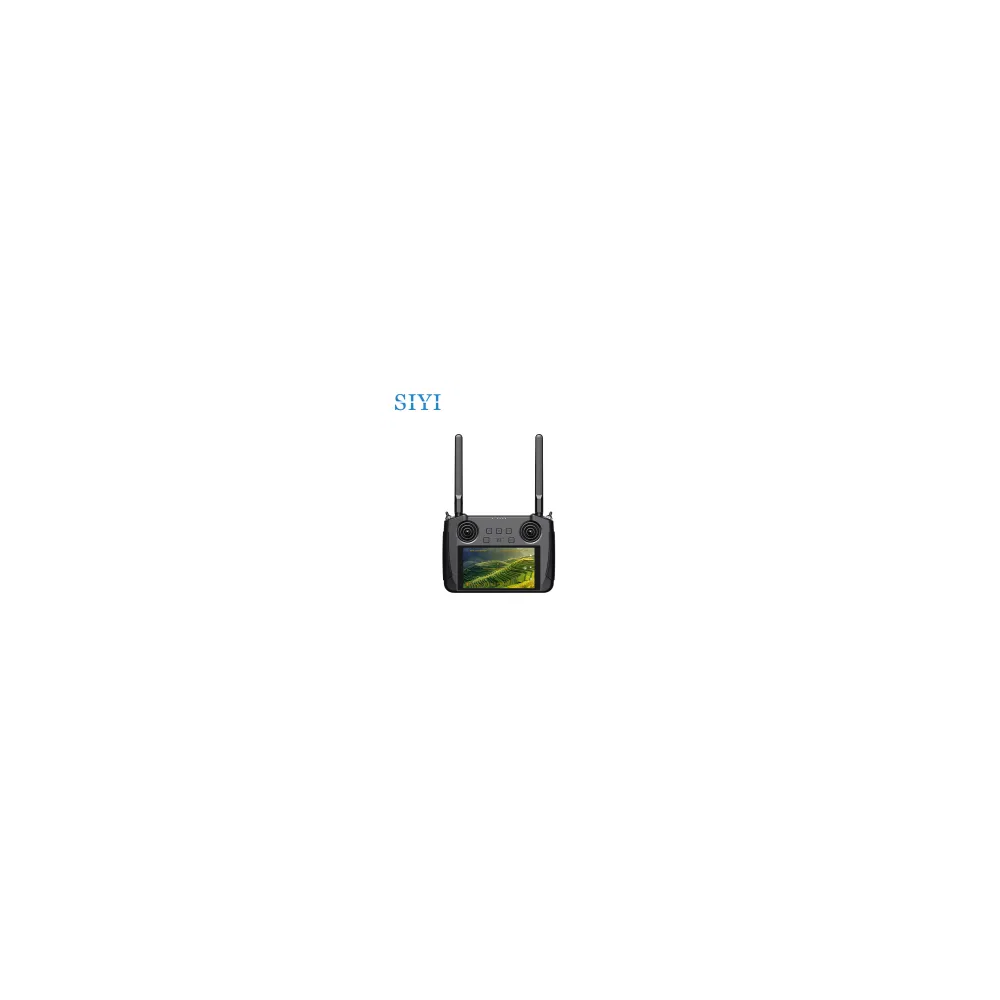

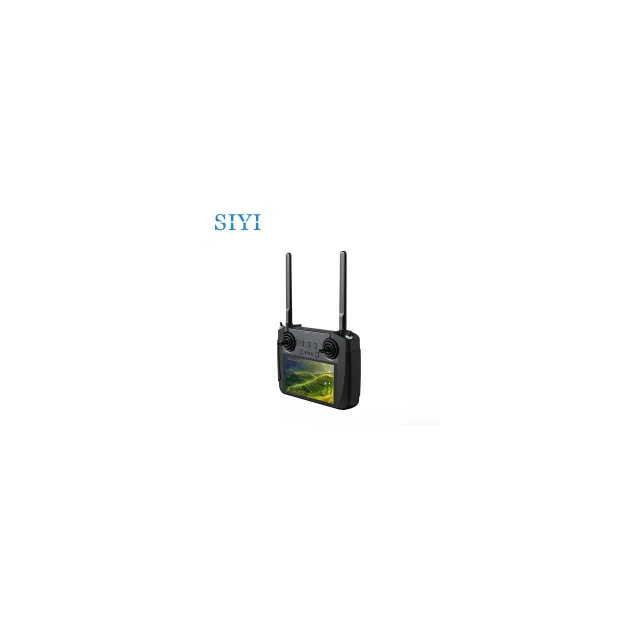

The MK15 Enterprise Ground Station features an integrated 5.5-inch Full HD touchscreen.
With brightness up to 1000 cd/m², the display provides clear visibility during outdoor operations and allows compatible ground-control software, telemetry information, mission data, and live video feeds to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the performance required for smooth Full HD video decoding and professional ground-control applications.
The Android operating system supports compatible mission planning, telemetry, mapping, inspection, FPV, and autonomous vehicle software.
The controller includes 2GB RAM and 16GB internal storage for applications and operational data.
Standard HDMI Output
The MK15 Enterprise Ground Station includes a standard HDMI video output.
This allows compatible video and display content to be connected to an external monitor, video recorder, command-center display, or professional monitoring system.
The Standard Combo does not include the optional aircraft-side HDMI Input Converter required to connect a Micro HDMI camera directly to the Air Unit.
Long Battery Endurance
The MK15 Enterprise Ground Station integrates a 10,200mAh 2S Li-ion battery with a total energy capacity of 75.48Wh.
Operating endurance can reach up to approximately 13 hours depending on display brightness, video decoding load, mobile connectivity, installed applications, operating conditions, and ambient temperature.
The controller supports 20W USB Type-C Power Delivery charging.

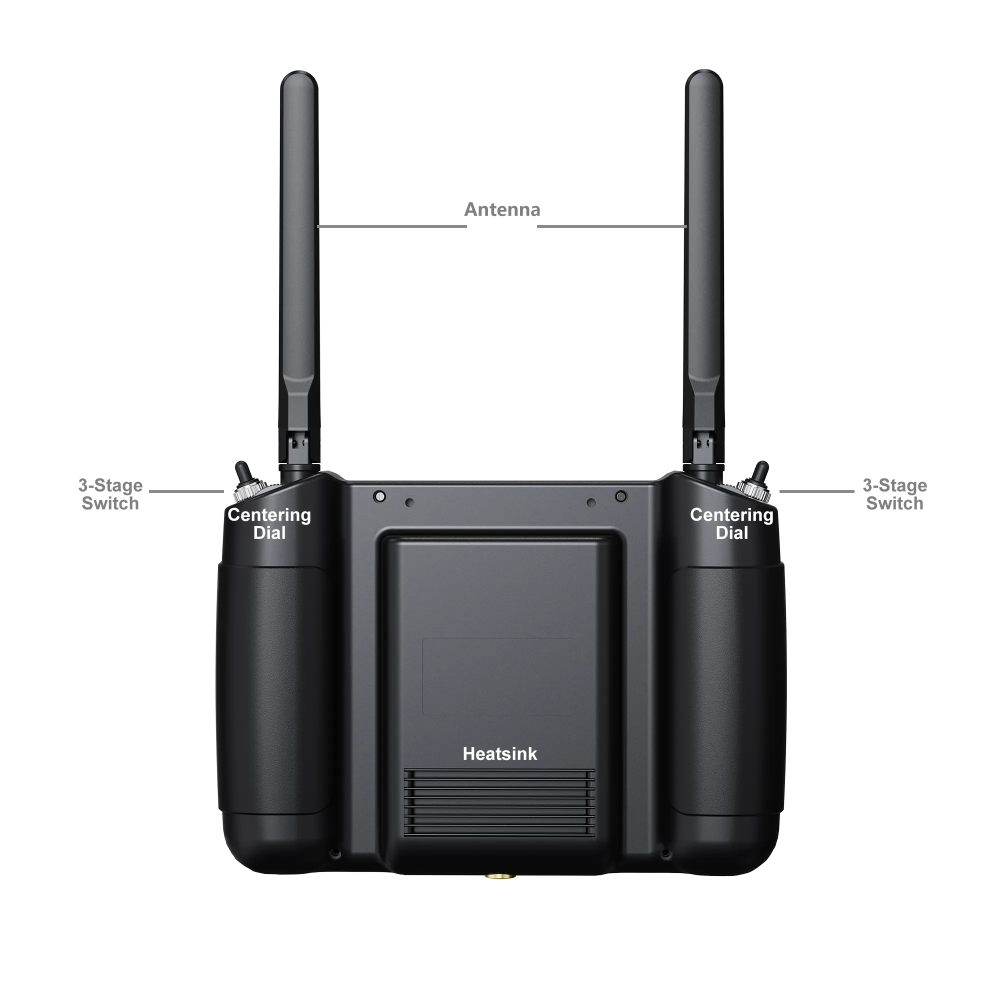

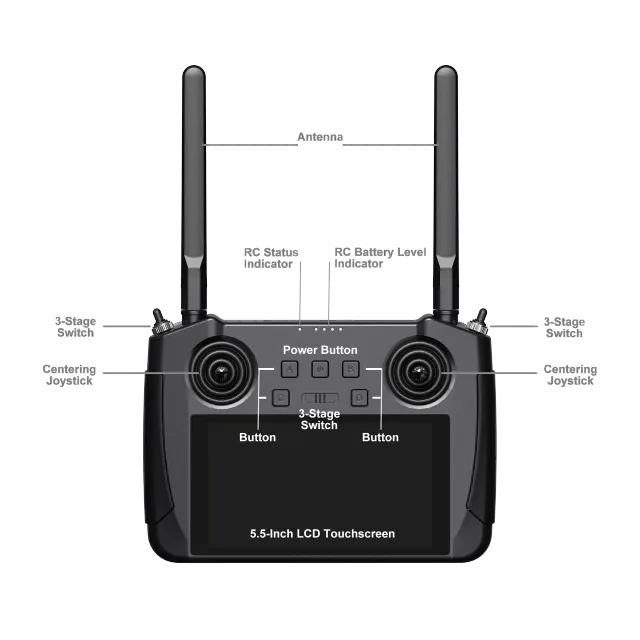

13 Physical Control Channels
The controller provides 13 physical control channels for aircraft and payload operation.
The complete communication system supports up to 16 communication channels for aircraft functions, cameras, gimbals, lighting systems, landing gear, payloads, and additional onboard equipment.
Aircraft-Side Air Unit
The included aircraft-side Air Unit manages remote-control signal output, telemetry communication, digital video transmission, and Ethernet connectivity.
Available interfaces include:
16-Channel S.Bus Output
5-Channel PWM Output
UART Flight Controller Datalink
Ethernet Video and Network Interface
USB Type-C Firmware Upgrade Interface
The supplied Air Unit generation may vary according to the production batch.
High-Voltage Power Integration
The Enterprise Standard Combo includes a 4S–18S to 12V step-down power module.
This allows the aircraft-side communication system to be integrated into professional UAV power systems operating from 16.8V to 75.6V.
Dual Operator Support
The MK15 Enterprise platform supports compatible dual-operator configurations.
This allows one operator to control the aircraft while another operator manages a gimbal camera, optical pod, inspection payload, or other mission equipment.
A dedicated dual-combo configuration is required for full dual-operator operation.
Broad Flight Controller Compatibility
The MK15 Enterprise system supports PX4 and ArduPilot-based flight controllers.
It is suitable for SIYI N7, Pixhawk-compatible autopilots, and other supported professional flight-control platforms.
Compatible Ground-Control Software
The Android platform supports compatible applications including:
SIYI FPV
QGroundControl
Mission Planner
Compatible video streams can also be displayed through supported Windows ground-control software.
Professional Applications
The SIYI MK15 Enterprise Standard Combo is suitable for:
Professional Multirotor UAVs
Fixed-Wing Aircraft
VTOL Platforms
Inspection UAVs
Mapping and Surveying Aircraft
Emergency Response Systems
Autonomous Vehicles
UGVs and Robotic Platforms
USVs and Marine Robotics
Research and Development Systems
Technical Specifications
Product: SIYI MK15 Mini Handheld Ground Station Enterprise Standard Combo
Application: UAVs, UGVs, USVs, autonomous vehicles, robotics, inspection, mapping, and professional video transmission
System Functions: Remote Control / Telemetry Datalink / Dual Full HD Video Transmission
Maximum Transmission Range: Up to 15 km
Transmission Conditions: Unobstructed and free of interference
Minimum Video Latency: Approx. 180 ms
Maximum Video Decoding: 1080p @ 60 fps
Video Codec Support: H.264 / H.265
Physical Control Channels: 13
Communication Channels: 16
Operating Temperature: -10°C to +50°C
MK15 Enterprise Ground Station
Processor: Qualcomm 8-Core CPU
Operating System: Android 9.0
RAM: 2GB
Internal Storage: 16GB
Display Size: 5.5″
Maximum Display Brightness: 1000 cd/m²
Integrated Battery: 10,200mAh / 7.4V / 2S Li-ion
Battery Energy: 75.48Wh
Maximum Operating Time: Up to Approx. 13 Hours
Charging Standard: USB Type-C / PD 20W
Typical Charging Time: Approx. 5 Hours with 20W PD Charger
Protection Level: IP53
Video Output: Standard HDMI
External Device Interface: USB Type-A
File Transfer: USB Type-C / USB Type-A
Mobile Network: SIM Card Support
External Storage: TF / MicroSD Card Slot
Tripod Mount: Standard 1/4″ Thread
Dimensions: 189 × 138 × 41 mm
Weight: Approx. 850 g
Aircraft-Side Air Unit
Function: Remote Control / Telemetry / Digital Video Transmission
RC Signal Output: 16-Channel S.Bus
PWM Outputs: 5 Channels
Flight Controller Datalink: UART
Video and Network Interface: Ethernet / LAN
Firmware Upgrade Interface: USB Type-C
Omnidirectional Antenna Gain: 5 dBi
Operating Temperature: -10°C to +50°C
Current Enterprise Air Unit Input: 3–6S / 12.6–25.2V depending on production generation
Included Step-Down Power Module Input: 4–18S / 16.8–75.6V
Power Module Output: 12V
Earlier production batches may use a different MK15 Air Unit configuration. Air Unit type and supported voltage should be confirmed according to the supplied production batch.
Package Specifications
Package Dimensions: 220 × 197 × 105 mm
Package Weight: Approx. 1566 g
What’s Included
1× SIYI MK15 Enterprise Mini Handheld Ground Station with HDMI Output
1× SIYI Aircraft-Side Air Unit
1× MK15 Storage Case
1× 4S–18S to 12V Step-Down Power Module
4× MK15 Omnidirectional Antennas
2× Range Extension Antennas
1× 20W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× USB-C to USB-A Adapter
1× USB Firmware Upgrade Cable
1× Air Unit S.Bus Cable
1× Air Unit PWM Cable
1× Air Unit Data Cable
1× Air Unit 8-Pin Cable
Flight controller, camera, gimbal, optical pod, HDMI Input Converter, aircraft frame, battery, propulsion system, and other UAV components are not included.
