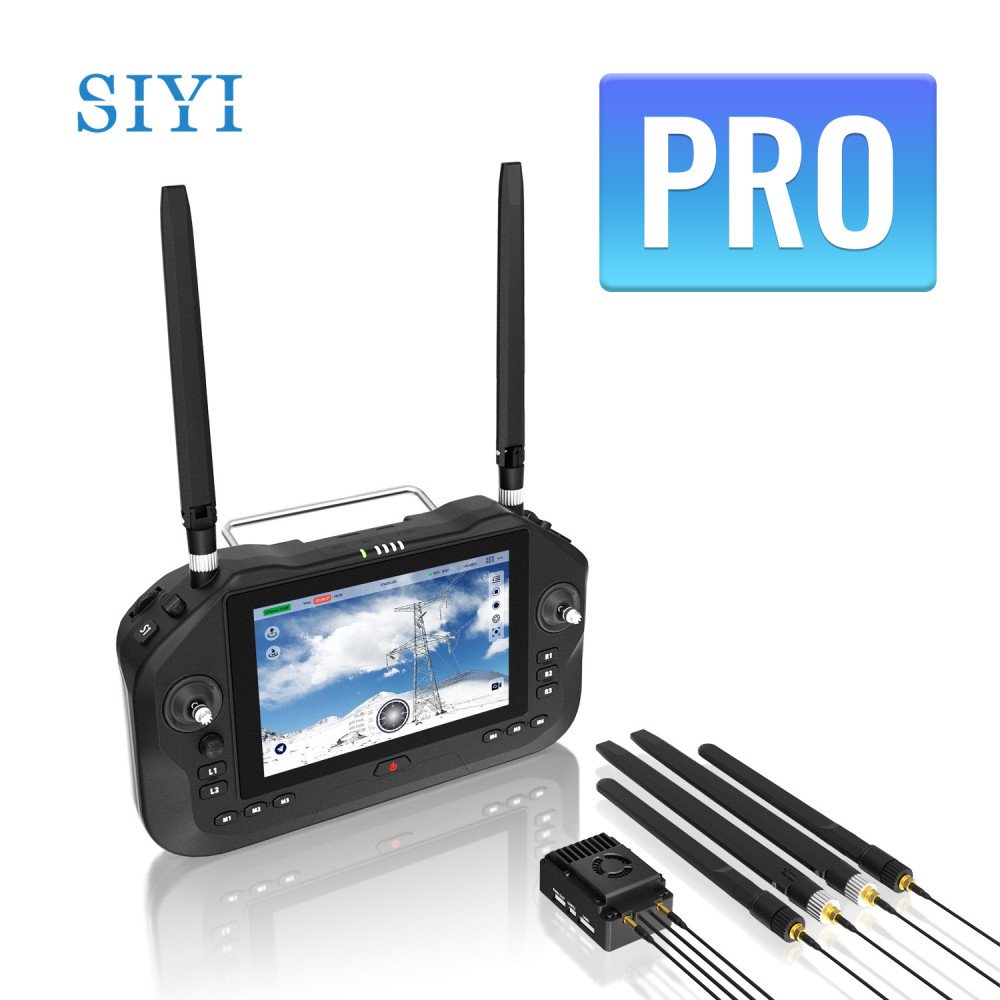

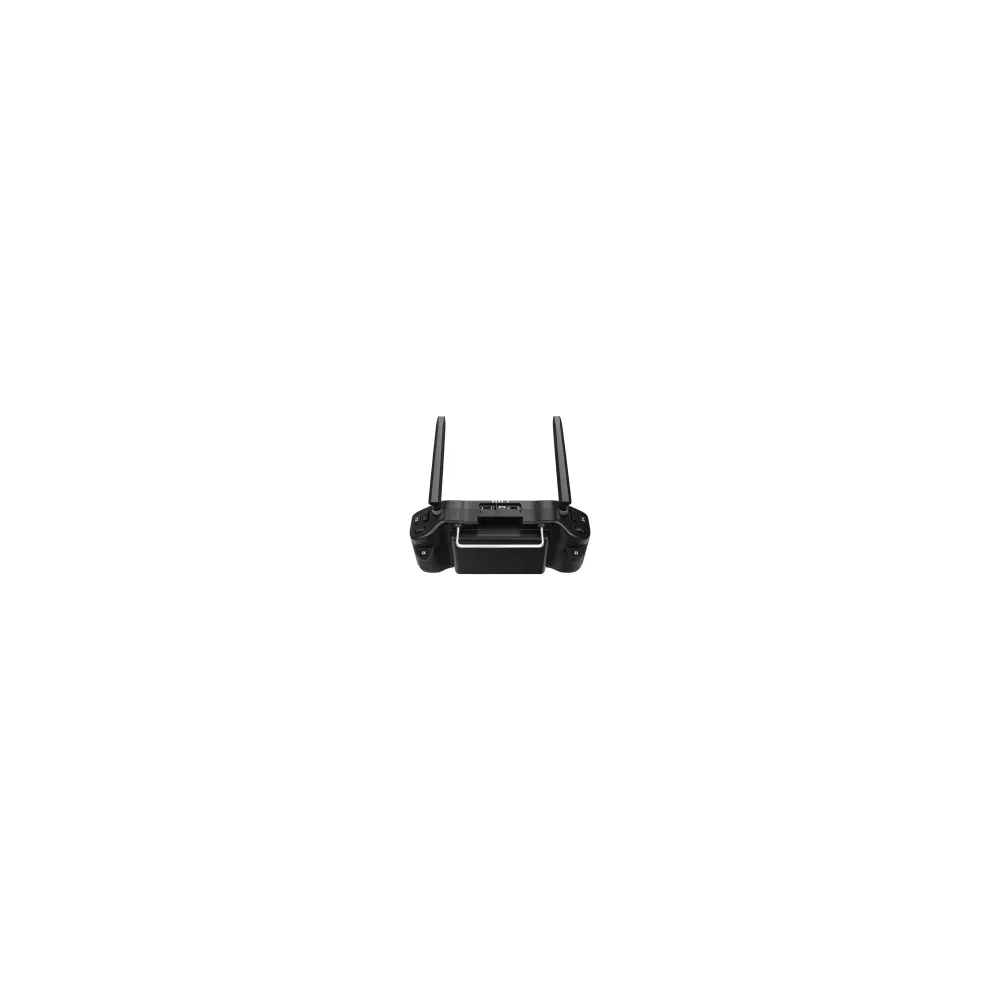

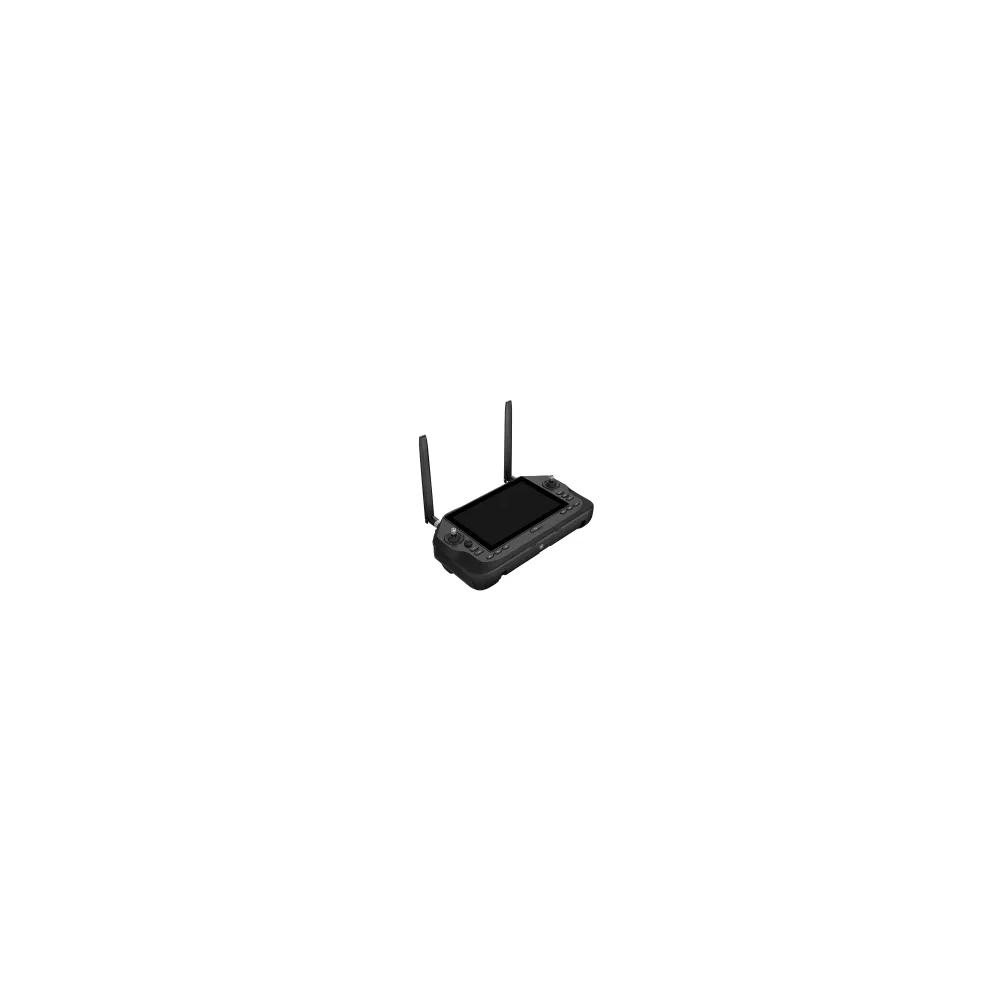

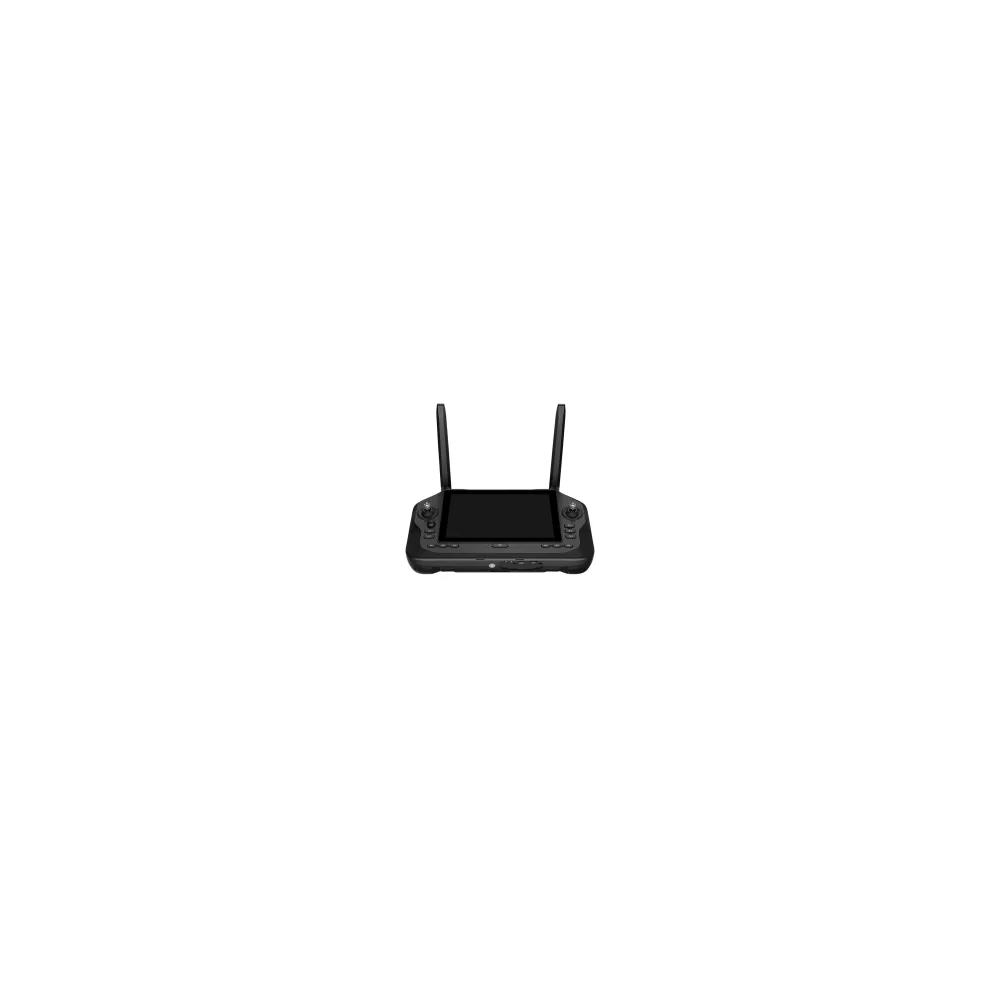

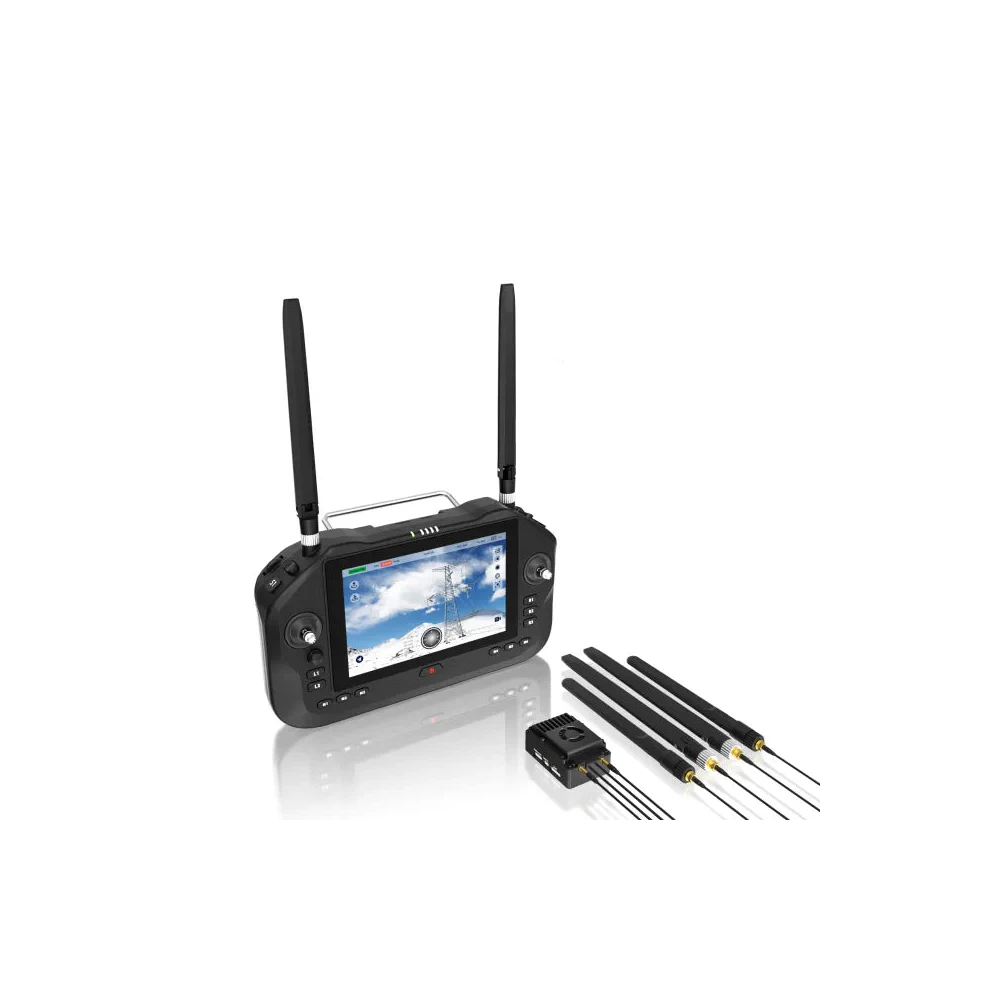

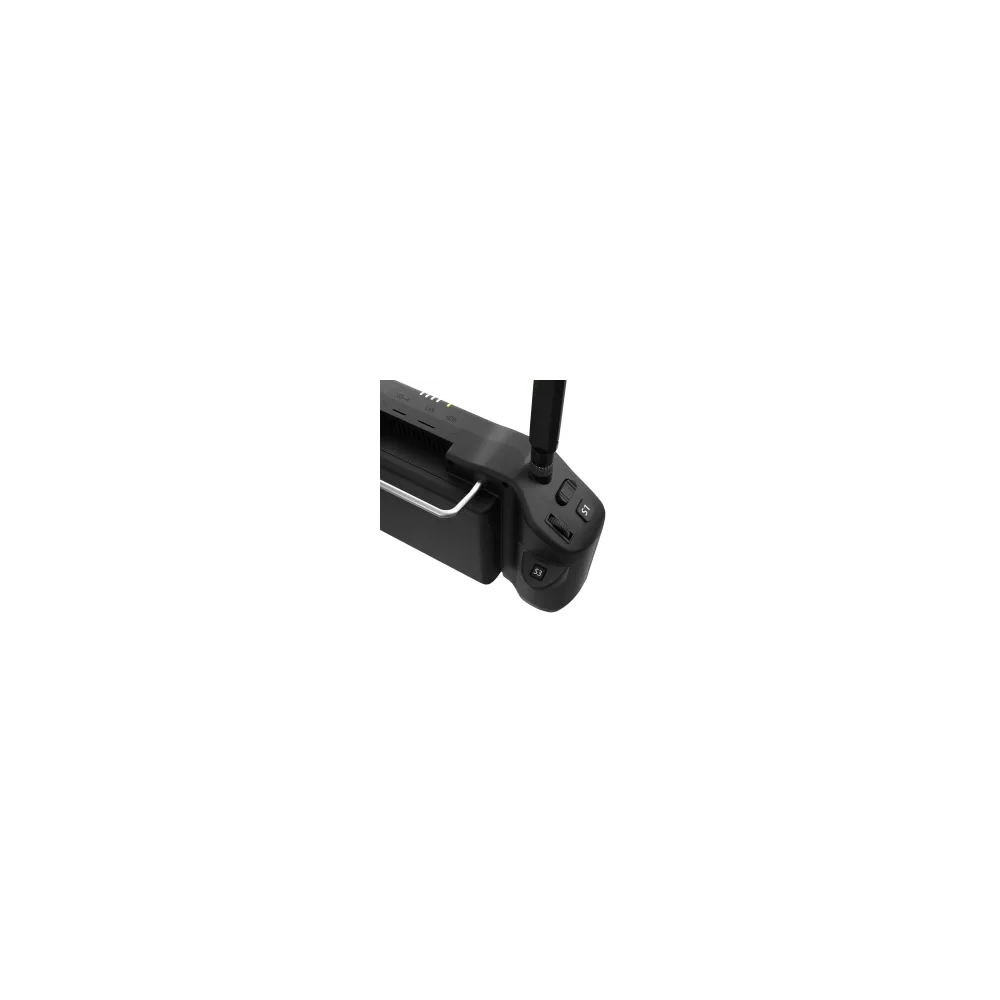

The SIYI UniRC 7 Handheld Ground Station is a professional remote-control, telemetry datalink, and high-definition digital video transmission system designed for UAVs, UGVs, USVs, autonomous vehicles, industrial equipment, and intelligent robotic platforms.
Combining long-range 2.4GHz communication, high-resolution video transmission, advanced Android processing, extensive physical controls, and a high-brightness outdoor display, the UniRC 7 provides a complete control and monitoring platform for demanding professional operations.
Integrated Control, Datalink & Video Transmission
The UniRC 7 combines three essential communication functions into one professional system:
Remote Control
Telemetry Datalink
High-Definition Digital Video Transmission
This integrated architecture reduces the number of separate communication devices required and simplifies installation on UAVs, autonomous vehicles, boats, and robotic platforms.
Up to 40 km Communication Range
The UniRC 7 provides a maximum communication range of up to 40 km under unobstructed and interference-free operating conditions.
Its long-range link is suitable for professional UAV operations, inspection, mapping, emergency response, autonomous navigation, UGV control, USV applications, and industrial robotic systems.
Actual communication range depends on local regulations, antenna installation, terrain, operating altitude, electromagnetic interference, aircraft configuration, and environmental conditions.
2.4GHz Long-Range Link
The standard UniRC 7 operates on the 2.4GHz frequency band.
Its communication system automatically selects suitable channels according to the surrounding interference environment to improve signal stability and transmission reliability.
Unlike the UniRC 7 Pro, the standard UniRC 7 does not include 2.4GHz / 5GHz dual-frequency redundancy.
4K Digital Video Transmission
The UniRC 7 supports high-resolution real-time digital video transmission.
The system supports:
Single Video Stream: Up to 4K @ 30fps
Dual Video Streams: Up to 1080p @ 60fps
This provides detailed and responsive video monitoring for inspection cameras, FPV systems, optical pods, gimbal cameras, and professional payloads.
Up to 65 Mbps Transmission Bitrate
The digital image transmission system supports video transmission bitrates up to 65 Mbps.
This helps provide detailed image quality and stable visual monitoring during professional UAV and robotic operations.
Low-Latency Video Transmission
Transmission latency can be as low as approximately 170 ms under suitable operating conditions.
Low latency provides responsive visual feedback for aircraft operation, navigation, payload control, inspection, and remote robotic applications.
AES Data Encryption
The UniRC 7 supports AES data encryption.
Encrypted communication helps protect remote-control commands, telemetry information, and transmitted operational data during professional missions.
7-Inch High-Brightness Touchscreen
The UniRC 7 features an integrated 7-inch touchscreen with a resolution of 1280 × 800 pixels.
With brightness up to 1600 nits, the display provides clear outdoor visibility and allows live video, telemetry information, mission data, maps, and compatible ground-control applications to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the computing performance required for smooth video decoding and professional ground-control applications.
The UniRC 7 runs Android 13 and includes:
4GB RAM
64GB Internal Storage
Storage can be expanded using a compatible MicroSD card.
Extensive Physical Controls
The UniRC 7 includes a comprehensive control layout designed for aircraft, payload, and robotic operation.
Physical controls include:
2× Main Joysticks
1× Sub Joystick
2× Control Dials
2× Three-Position Switches
6× Dedicated Flight Mode Buttons
10× Customizable Buttons
These controls can be assigned to aircraft functions, gimbals, cameras, lighting systems, landing gear, payloads, servos, actuators, and mission equipment.
Dedicated Sub Joystick
The integrated sub joystick provides additional control capability for compatible gimbal cameras, optical pods, robotic equipment, or payload systems.
This allows flight and payload functions to be managed more efficiently from a single handheld controller.
Six Flight Mode Buttons
Six dedicated flight mode buttons provide quick access to configured aircraft or vehicle functions.
This allows operators to change operating modes without navigating through touchscreen menus.
Long Battery Endurance
The UniRC 7 uses a removable 13,400mAh battery.
Operating endurance can reach approximately 11 hours depending on screen brightness, video decoding load, installed applications, wireless communication, ambient temperature, and operating conditions.
The controller supports 30W USB Type-C Power Delivery fast charging.
Quick-Release Battery
The removable battery design allows quick replacement during extended professional operations.
A spare charged battery can be installed to reduce downtime during long missions.
IP54 Protection
The UniRC 7 features IP54 protection for improved resistance to dust and water splashes.
Its protected construction makes it suitable for professional outdoor UAV, robotic, inspection, and field operations.
Active Cooling System
An integrated active cooling system helps manage internal temperature during demanding operations.
The cooling system supports stable computing and video-processing performance during extended use.
Backlit Controls
Backlit buttons improve control visibility during night operations and low-light working conditions.
This supports professional missions performed during early morning, evening, or reduced-light environments.
Quick-Release Belly Bracket
The included quick-release belly bracket provides improved comfort during long operating sessions.
The bracket helps distribute controller weight and allows fast installation or removal during field operations.
Dual-Operator Capability
The UniRC platform supports compatible dual-operator configurations.
One operator can control the aircraft while a second operator manages the gimbal camera, optical pod, payload, or mission equipment.
Additional compatible ground-station hardware may be required.
Ground Station Connectivity
The standard UniRC 7 provides multiple communication and expansion options, including:
SIM Card Support
MicroSD / TF Card Slot
USB Type-C
Wi-Fi 5
Bluetooth 5.0
UDP Communication
Built-In Android UART
Ethernet and HDMI ground-station interfaces are exclusive to the UniRC 7 Pro version and are not included on the standard UniRC 7.
Integrated Multi-GNSS Receiver
The controller supports multiple satellite navigation systems:
GPS
GLONASS
BeiDou
Galileo
QZSS
This provides location information for compatible Android applications and professional ground-control software.
UniRC 7 Air Unit
The included UniRC 7 Air Unit provides aircraft-side remote-control output, telemetry communication, video input, and network connectivity.
Available interfaces include:
16-Channel S.Bus Output
5-Channel PWM Output
2× UART Interfaces
2× Ethernet / LAN Interfaces
USB Type-C Firmware Upgrade Interface
The compact Air Unit weighs approximately 89 g and is designed for integration into UAVs, UGVs, USVs, and autonomous robotic platforms.
PX4 & ArduPilot Compatibility
The UniRC 7 can be integrated with PX4 and ArduPilot-based flight controllers through compatible telemetry and RC interfaces.
It is suitable for SIYI N7, Pixhawk-compatible autopilots, and other supported professional flight-control systems.
Compatible Ground-Control Software
The Android platform supports compatible applications including:
SIYI UniGCS
SIYI FPV
QGroundControl
Mission Planner
Software compatibility may depend on application version, flight-controller firmware, operating system configuration, and connected hardware.
Professional Applications
The SIYI UniRC 7 is suitable for:
Professional Multirotor UAVs
Fixed-Wing Aircraft
VTOL Platforms
Inspection UAVs
Mapping and Surveying Aircraft
Emergency Response Systems
Autonomous Vehicles
UGVs and Industrial Robots
USVs and Marine Robotics
Security and Monitoring Platforms
Research and Development Systems
Technical Specifications
Product: SIYI UniRC 7 Handheld Ground Station
Version: Standard UniRC 7
Application: UAVs, UGVs, USVs, autonomous vehicles, robotics, inspection, mapping, and professional remote operation
System Functions: Remote Control / Telemetry Datalink / Digital Video Transmission
Operating Frequency: 2.4GHz
Frequency Range: 2.400–2.476GHz
Maximum Communication Range: Up to 40 km
Transmission Conditions: Unobstructed and free of interference
Maximum Single Video Stream: 4K @ 30fps
Maximum Dual Video Stream: 1080p @ 60fps
Maximum Transmission Bitrate: Up to 65 Mbps
Minimum Transmission Latency: Approx. 170 ms
Data Encryption: AES
Ground Station Specifications
Processor: Qualcomm 8-Core CPU
Operating System: Android 13
RAM: 4GB
Internal Storage: 64GB
Expandable Storage: MicroSD / TF Card
Display Size: 7″
Display Resolution: 1280 × 800
Maximum Display Brightness: 1600 nits
Battery Capacity: 13,400mAh
Maximum Operating Time: Approx. 11 Hours
Charging Standard: USB Type-C / PD 30W
Typical Charging Time: Approx. 4.5 Hours
Wi-Fi: Wi-Fi 5
Bluetooth: Bluetooth 5.0
GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS
Protection Level: IP54
Physical Controls: 26 Control Inputs
Communication Channels: 16
Main Joysticks: 2×
Sub Joystick: 1×
Control Dials: 2×
Three-Position Switches: 2×
Flight Mode Buttons: 6×
Customizable Buttons: 10×
Cooling: Integrated Active Cooling
Ground Station HDMI: Not Included
Ground Station Ethernet: Not Included
Dimensions: 274 × 190 × 100 mm
Weight: Approx. 1.44 kg
UniRC 7 Air Unit Specifications
Function: Remote Control / Telemetry / Digital Video Transmission
RC Signal Output: 16-Channel S.Bus
PWM Outputs: 5 Channels
UART Interfaces: 2×
Ethernet / LAN Interfaces: 2×
Firmware Upgrade Interface: USB Type-C
Weight: Approx. 89 g
What’s Included
1× SIYI UniRC 7 Handheld Ground Station
1× SIYI UniRC 7 Air Unit
1× UniRC 7 Removable Battery
4× 2.4GHz Omnidirectional Antennas
1× 30W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× UniRC 7 Shoulder Strap
1× UniRC 7 Quick-Release Belly Bracket Kit
1× Aircraft-Side Connection Cable Set
1× Controller Mode Indicator Sticker
Flight controller, camera, gimbal, optical pod, aircraft frame, aircraft battery, propulsion system, and other UAV components are not included.
Package contents may vary slightly depending on production batch and distributor configuration.
