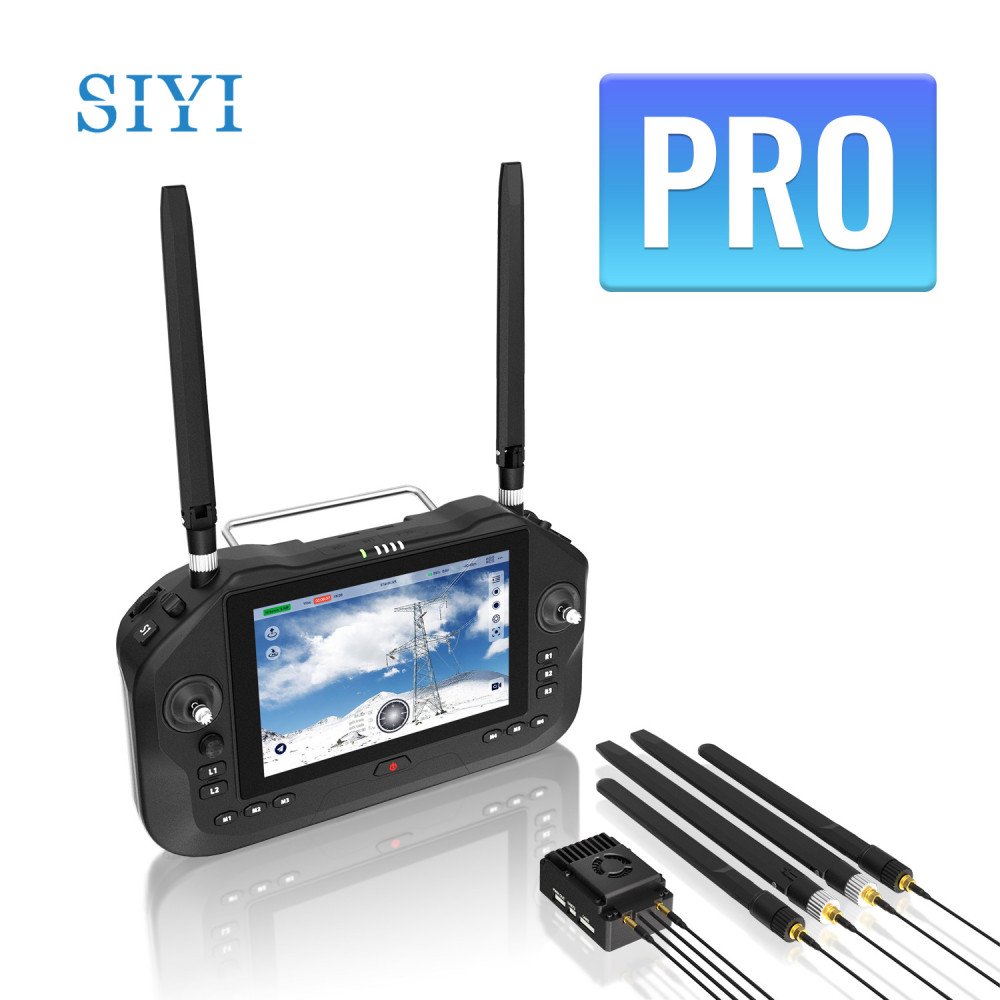

The SIYI UniRC 7 Pro Handheld Ground Station is a professional remote-control, telemetry datalink, and high-definition digital video transmission system designed for UAVs, UGVs, USVs, autonomous vehicles, industrial equipment, and intelligent robotic platforms.
Combining dual-frequency 2.4GHz and 5GHz communication, long-range transmission, 4K video capability, advanced Android processing, extensive physical controls, HDMI and Ethernet connectivity, and a high-brightness outdoor display, the UniRC 7 Pro provides a complete control and monitoring solution for demanding professional operations.
Dual-Frequency 2.4GHz & 5GHz Redundancy
The UniRC 7 Pro supports both 2.4GHz and 5GHz communication bands.
Its dual-frequency architecture automatically selects suitable communication channels according to the surrounding interference environment, helping improve transmission stability and anti-interference performance.
The 2.4GHz band provides strong long-range communication capability, while the 5GHz band offers additional frequency flexibility in complex operating environments.
Up to 40 km Communication Range
The UniRC 7 Pro provides a maximum communication range of up to 40 km under suitable operating conditions.
This long-range capability makes it suitable for professional inspection, mapping, emergency response, surveillance, autonomous navigation, UGV control, USV applications, and industrial robotic systems.
Actual communication range depends on local regulations, antenna installation, operating altitude, terrain, electromagnetic interference, aircraft configuration, and environmental conditions.
4K Digital Video Transmission
The UniRC 7 Pro supports high-resolution real-time digital video transmission.
The system supports:
Single Video Stream: Up to 4K @ 30fps
Dual Video Streams: Up to 1080p @ 60fps
This provides detailed video monitoring for FPV cameras, gimbal cameras, optical pods, inspection payloads, and professional imaging systems.
Up to 65 Mbps Transmission Bitrate
The digital transmission system supports video bitrates up to 65 Mbps.
The high transmission bandwidth helps provide detailed image quality and smooth visual monitoring during professional UAV and robotic operations.
Low-Latency Transmission
Video transmission latency can be as low as approximately 170 ms under suitable operating conditions.
Low latency provides responsive visual feedback for aircraft control, payload operation, inspection, navigation, and remote robotic applications.
AES Data Encryption
The UniRC 7 Pro supports AES communication encryption.
Encrypted data transmission helps protect remote-control commands, telemetry information, video-link data, and operational communication during professional missions.
7-Inch Full HD High-Brightness Display
The UniRC 7 Pro features a 7-inch touchscreen with a resolution of 1920 × 1200 pixels.
With brightness up to 1600 nits, the display provides excellent outdoor visibility and allows live video, maps, aircraft telemetry, mission information, and compatible ground-control applications to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The UniRC 7 Pro runs Android 13 and is powered by a Qualcomm 8-core processor.
The system includes:
4GB RAM
64GB Internal Storage
This provides smooth operation for ground-control applications, mission planning, video decoding, telemetry monitoring, mapping software, and professional Android applications.
Unique Antenna Architecture
The UniRC 7 Pro Ground Unit integrates two internal 5GHz antennas and two external 2.4GHz antennas.
The UniRC 7 Pro Air Unit uses a four-antenna architecture with two quick-release antennas and two detachable antennas.
This antenna configuration improves communication diversity and transmission reliability in demanding operating environments.
Professional Physical Controls
The UniRC 7 Pro includes an extensive control layout designed for aircraft, payload, and robotic operation.
Physical controls include:
2× Main Control Sticks
1× Customizable Sub Joystick
2× Control Dials
2× Three-Position Switches
6× Dedicated Flight Mode Buttons
10× Customizable Function Buttons
These controls can be assigned to aircraft functions, cameras, gimbals, landing gear, lighting systems, payloads, servos, actuators, and mission equipment.
Optional Non-Centering Throttle
The UniRC 7 Pro is available with an optional non-centering throttle configuration.
This version is particularly suitable for fixed-wing aircraft, VTOL platforms, and applications where a traditional aircraft-style throttle control is preferred.
HDMI Video Output
The Pro version includes an HDMI output on the Ground Unit.
This allows compatible video and display content to be connected to external monitors, video recorders, command-center displays, mission-control systems, and professional broadcasting equipment.
Ethernet Connectivity
The UniRC 7 Pro includes an integrated Ethernet interface.
The wired network connection supports professional system integration, external computers, video streaming, network communication, mission-control equipment, and advanced development applications.
HDMI and Ethernet Ground Unit interfaces are exclusive to the Pro version and are not included on the standard UniRC 7.
Long-Endurance Quick-Release Battery
The controller uses a removable 13,400mAh battery.
Operating endurance can reach approximately 8 hours depending on screen brightness, communication frequency, video decoding load, installed applications, operating conditions, and ambient temperature.
The quick-release design allows the battery to be replaced efficiently during extended professional operations.
30W USB-C Fast Charging
The UniRC 7 Pro supports USB Type-C Power Delivery charging up to 30W.
Temperature monitoring helps manage charging performance and protect the battery during operation.
IP54 Protection
The UniRC 7 Pro features IP54 protection for improved resistance against dust and water splashes.
Its protected construction makes it suitable for professional outdoor UAV, inspection, robotic, and field operations.
Active Cooling System
An integrated active cooling system helps regulate internal operating temperature.
This supports stable processor performance during demanding video decoding, data processing, and extended professional use.
Backlit Controls & Dual Speakers
Backlit buttons improve control visibility during night operations and low-light missions.
Integrated dual speakers provide audible system feedback and application audio output.
Dual-Operator Capability
The UniRC 7 Pro supports compatible dual-operator configurations.
One operator can control the aircraft while a second operator manages a gimbal camera, optical payload, inspection system, or other mission equipment.
Additional compatible hardware may be required for complete dual-operator operation.
Extensive Ground Station Connectivity
The UniRC 7 Pro provides multiple communication and expansion interfaces, including:
HDMI Output
Ethernet Interface
USB Type-C
SIM Card Support
MicroSD / TF Card Slot
Wi-Fi
Bluetooth
UDP Communication
Integrated Android UART
These interfaces provide flexible integration with external displays, computers, networks, storage devices, mobile communication systems, and professional mission equipment.
Integrated Multi-GNSS Receiver
The Ground Unit supports multiple satellite navigation systems:
GPS
GLONASS
BeiDou
Galileo
QZSS
This provides location information for compatible Android applications and professional ground-control software.
UniRC 7 Pro Air Unit
The included UniRC 7 Pro Air Unit provides aircraft-side remote-control output, telemetry communication, digital video transmission, and network connectivity.
Available interfaces include:
16-Channel S.Bus Output
5-Channel PWM Output
2× UART Interfaces
2× Ethernet / LAN Interfaces
USB Type-C Firmware Upgrade Interface
The four-antenna Air Unit is designed to improve transmission stability in complex professional environments.
PX4 & ArduPilot Integration
The UniRC 7 Pro can be integrated with PX4 and ArduPilot-based flight controllers through compatible telemetry and RC interfaces.
It is suitable for SIYI N7, Pixhawk-compatible autopilots, and other supported professional flight-control systems.
Compatible Ground-Control Software
The Android platform supports compatible applications including:
SIYI UniGCS
SIYI FPV
QGroundControl
Mission Planner
Software compatibility may depend on application version, flight-controller firmware, operating-system configuration, and connected hardware.
Professional Applications
The SIYI UniRC 7 Pro is suitable for:
Professional Multirotor UAVs
Fixed-Wing Aircraft
VTOL Platforms
Inspection UAVs
Mapping and Surveying Aircraft
Emergency Response Systems
Security and Monitoring Platforms
Autonomous Vehicles
UGVs and Industrial Robots
USVs and Marine Robotics
Research and Development Systems
Technical Specifications
Product: SIYI UniRC 7 Pro Handheld Ground Station
Application: UAVs, UGVs, USVs, autonomous vehicles, robotics, inspection, mapping, and professional remote operation
System Functions: Remote Control / Telemetry Datalink / Digital Video Transmission
Operating Frequencies: 2.4GHz / 5GHz
2.4GHz Frequency Range: 2.400–2.476GHz
5GHz Frequency Range: 5.725–5.829GHz
Frequency Redundancy: Dual-Frequency
Maximum Communication Range: Up to 40 km
Transmission Conditions: Unobstructed and low-interference environment
Maximum Single Video Stream: 4K @ 30fps
Maximum Dual Video Stream: 1080p @ 60fps
Maximum Transmission Bitrate: Up to 65 Mbps
Minimum Transmission Latency: Approx. 170 ms
Data Encryption: AES
Ground Station Specifications
Processor: Qualcomm 8-Core CPU
Operating System: Android 13
RAM: 4GB
Internal Storage: 64GB
Expandable Storage: MicroSD / TF Card
Display Size: 7″
Display Resolution: 1920 × 1200
Maximum Display Brightness: 1600 nits
Battery Capacity: 13,400mAh
Maximum Operating Time: Approx. 8 Hours
Battery Type: Quick-Release Rechargeable Battery
Charging Standard: USB Type-C / PD 30W
GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS
Protection Level: IP54
Cooling: Integrated Active Cooling
HDMI Output: Supported
Ethernet Interface: Supported
SIM Card: Supported
Wi-Fi: Supported
Bluetooth: Supported
Dimensions: 274 × 190 × 100 mm
Weight: Approx. 1.46 kg
Ground Station Antenna Configuration
5GHz Antennas: 2× Internal
2.4GHz Antennas: 2× External Foldable Antennas
UniRC 7 Pro Air Unit Specifications
Function: Remote Control / Telemetry / Digital Video Transmission
RC Signal Output: 16-Channel S.Bus
PWM Outputs: 5 Channels
UART Interfaces: 2×
Ethernet / LAN Interfaces: 2×
Firmware Upgrade Interface: USB Type-C
Antenna Architecture: Four-Antenna Design
Dimensions Without Antennas: 63 × 40 × 27 mm
Weight Without Antennas: Approx. 115 g
Average Power Consumption: Approx. 8 W
Package Specifications
Package Dimensions: 340 × 260 × 135 mm
Package Weight: Approx. 2712 g
What’s Included
1× SIYI UniRC 7 Pro Handheld Ground Station
1× SIYI UniRC 7 Pro Air Unit
1× UniRC 7 Pro Quick-Release Battery
1× UniRC 7 Pro Storage Case
4× 2.4GHz Omnidirectional Antennas
2× 5GHz Omnidirectional Antennas
2× UniRC 7 Pro Air Unit Data Cables
1× UniRC 7 Pro Air Unit S.Bus Cable
1× UniRC 7 Pro PWM Cable
1× GH1.25 4-Pin to RJ45 Ethernet Cable
1× XT30 Female Power Cable
1× USB Type-C to USB-A Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× 30W PD Power Adapter
1× UniRC 7 Pro Shoulder Strap
2× UniRC 7 Pro Quick-Release Kits
1× UniRC 7 Series Controller Mode Indicator Sticker
Flight controller, camera, gimbal, optical pod, aircraft frame, aircraft battery, propulsion system, and other UAV components are not included.
