The SIYI MK15 Mini Handheld Ground Station Enterprise HDMI Combo is a professional remote control, telemetry datalink, and Full HD video transmission solution designed for UAVs, UGVs, USVs, autonomous vehicles, inspection platforms, mapping aircraft, and industrial robotic systems.

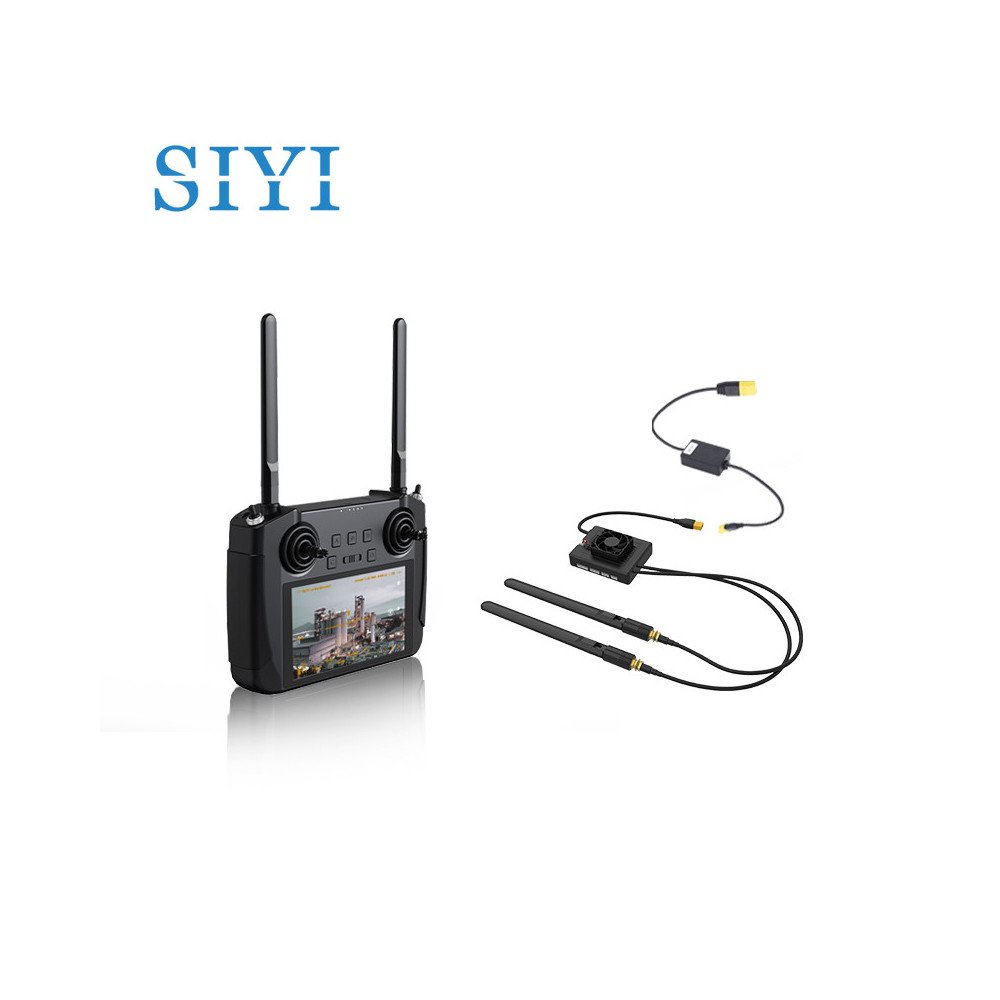

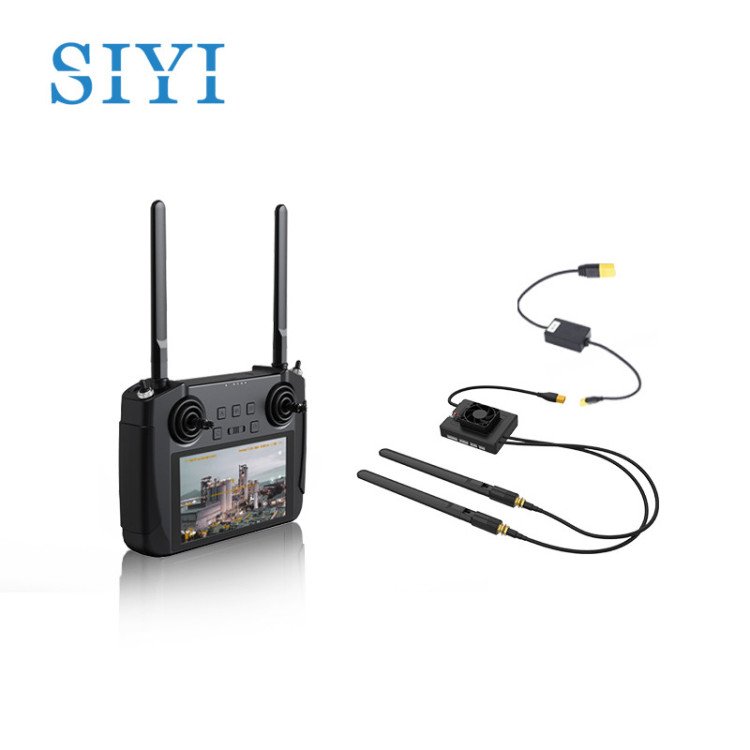

The Enterprise HDMI Combo combines the MK15 Enterprise Mini Handheld Ground Station, aircraft-side communication unit, long-range antennas, and Air Unit HDMI Input Converter to provide aircraft control, telemetry transmission, real-time Full HD video, and flexible HDMI camera integration through one complete system.
Integrated Control, Datalink & Video Transmission
The MK15 Enterprise system combines three essential communication functions:
Remote Control
Flight Telemetry Datalink
Dual Full HD Digital Video Transmission
This integrated architecture reduces the number of separate communication systems required and simplifies installation on professional UAV and robotic platforms.
Up to 15 km Transmission Range
The MK15 Enterprise provides a maximum communication range of up to 15 km under unobstructed and interference-free operating conditions.
The included long-range antennas help optimize communication performance for professional UAV, inspection, mapping, surveillance, and autonomous missions.
Actual transmission range depends on local regulations, antenna installation, terrain, operating altitude, electromagnetic interference, aircraft configuration, and environmental conditions.
Dual 1080p Digital Video Transmission
The MK15 communication system supports dual Full HD digital video transmission.
The integrated Qualcomm processing platform supports hardware decoding of H.264 and H.265 video streams up to 1080p at 60 fps.
Low transmission latency of approximately 180 ms provides responsive real-time visual feedback for aircraft control, inspection, payload operation, and autonomous vehicle monitoring.

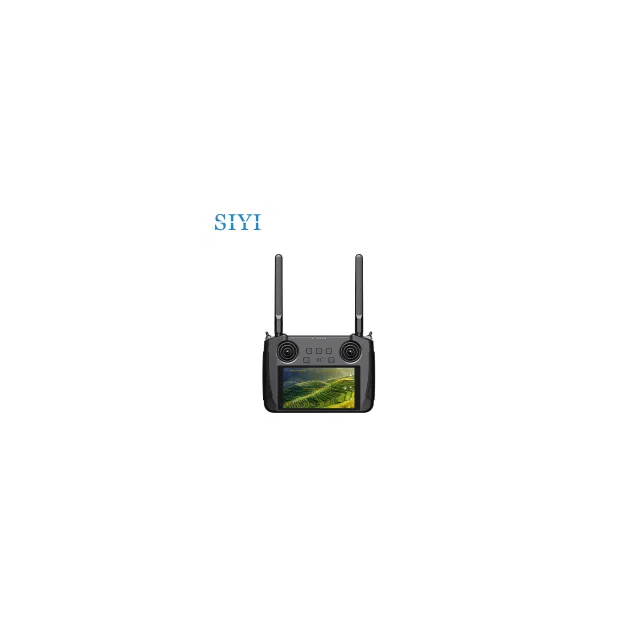

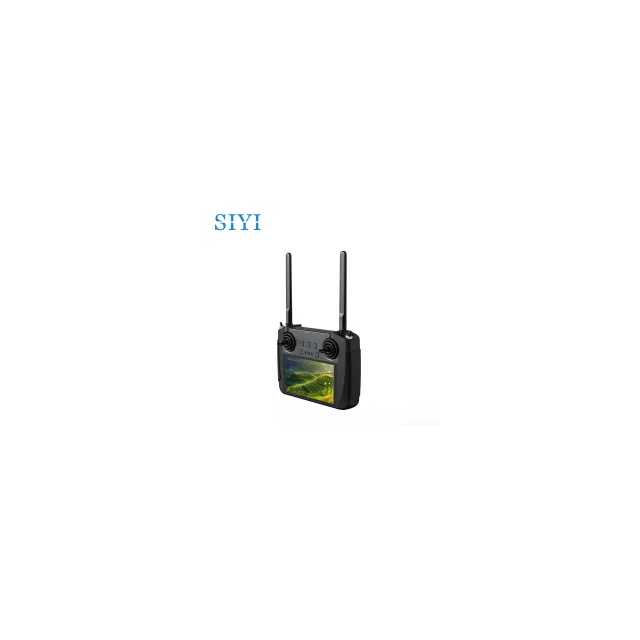

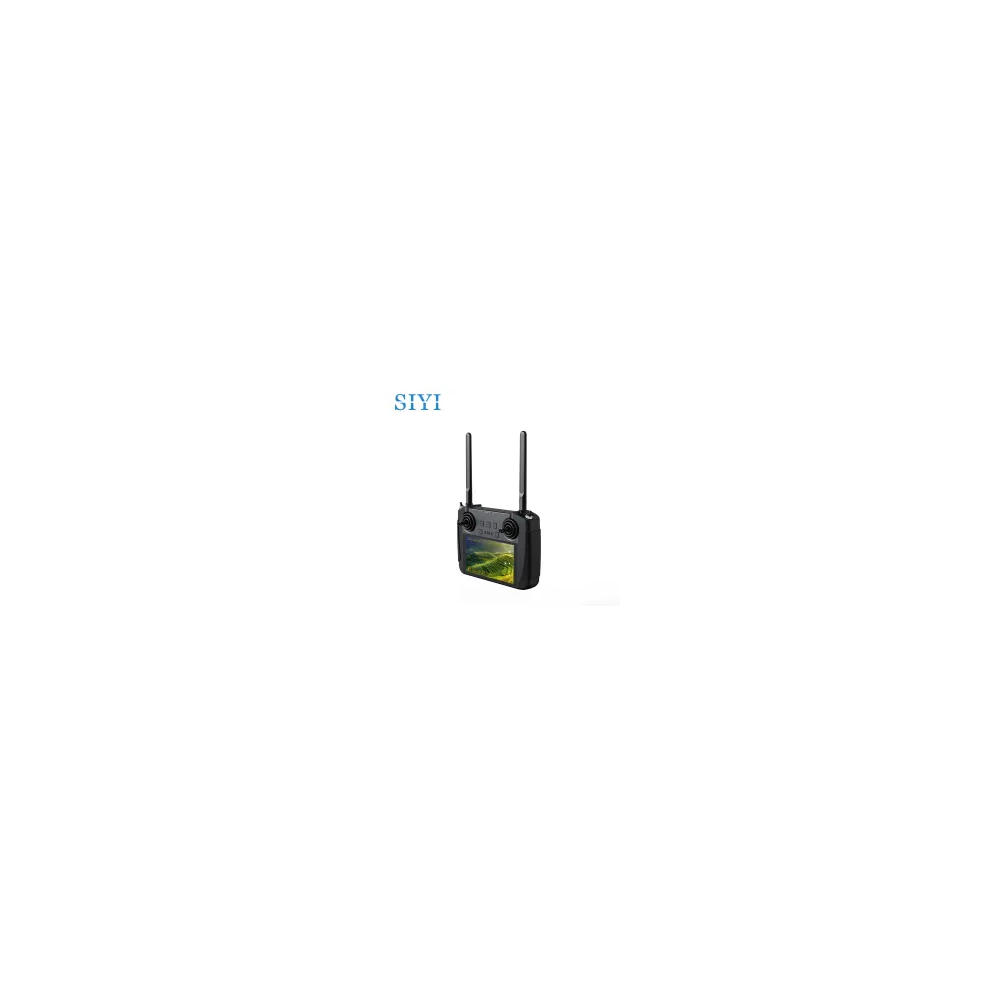

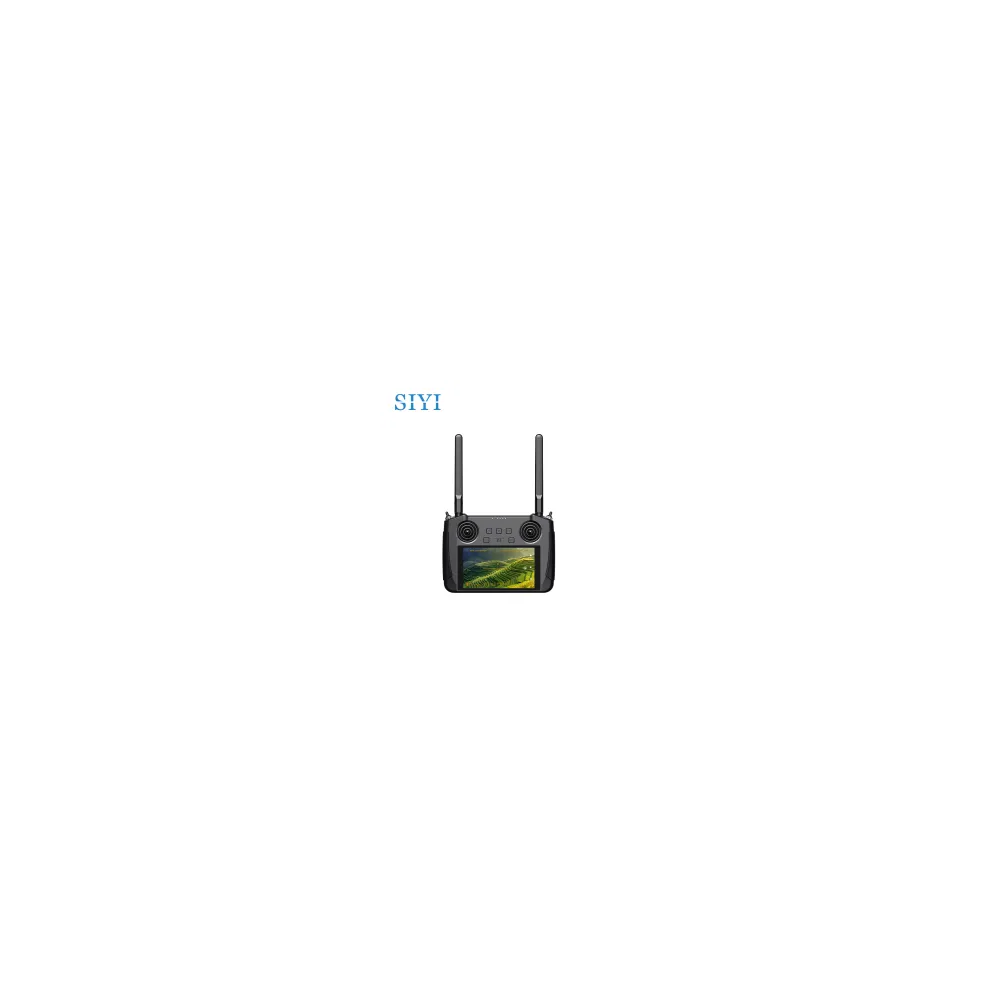

5.5-Inch High-Brightness Touchscreen

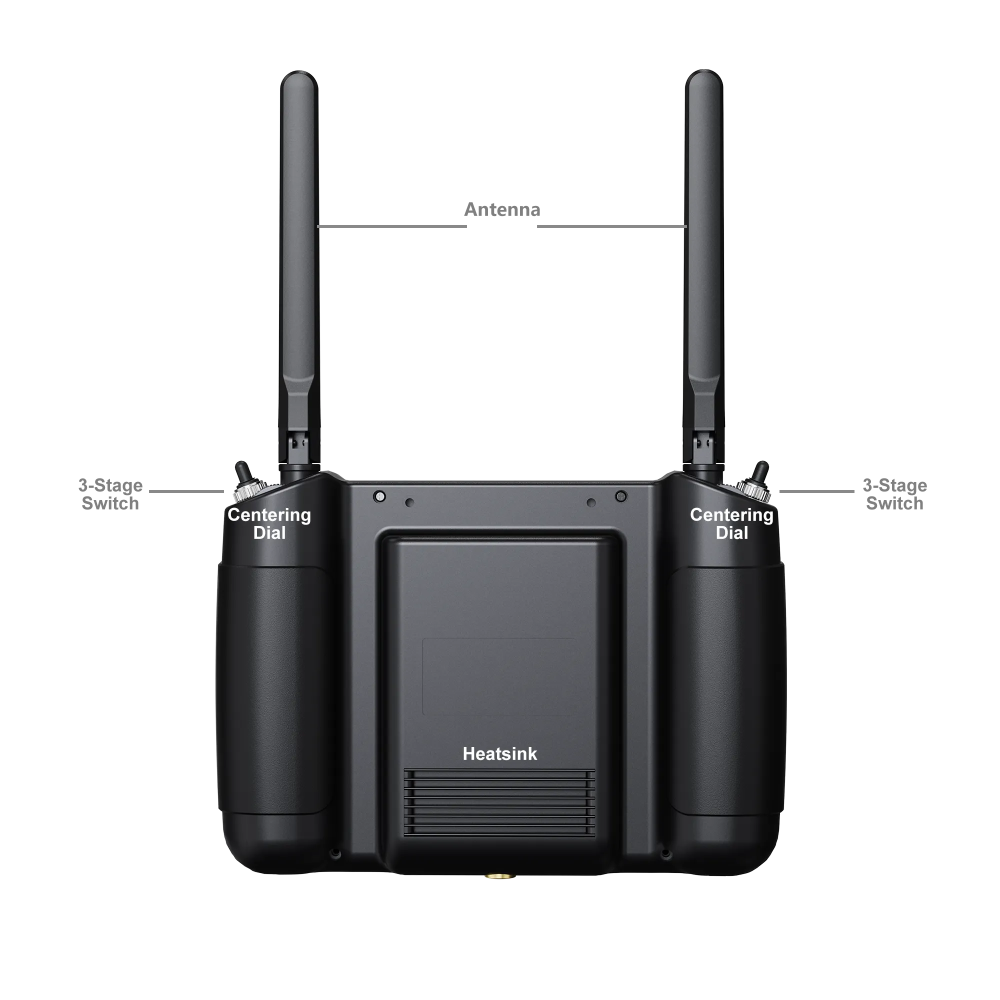

The MK15 Enterprise Ground Station features an integrated 5.5-inch Full HD touchscreen.
With brightness up to 1000 cd/m², the display provides clear visibility during outdoor operations and allows compatible ground control software, telemetry information, mission data, and live video to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the performance required for smooth Full HD video decoding and professional ground control applications.
The Android operating system supports compatible mission planning, telemetry, FPV, mapping, inspection, and autonomous vehicle applications.
The MK15 Android platform also supports mobile network connectivity for compatible cloud-based and remote data applications.
Standard HDMI Output
The Enterprise Ground Station includes a standard HDMI video output.
This allows the live video feed and compatible display content to be connected to an external monitor, video recorder, command center display, or professional broadcasting system.
The HDMI output is a feature of the Enterprise edition and is not included on the Agriculture version.
Air Unit HDMI Input Converter
The included Air Unit HDMI Input Converter allows compatible cameras and payloads with a Micro HDMI output to be connected to the SIYI digital video transmission system.
The converter receives the HDMI video source and outputs the video stream through Ethernet for transmission by the aircraft-side communication unit.
Integrated Video Recording
The HDMI Input Converter supports onboard video recording.
Compatible recording formats include:
1080p @ 30 fps
720p @ 30 fps
Video is encoded using H.265 with a recording bitrate of approximately 12 Mbps.
The converter supports MicroSD Class 10 cards up to 32GB using FAT32 formatting.
Dual Operator Capability
The MK15 Enterprise supports dual-operator configurations.
Two compatible MK15 Ground Stations can be connected to the same aircraft communication system.
One operator can control the aircraft while the second operator manages a gimbal camera, optical pod, payload, or other mission equipment.
Long Battery Endurance
The MK15 Ground Station integrates a 10,200mAh 2S Li-ion battery with a total capacity of 75.48Wh.
Operating endurance can reach up to approximately 13 hours depending on display brightness, installed applications, wireless connectivity, video decoding load, and environmental conditions.
The controller supports 20W USB Type-C Power Delivery charging.
13 Physical Control Channels
The controller provides 13 physical control channels for aircraft and payload operation.
The complete communication system supports up to 16 communication channels, providing flexible control of aircraft functions, cameras, gimbals, landing gear, lighting systems, payloads, and additional equipment.
Aircraft-Side Communication Unit
The aircraft-side communication unit provides remote-control signal output, flight-controller telemetry, digital video transmission, and Ethernet connectivity.
Supported interfaces include:
16-Channel S.Bus Output
5-Channel PWM Output
UART Flight Controller Datalink
Ethernet Video and Network Interface
USB Type-C Firmware Upgrade Interface
Air Unit type and power configuration may vary according to production generation and selected bundle.
Broad Flight Controller Compatibility
The MK15 Enterprise system supports PX4 and ArduPilot-based flight controllers.
It is suitable for use with SIYI N7, Pixhawk-compatible autopilots, and other supported professional flight-control systems.
Compatible Ground Control Software
The Android platform supports compatible applications including:
SIYI FPV
QGroundControl
Mission Planner
Video streams can also be displayed on compatible Windows ground-control software.
Professional Applications
The SIYI MK15 Enterprise HDMI Combo is suitable for:
Professional Multirotor UAVs
Fixed-Wing Aircraft
VTOL Platforms
Inspection UAVs
Mapping and Surveying Aircraft
Emergency Response Systems
UGVs and Autonomous Vehicles
USVs and Marine Robotics
Industrial Robotic Platforms
Professional HDMI Camera Payloads
Technical Specifications
Product: SIYI MK15 Mini Handheld Ground Station Enterprise HDMI Combo
Application: UAVs, UGVs, USVs, autonomous vehicles, robotics, inspection, mapping, and professional video transmission
System Functions: Remote Control / Telemetry Datalink / Dual Full HD Video Transmission
Maximum Transmission Range: Up to 15 km
Transmission Condition: Unobstructed and free of interference
Minimum Video Latency: Approx. 180 ms
Maximum Video Decoding: 1080p @ 60 fps
Video Codec Support: H.264 / H.265
Physical Control Channels: 13
Communication Channels: 16
Operating Temperature: -10°C to +50°C
MK15 Enterprise Ground Station
Processor: Qualcomm 8-Core CPU
Operating System: Android 9.0
RAM: 2GB
Internal Storage: 16GB
Display Size: 5.5″
Maximum Display Brightness: 1000 cd/m²
Integrated Battery: 10,200mAh / 7.4V / 2S Li-ion
Battery Energy: 75.48Wh
Maximum Operating Time: Up to Approx. 13 Hours
Charging Standard: USB Type-C / PD 20W
Typical Charging Time: Approx. 5 Hours with 20W PD Charger
Protection Level: IP53
Video Output: Standard HDMI
External Device Interface: USB Type-A
File Transfer: USB Type-C / USB Type-A
Mobile Network: SIM Card Support
External Storage: TF / MicroSD Card Slot
Tripod Mount: Standard 1/4″ Thread
Dimensions: 189 × 138 × 41 mm
Weight: Approx. 850 g
Aircraft-Side Air Unit
RC Signal Output: 16-Channel S.Bus
PWM Outputs: 5 Channels
Flight Controller Datalink: UART
Video and Network Interface: Ethernet / LAN
Firmware Upgrade Interface: USB Type-C
Standard Omnidirectional Antenna Gain: 5 dBi
Operating Temperature: -10°C to +50°C
Current Enterprise Air Unit: HM30 Air Unit depending on production batch
HM30 Air Unit Input Voltage: 3–6S / 12.6–25.2 V
HM30 Air Unit Weight: Approx. 74 g without antennas
High-Voltage Power Module: 4–18S Input / 16.8–75.6 V
HM30 Air Unit with Power Module Weight: Approx. 109 g
Earlier production versions may include an MK15 Air Unit. Air Unit type and supported voltage should be confirmed according to the supplied production batch.
Air Unit HDMI Input Converter
Video Input: Micro HDMI
Video Output: Ethernet
Operating Voltage: 12 V
Power Consumption: Approx. 3 W
Recording Resolution: 1080p @ 30 fps / 720p @ 30 fps
Recording Codec: H.265
Recording Bitrate: Approx. 12 Mbps
Storage Format: FAT32
Supported Memory Card: MicroSD Class 10 up to 32GB
Dimensions: 42 × 41 × 11 mm
Weight: Approx. 26 g
Operating Temperature: -10°C to +50°C
What’s Included
1× SIYI MK15 Enterprise Mini Handheld Ground Station with HDMI Output
1× SIYI Aircraft-Side Air Unit
1× SIYI Air Unit HDMI Input Converter
1× MK15 Storage Case
1× 4S–18S to 12V Step-Down Power Module
4× MK15 Omnidirectional Antennas
2× Long-Range Extension Antennas
1× 20W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× USB-C to USB-A Adapter
1× USB Firmware Upgrade Cable
1× Air Unit S.Bus Cable
1× Air Unit PWM Cable
1× Air Unit Data Cable
1× Air Unit 8-Pin Cable
Flight controller, camera, gimbal, optical pod, aircraft frame, battery, propulsion system, MicroSD card, and other UAV components are not included.
