The SIYI A2 mini × MK15 Agriculture Combo Sales Bundle is a complete remote control, datalink, and FPV monitoring solution designed specifically for agricultural UAVs and professional spraying drone platforms.
The bundle combines the MK15 Agriculture Smart Controller, MK15 Agriculture Air Unit, and A2 mini Ultra-Wide Angle FPV Gimbal to provide aircraft control, telemetry transmission, real-time Full HD video, and wide-angle visual monitoring through one integrated system.
Complete Agriculture UAV Control System
The MK15 Agriculture system combines remote control, datalink communication, and digital video transmission in one compact solution.
The integrated architecture reduces the number of separate onboard systems required and simplifies installation on agricultural multirotors and spraying UAV platforms.

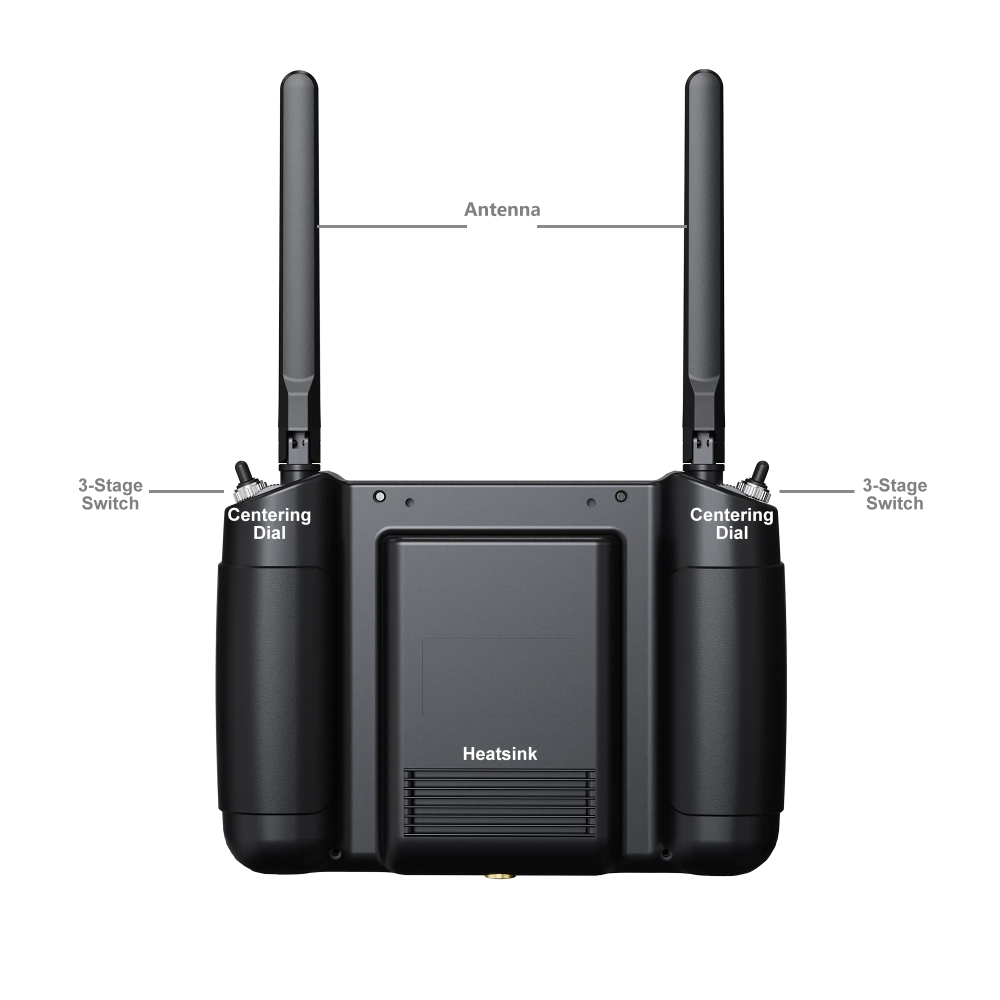

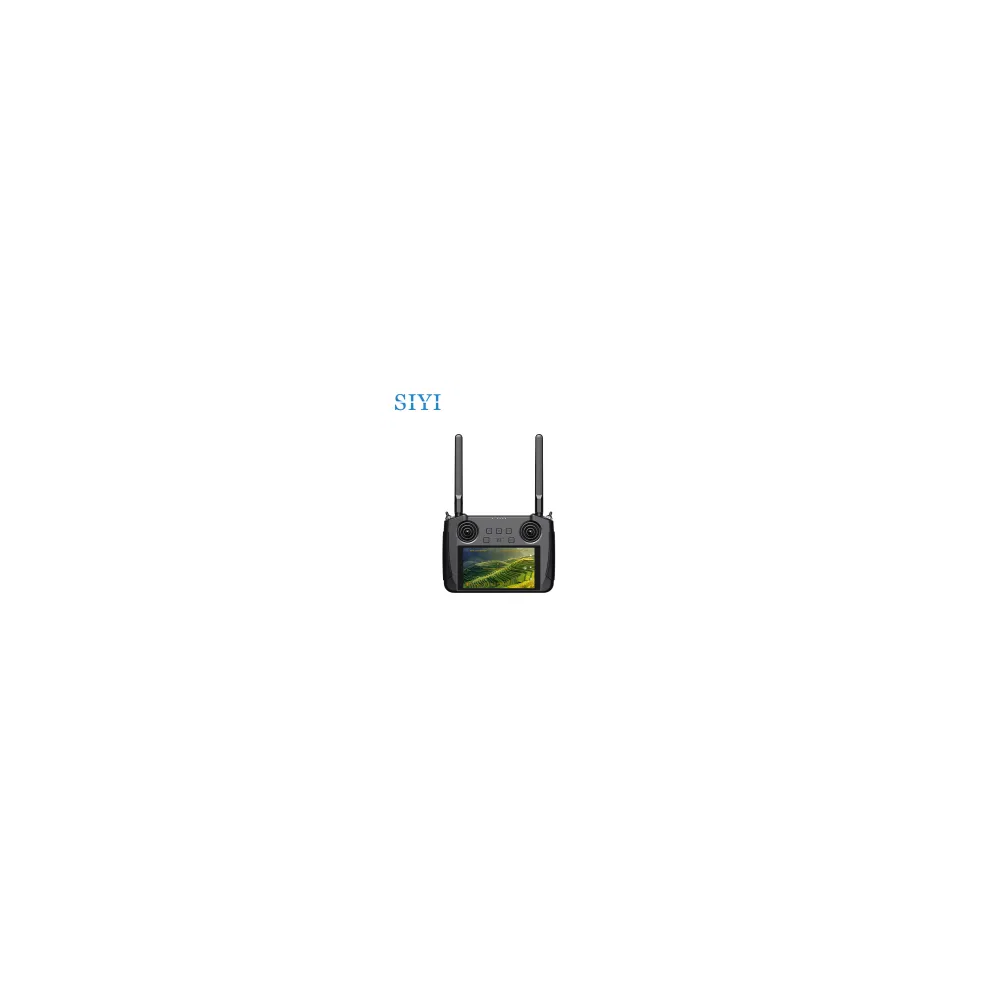

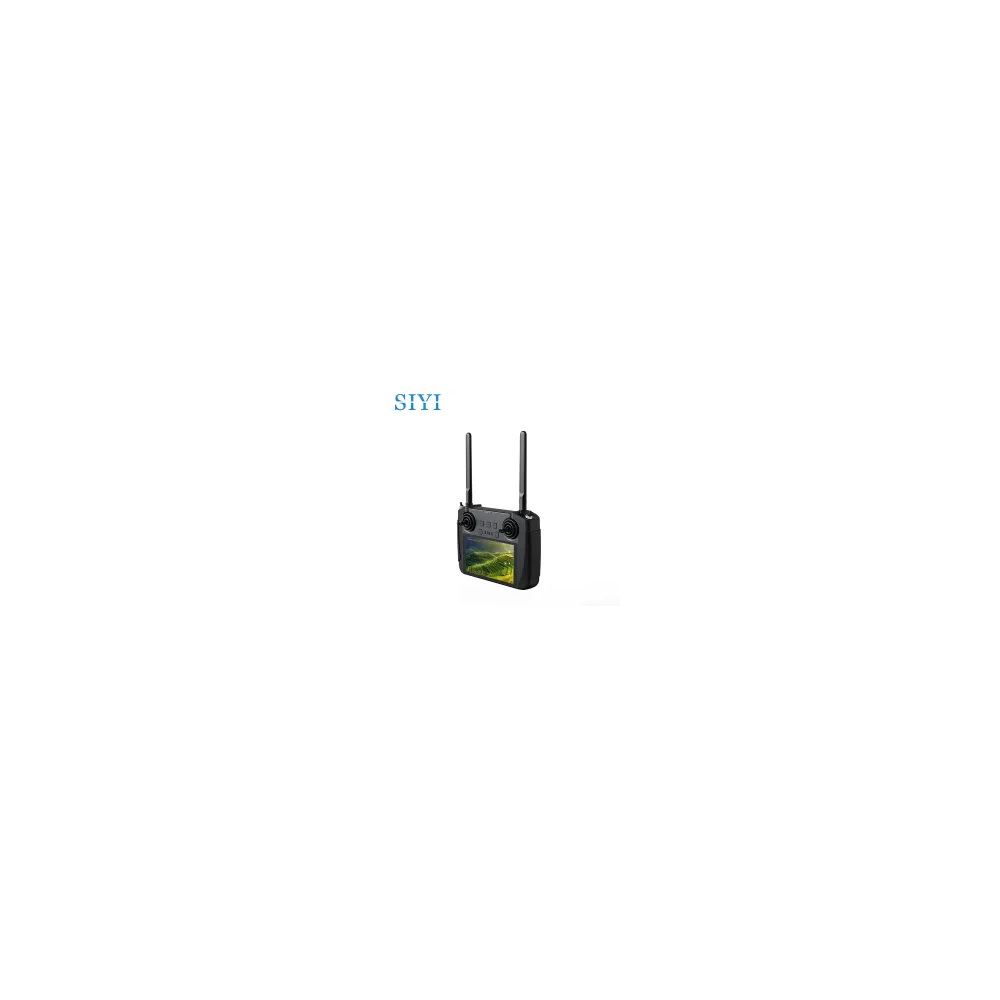

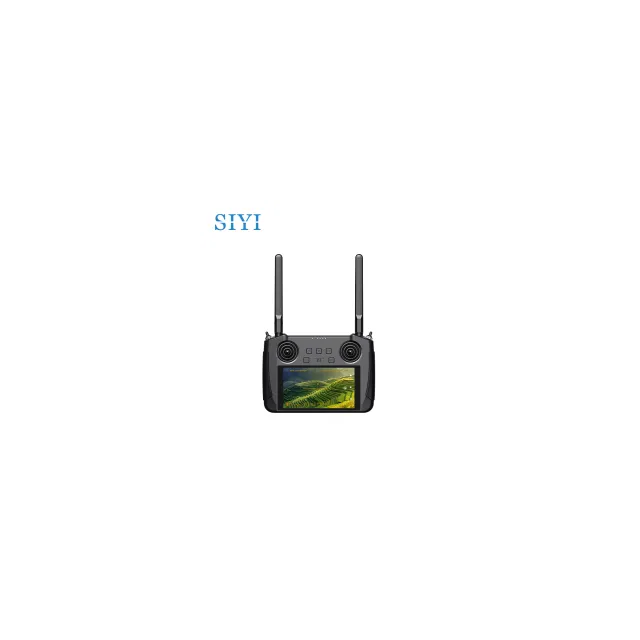

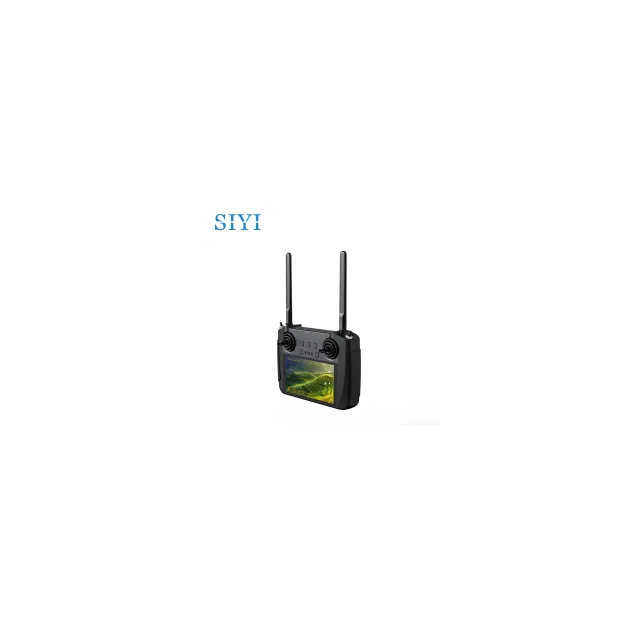

MK15 Agriculture Smart Controller
The MK15 Agriculture Smart Controller features a built-in 5.5-inch Full HD touchscreen with brightness up to 1000 nits.
The high-brightness display provides clear visibility during outdoor agricultural operations and allows compatible ground control applications and live FPV video to be displayed directly on the controller.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the performance required for smooth Full HD video decoding and compatible Android ground control applications.
The Android operating system provides a flexible platform for mission planning, aircraft monitoring, agricultural spraying applications, telemetry display, and compatible third-party software.
1080p Digital Video Transmission
The MK15 communication system supports dual Full HD digital video transmission.
The system can transmit video up to 1080p at 60 fps with latency as low as approximately 180 ms, providing responsive real-time visual feedback during agricultural spraying missions.
Up to 3.5 km Communication Range
The MK15 Agriculture system provides a maximum transmission and control range of up to 3.5 km under suitable operating conditions.
Actual range depends on local regulations, antenna installation, terrain, interference, flight altitude, aircraft configuration, and operating environment.
Integrated Control, Telemetry & Video Link
The MK15 link combines:
Remote Control
Flight Telemetry
Digital Video Transmission
This integrated architecture helps simplify UAV wiring and provides a complete communication link between the aircraft and operator.

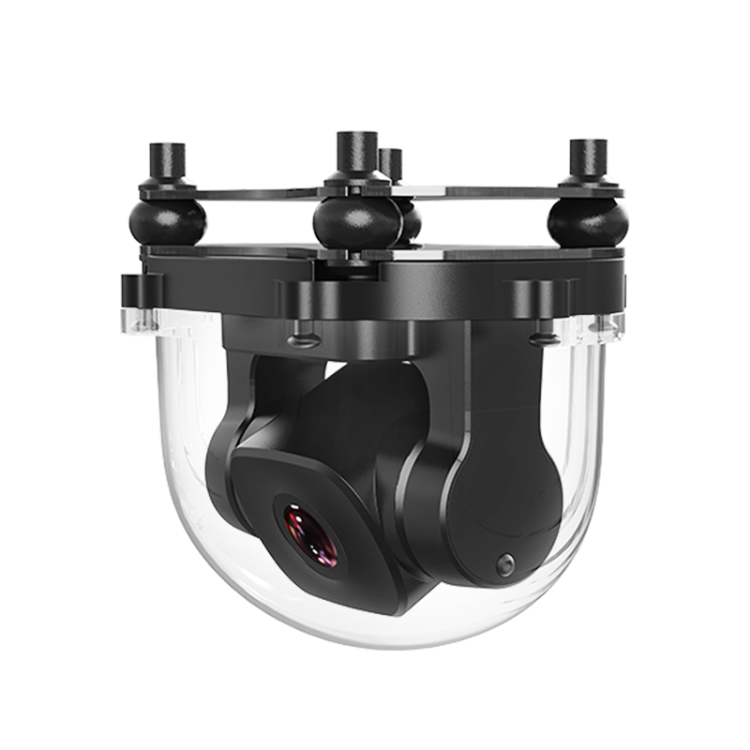

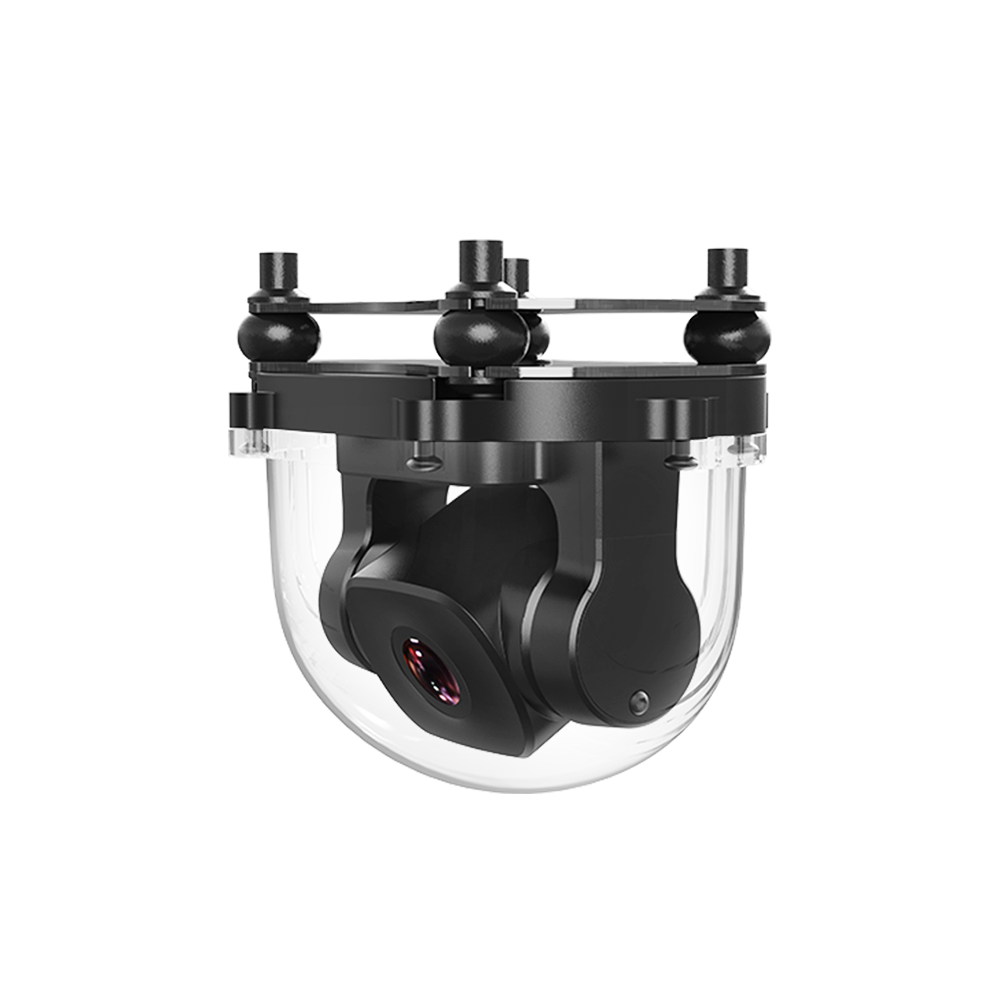

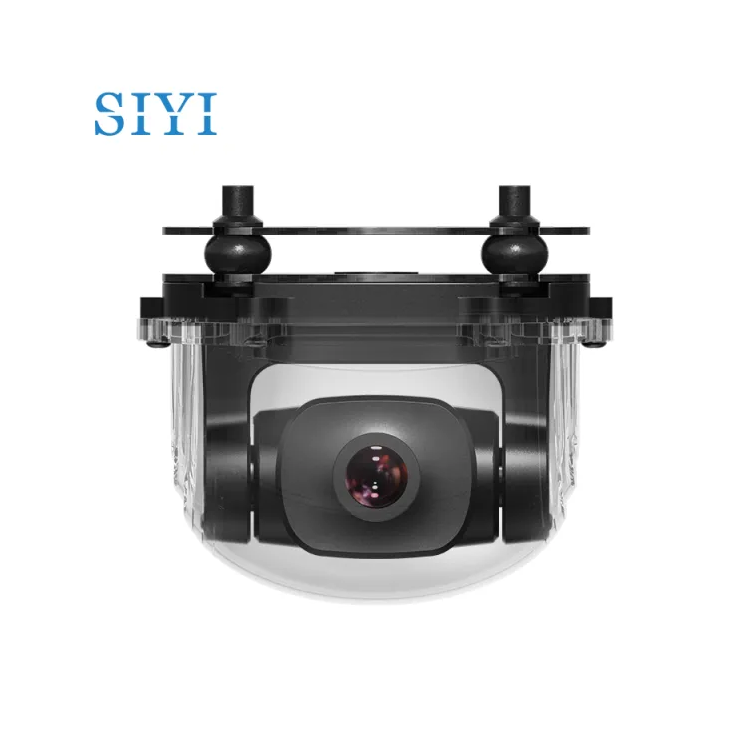

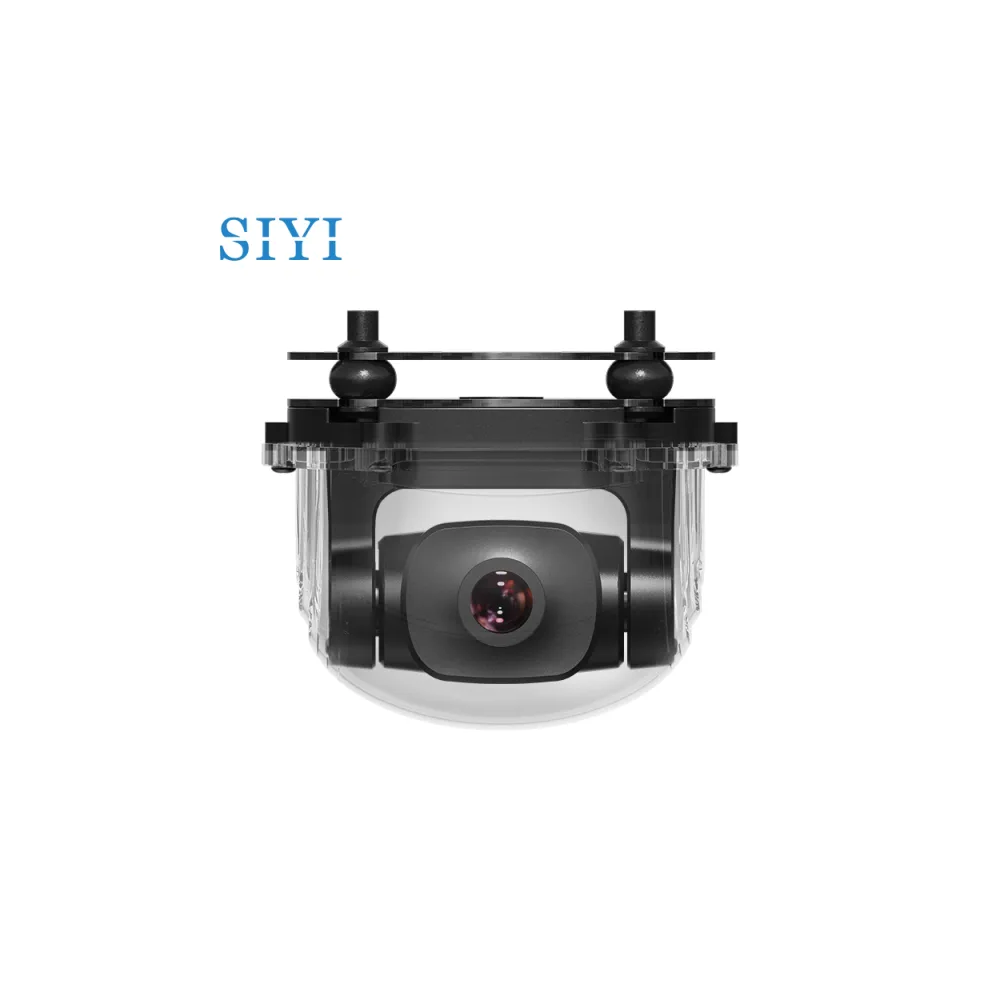

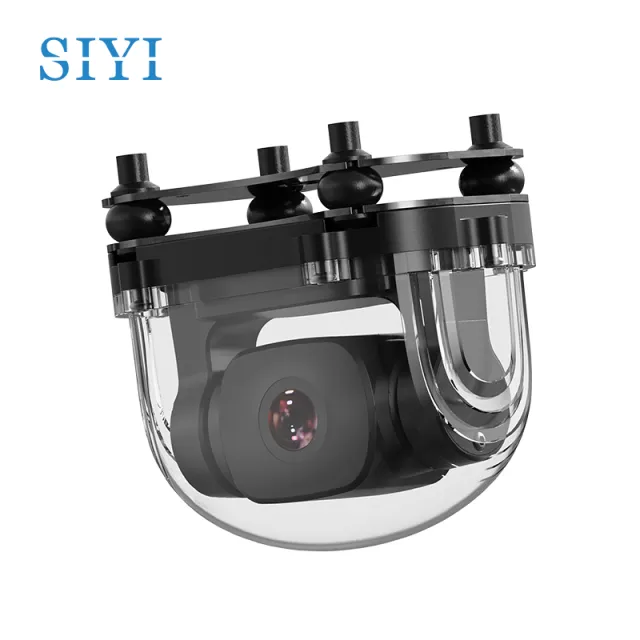

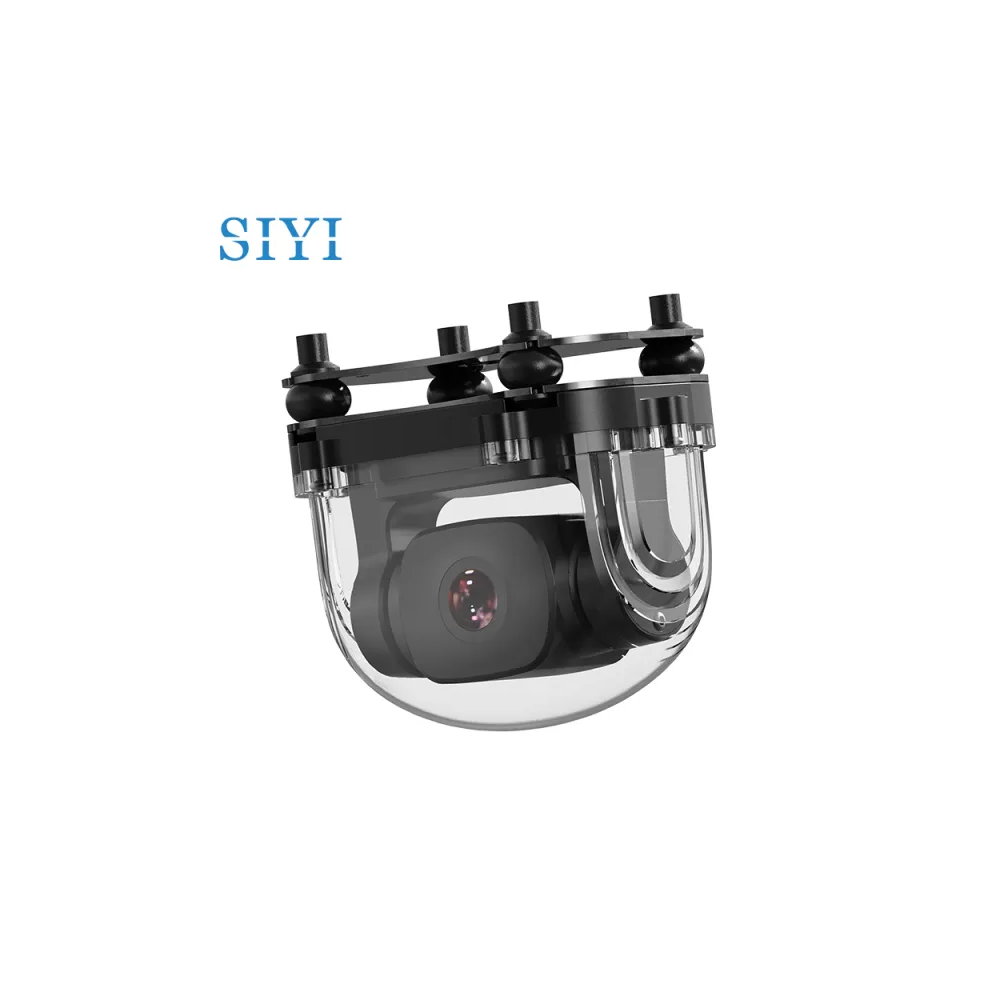

A2 mini Ultra-Wide Angle FPV Gimbal
The included A2 mini is a compact single-axis FPV gimbal designed for agricultural UAV monitoring.
Its 160° horizontal ultra-wide-angle lens provides an extensive view of the spraying area, helping the operator monitor the aircraft surroundings without frequently changing the drone attitude.
1080p Starlight FPV Camera
The A2 mini features a high-sensitivity Starlight CMOS sensor capable of providing clear Full HD video in low-light environments.
This improves visual awareness during early-morning, late-evening, shaded, or reduced-light agricultural operations.
Wide-Angle Distortion Correction
The integrated image correction algorithm reduces the visual distortion normally associated with ultra-wide-angle lenses.
This provides a more natural and usable FPV image while maintaining a wide view of the agricultural operating area.
Single-Axis Pitch Control
The A2 mini uses a stabilized single-axis gimbal with controllable pitch movement.
The camera angle can be adjusted from approximately -90° to +25°, allowing the operator to adapt the viewing direction according to aircraft configuration and mission requirements.
Flexible Mounting Modes
The A2 mini supports multiple installation orientations, including:
Upright Mode
Upside Down Mode
Nose Mode
This provides greater flexibility when integrating the camera into different agricultural drone frames.
Designed for Agricultural Environments
The MK15 Agriculture system and A2 mini camera are designed for professional agricultural UAV applications.
The protected controller and camera construction help support outdoor operation in demanding spraying environments.
Broad Flight Controller Compatibility
The MK15 Agriculture system is compatible with widely used agricultural flight control platforms and autopilot ecosystems.
Compatible systems include selected JIYI, BOYING, VK, Pixhawk, and other supported flight controllers.
Technical Specifications
Product: SIYI A2 mini × MK15 Agriculture Combo Sales Bundle
Application: Agricultural UAVs, spraying drones, crop protection aircraft, and professional multirotor platforms
MK15 Agriculture Smart Controller
Processor: Qualcomm 8-Core CPU
Operating System: Android
Display Size: 5.5″
Display Resolution: Full HD / 1080p
Maximum Display Brightness: 1000 cd/m²
Maximum Communication Range: Up to 3.5 km
Video Transmission: Dual Full HD Digital Video Transmission
Maximum Video Resolution: 1080p @ 60 fps
Minimum Latency: Approx. 180 ms
RC Output: Up to 16 SBUS Channels
Battery Life: Up to 12 Hours
Charging: USB Type-C PD Fast Charging
Typical Full Charging Time: Approx. 3.5 Hours
Controller Protection Level: IP53
Controller Weight: Approx. 850 g
MK15 Agriculture Air Unit
Function: Remote Control / Telemetry / Digital Video Transmission
Video Stream: Dual Full HD
Compatible Input Voltage: 4–18S / 16.8–75.6 V
Control Interfaces: S.Bus / PWM
Aircraft Integration: Agricultural UAV and compatible autopilot systems
A2 mini FPV Gimbal Camera
Camera Type: Ultra-Wide Angle Starlight FPV Camera
Gimbal Type: Single-Axis Stabilized Gimbal
Video Resolution: 1080p Full HD
Horizontal Field of View: 160°
Video Output: Ethernet
Controllable Pitch Range: -90° to +25°
Mounting Modes: Upright / Upside Down / Nose Mode
Weight: Approx. 85 g
Application: Agricultural UAV Monitoring and FPV Navigation

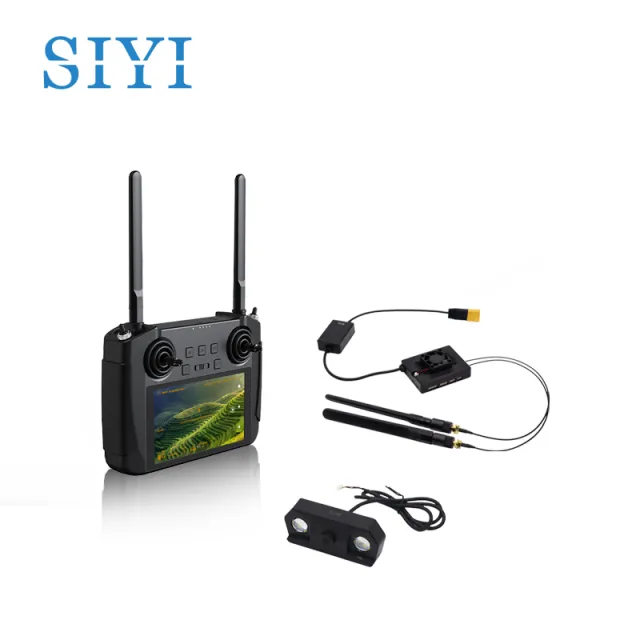

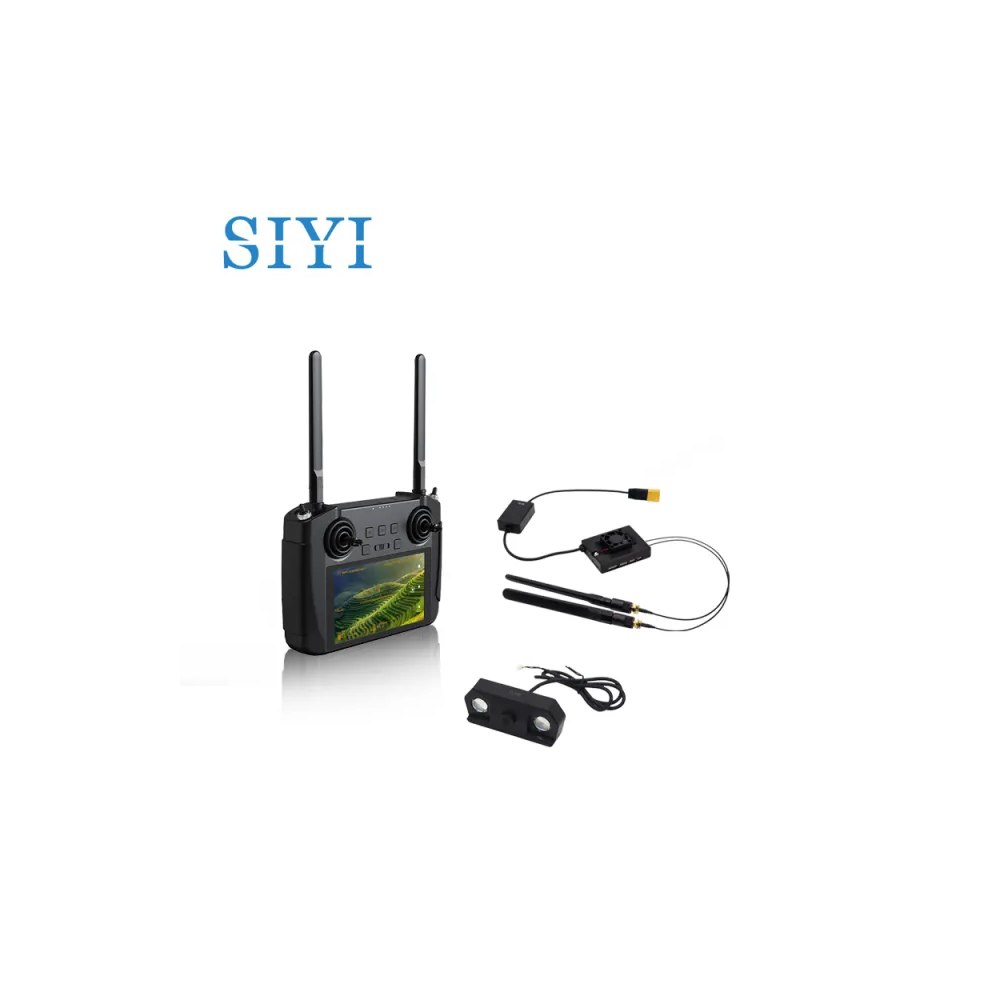

What’s Included
1× SIYI MK15 Agriculture Mini Handheld Ground Station
1× SIYI MK15 Agriculture Air Unit
1× SIYI A2 mini Ultra-Wide Angle FPV Gimbal
1× MK15 Agriculture Storage Case
4× MK15 Agriculture Omnidirectional Antennas
1× 20W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× USB-C to USB-A Adapter
1× USB Firmware Upgrade Cable
1× MK15 Agriculture Air Unit S.Bus Cable
1× MK15 Agriculture PWM Cable
1× A2 mini Mounting Hardware Set
Flight controller, aircraft frame, propulsion system, battery, spraying system, and other UAV components are not included.
