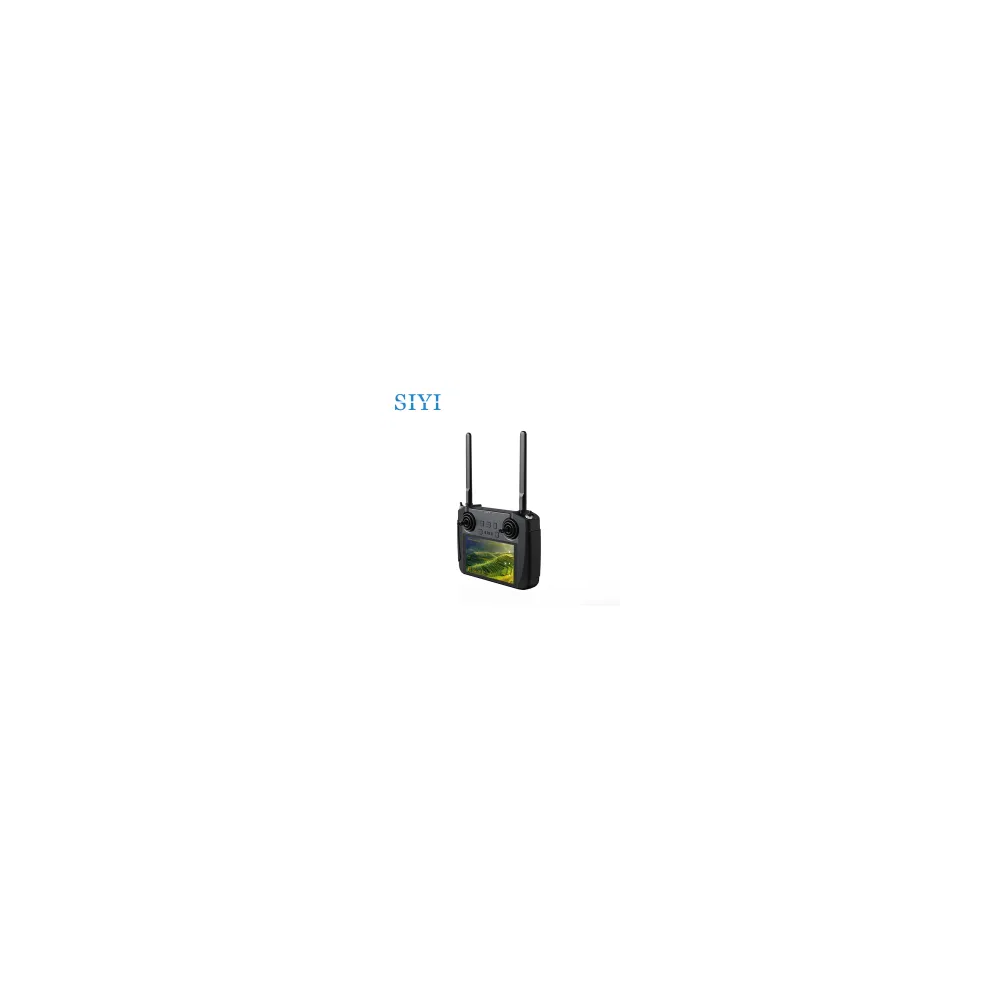

The SIYI MK15 Mini Handheld Ground Station Agriculture FPV Combo is a complete remote control, datalink, and FPV monitoring solution designed for professional agricultural UAVs, crop protection drones, and spraying platforms.

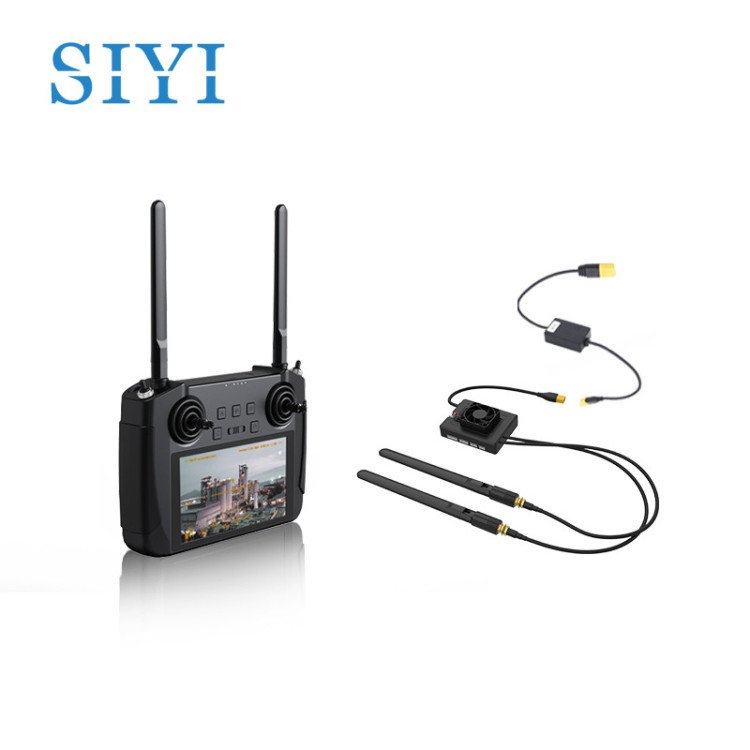

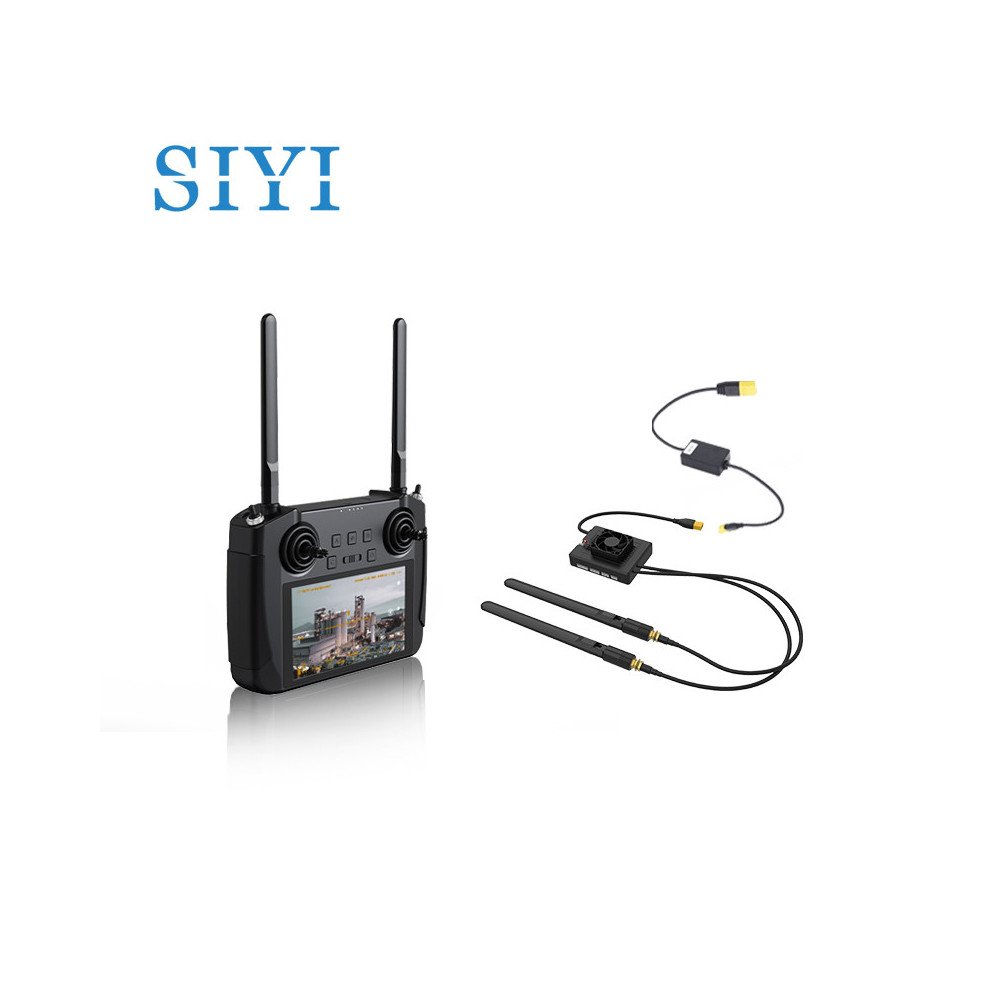

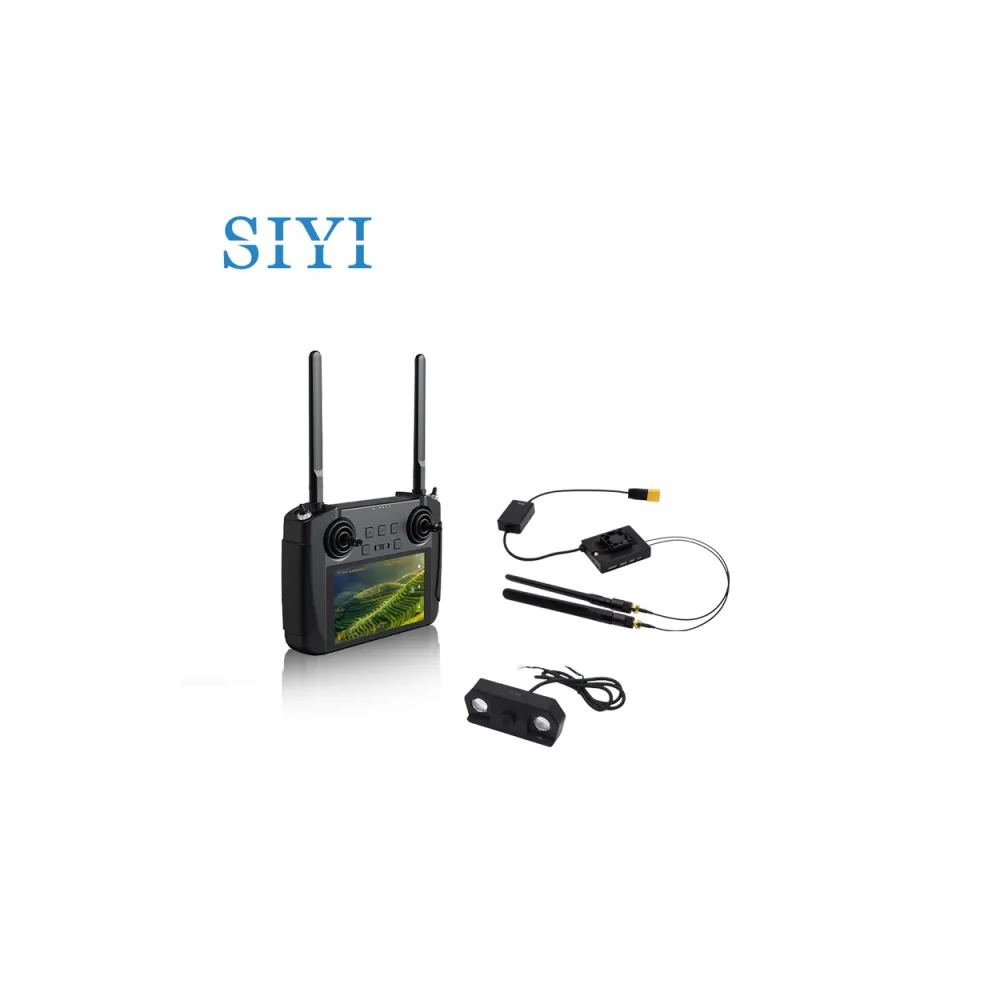

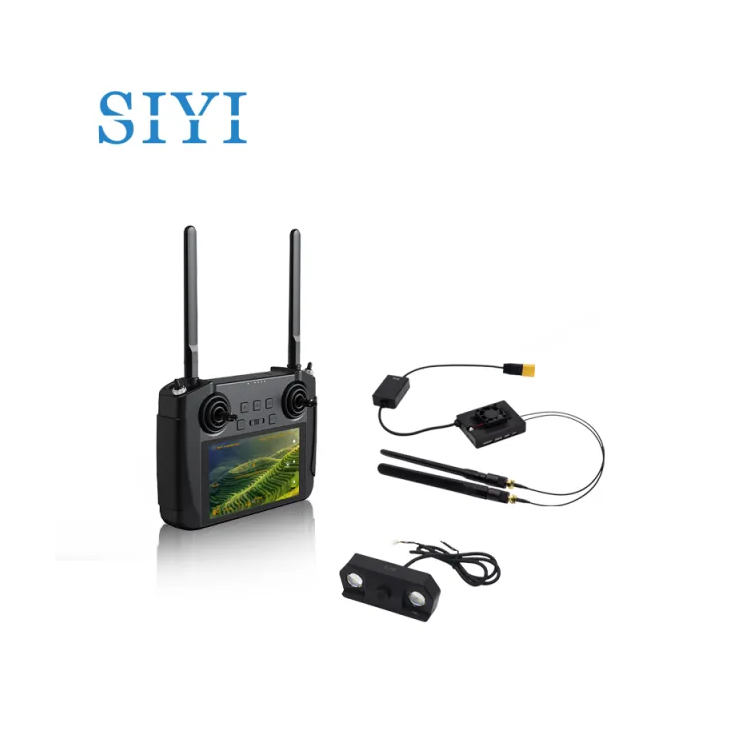

The system combines the MK15 Agriculture Mini Handheld Ground Station, MK15 Agriculture Air Unit, and IP67 FPV Camera with integrated searchlight to provide aircraft control, flight telemetry, Full HD digital video transmission, and real-time visual monitoring through one integrated platform.
Complete Agriculture UAV Control System
The MK15 Agriculture system integrates three essential communication functions into one solution:
Remote Control
Flight Telemetry Datalink
Full HD Digital Video Transmission
This integrated architecture simplifies aircraft installation, reduces the number of separate communication systems required, and provides a complete connection between the UAV and operator.
Up to 3.5 km Transmission Range
The MK15 Agriculture system provides a maximum communication range of up to 3.5 km under suitable operating conditions.
This range is optimized for agricultural spraying operations performed at typical operating altitudes between approximately 3 and 6 m.
Actual transmission range depends on local regulations, antenna installation, terrain, electromagnetic interference, aircraft configuration, operating altitude, and environmental conditions.
Dual Full HD Digital Video Transmission
The MK15 communication system supports dual Full HD digital video transmission.
The integrated Qualcomm processing platform can decode H.264 and H.265 video streams up to 1080p at 60 fps, providing smooth real-time FPV monitoring and reliable visual feedback during agricultural operations.
Low transmission latency of approximately 180 ms helps provide responsive aircraft control and situational awareness.
5.5-Inch High-Brightness Touchscreen

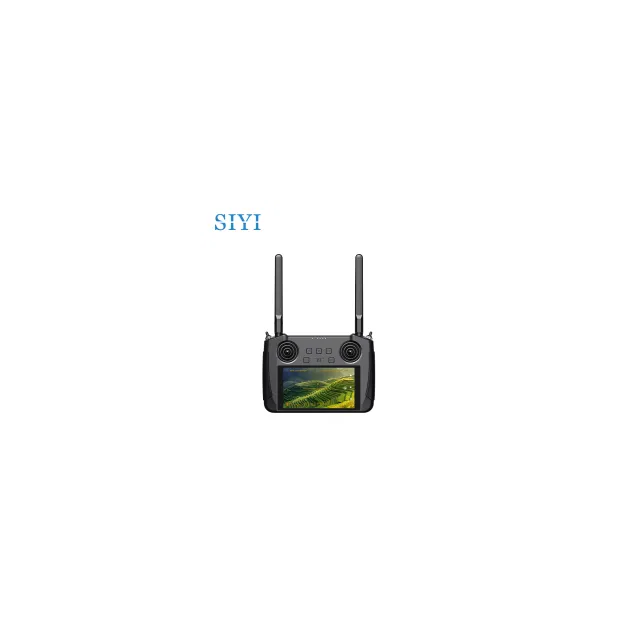

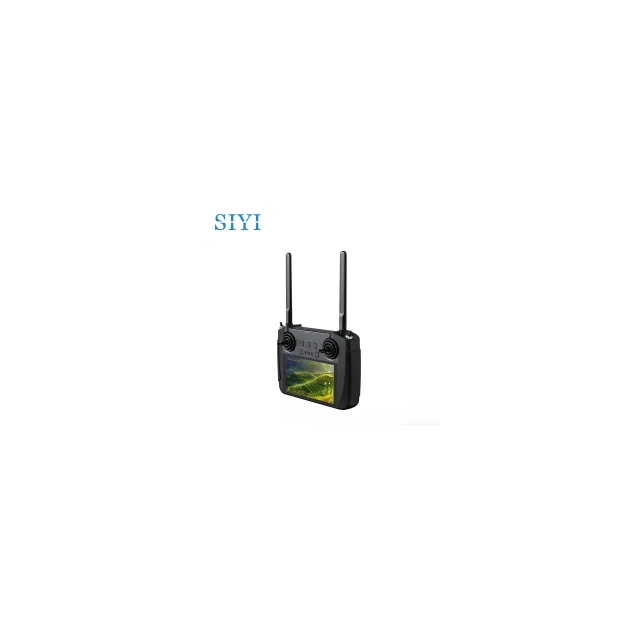

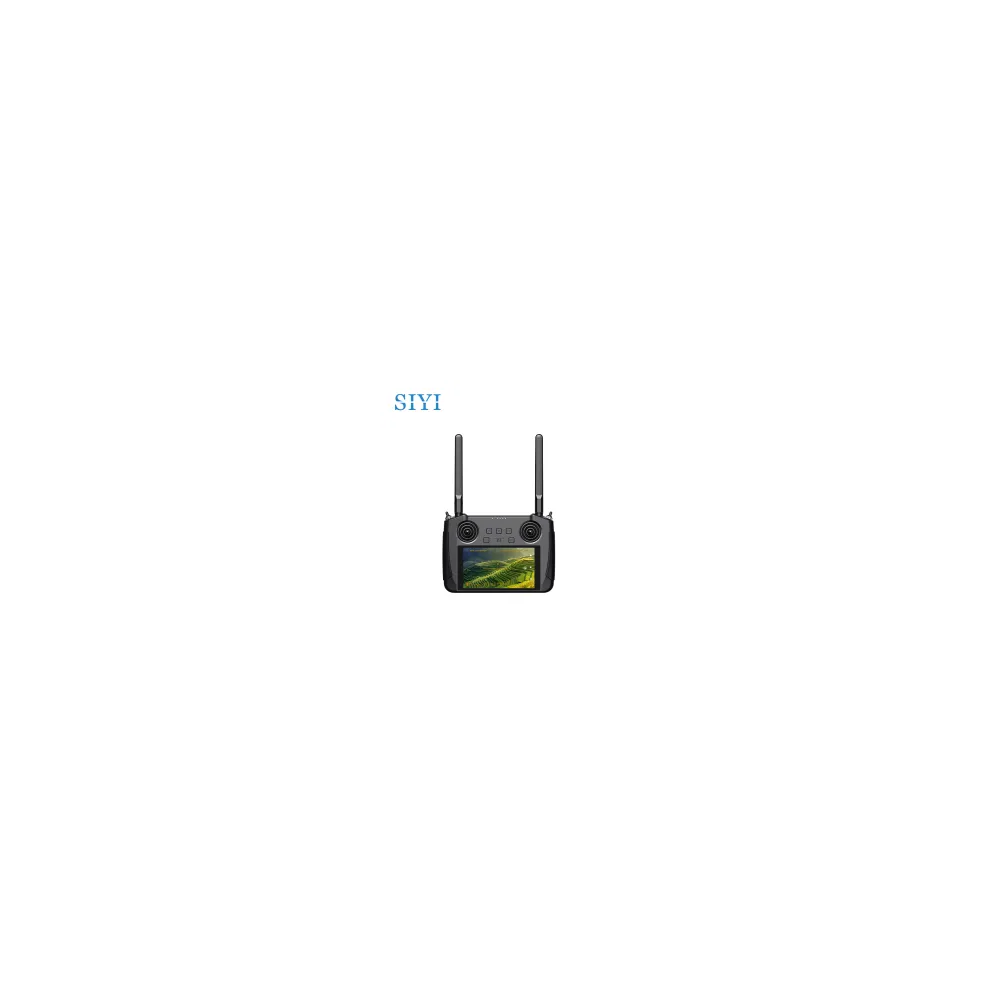

The MK15 Agriculture Ground Station features an integrated 5.5-inch Full HD touchscreen.
With brightness up to 1000 cd/m², the display remains clearly visible during outdoor operations and provides direct access to compatible ground control software, aircraft telemetry, mission information, and live FPV video.
Qualcomm 8-Core Android Platform
The integrated Qualcomm 8-core processor provides the performance required for smooth Full HD video decoding and professional ground control applications.
The Android operating system supports compatible flight control, agricultural spraying, mission planning, telemetry, and FPV applications.
The controller includes 2GB RAM and 16GB internal storage for applications and operational data.
Long Battery Endurance
The MK15 Ground Station integrates a 10,200mAh 2S Li-ion battery with a total energy capacity of 75.48Wh.
Battery endurance can reach up to approximately 13 hours depending on display brightness, wireless communication, installed applications, environmental conditions, and operating load.
The controller supports 20W USB Type-C Power Delivery charging.

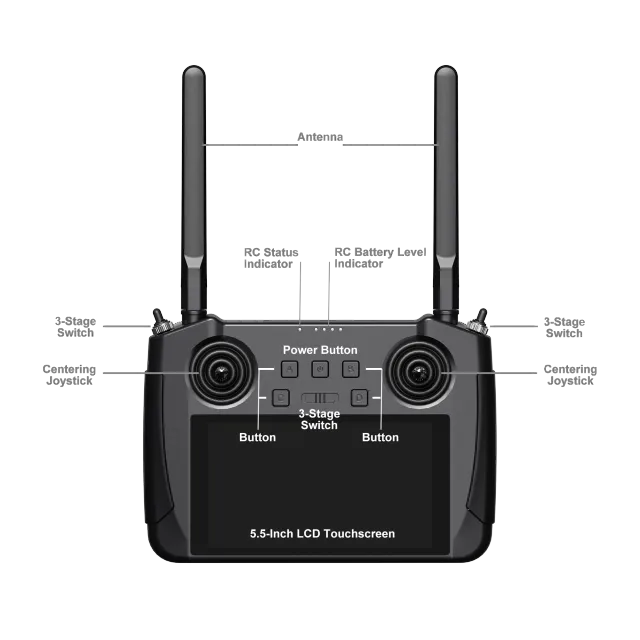

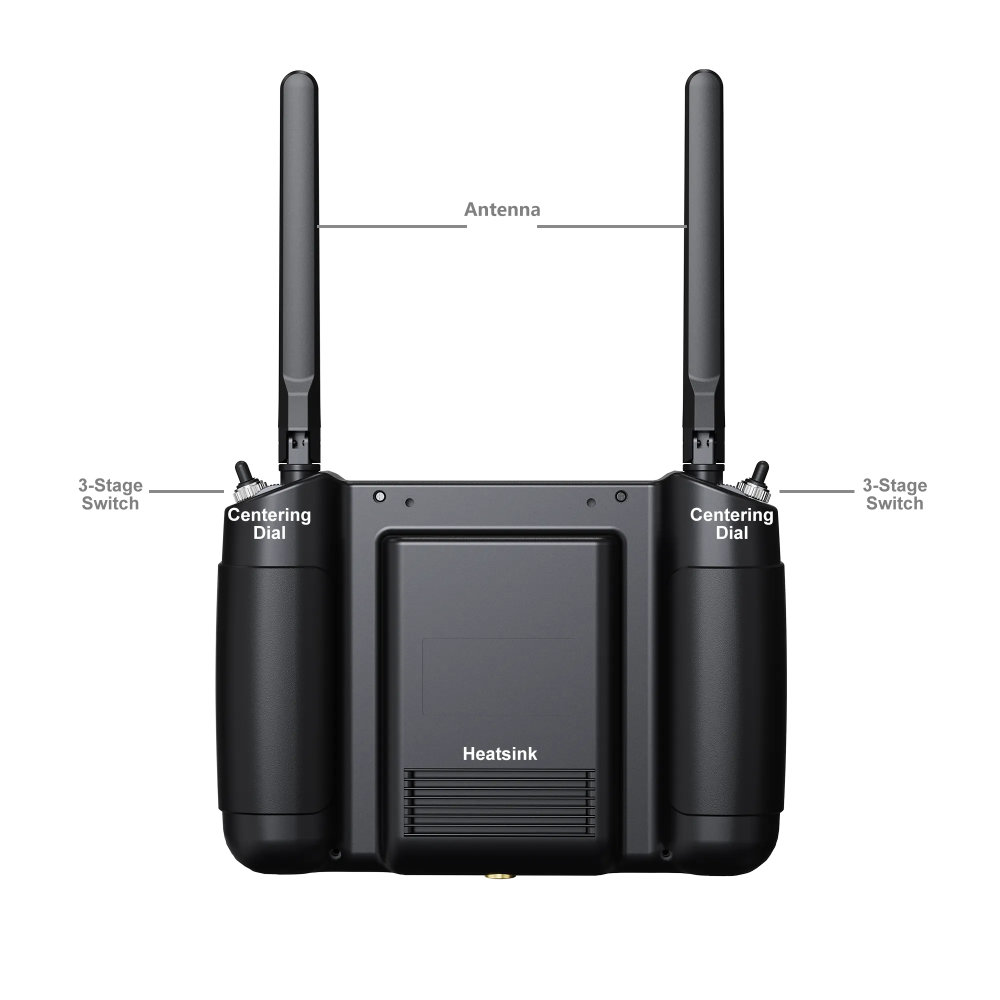

13 Physical Control Channels
The controller provides 13 physical control channels for aircraft operation and mission functions.
The complete communication system supports up to 16 communication channels through the MK15 Air Unit.
This provides flexible control of aircraft functions, spraying equipment, pumps, cameras, lighting systems, payloads, and additional UAV equipment.
MK15 Agriculture Air Unit
The included MK15 Agriculture Air Unit manages aircraft-side remote control, telemetry, and video communication.
It supports:
16 S.Bus Output Channels
5 PWM Output Channels
UART Flight Controller Datalink
Ethernet Video and Network Interface
USB Type-C Firmware Upgrade Interface
Its wide 4–18S input range allows direct integration into many professional agricultural UAV power systems.
IP67 FPV Camera
The included agricultural FPV camera provides a wide 120° field of view for improved visual awareness around the aircraft.
Its protected IP67 design helps resist dust, water, pesticide exposure, and demanding agricultural operating conditions.
Early production versions may use an IP65-rated enclosure. Protection level should be confirmed for legacy stock.
Integrated Searchlight
The FPV camera includes an integrated LED searchlight to improve visibility in low-light environments.
The lighting system provides approximately 120–140 lm of luminous output with a wide 120° illumination angle.
This can improve aircraft monitoring during early-morning, late-evening, shaded, or reduced-light agricultural operations.
Wide-Angle Agricultural Monitoring
The 120° camera field of view provides a broad visual image around the aircraft.
This helps operators monitor flight direction, crop areas, obstacles, spraying operations, and aircraft surroundings without requiring frequent changes to the UAV attitude.
Designed for Agricultural Environments
The MK15 Agriculture system is designed for crop protection and professional spraying operations.
The Ground Station features IP53 protection, while the current FPV camera version provides IP67 protection for improved durability in outdoor agricultural environments.
Broad Flight Controller Compatibility
The MK15 Agriculture system supports multiple open-source and agricultural flight controller platforms.
Compatible systems include selected:
SIYI N7
PX4 Flight Controllers
ArduPilot Flight Controllers
BOYING Paladin V2
JIYI K++ V2
JIYI K3A Pro
VK V7AG
VK V9AG
Compatibility may depend on firmware version, wiring configuration, communication protocol, and installed ground control software.
Compatible Ground Control Software
The MK15 Android platform supports multiple compatible flight and agricultural applications.
Supported applications include:
SIYI FPV
QGroundControl
Mission Planner
BOYING Agriculture
JIYI Agri-Assistant
JIYI IFLY
VK Agriculture
Technical Specifications
Product: SIYI MK15 Mini Handheld Ground Station Agriculture FPV Combo
Application: Agricultural UAVs, spraying drones, crop protection aircraft, and professional multirotor platforms
System Functions: Remote Control / Datalink / Full HD Digital Video Transmission / FPV Monitoring
Maximum Transmission Range: Up to 3.5 km
Typical Agricultural Operating Altitude: 3–6 m
Video Transmission: Dual Full HD Digital Video Transmission
Maximum Video Decoding: 1080p @ 60 fps
Video Codec Support: H.264 / H.265
Minimum Video Latency: Approx. 180 ms
Physical Control Channels: 13
Communication Channels: 16
MK15 Agriculture Ground Station Specifications
Processor: Qualcomm 8-Core CPU
Operating System: Android 9.0
RAM: 2GB
Internal Storage: 16GB
Display Size: 5.5″
Maximum Display Brightness: 1000 cd/m²
Integrated Battery: 10,200mAh / 7.4V / 2S Li-ion
Battery Energy: 75.48Wh
Maximum Operating Time: Up to Approx. 13 Hours
Charging Standard: USB Type-C / PD 20W
Typical Charging Time: Approx. 5 Hours with 20W PD Charger
Protection Level: IP53
USB Interface: USB Type-A / USB Type-C
Mobile Network: SIM Card Slot
External Storage: TF / MicroSD Card Slot
Tripod Mount: Standard 1/4″ Thread
HDMI Output: Not Included on Agriculture Version
Dimensions: 189 × 138 × 41 mm
Weight: Approx. 850 g
MK15 Agriculture Air Unit Specifications
Function: Remote Control / Datalink / Digital Video Transmission
Input Voltage: 4–18S / 16.8–75.6 V
S.Bus Outputs: 16 Channels
PWM Outputs: 5 Channels
Flight Controller Datalink: UART
Video and Network Interface: Ethernet / LAN
Firmware Upgrade Interface: USB Type-C
Antenna Gain: 5 dBi
Average Power Consumption: Approx. 3.2 W
Maximum Power Consumption: Approx. 12 W
Operating Temperature: -10°C to +50°C
Dimensions: 70 × 55 × 16 mm excluding antennas
Weight: Approx. 100 g excluding antennas
IP67 FPV Camera Specifications
Camera Type: Agricultural Wide-Angle FPV Camera with Integrated Searchlight
Field of View: 120°
Operating Voltage: 12 V
Power Consumption with LED Off: Approx. 3 W
Power Consumption with LED On: Approx. 8 W
Searchlight Output: Approx. 120–140 lm
LED Illumination Angle: 120°
Protection Level: IP67 on Current Version
Legacy Protection Level: Some Early Production Versions Are IP65
Dimensions: 106 × 25 × 41 mm
Operating Temperature: -10°C to +50°C
What’s Included
1× SIYI MK15 Agriculture Mini Handheld Ground Station — Without HDMI
1× SIYI MK15 Agriculture Air Unit
1× SIYI Agricultural IP67 FPV Camera with Integrated Searchlight
1× MK15 Agriculture Storage Case
4× MK15 Agriculture Omnidirectional Antennas
1× 20W PD Power Adapter
1× USB-C to USB-C PD Fast-Charging Cable
1× USB-C to USB-A Adapter
1× USB Firmware Upgrade Cable
1× MK15 Agriculture Air Unit S.Bus Cable
1× MK15 Agriculture PWM Cable
Flight controller, aircraft frame, propulsion system, battery, spraying system, and other UAV components are not included.
