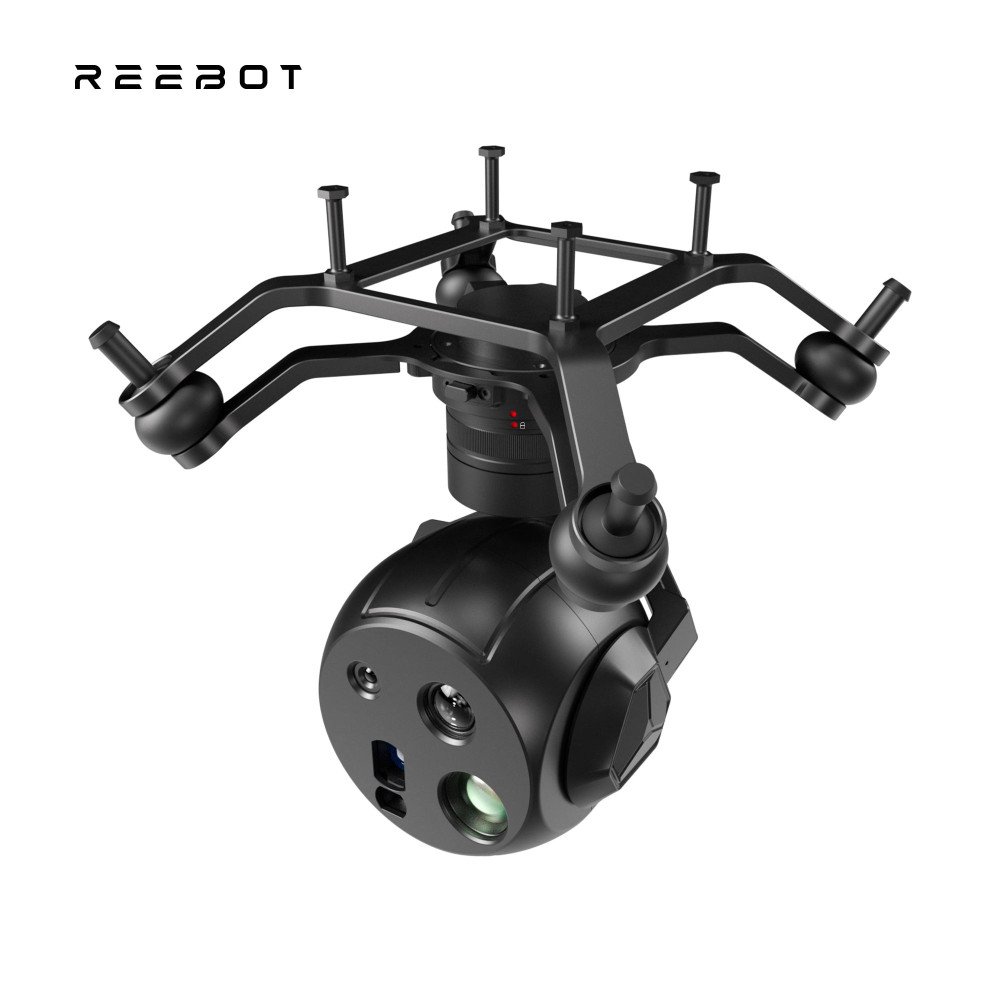

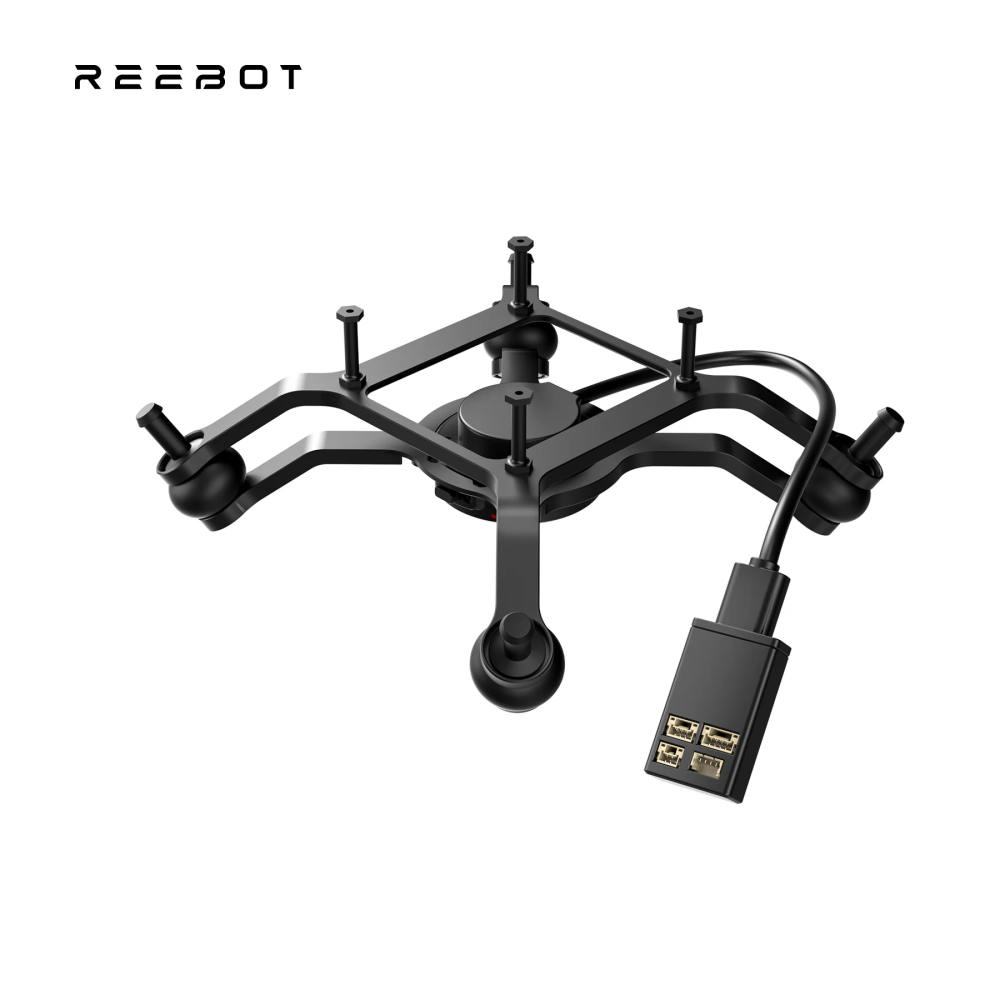

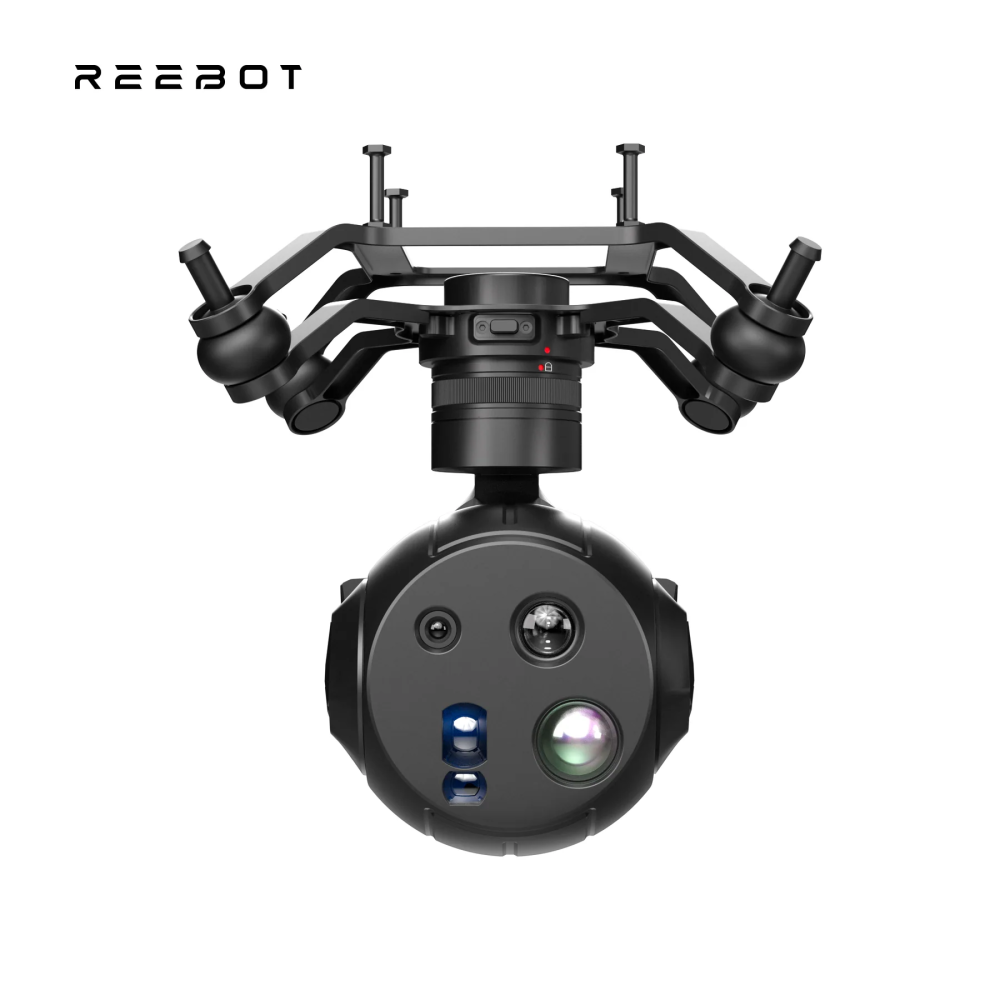

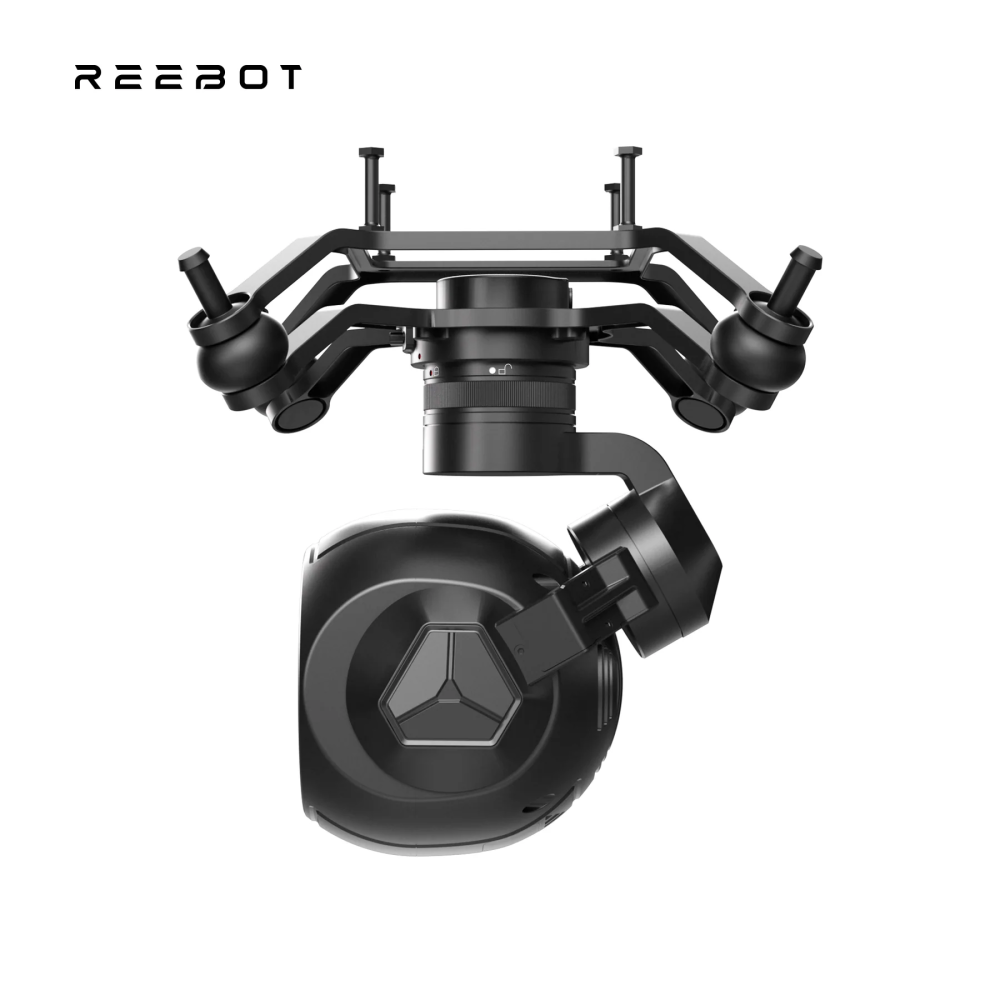

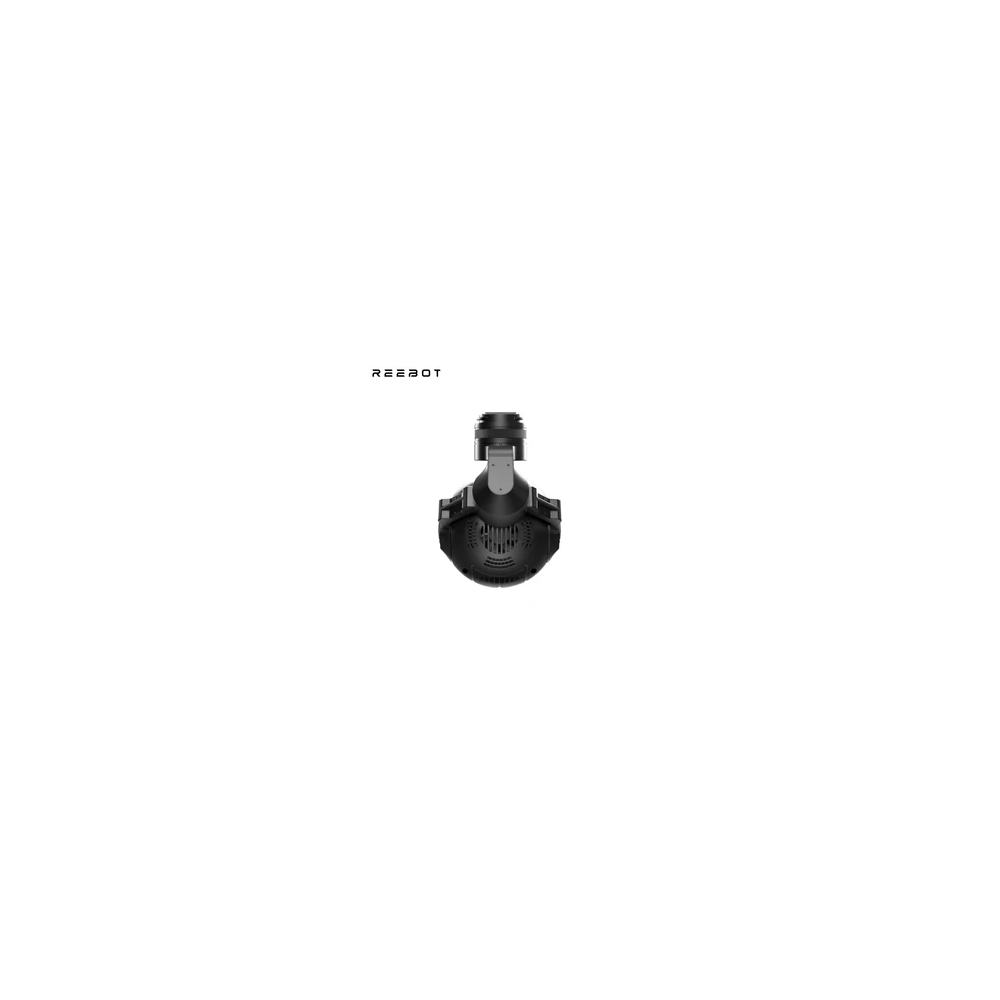

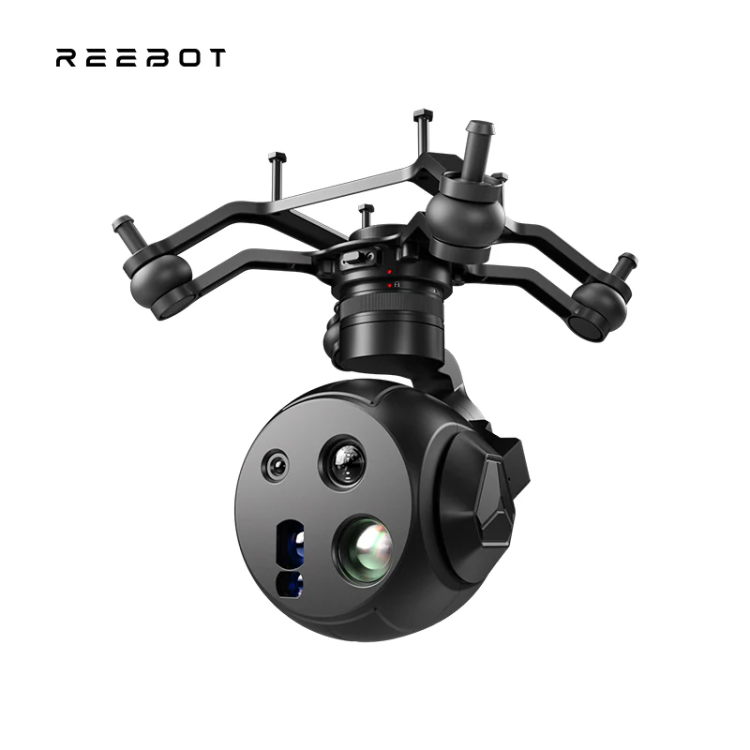

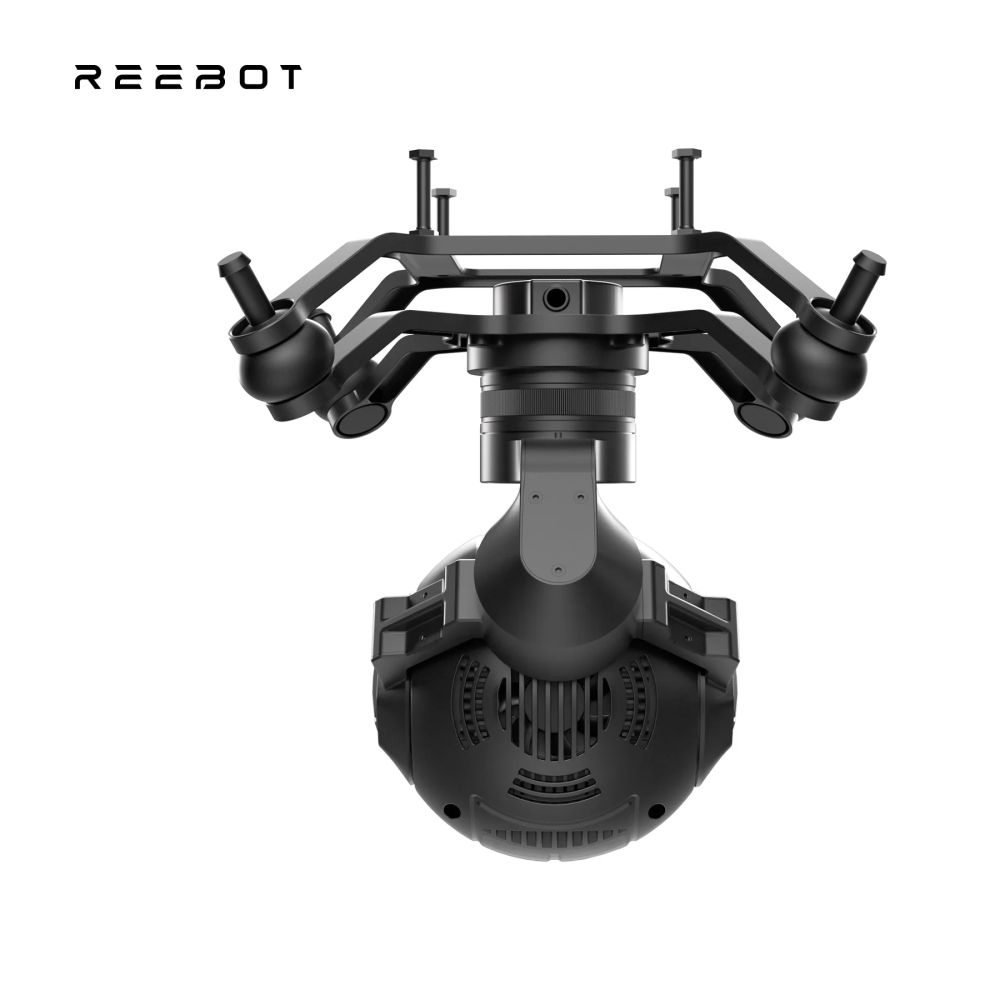

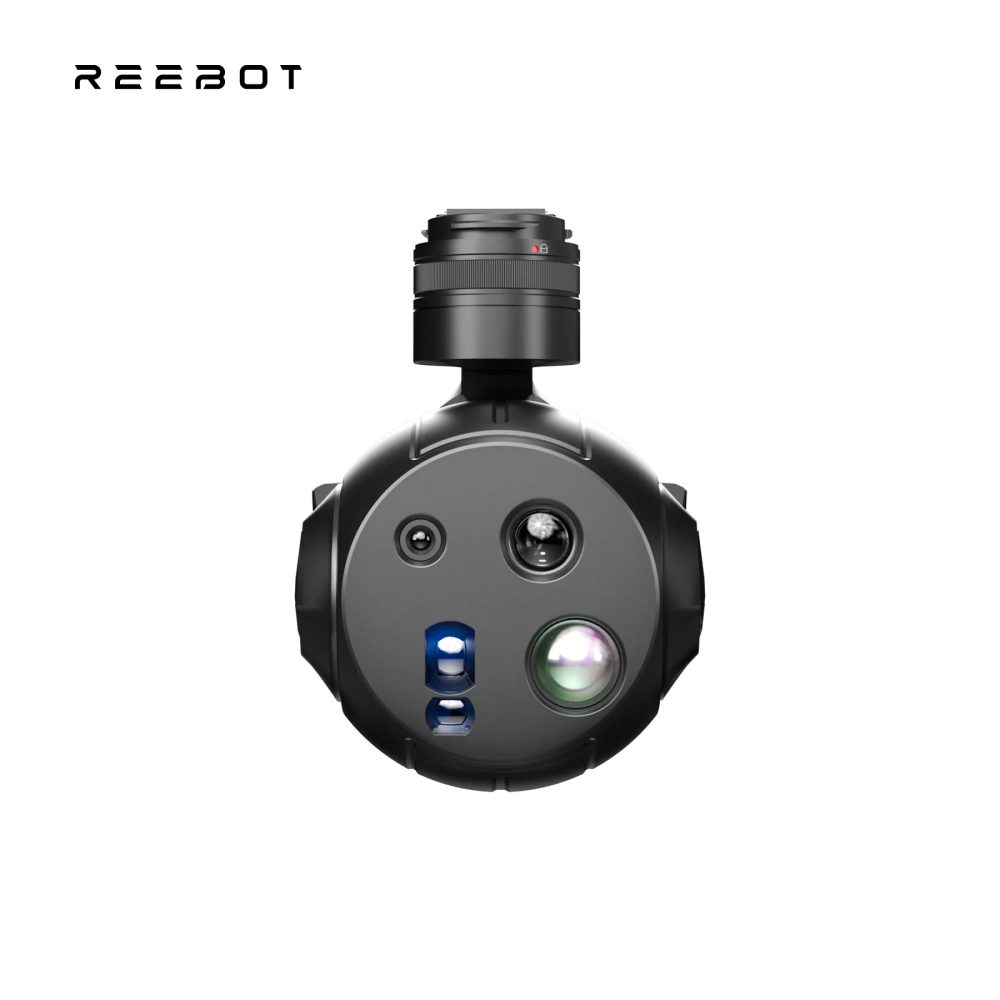

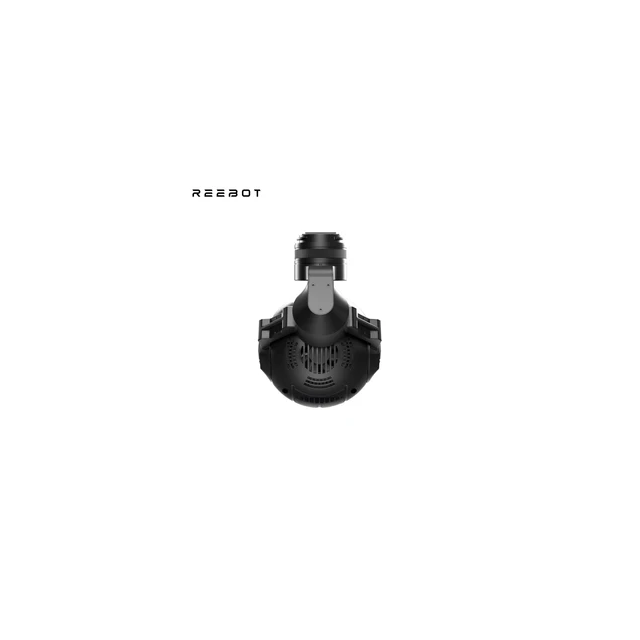

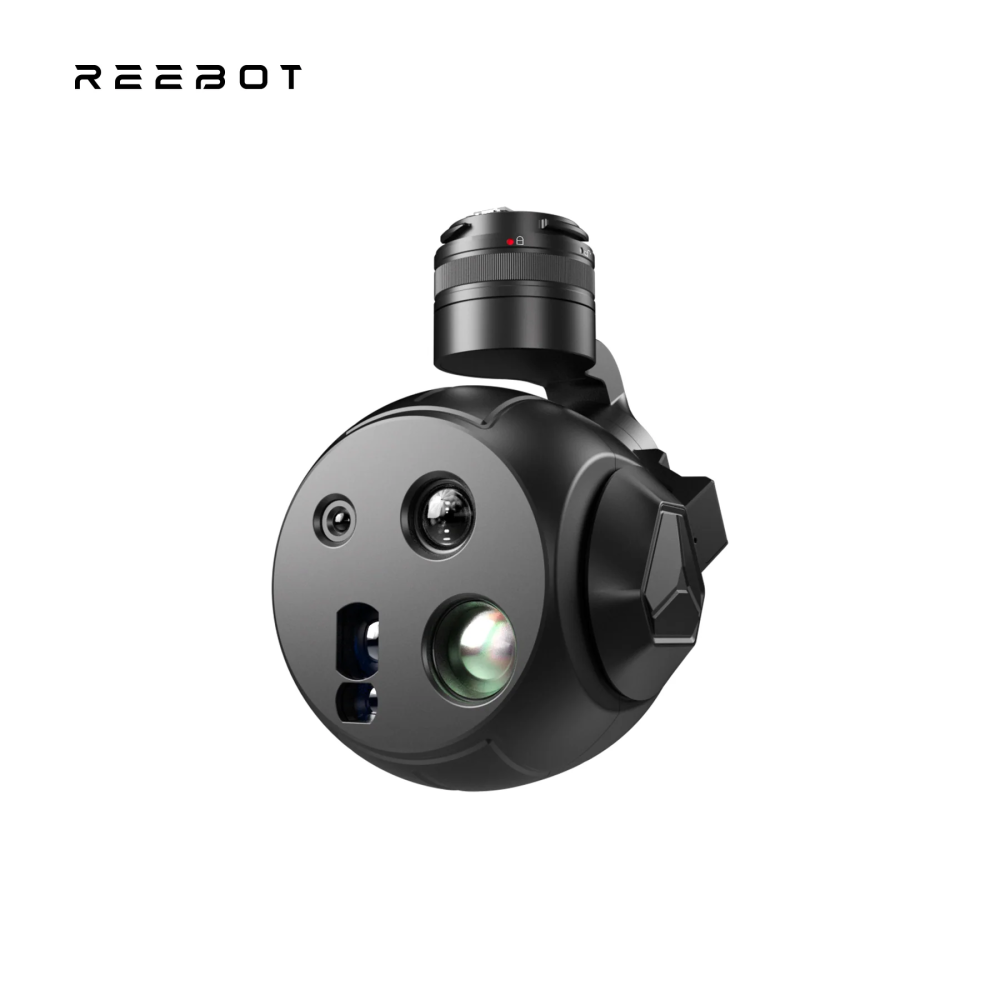

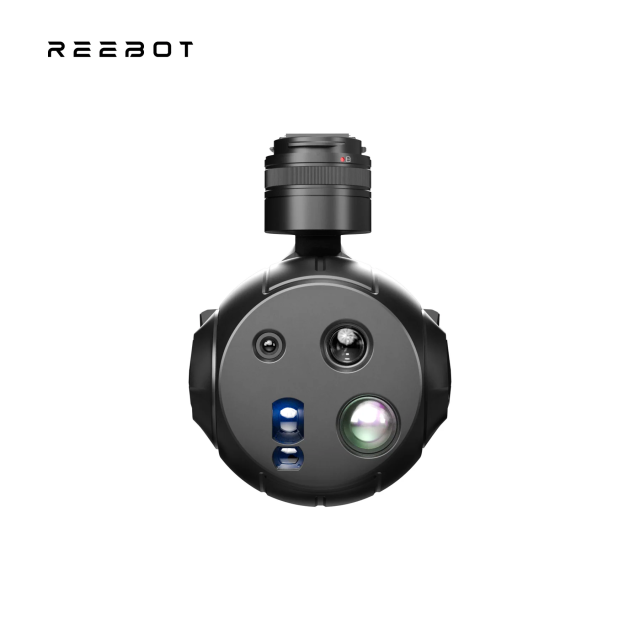

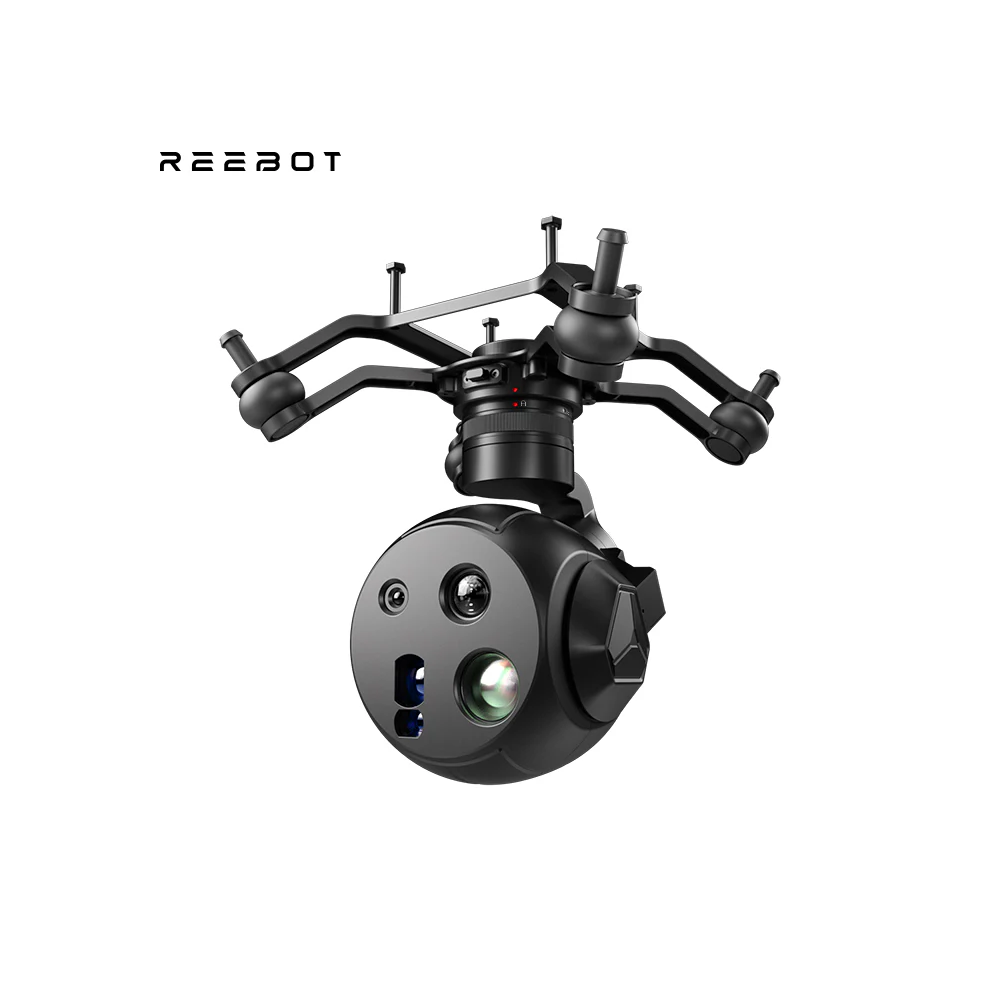

UniPod MT11 Four-sensor Optical Pod

The SIYI UniPod MT11 is a compact four-sensor AI gimbal pod that combines a wide-angle camera, a zoom camera, a thermal camera and a laser rangefinder in one 3-axis stabilized unit. It is designed as a payload for professional UAV and robotic platforms, for example for inspection missions.

Wide-angle and zoom cameras

Both visible-light cameras use 1/2" CMOS sensors with 48 MP effective resolution. The wide-angle camera covers an 84° diagonal field of view. The zoom camera offers 11× optical and 165× hybrid zoom. Video is recorded up to 3840 × 2160 at 30 fps (H.265) and photos up to 8000 × 6000.

Thermal camera

The thermal camera uses an uncooled VOx 640 × 512 sensor with 12 µm pixel pitch and 8× digital zoom, with AI super-resolution up to 2560 × 2048. It measures temperature in full-image, point and box modes, from -20 to 150 °C (high gain) and 0 to 550 °C (low gain), with high-temperature alarm.

Laser rangefinder

The 905 nm laser rangefinder measures distances from 5 to 1200 m with ±1 m accuracy.

Stabilization, control and integration

The 3-axis gimbal stabilizes to 0.01° angular jitter. The pod is controlled over S.Bus, UART or Ethernet (TCP/UDP) and outputs dual-stream RTSP video over Ethernet. AI computing power is 10 T. Weight is 405 g without the quick-release board, operating voltage is 10 to 26 V (3S to 6S) and the pod is rated IP54 under laboratory conditions.

Specifications

• Sensors: wide-angle camera, zoom camera, thermal camera, laser rangefinder
• Wide-angle camera: 1/2" CMOS, 48 MP, 4.5 mm (24 mm equivalent), f/2.8, 84° diagonal FOV
• Zoom camera: 1/2" CMOS, 48 MP, 15 to 50 mm (81 to 270 mm equivalent), f/3.8 to f/4.4, 11× optical zoom, 165× hybrid zoom
• Video: up to 3840 × 2160 at 30 fps, H.265; photo up to 8000 × 6000
• Thermal: uncooled VOx 640 × 512, 12 µm, 18 mm f/1.1, 31° diagonal FOV, 8× digital zoom
• Temperature measurement: -20 to 150 °C (high gain), 0 to 550 °C (low gain)
• Laser rangefinder: 905 nm, 5 to 1200 m, ±1 m accuracy, class 3R
• Gimbal: 3-axis, 0.01° angular jitter, pitch -90° to +20°, yaw 360° continuous
• AI computing power: 10 T
• Control: S.Bus, UART, Ethernet (TCP/UDP); video output: Ethernet, RTSP dual stream
• Power: 10 to 26 V (3S to 6S), independent power supply required
• Weight: 405 ± 5 g without quick-release board
• Operating temperature: -20 to 50 °C; protection: IP54 (laboratory conditions)
