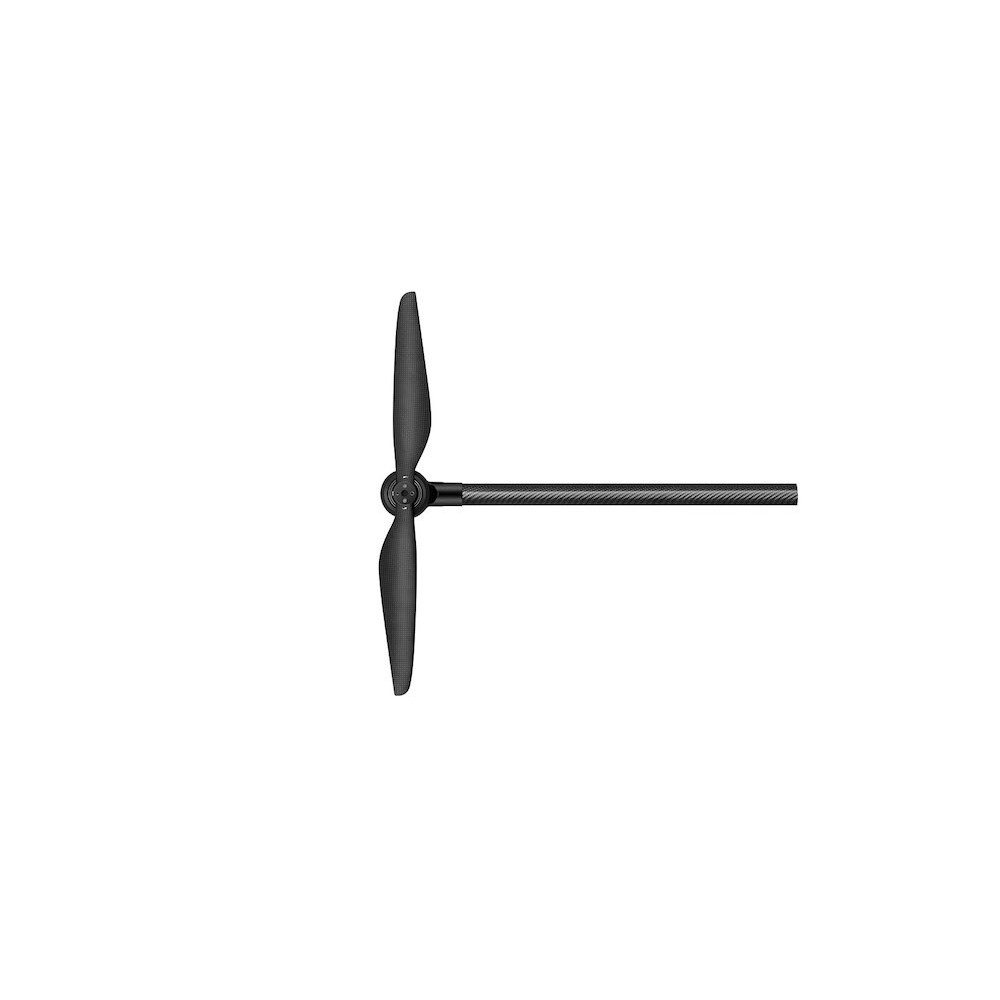

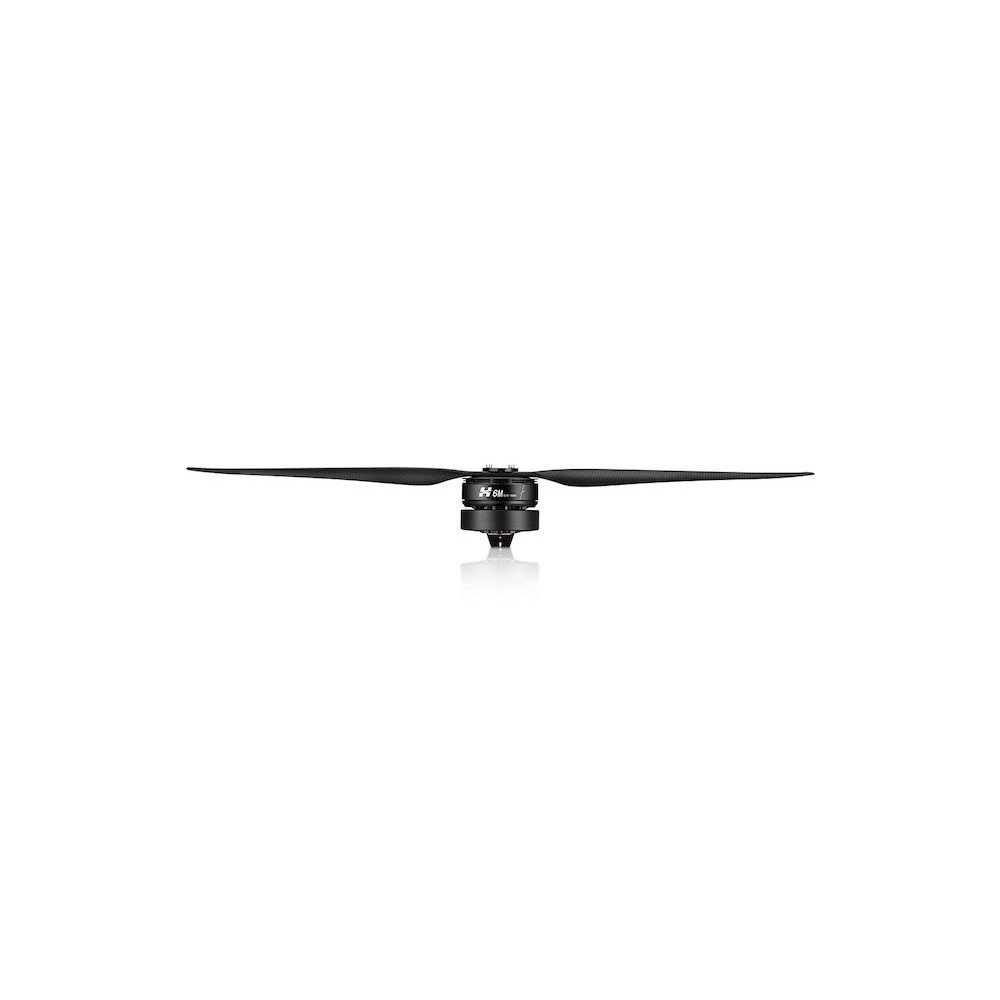

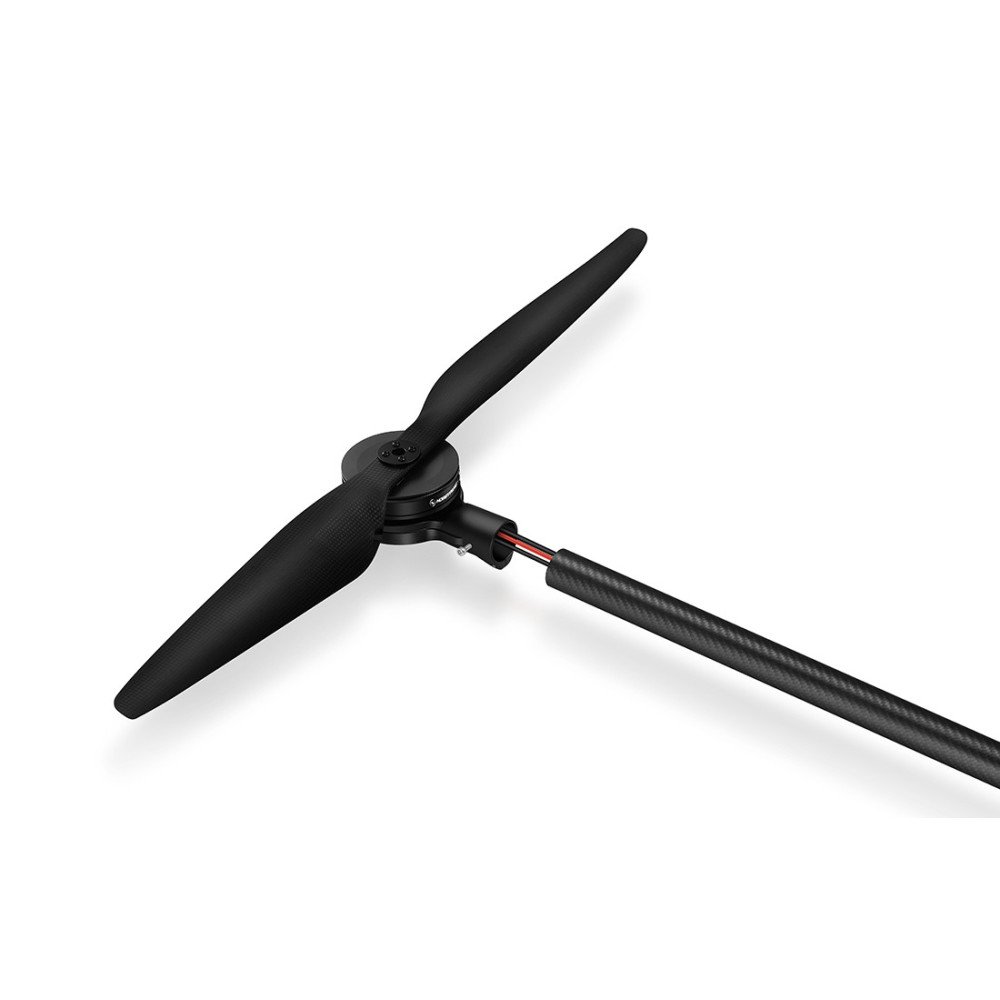

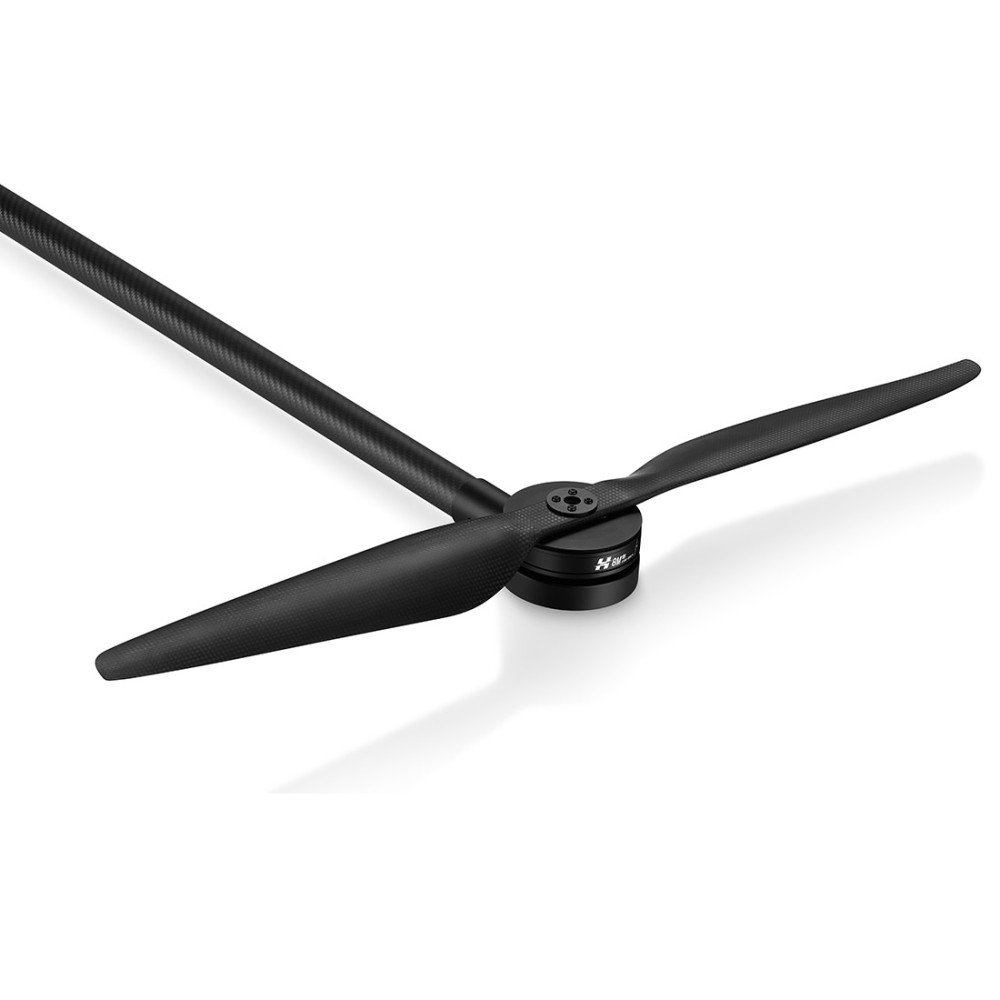

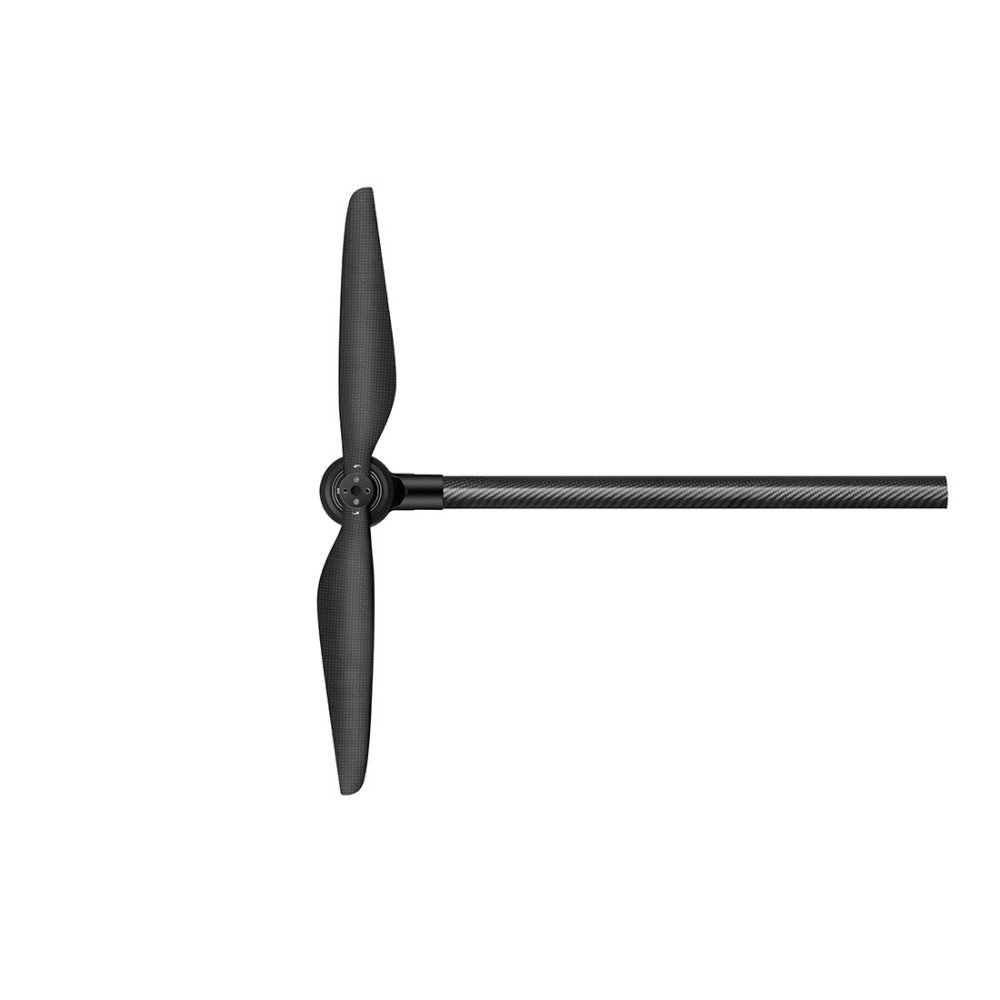

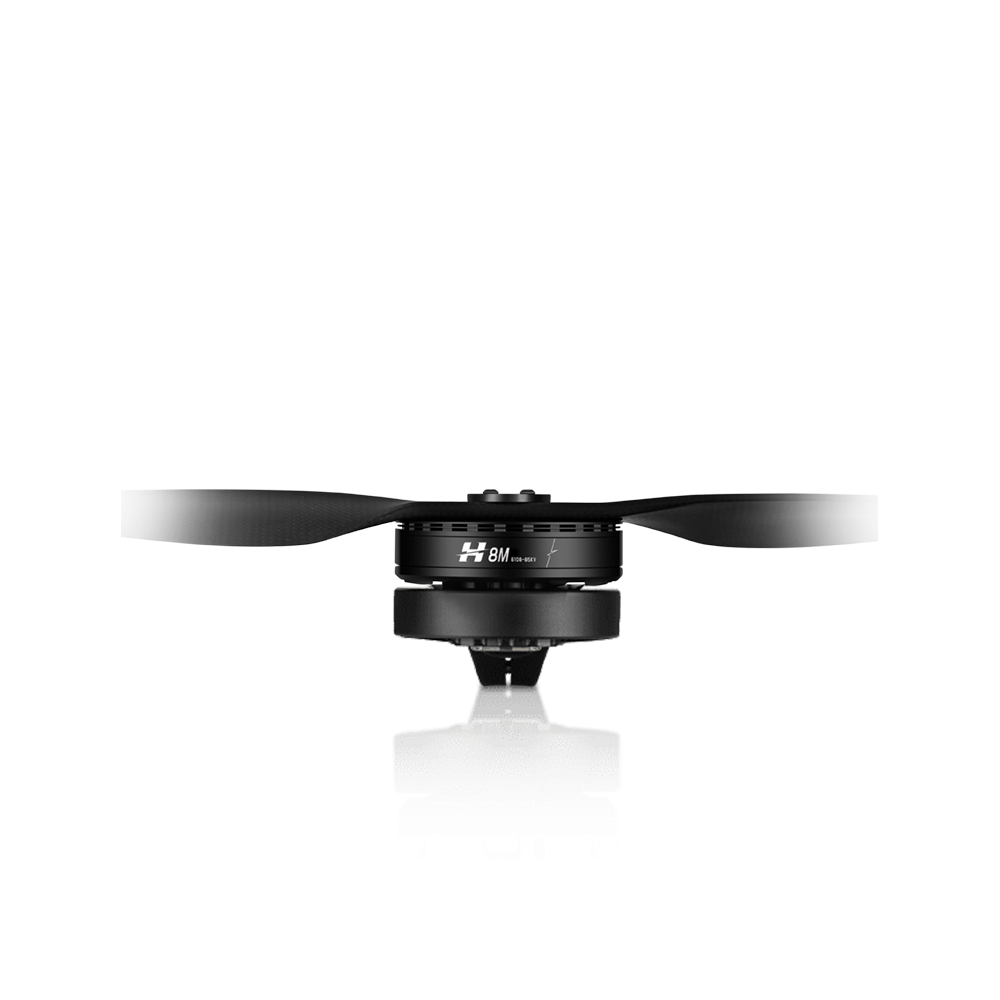

The Hobbywing H8M integrated propulsion system is designed for professional industrial drones. It combines advanced motor and ESC technologies into a compact, reliable, and efficient propulsion package.
With high thrust, optimized cooling, and robust protection, the H8M is ideal for aerial photography, mapping, inspection, public safety, and monitoring applications.
Efficient & Stable Performance
The H8M delivers a rated thrust of 3 kg per rotor.
With efficiency up to 11.5 g/W, it supports long-endurance flights for professional UAV operations.
The integrated motor and ESC design simplifies assembly while improving reliability.
Redundant & Safe Control
Dual throttle redundancy with PWM and CAN control provides secure and fail-safe operation.
Seamless throttle switching in 16 ms or less helps ensure continuous flight safety.
CAN bus communication with fault storage and real-time monitoring allows quick diagnostics and easier maintenance.
Advanced Cooling & Durability
The built-in centrifugal fan and cascading air outlets improve heat dissipation by 20%.
The system operates 15–20°C cooler than conventional propulsion systems.
The CD-pattern rotor design enhances heat dissipation while improving visual recognition.
Industrial-Grade Protection

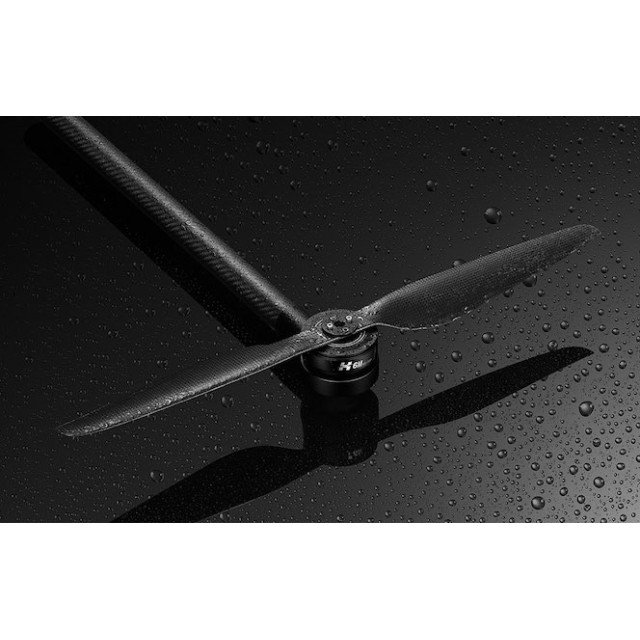

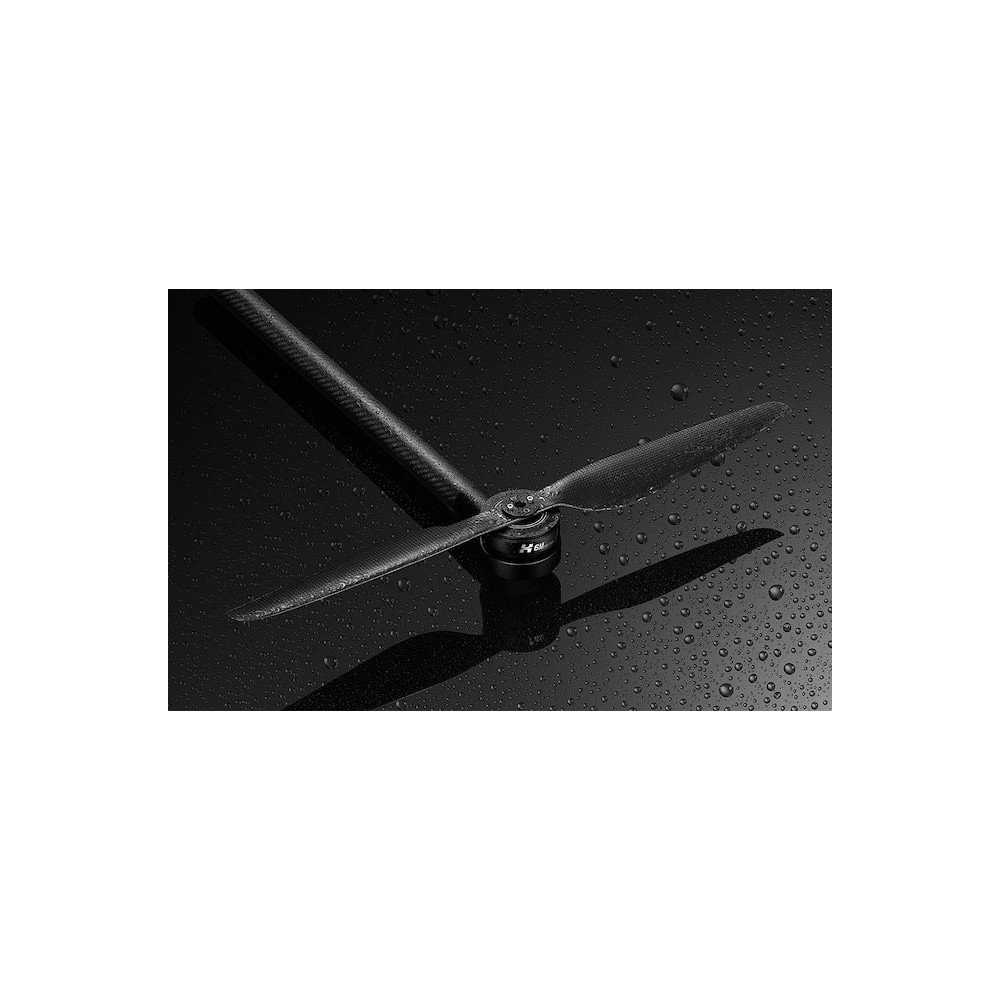

With an IP45 protection rating, the H8M is waterproof and dustproof for all-weather operation.
It uses H+ high-temperature resistant enameled wire rated above 200°C.
The system is tested for extreme operating conditions from -20°C to +65°C.
Optimized Design
The lightweight and modular structure allows easy installation and maintenance.
The self-developed FOC sine wave ESC ensures smooth, quiet, and efficient operation.
Real-time system logging improves reliability and supports better maintenance planning.
Technical Specifications
Product: Hobbywing H8M Integrated Propulsion System
Application: Aerial photography, mapping, inspection, public safety, and monitoring UAVs

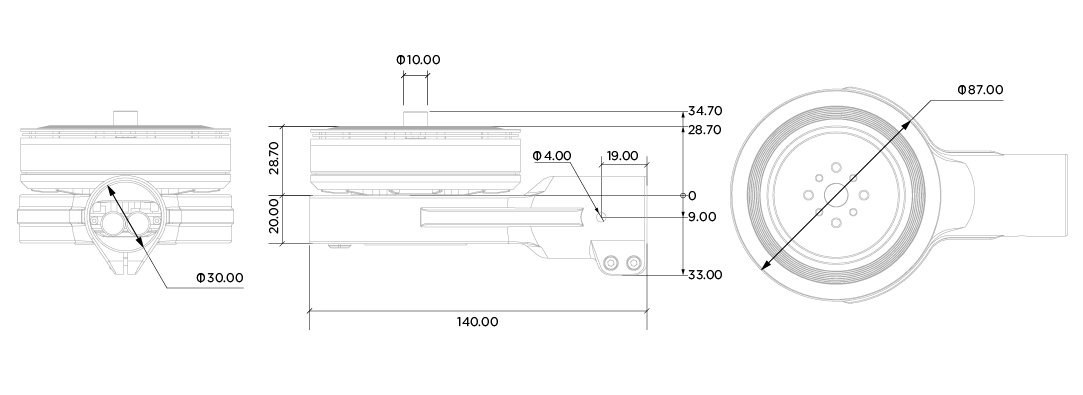

Arm Tube Diameter: 30 mm
KV: 85 KV
Weight: 0.50 kg
Weight with Propeller: 569 g
Battery: 12S
Recommended Thrust: 2.5–3.5 kg/rotor
Rated Thrust: 3 kg/rotor
Maximum Thrust: 7.5 kg/rotor
Maximum Power: 1,060 W
Recommended Propeller: 30×9.8″
CAN Protocol: Yes
Throttle Control: PWM + CAN
Throttle Switching Time: ≤16 ms
Maximum Efficiency: Up to 11.5 g/W
Cooling Improvement: +20%
Temperature Reduction: 15–20°C cooler than conventional systems
Ingress Protection: IP45
Operating Temperature: -20°C to +65°C
Wire Rating: H+ high-temperature resistant enameled wire >200°C
What’s Included
1× Motor
1× ESC
1× Mount
1× Screw Set
Propellers are sold separately.
