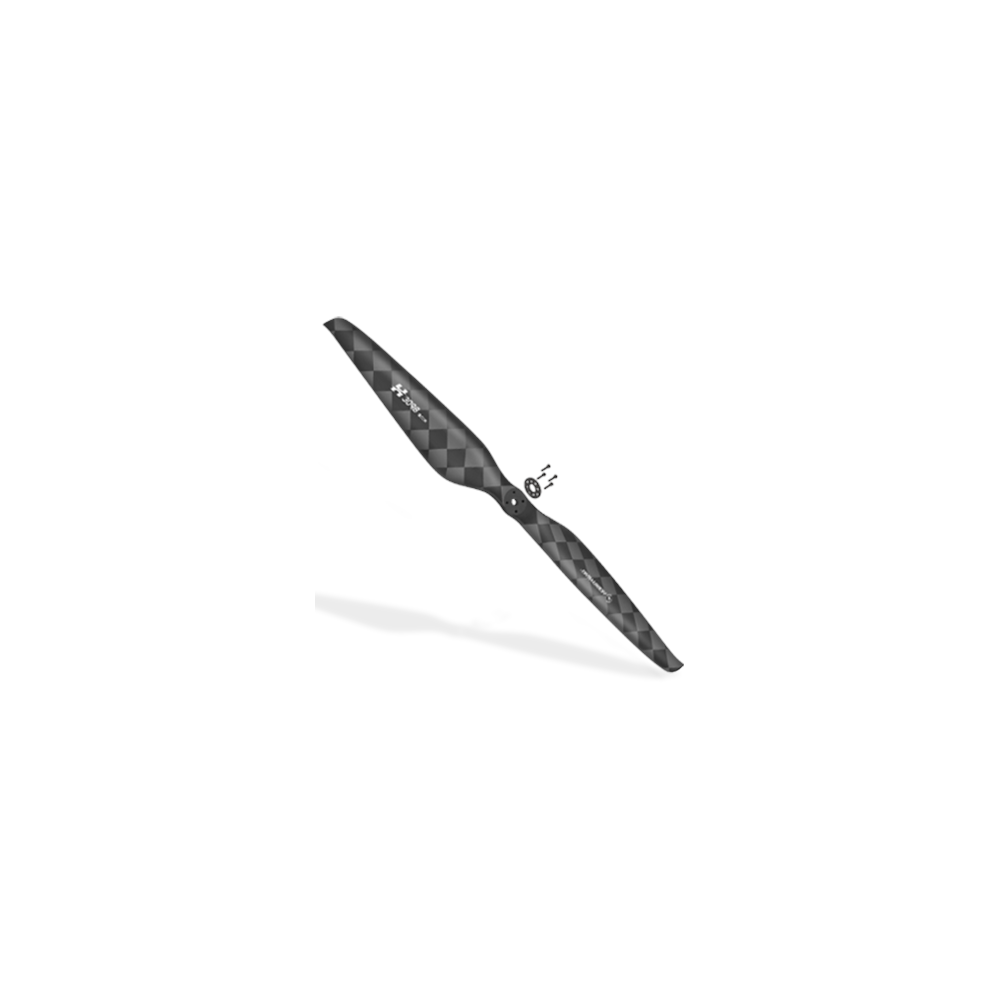

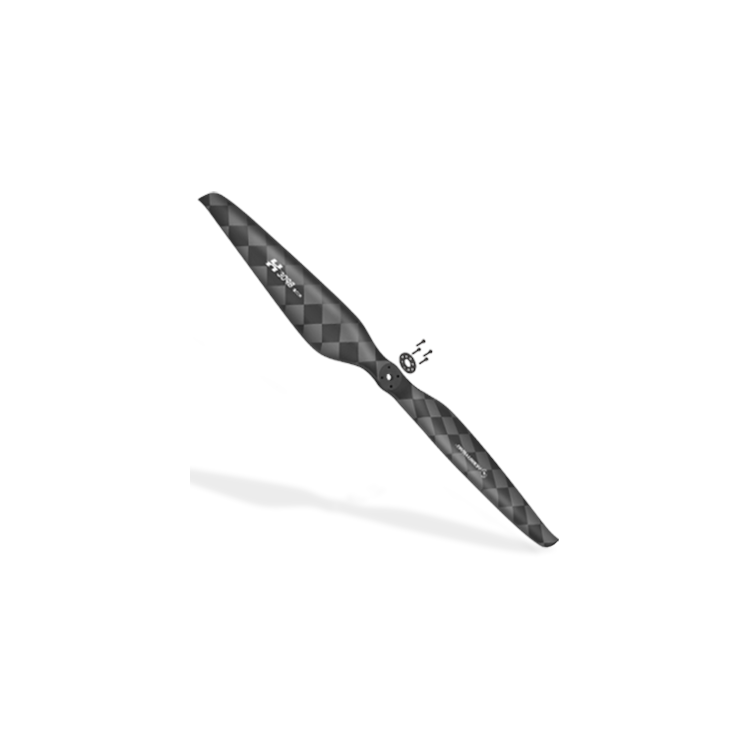

The Hobbywing MSC 30x9.8 Ultra-Light Carbon Fiber Propeller is a high-performance UAV propeller specifically designed for professional multirotor drones, industrial UAVs, and high-efficiency propulsion systems. Engineered to deliver excellent aerodynamic efficiency, stable thrust, and reliable flight performance, it is ideal for demanding applications such as mapping, inspection, surveillance, logistics, security, and long-endurance drone operations.
Built with imported high-strength carbon fiber and epoxy resin, the MSC 30x9.8 offers an excellent balance between lightweight construction, high rigidity, low moment of inertia, and long-term durability, making it suitable for professional UAV platforms requiring efficient and stable propulsion.
Ultra-Light & Efficient Performance
The MSC 30x9.8 is optimized for professional UAV platforms requiring high efficiency, smooth operation, and strong lift performance.
With a recommended thrust range of 3.5–8.0 kg and a maximum thrust of 20.0 kg, this propeller is suitable for industrial multirotor drones requiring stable lift, efficient power consumption, and reliable flight behavior.
Designed for demanding UAV applications, the MSC 30x9.8 provides:
Advanced Aerodynamic Design
The MSC 30x9.8 features an excellent aerodynamic airfoil and a blade tip winglet design, helping improve airflow behavior and reduce aerodynamic losses.
This optimized design helps delay airflow separation and improves propeller efficiency, making it suitable for applications where long endurance and efficient power usage are important.
This provides:
-
Improved aerodynamic efficiency
-
Reduced airflow separation
-
Better lift-to-power performance
-
Stable operation at high altitude
-
Smoother flight behavior
Ultra-Light Carbon Fiber Structure
The MSC 30x9.8 is made from carbon fiber and epoxy resin, offering high specific strength, high specific modulus, corrosion resistance, and fatigue resistance.
Its ultra-lightweight structure reduces rotational inertia, improving motor responsiveness and helping the UAV maintain precise control during flight.
This material combination offers:
Non-Folding Professional Propeller
The MSC 30x9.8 is a non-folding propeller, designed for professional UAV platforms requiring consistent aerodynamic performance, high rigidity, and stable rotor behavior.
Its fixed-blade structure helps provide:
-
Improved stiffness
-
Consistent aerodynamic performance
-
Reduced mechanical complexity
-
Reliable operation under load
-
Precise rotor response
Optimized for Hobbywing UAV Propulsion Systems
The MSC 30x9.8 is designed to work with Hobbywing H Series motors and professional UAV propulsion systems. It is also listed in recommended combinations with M8108 / M8110 motors and XRotor Pro H60A 14S ESC, depending on the UAV configuration.
Recommended operating range:
Technical Specifications
Product: Hobbywing MSC 30x9.8 Ultra-Light Carbon Fiber Propeller
-

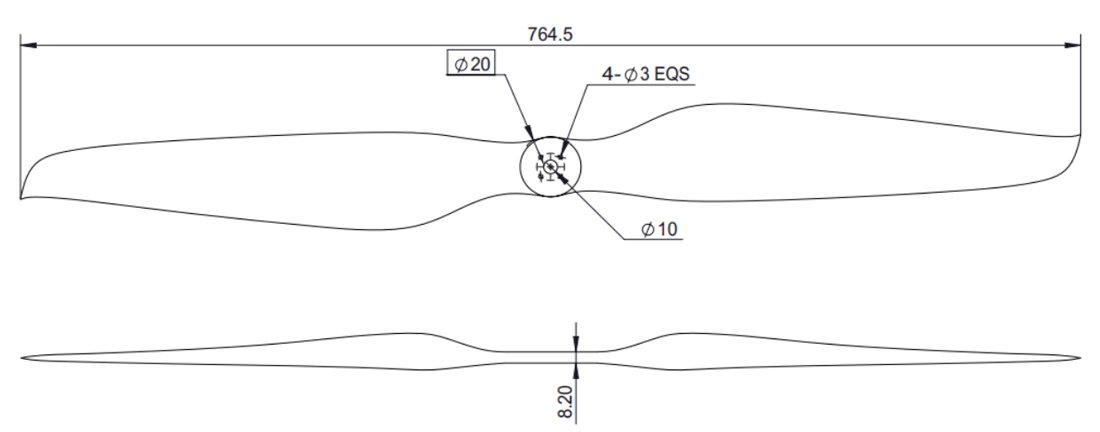

Propeller Size: 30 × 9.8 inch
-
Type: Non-folding propeller
-
Weight: 71 g
-
Blade Material: Carbon fiber + epoxy resin
-
Surface Finish: Matte finish
-
Recommended RPM Range: 2250–3300 RPM
-
Recommended Thrust: 3.5–8.0 kg
-
Maximum Thrust: 20.0 kg
-
Operating Temperature: -30°C to +50°C
-
Storage Temperature: -10°C to +35°C
-
Storage Humidity: ≤85%
-
Recommended Hobbywing Systems: H Series / M8108 / M8110 compatible configurations
-
Recommended ESC: XRotor Pro H60A 14S depending on motor setup
-
Recommended Use: Professional multirotor UAVs, industrial drones, mapping drones and high-efficiency propulsion systems
Motor and ESC are sold separately.
