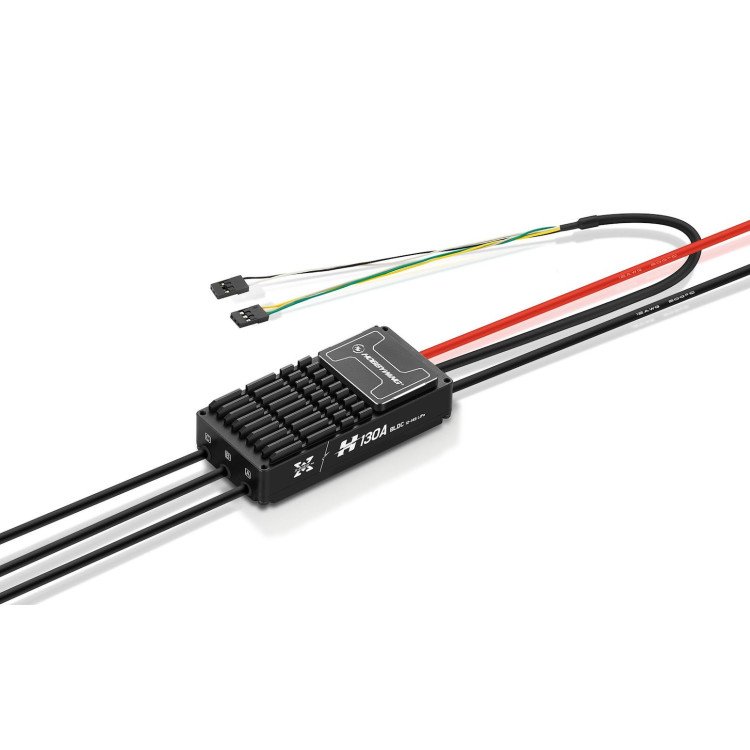

The Hobbywing XRotor Pro H130A-14S ESC is a high-performance electronic speed controller specifically designed for industrial UAVs, professional VTOL platforms, and heavy-lift multirotor drones. Engineered to deliver stable power output, fast throttle response, and high reliability, it is ideal for demanding applications such as mapping, inspection, surveillance, cargo transport, and industrial drone operations.
Available in BLDC and BLDC IPC versions, the H130A-14S platform allows UAV manufacturers and integrators to select the ESC configuration best suited to their aircraft architecture and mission requirements.
The BLDC version is ideal for professional multirotor and heavy-lift UAV applications requiring stable and reliable motor control, while the BLDC IPC version adds Intelligent Propeller Control for hybrid VTOL aircraft where propeller positioning and cruise efficiency are essential.
Built with advanced thermal materials, dual communication architecture, and professional-grade protection features, the H130A-14S provides dependable performance in harsh operating environments while ensuring precise and secure motor control.
Reliable Power for Industrial UAVs
The XRotor Pro H130A-14S supports 6–14S LiPo battery systems, with an input voltage range of 18–63V.
It delivers 60A continuous current with good heat dissipation and supports up to 150A peak current for 3 seconds, making it suitable for professional UAV platforms requiring stable and efficient power delivery.
Designed for industrial drone propulsion systems, the ESC provides:
-
Stable high-current performance
-
Fast and precise throttle response
-
Reliable operation under heavy load
-
High efficiency for professional UAV applications
-
Strong anti-interference capability
BLDC Version
The BLDC version is designed for professional UAV propulsion systems requiring reliable and efficient motor control with standard BLDC operation.
It is ideal for:
-
Heavy-lift multirotor drones
-
Industrial UAVs
-
Professional VTOL platforms
-
Mapping and inspection UAVs
-
Surveillance drones
-
Cargo and logistics UAV platforms
This version provides stable throttle response, efficient power delivery, and easy integration into professional drone systems.
BLDC IPC Version
The BLDC IPC version integrates Intelligent Propeller Control technology, specifically designed for hybrid VTOL aircraft and fixed-wing UAV platforms.
The IPC system enables intelligent propeller positioning during forward flight, helping reduce aerodynamic drag and improve flight endurance.
The BLDC IPC version provides:
-
Automatic propeller stop positioning
-
Reduced aerodynamic drag during fixed-wing cruise
-
Improved flight efficiency
-
Extended flight endurance
-
Precise digital motor positioning
-
Optimized power consumption
This makes the BLDC IPC version the ideal choice for hybrid VTOL aircraft where maximizing cruise efficiency and reducing drag are critical.
CAN + RS485 Dual Communication
The H130A-14S uses a CAN + RS485 dual-bus communication design, improving signal reliability and resistance to interference during flight. This makes it especially suitable for professional drones operating in demanding electromagnetic environments.
The ESC also supports CAN digital throttle and PWM throttle redundancy, helping to improve control safety and system reliability.
Key advantages include:
-
CAN 2.0 communication
-
RS485 communication support
-
CAN + PWM dual throttle redundancy
-
Real-time ESC status monitoring
-
Accurate power system data feedback
-
Improved flight safety and diagnostics
Advanced Thermal Design
The XRotor Pro H130A-14S is designed with high-efficiency thermal management to maintain stable operation during demanding UAV missions.
Its cooling and electronic design includes:
-
High thermal conductivity materials
-
Optimized heat dissipation structure
-
Compact high-power-density design
-
Lower operating temperature compared with previous-generation ESCs
-
Reliable performance during continuous operation
Compared with the Platinum 130A series, Hobbywing indicates that the H130A thermal design can reduce temperature by approximately 20°C under the same working conditions.
Smart Black Box & Fault Diagnostics
The ESC integrates a new-generation black box feature with millisecond-level data recording. It can store 2–48 hours of operating data and fault codes, allowing operators and integrators to analyze issues quickly after flight.
This feature helps with:
Rugged & Professional Design
Built for harsh industrial environments, the H130A-14S features a compact and robust design suitable for both multirotor drones and fixed-wing VTOL UAVs.
Key durability features include:
-
IP55 protection rating
-
Custom IP67 option available
-
Operating temperature from -40°C to +65°C
-
Throttle and communication isolation
-
Independent power supply design
-
Compact and lightweight housing
-
Easy installation layout
This makes the ESC suitable for UAV platforms operating in challenging outdoor environments, including industrial inspection, mapping, logistics, and autonomous drone applications.
Technical Specifications
Product: Hobbywing XRotor Pro H130A-14S ESC
-
Versions: BLDC / BLDC IPC
-
Input Voltage: 6–14S LiPo
-
Voltage Range: 18–63V
-
Continuous Current: 60A with good heat dissipation
-
Peak Current: 150A for 3 seconds
-
Communication Protocol: CAN + RS485
-
Digital Throttle: CAN supported
-
PWM Input Signal Level: 5V / 3.3V
-
Throttle Signal Frequency: 50–500Hz
-
Operating Pulse Width: 1100–1940μs
-
Throttle Travel Calibration: Not required
-
Isolation Mode: Throttle and communication isolation
-
Firmware Update: Supported
-
Protection Rating: IP55
-
Custom Protection Option: IP67 available
-
Operating Temperature: -40°C to +65°C
-
Black Box: 2–48h operating data and fault code storage
-
Weight: 148g without cables
-

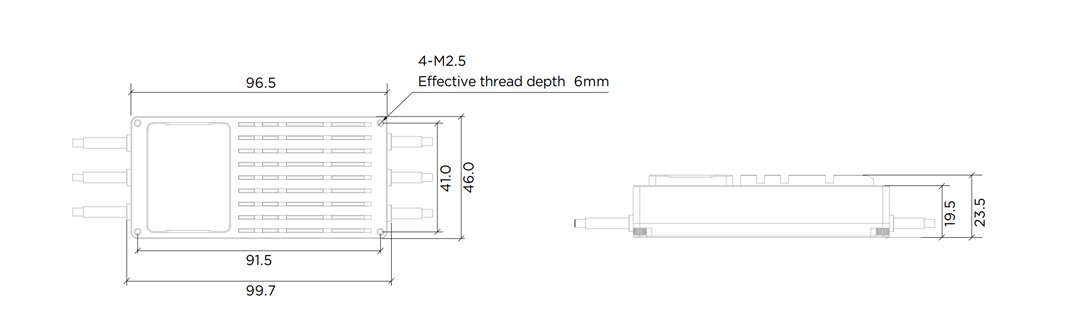

Dimensions: 96.5 × 46 × 23.5 mm
-
Recommended Use: Industrial UAVs, VTOL platforms, multirotor drones and heavy-lift applications
The FOC version is available on request by email at contact@europeandroneshop.com.
Motor and propellers are sold separately.
