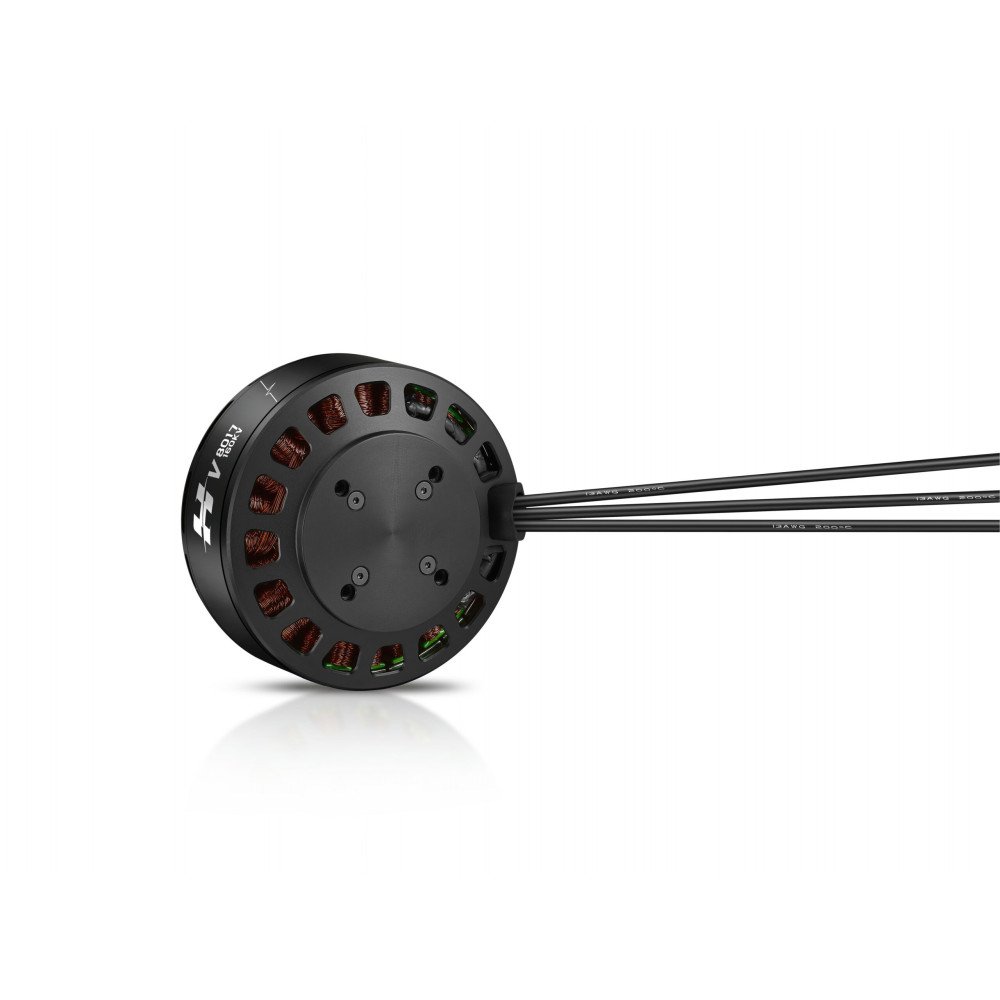

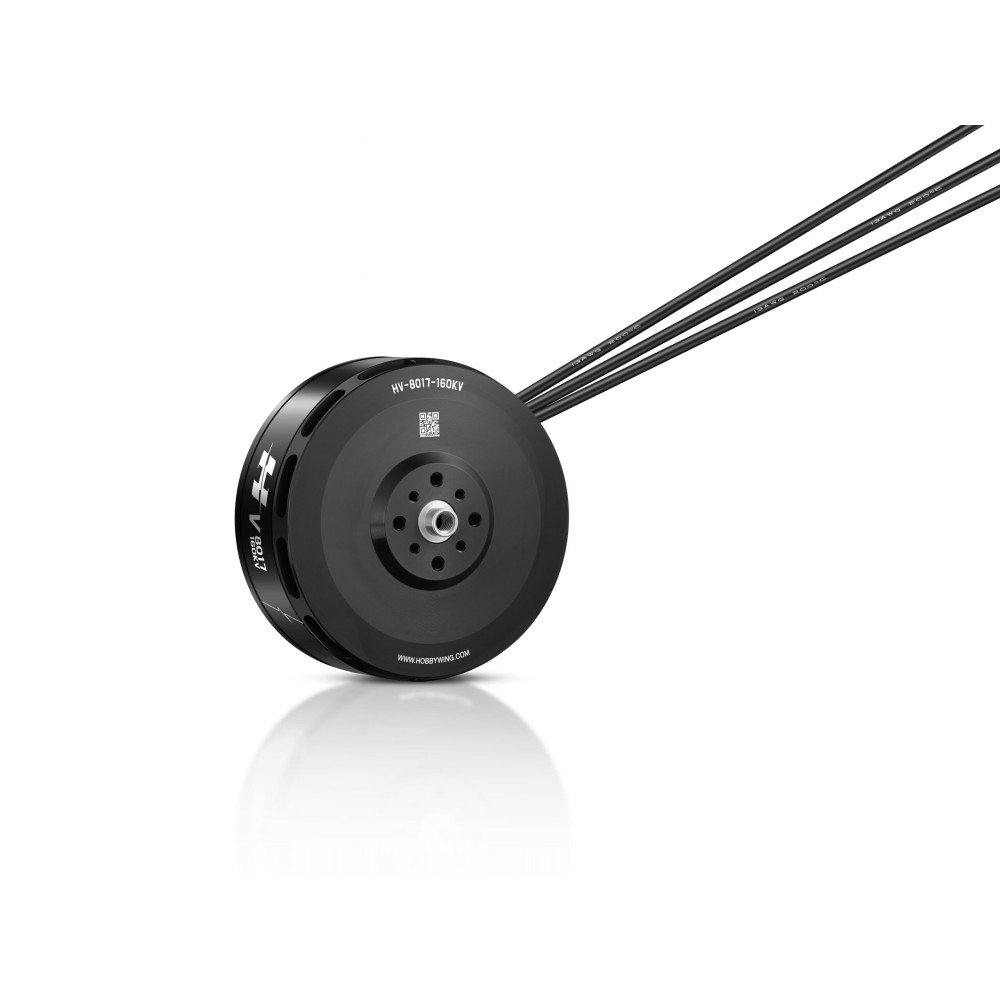

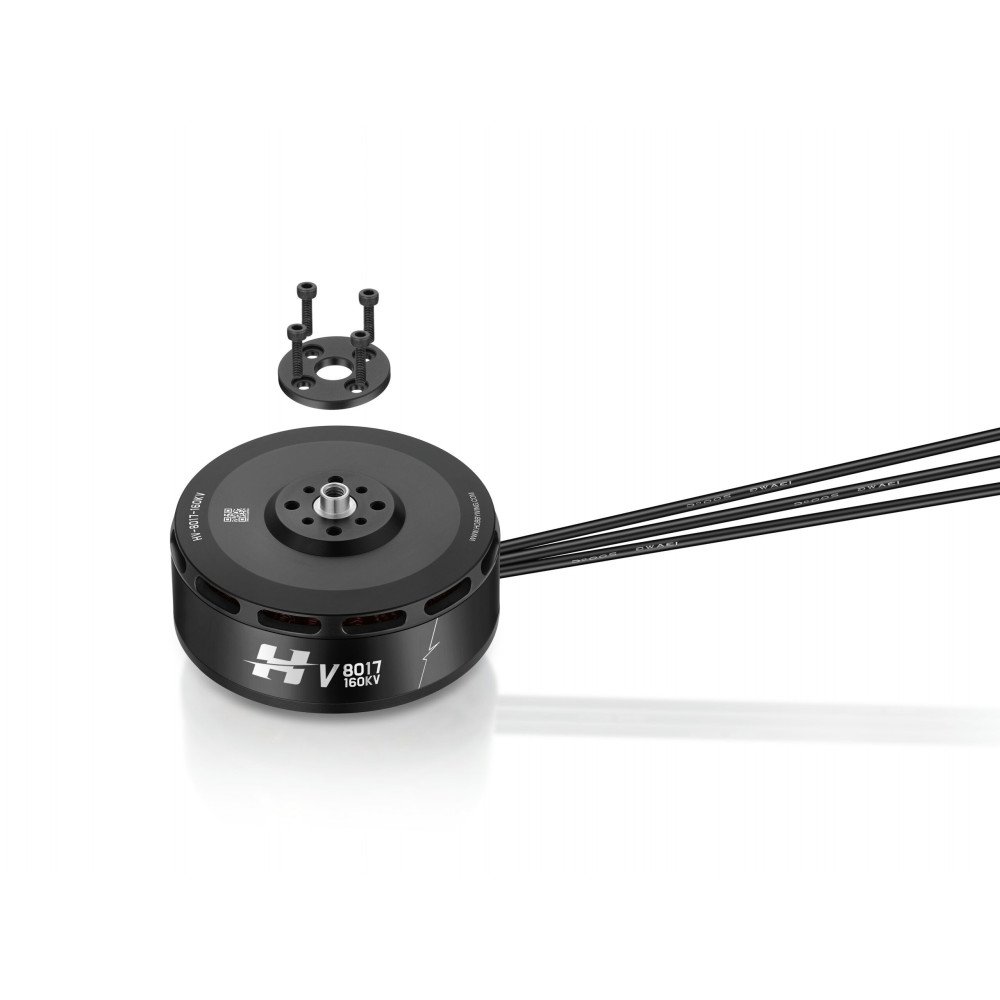

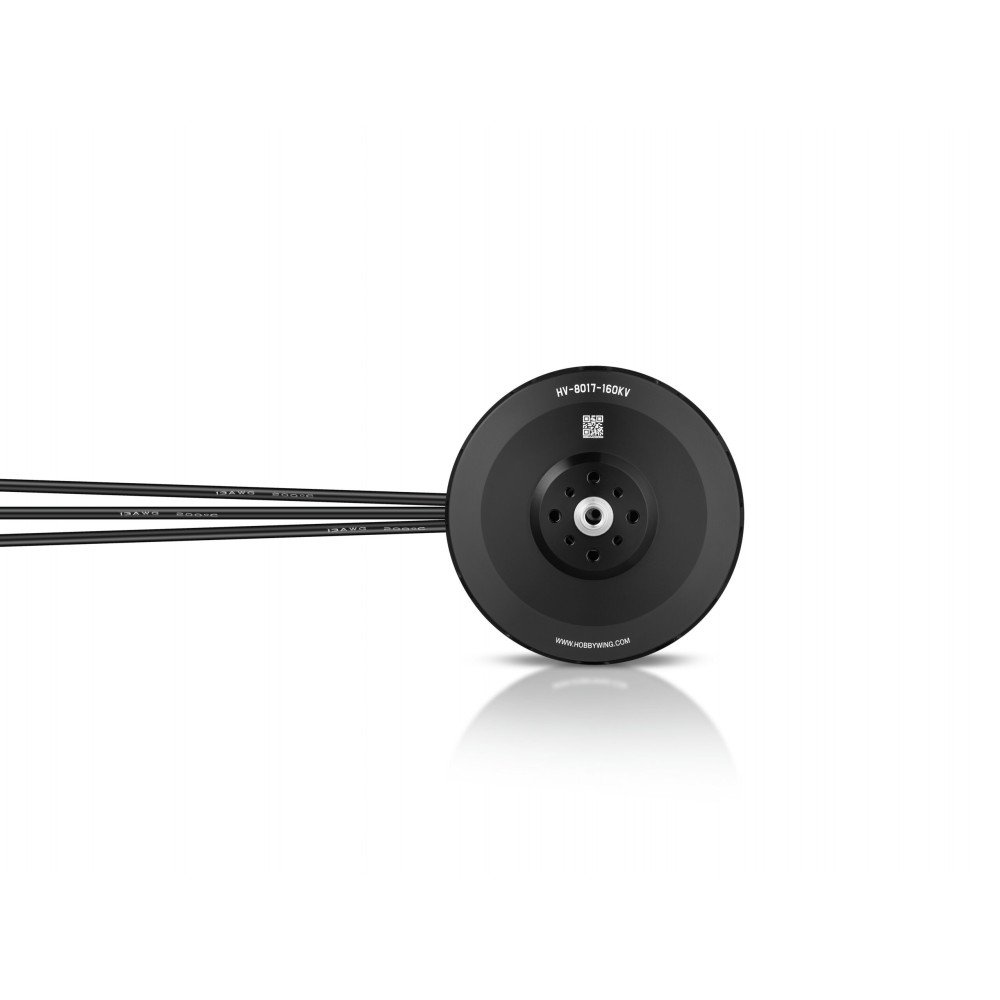

The Hobbywing V8017 160KV Brushless Motor is a high-performance propulsion solution specifically designed for professional VTOL fixed-wing UAVs and heavy-duty industrial drone platforms. Engineered to deliver powerful thrust, fast throttle response, and exceptional efficiency, it is ideal for cargo transport, mapping, inspection, surveillance, emergency response, and other demanding commercial UAV applications.
Available in Standard and IPC (Intelligent Propeller Control) versions, the V8017 allows users to choose the propulsion system best suited to their aircraft configuration and mission requirements.
Powerful & Efficient Performance
The V8017 delivers up to 22.5 kg of maximum thrust while weighing only 746.5 g, achieving an impressive 36:1 thrust-to-weight ratio.
Designed for 12S LiPo power systems, the motor provides:
The recommended operating thrust is 7–10 kg per rotor, making it the ideal propulsion solution for professional VTOL quadcopters with a maximum take-off weight of 28–40 kg.
Advanced Cooling System
The V8017 features a high-efficiency centrifugal air cooling system combined with a large integrated heat sink, ensuring continuous heat dissipation during demanding high-power operation.
This advanced thermal design provides:
-
Lower operating temperatures
-
Improved continuous power capability
-
Increased motor lifespan
-
Stable performance during extended VTOL missions
The optimized cooling architecture allows the motor to maintain peak efficiency even during prolonged heavy-load operations.
Standard Version or IPC Version
The V8017 is available in two versions to meet the requirements of different VTOL platforms.
Standard Version
The Standard Version is compatible with conventional high-voltage ESCs such as the Hobbywing XRotor Pro H100A 14S and H130A 14S, providing a reliable and efficient propulsion solution for professional VTOL aircraft.
IPC Version
The IPC (Intelligent Propeller Control) Version is designed to operate with Hobbywing IPC ESCs, allowing advanced propeller positioning during fixed-wing flight.
The IPC system provides several advanced features:
-
Automatic propeller stop positioning
-
Reduced aerodynamic drag during forward flight
-
Improved cruise efficiency
-
Extended flight endurance
-
Precise digital motor positioning
-
Optimized power consumption
The IPC version is the ideal choice for hybrid VTOL aircraft where maximizing endurance and aerodynamic efficiency is essential.
Industrial-Grade Reliability
Built for demanding commercial UAV operations, the V8017 incorporates premium materials and advanced manufacturing processes to ensure maximum durability.
Key features include:
-
IPX5 protection rating
-
High-precision waterproof bearings
-
180°C high-temperature stator coating
-
200°C enamelled copper windings
-
150°C high-temperature magnets
-
Nickel-electrophoresis coated seamless steel motor bell
-
500V AC insulation test
-
High-precision dynamic balancing (≤10 mg)
Every motor undergoes extensive testing for waterproofing, insulation, durability, and long-term reliability to ensure dependable performance in harsh operating environments.
Technical Specifications
Product: Hobbywing V8017 160KV Brushless Motor
-
Versions: Standard / IPC
-
KV Rating: 160 KV
-
Battery: 12S LiPo
-
Maximum Thrust: 22.5 kg
-
Recommended Thrust: 7–10 kg per rotor
-
Maximum Current: 130 A
-
Maximum Power: 4,300 W
-
Weight: 746.5 g
-
Protection Rating: IPX5
-
Cooling System: High-efficiency centrifugal air cooling
-
High-Temperature Magnets: 150°C
-
Copper Windings: 200°C
-
Recommended ESC (Standard): Hobbywing XRotor Pro H100A 14S / H130A 14S
-
Recommended ESC (IPC): Compatible with Hobbywing IPC ESCs
-
Recommended Propellers: MSC 27×8.8", MSC 28×9.2", MSC 29×9.5"
-
Recommended Drone Configuration: Professional VTOL quadcopter with 28–40 kg MTOW
ESC and propellers are sold separately.
