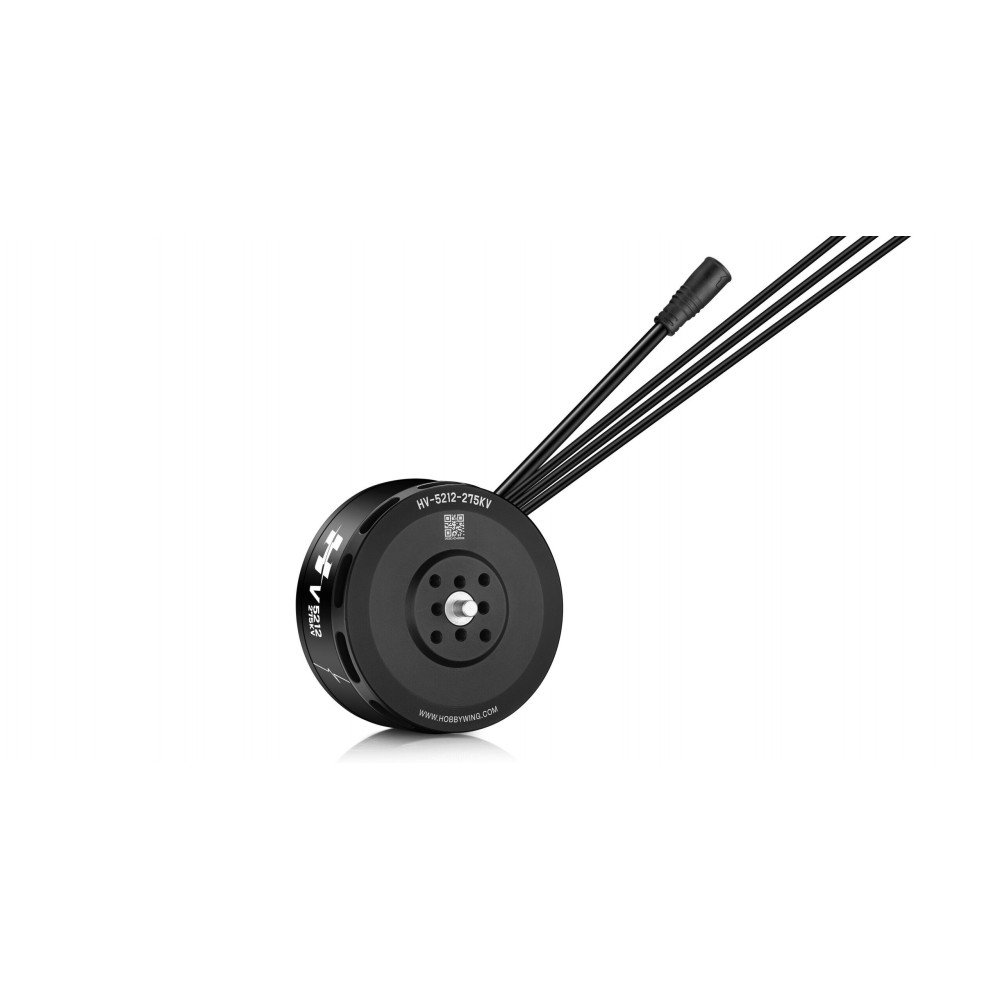

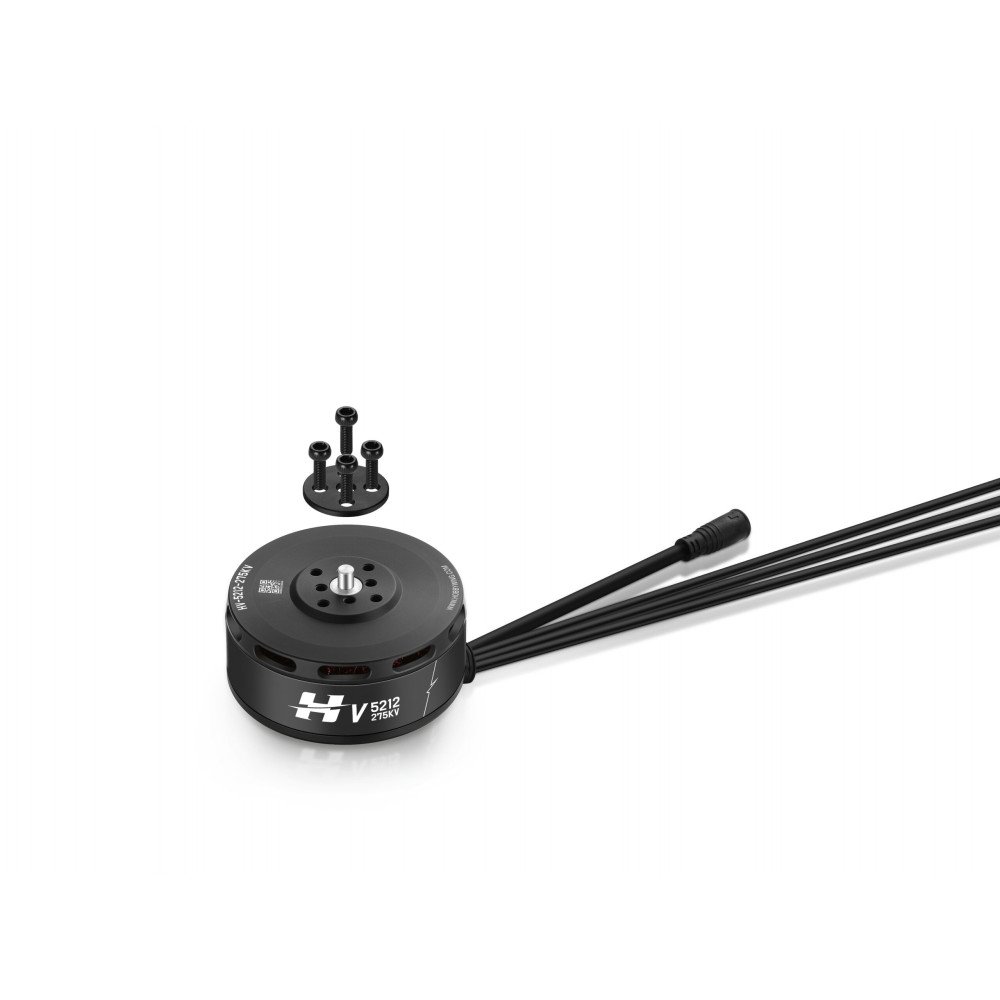

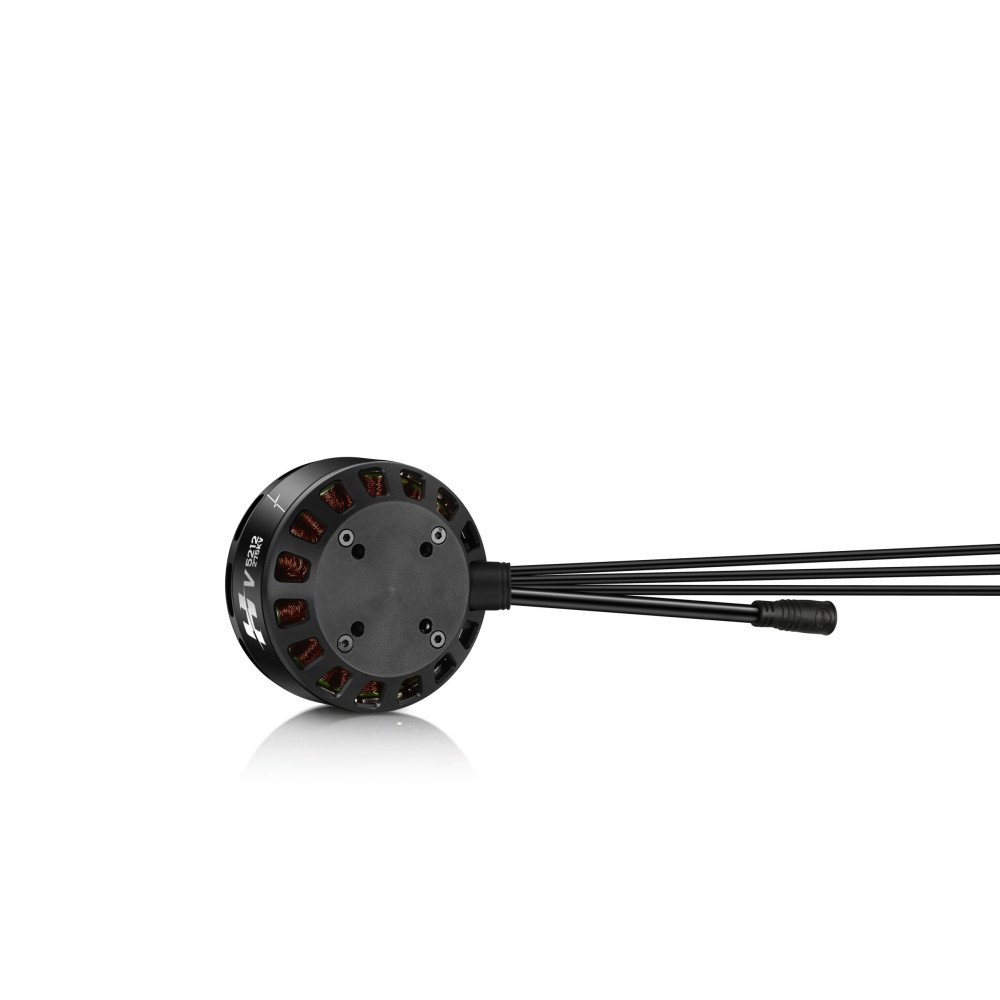

Hobbywing V5212 275KV VTOL Drone Motor

The Hobbywing V5212 275KV is a high-performance motor designed specifically for VTOL fixed-wing drones. With optimized magnetic circuit design, robust materials, and advanced cooling, it delivers strong thrust, reliability, and efficiency under demanding flight conditions.

Key Features

Optimized for VTOL Applications

• Designed for vertical takeoff and landing platforms

• Large thrust-to-weight ratio with strong overload capacity

• Stable performance in high altitude and strong wind conditions

Powerful & Efficient

• Maximum thrust: 9.1 kg

• Recommended per rotor thrust: 2.5–3.5 kg

• Supports quadcopters with MTOW 10–14 kg

• Rated power input: 690 W | Max power: 2469 W

Advanced Cooling Design

• Rotor bracket with large air outlet + centrifugal self-cooling system

• Efficient heat dissipation during high current operations

• 20% lower operating temperature rise compared to similar products

Durable & Reliable Build

• High-standard silicon steel sheet stator with rust-proof coating

• 200°C enamelled wire + 150°C magnets for long service life

• Waterproof high-quality bearings (IPX5 protection)

• Rigorous insulation test: 500V AC

Flexible Propeller Control (Optional)

• Intelligent propeller control version available

• When paired with IPC ESCs, propeller stop position can be set to reduce drag during cruise and extend endurance

Recommended Combinations

• Motor: V5212 275KV

• Battery: 12S LiPo

• Propellers: MP16×5.4", MP17×5.8"

• ESC: XRotor Pro H60A 14S / XRotor Pro H80A 14S IPC

• Thrust per rotor: 2.5–3.5 kg

• Quadcopter takeoff weight: 10–14 kg

Load Parameters (follow the order of our recommendations):
The load parameters listed below follow the same order as the recommended propellers mentioned in this product description.
