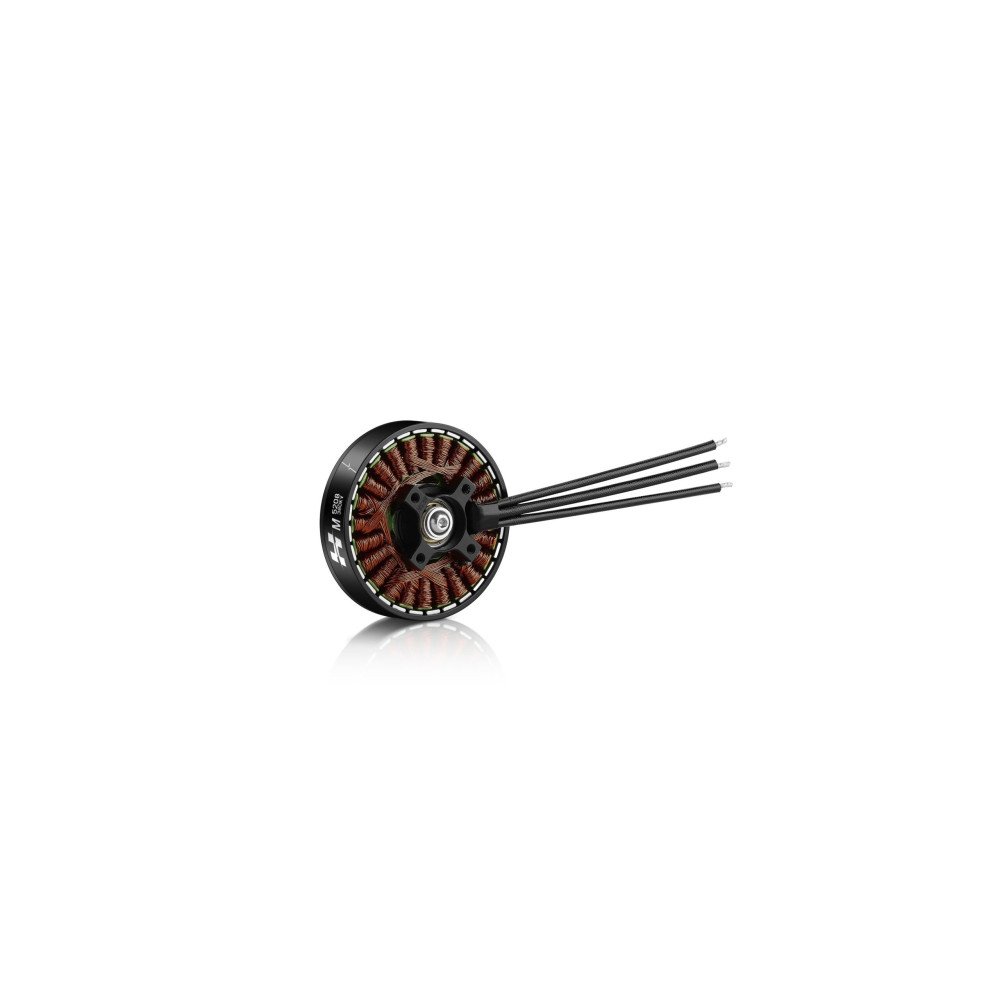

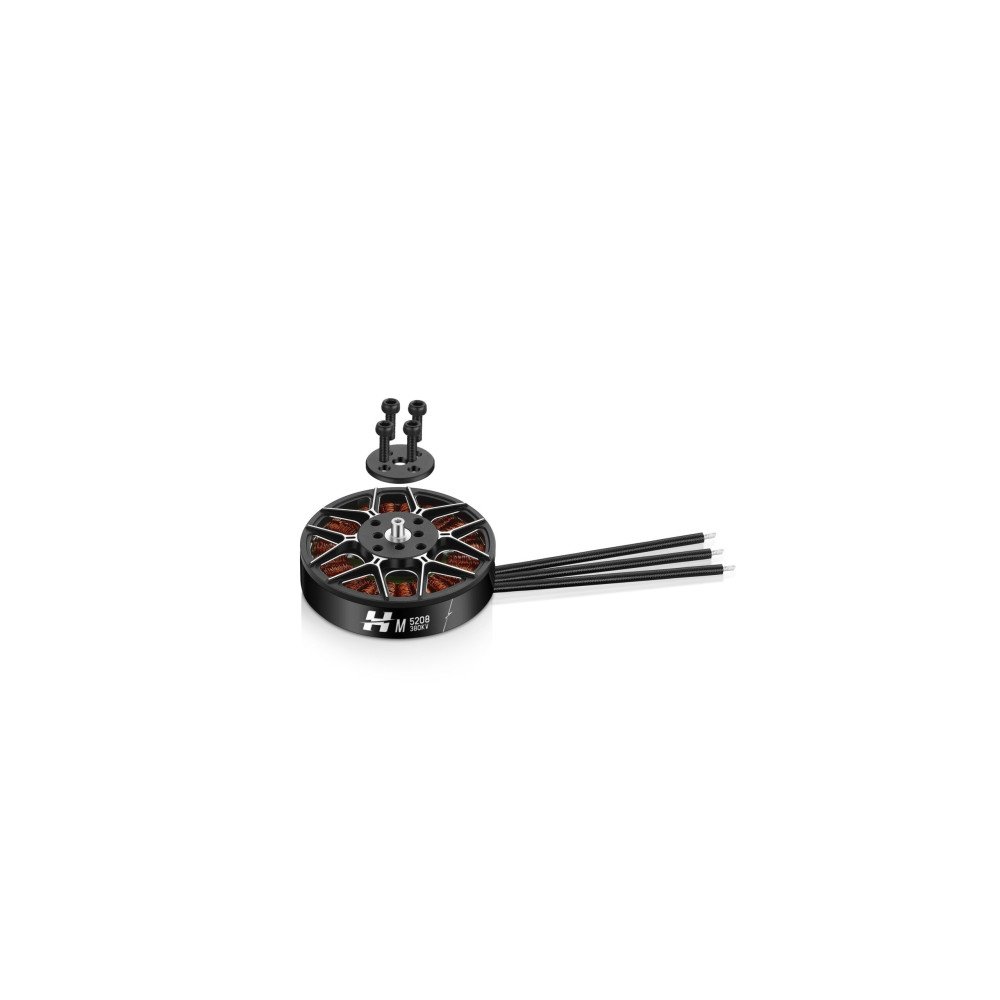

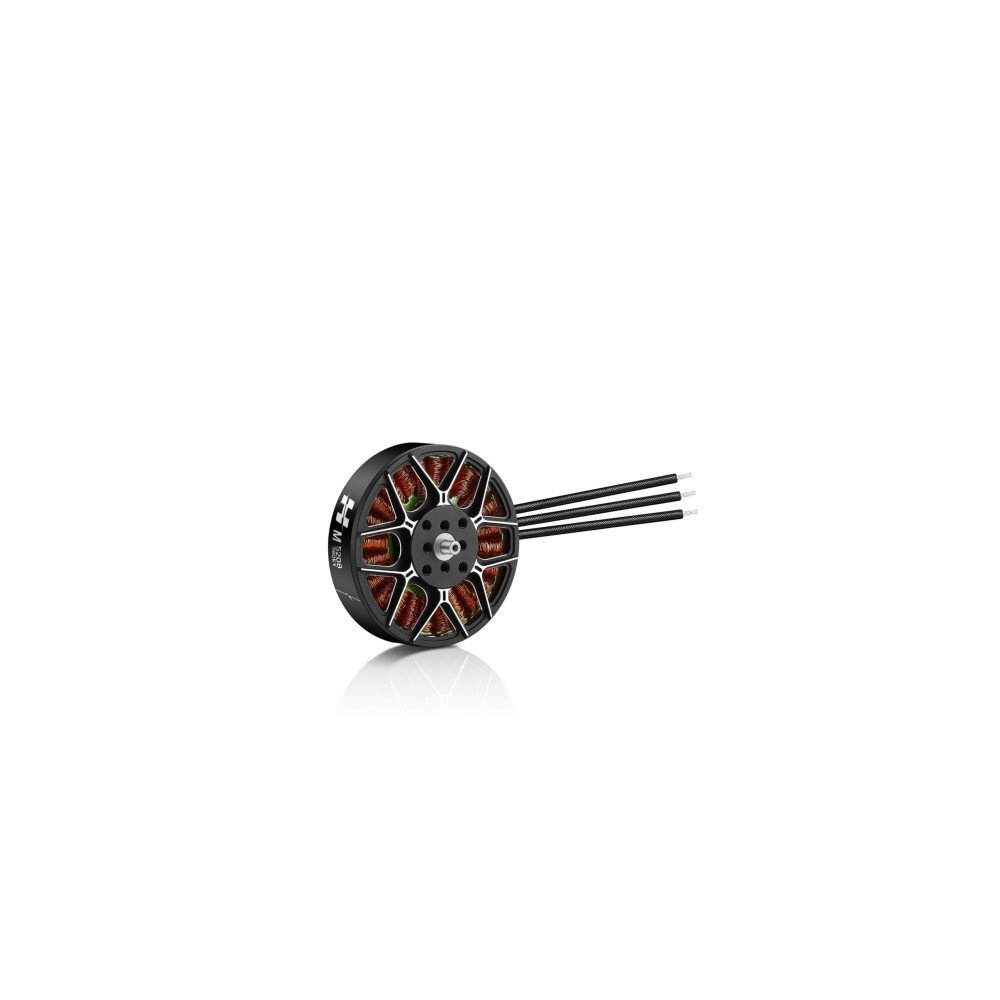

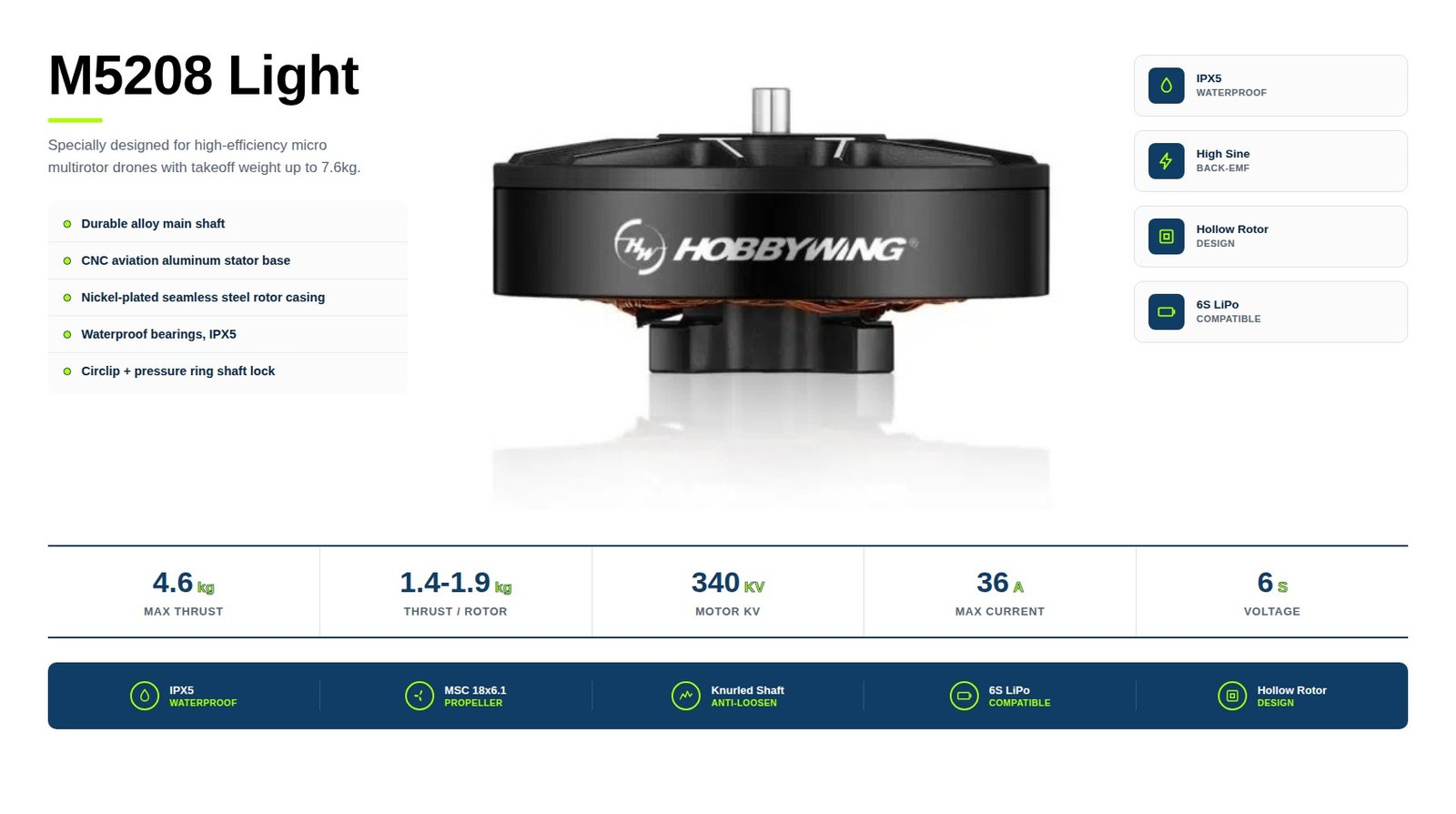

The Hobbywing M5208 Light 340KV is an ultra-light industrial drone motor designed for high-efficiency micro and small multirotor UAVs. It delivers stable thrust, smooth operation, and long-endurance performance for professional drone applications.
With its lightweight structure, optimized magnetic circuit, and IPX5 protection level, the M5208 Light 340KV is ideal for UAV platforms requiring efficient power output, reduced weight, and reliable operation.
Efficient Power & Thrust
The M5208 Light 340KV delivers up to 4.6 kg of maximum thrust.
The recommended thrust range is 1.4–1.9 kg per rotor.
It supports quadcopters with a total takeoff weight of 5.6–7.6 kg, making it suitable for micro and small professional UAV platforms.
Ultra-Lightweight Design
With a weight of only 153.8 g with wires, the M5208 Light 340KV helps reduce overall aircraft weight.
This lightweight design supports longer flight endurance and improved payload efficiency.
Durable Industrial Construction
The motor uses high-standard silicon steel sheets with rust-proof treatment and high-temperature resistant coating.
It features waterproof bearings, high-temperature rated magnets, and 220°C enamelled wire for reliable long-term operation.
Optimized Motor Architecture
The 24N28P motor structure provides smooth operation and stable power delivery.
The precision-balanced rotor helps reduce vibration and improve flight stability.
Its optimized structure ensures reliable ESC matching and efficient performance for professional UAV power systems.
Propeller Compatibility
The M5208 Light 340KV is compatible with 17×5.8″, 18×6.1″, and 19×5.7″ propellers.
These propeller options allow the motor to be adapted for endurance-focused UAVs, mapping drones, inspection platforms, and lightweight professional multirotors.
Technical Specifications
Product: Hobbywing M5208 Light 340KV Industrial Drone Motor
Application: Micro and small multirotor UAVs
KV: 340 KV
Battery: 6S LiPo
Weight with Wires: 153.8 g
Motor Size: Φ58 × 29.7 mm
Stator Size: Φ52 × 8 mm
Motor Structure: 24N28P
Recommended Thrust: 1.4–1.9 kg/rotor
Recommended Quadcopter Takeoff Weight: 5.6–7.6 kg
Maximum Thrust: 4.6 kg/rotor
Maximum Power: 793 W
Maximum Current: 36 A
No-Load Current: 1.5 A
Internal Resistance: 50.3 mΩ
Recommended Propeller: 17×5.8″ / 18×6.1″ / 19×5.7″
Recommended ESC: XRotor Pro H60A 6S
Protection Level: IPX5
Dynamic Balance: ≤8 mg
Motor Axle Diameter: Φ4 mm

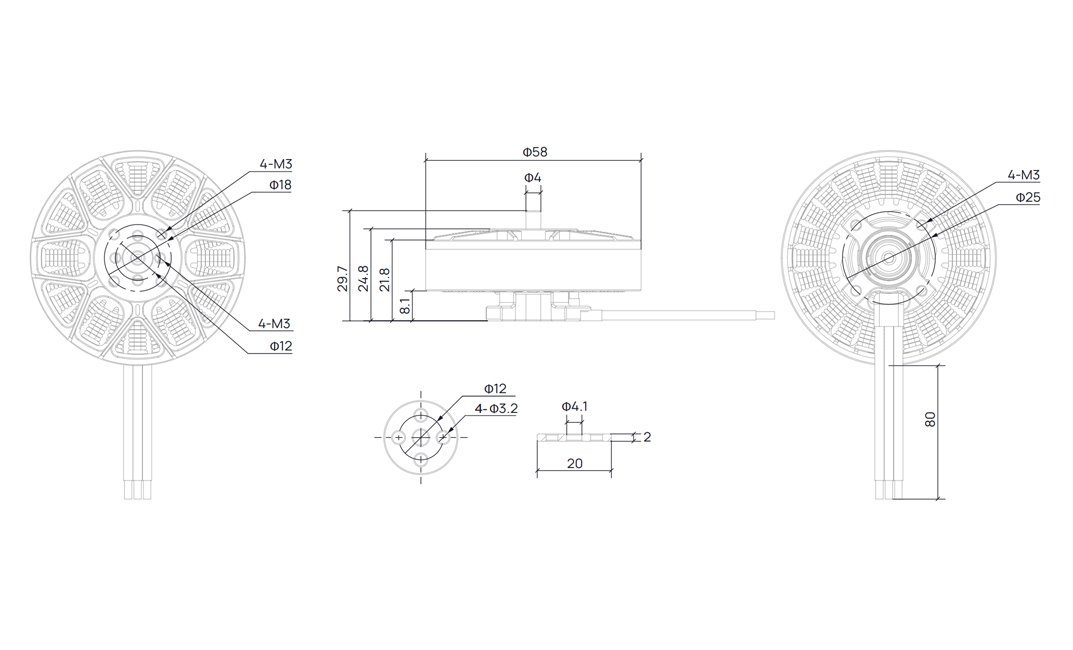

Motor Mounting Dimensions: 4×M3 @ D25 mm
Propeller Mounting Dimensions: 4×M3 @ D12 mm / 4×M3 @ D18 mm
Wire Length: 80 mm
Bearing: Waterproof bearing
Enamelled Wire Rating: 220°C
Magnet Temperature Rating: 180°C
What’s Included
1× Motor
Propellers are sold separately.
