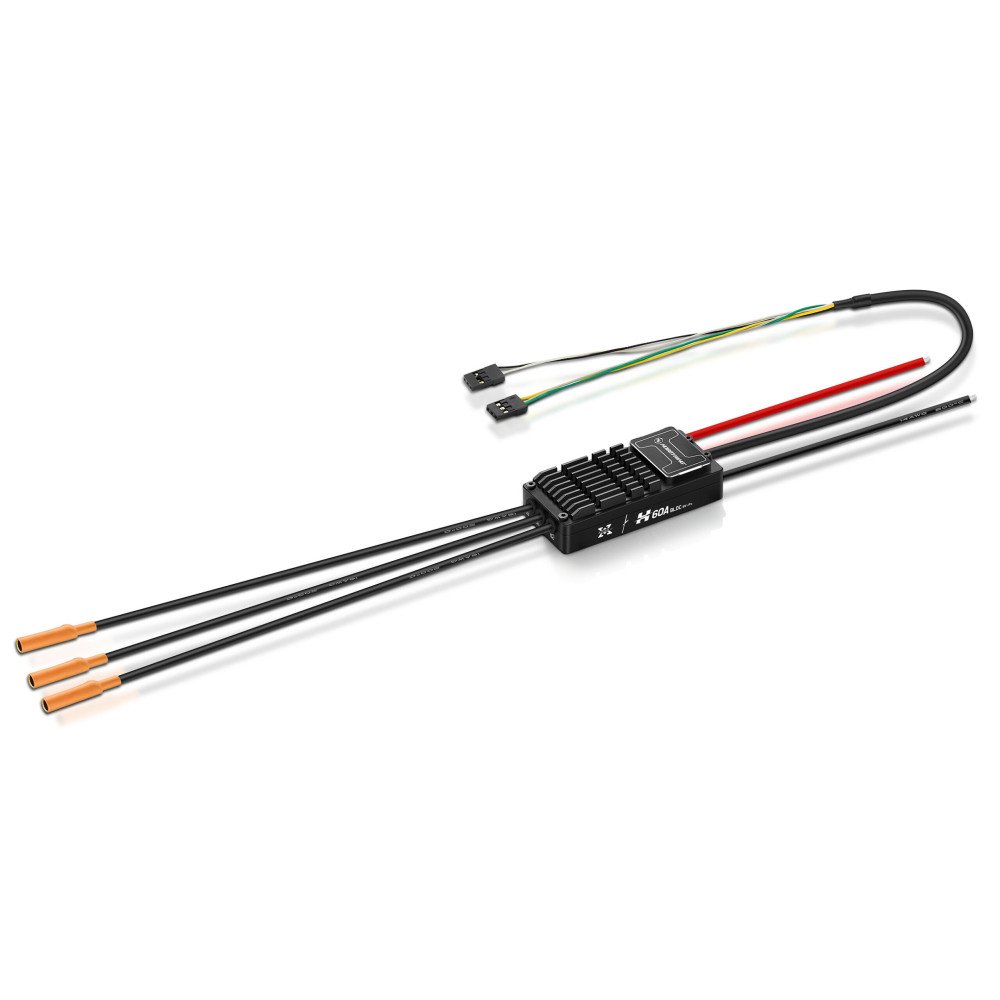

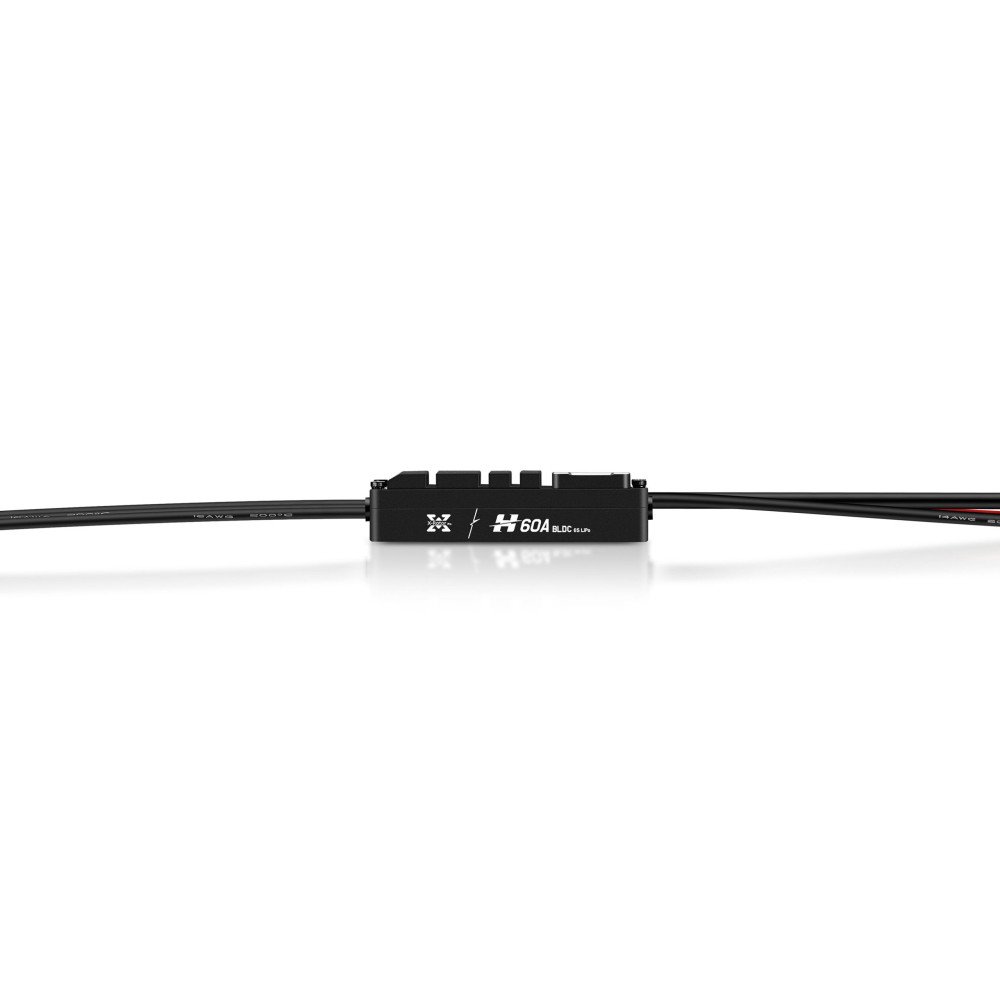

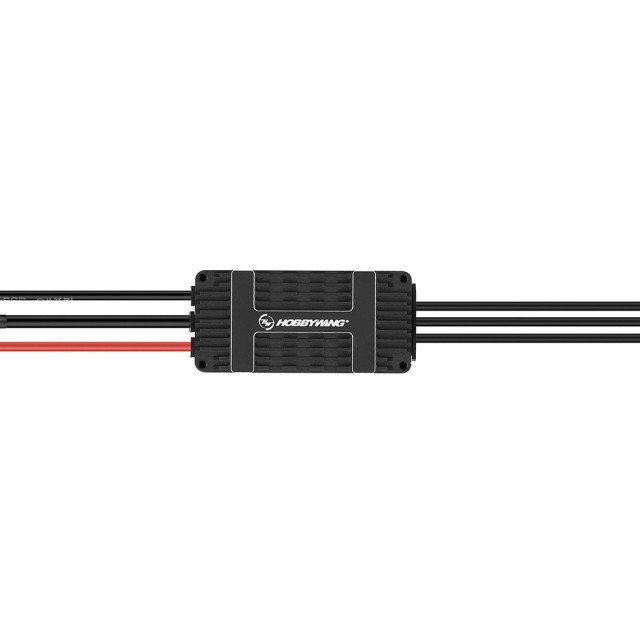

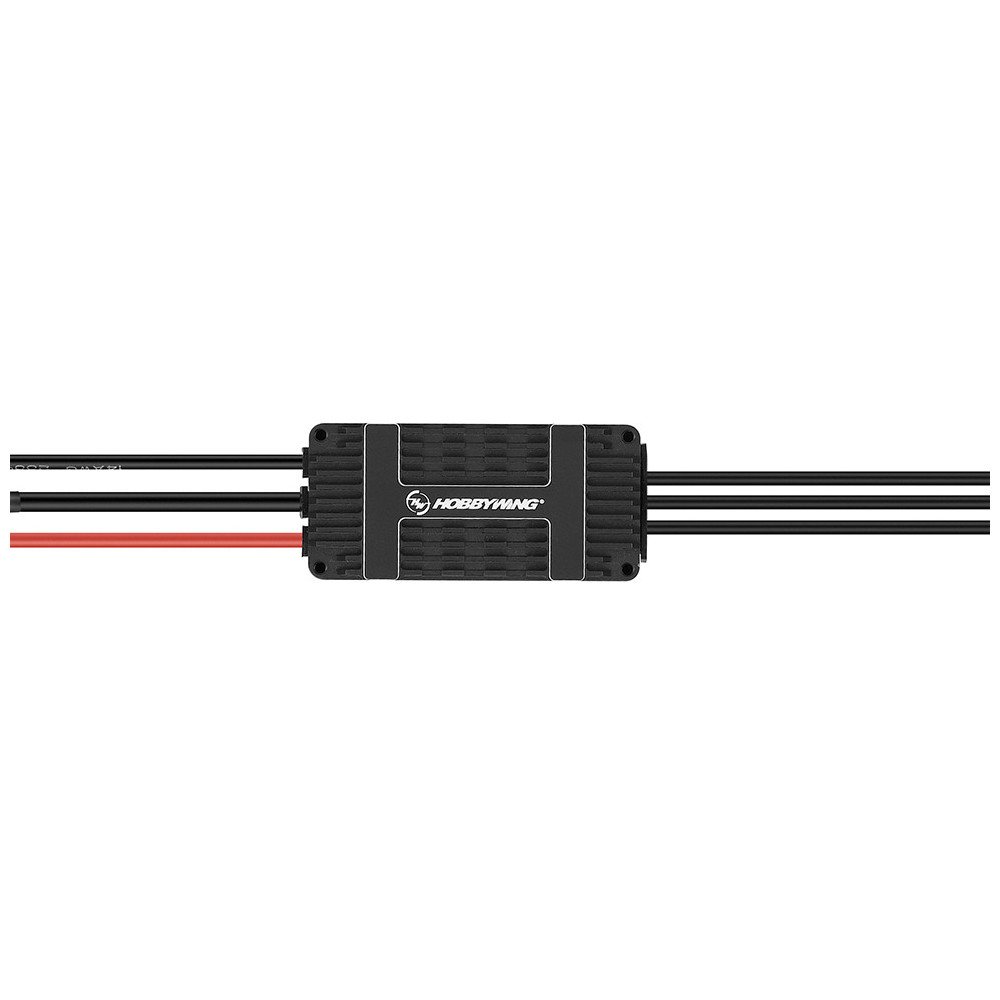

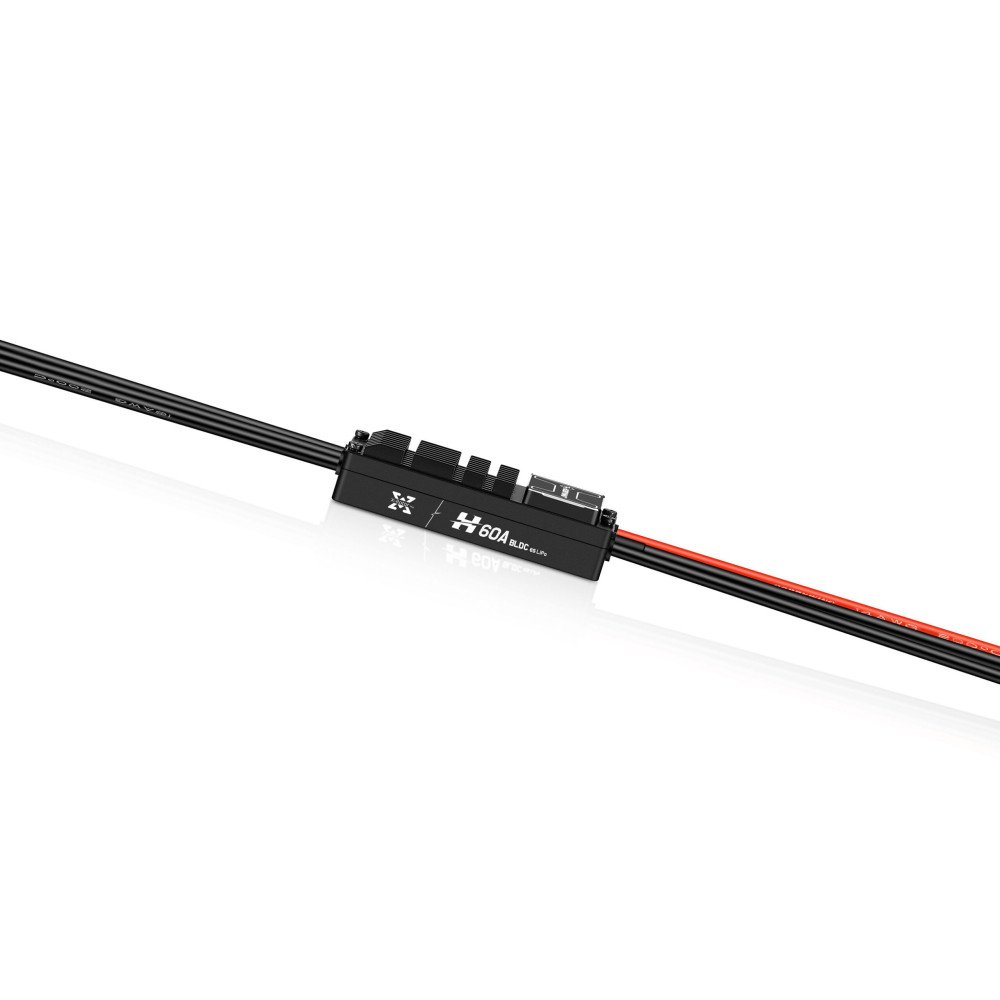

XRotor H60A 6S BLDC

The Hobbywing XRotor Pro H60A 6S BLDC ESC is a compact high-performance electronic speed controllerdesigned for professional UAVs, VTOL platforms, and multirotor drone applications. Engineered to deliver stable power output, fast throttle response, and high reliability, it is ideal for demanding drone applications where compact size, low weight, and precise motor control are essential.

Built with an upgraded BLDC drive algorithm, CAN communication, smart fault recording, and a lightweight industrial design, the H60A 6S BLDC provides dependable motor control for UAV platforms requiring efficient and reliable propulsion electronics. Hobbywing presents this ESC as a BLDC controller compatible with more motors, with upgraded protocols for high-KV UAV motors and improved stability, efficiency, and braking performance.

Compact & Reliable Power Delivery

The XRotor Pro H60A 6S BLDC supports 4–6S LiPo battery systems, with an input voltage range of 12–27V.

It delivers 40A continuous current with good heat dissipation and supports up to 60A peak current for 3 seconds, making it suitable for professional UAV platforms requiring stable current output in a compact format.

Designed for professional drone propulsion systems, the ESC provides:

• Stable current output

• Fast throttle response

• High efficiency under load

• Reliable power delivery for UAV applications

• Compact size and low weight for easy integration

BLDC Motor Control

The H60A 6S BLDC is designed for professional UAV propulsion systems requiring reliable and efficient standard BLDC motor control.

It is ideal for:

• Industrial multirotor drones

• Professional VTOL platforms

• Mapping and inspection UAVs

• Surveillance drones

• Compact cargo UAVs

• High-KV UAV motor applications

Its upgraded BLDC control algorithm improves compatibility with different motors while providing stable operation, efficient drive performance, and reliable braking response.

CAN Communication & Digital Throttle

The H60A 6S BLDC supports CAN 2.0 communication, allowing the ESC working status to be remotely monitored in real time through the flight controller. This enables accurate propulsion system diagnostics and improved data analysis during professional UAV operations.

The ESC also supports CAN digital throttle and CAN + PWM digital throttle, making it easier to integrate into different UAV architectures and flight control systems.

Key advantages include:

• CAN 2.0 communication

• CAN digital throttle support

• CAN + PWM throttle support

• 5V / 3.3V PWM signal compatibility

• 50–500Hz throttle signal frequency

• 1100–1940μs operating pulse width

• No throttle travel calibration required

Smart Black Box & Fault Diagnostics

The H60A 6S BLDC integrates a new-generation black box feature with millisecond-level data recording. It allows fast data and fault analysis, helping UAV operators and integrators identify problems quickly after flight. Hobbywing lists 1–24 hours of operating data and fault code storage in the product specifications.

This helps with:

• Post-flight diagnostics

• Fault code analysis

• Maintenance optimization

• System reliability monitoring

• Faster troubleshooting during UAV integration

Lightweight Industrial Design

The XRotor Pro H60A 6S BLDC is designed for UAV platforms where weight, space, and reliability are critical.

With a weight of only 53g without cable and compact dimensions of 71.2 × 32.5 × 17.4 mm, it offers excellent integration flexibility for compact professional drones, VTOL aircraft, and industrial UAV systems.

This compact design provides:

• Reduced onboard weight

• Easy installation in tight UAV frames

• Large cooling fins for improved heat dissipation

• Silicone case outlets for better protection

• Reliable operation in demanding flight conditions

Rugged & Professional Construction

Built for demanding UAV environments, the H60A 6S BLDC features professional-grade protection and reliability-focused construction.

Key durability features include:

• IP55 protection rating

• Custom IP67 option available

• Operating temperature from -40°C to +65°C

• Shielded signal cable for strong anti-interference performance

• Custom throttle isolation support

• Firmware upgrade support

• Hobbywing H Series quality standard

Hobbywing indicates that the H Series quality standard includes a startup failure rate of less than 5 PPM and an MTBF above 2000 hours, supporting dependable performance for professional UAV operations.

Technical Specifications

Product: Hobbywing XRotor Pro H60A 6S BLDC ESC

• Version: BLDC

• Input Voltage: 4–6S LiPo

• Voltage Range: 12–27V

• Continuous Current: 40A with good heat dissipation

• Peak Current: 60A for 3 seconds

• Communication Protocol: CAN

• Digital Throttle: CAN / CAN + PWM supported

• PWM Input Signal Level: 5V / 3.3V

• Throttle Signal Frequency: 50–500Hz

• Operating Pulse Width: 1100–1940μs

• Throttle Travel Calibration: Not required

• Propeller Positioning: Not supported

• Isolation Mode: Custom throttle isolation supported

• Firmware Update: Supported

• Protection Rating: IP55

• Custom Protection Option: IP67 available

• Operating Temperature: -40°C to +65°C

• Fault Storage: 1–24h operating data and fault code storage

• Weight: 53g without cable

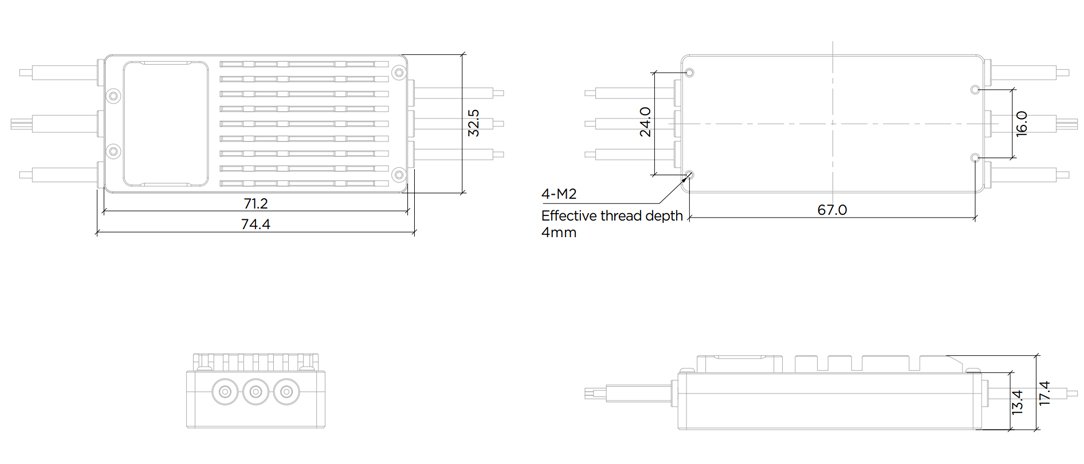

• Dimensions: 71.2 × 32.5 × 17.4 mm

• Input Cable: 14AWG silicone cable, 180 mm

• Output Cable: 16AWG silicone cable, 75 mm

• Signal Cable: Shielded 5-core cable, 350 mm, 2× JR-3P male

• Recommended Use: Industrial UAVs, VTOL platforms, multirotor drones and compact professional propulsion systems

The FOC version is available on request by email at contact@europeandroneshop.com.

Motor and propellers are sold separately.
