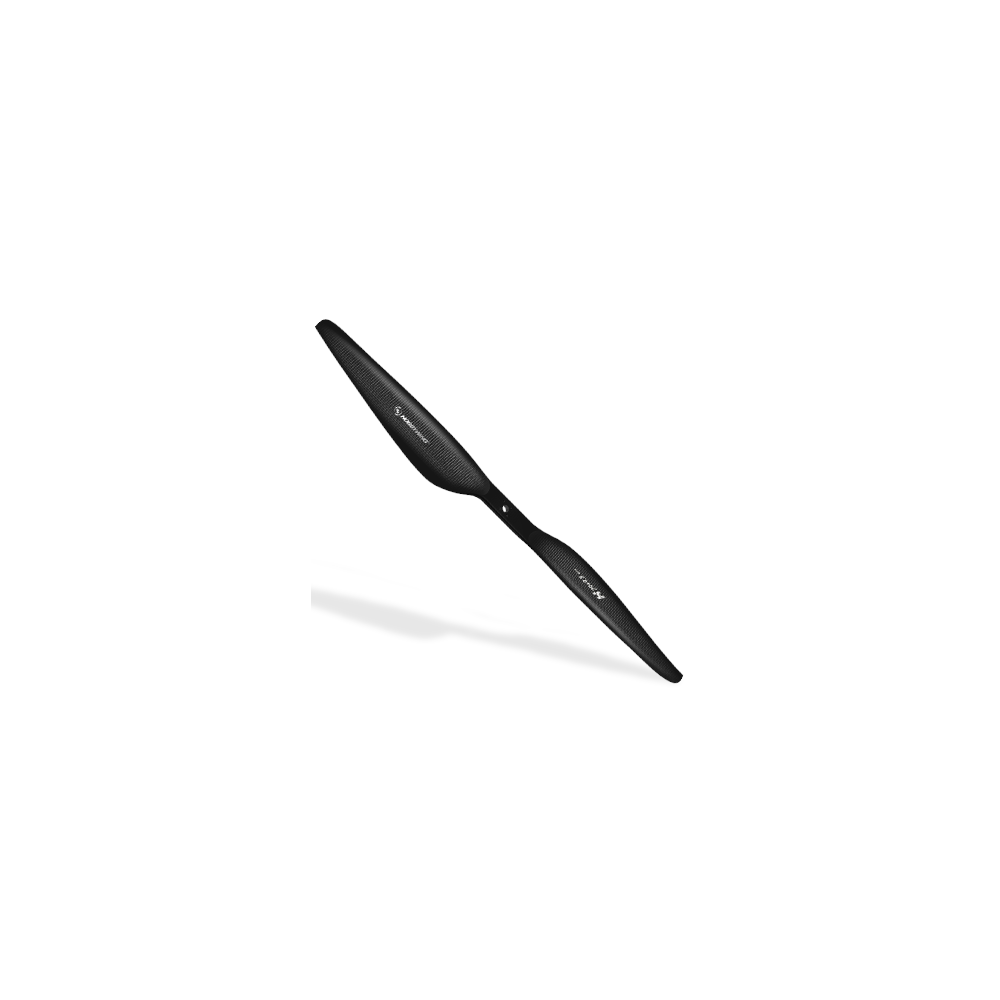

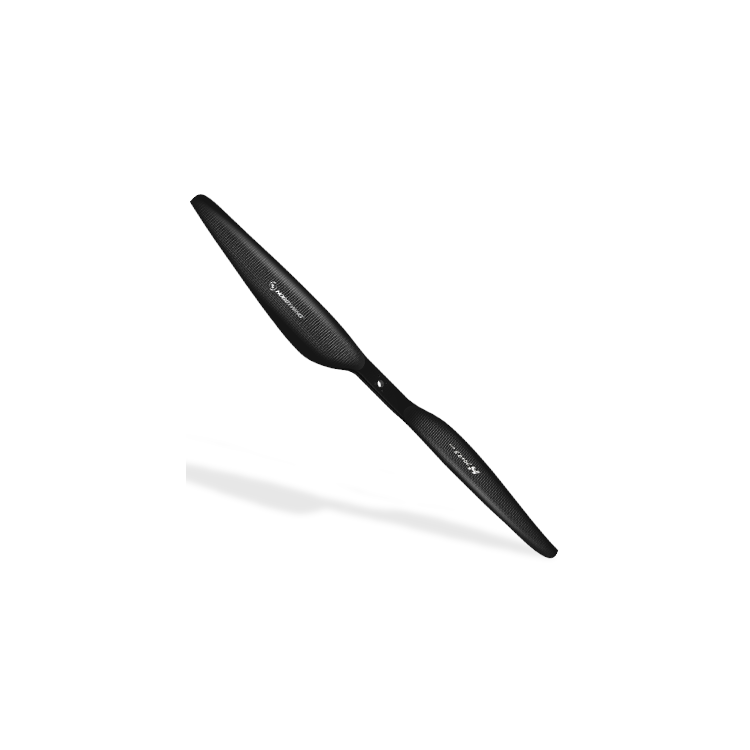

The Hobbywing MSC 58x24 Carbon Fiber Propeller is a high-performance UAV propeller specifically designed for ultra heavy-lift multirotor drones, large industrial UAVs, and high-power propulsion systems. Engineered to deliver massive thrust, excellent aerodynamic efficiency, and reliable flight stability, it is ideal for demanding applications such as logistics, heavy cargo transport, industrial inspection, emergency response, firefighting, and large-scale UAV operations.
Built for professional heavy-duty propulsion setups, the MSC 58x24 is designed to work with high-torque UAV motorsand 24S power systems, offering stable performance under extreme load conditions.
Ultra Heavy-Lift Performance
The MSC 58x24 is optimized for very large multirotor UAV platforms requiring high thrust, stable operation, and efficient power delivery.
When used with the Hobbywing M13842 HighProt motor, Hobbywing lists the MSC 58x24 as part of a recommended propulsion combination for drones with a 35–40 kg thrust range per rotor and a 140–160 kg quadrotor take-off weight.
This makes the MSC 58x24 suitable for:
-
Ultra heavy-lift UAVs
-
Large cargo drones
-
Industrial multirotor platforms
-
Professional logistics UAVs
-
High-power 24S propulsion systems
High Efficiency & Stable Operation
The MSC 58x24 is designed to provide strong lift while maintaining stable aerodynamic performance.
In Hobbywing propulsion testing with the M13842 HighProt motor, the MSC 58x24 has been used on a 24S LiPo system, reaching very high thrust output under laboratory conditions.
This propeller provides:
-
Massive thrust capability
-
Stable heavy-load performance
-
Efficient lift for large UAVs
-
Reliable operation at low to medium RPM
-
Smooth power delivery for professional missions
Carbon Fiber Professional Design
The MSC 58x24 is part of Hobbywing’s professional carbon fiber propeller range, designed for demanding UAV applications where rigidity, strength, and aerodynamic consistency are critical.
Its carbon fiber construction helps provide:
-
High structural rigidity
-
Low deformation under load
-
Stable blade shape
-
Reliable long-term durability
-
Improved flight stability
Non-Folding Heavy-Duty Propeller
The MSC 58x24 is a non-folding propeller, designed for large UAV platforms requiring maximum stiffness and consistent aerodynamic behavior.
Its fixed-blade structure helps provide:
-
Improved stiffness
-
Consistent thrust output
-
Reduced mechanical complexity
-
Reliable operation under extreme load
-
Precise rotor response for heavy-lift UAVs
Optimized for Hobbywing M13842 HighProt Systems
The MSC 58x24 is recommended by Hobbywing for use with the M13842 HighProt motor and the XRotor Pro H300A 24S ESC.
Recommended system configuration:
-
Motor: Hobbywing M13842 HighProt
-
ESC: Hobbywing XRotor Pro H300A 24S
-
Battery: 24S LiPo
-
Application thrust range: 35–40 kg per rotor
-
Recommended quadrotor MTOW: 140–160 kg
This combination is designed for professional UAV platforms requiring extreme lifting capability, high reliability, and stable propulsion performance.

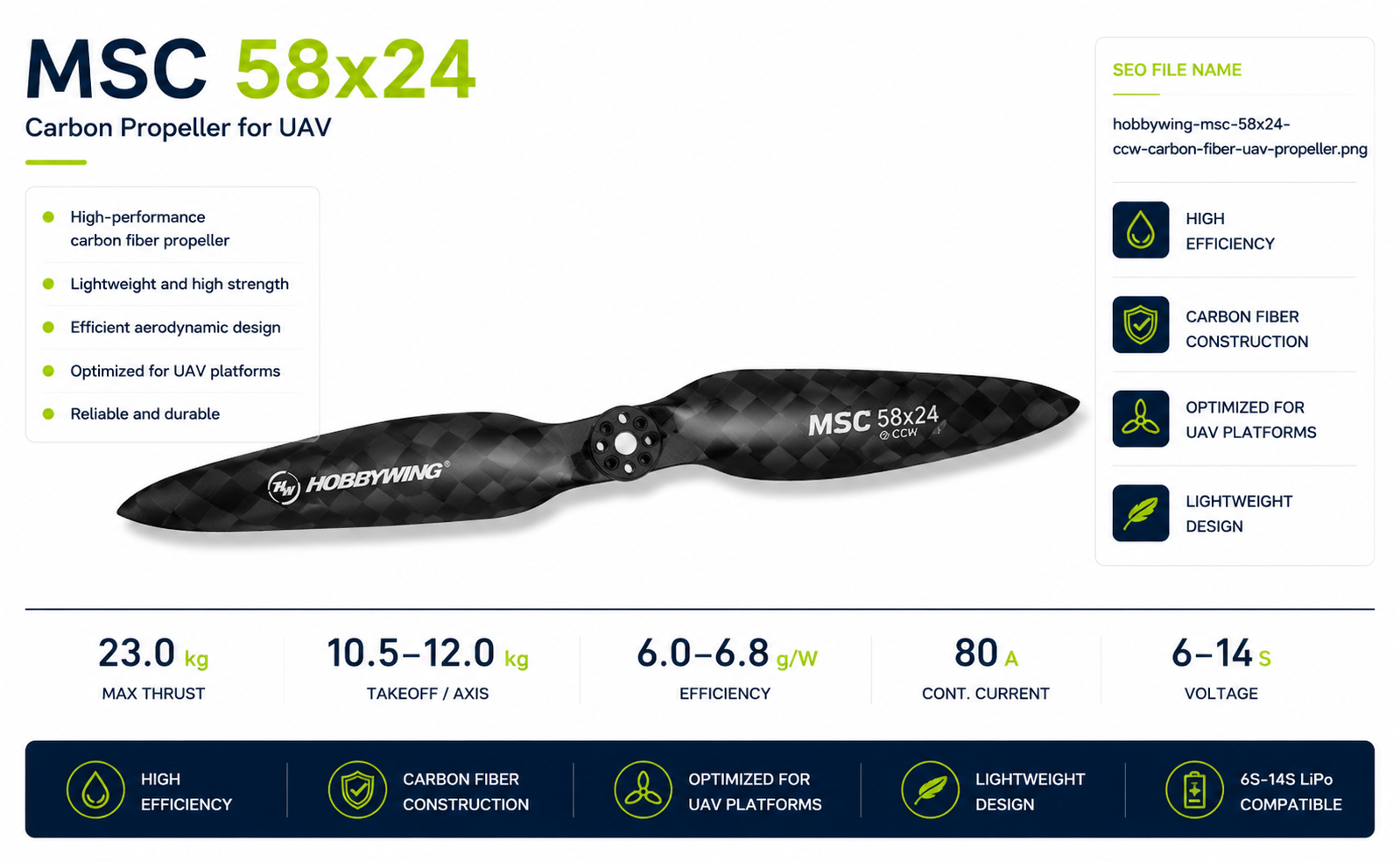

Technical Specifications
Product: Hobbywing MSC 58x24 Carbon Fiber Propeller
-
Propeller Size: 58 × 24 inch
-
Type: Non-folding carbon fiber propeller
-
Rotation: CW / CCW depending on selected version
-
Recommended Motor: Hobbywing M13842 HighProt
-
Recommended ESC: Hobbywing XRotor Pro H300A 24S
-
Recommended Battery: 24S LiPo
-
Recommended Thrust Range: 35–40 kg per rotor
-
Recommended Drone Configuration: Heavy-lift quadrotor up to 140–160 kg MTOW
-
Recommended Use: Ultra heavy-lift drones, logistics UAVs, industrial multirotor platforms and large cargo drones
Motor and ESC are sold separately.
