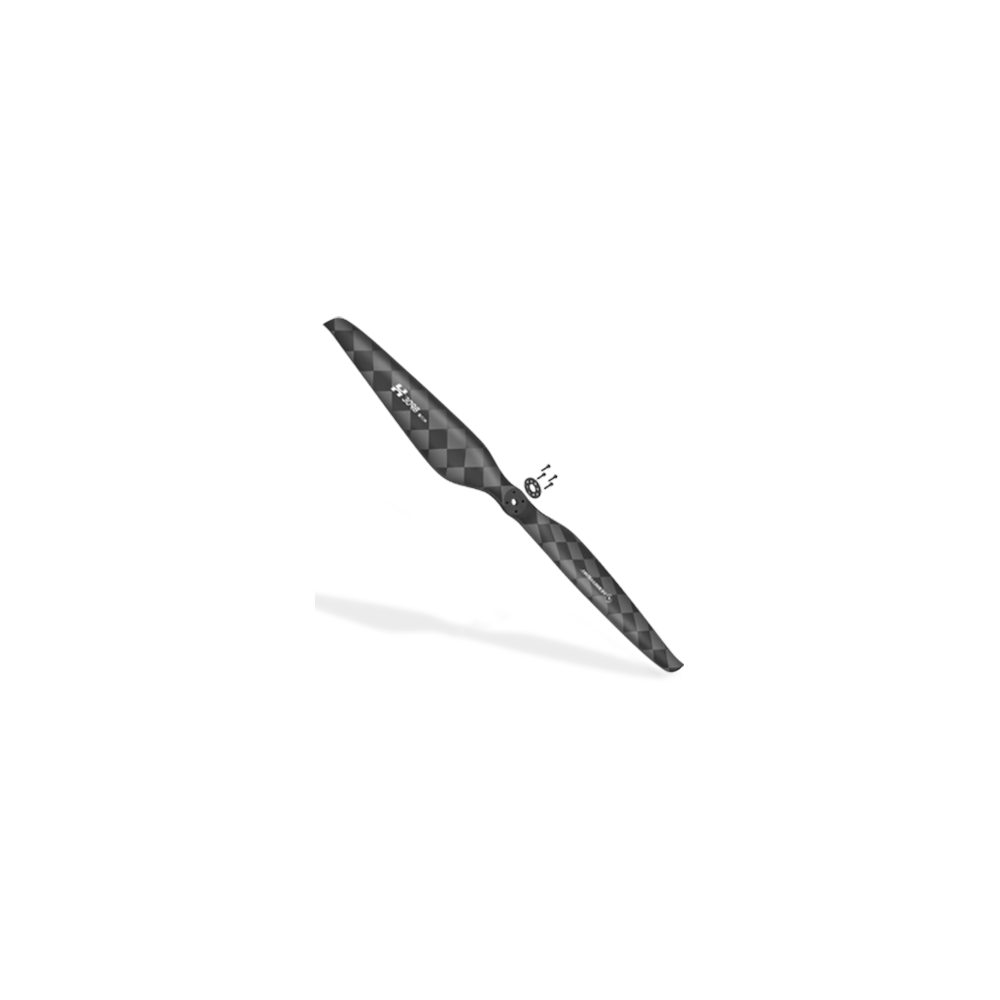

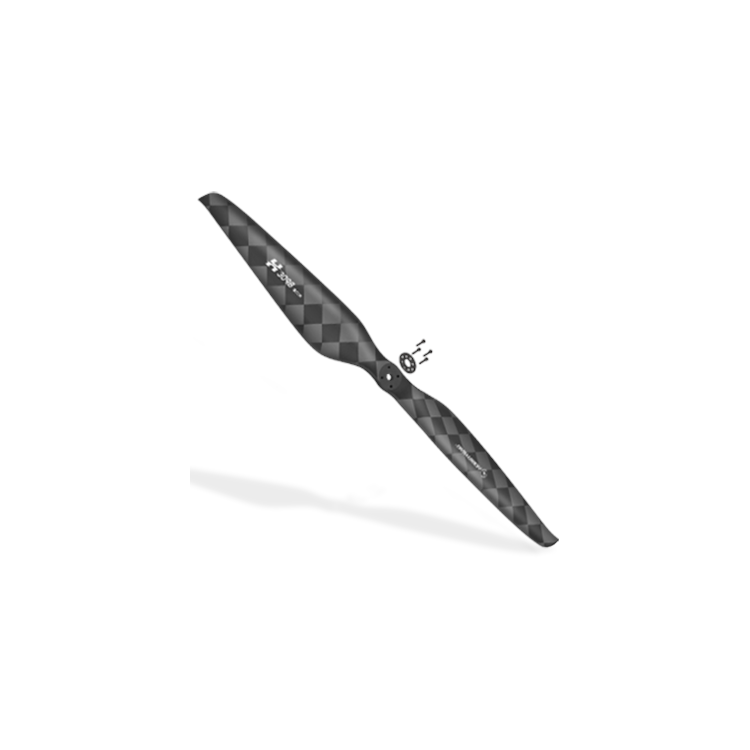

The Hobbywing MSC 22x7.8 Ultra-Light Carbon Fiber Propeller is a high-performance UAV propeller specifically designed for professional multirotor drones, industrial UAVs, and high-efficiency propulsion systems. Engineered to deliver stable thrust, excellent aerodynamic efficiency, and reliable flight performance, it is ideal for demanding applications such as mapping, inspection, surveillance, logistics, security, and long-endurance drone operations.
Built with imported high-strength carbon fiber and epoxy resin, the MSC 22x7.8 offers an excellent balance between lightweight construction, high rigidity, low moment of inertia, and long-term durability, making it suitable for professional UAV platforms requiring efficient and stable propulsion.
Ultra-Light & Efficient Performance
The MSC 22x7.8 is optimized for UAV platforms requiring high efficiency, fast response, and stable lift performance.
With a recommended thrust range of 2.0–5.0 kg and a maximum thrust of 12.0 kg, this propeller is suitable for compact and medium-sized multirotor drones requiring reliable thrust output and efficient power consumption.
Designed for professional UAV applications, the MSC 22x7.8 provides:
Advanced Aerodynamic Design
The MSC 22x7.8 features an excellent aerodynamic airfoil and a blade tip winglet design, helping improve airflow behavior and reduce aerodynamic losses.
This optimized design helps improve blade efficiency by approximately 3–5%, making it ideal for UAV platforms where endurance, stability, and efficient power usage are important.
This provides:
-
Improved aerodynamic efficiency
-
Reduced airflow separation
-
Better lift-to-power performance
-
Smoother flight behavior
-
More efficient UAV operation
Ultra-Light Carbon Fiber Structure
The MSC 22x7.8 is made from carbon fiber and epoxy resin, offering high specific strength, high specific modulus, corrosion resistance, and fatigue resistance.
Its ultra-lightweight structure reduces rotational inertia, improving motor responsiveness and helping the UAV maintain precise control during flight.
This material combination offers:
Non-Folding Professional Propeller
The MSC 22x7.8 is a non-folding propeller, designed for professional UAV platforms requiring consistent aerodynamic performance, high rigidity, and stable rotor behavior.
Its fixed-blade structure helps provide:
-
Improved stiffness
-
Consistent aerodynamic performance
-
Reduced mechanical complexity
-
Reliable operation under load
-
Precise rotor response
Optimized for Hobbywing UAV Propulsion Systems
The MSC 22x7.8 is compatible with several Hobbywing UAV propulsion configurations. It is recommended with M6208 Light, M6210 HighProt, and M6215 HighProt motor combinations depending on the aircraft configuration.
It is also used in Hobbywing H Series applications such as the H6M propulsion system, making it a suitable choice for compact industrial multirotor drones requiring efficient lift and reliable flight performance.
Recommended operating range:
Technical Specifications
Product: Hobbywing MSC 22x7.8 Ultra-Light Carbon Fiber Propeller
-

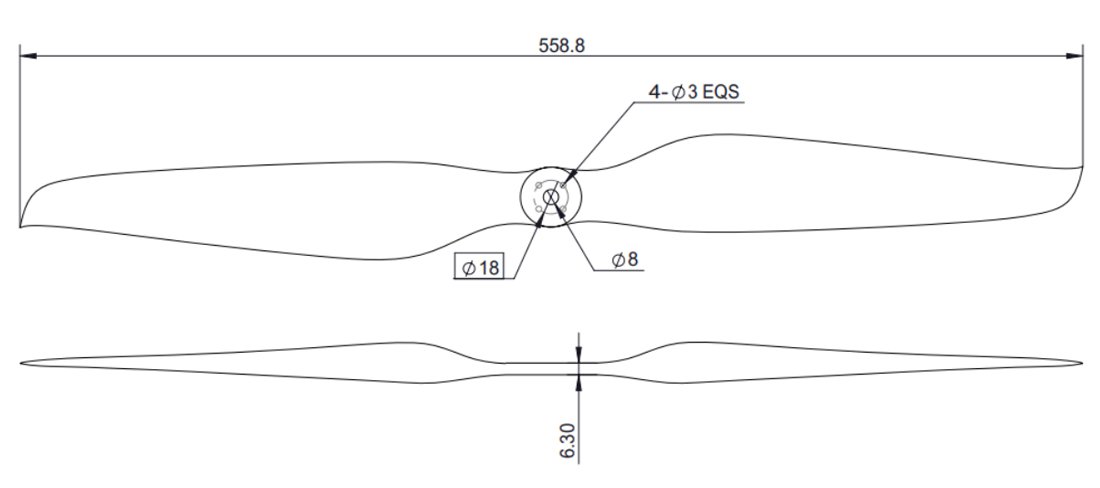

Propeller Size: 22 × 7.8 inch
-
Type: Non-folding propeller
-
Original Name: ML 22×7.8
-
Weight: 36 g
-
Blade Material: Carbon fiber + epoxy resin
-
Surface Finish: Matte finish
-
Recommended RPM Range: 2800–4500 RPM
-
Recommended Thrust: 2.0–5.0 kg
-
Maximum Thrust: 12.0 kg
-
Operating Temperature: -30°C to +50°C
-
Storage Temperature: -10°C to +35°C
-
Storage Humidity: 60–90%
-
Recommended Hobbywing Systems: H6M / M6208 Light / M6210 HighProt / M6215 HighProt compatible configurations
-
Recommended Use: Professional multirotor UAVs, compact industrial drones, mapping drones and high-efficiency propulsion systems
Motor and ESC are sold separately.
