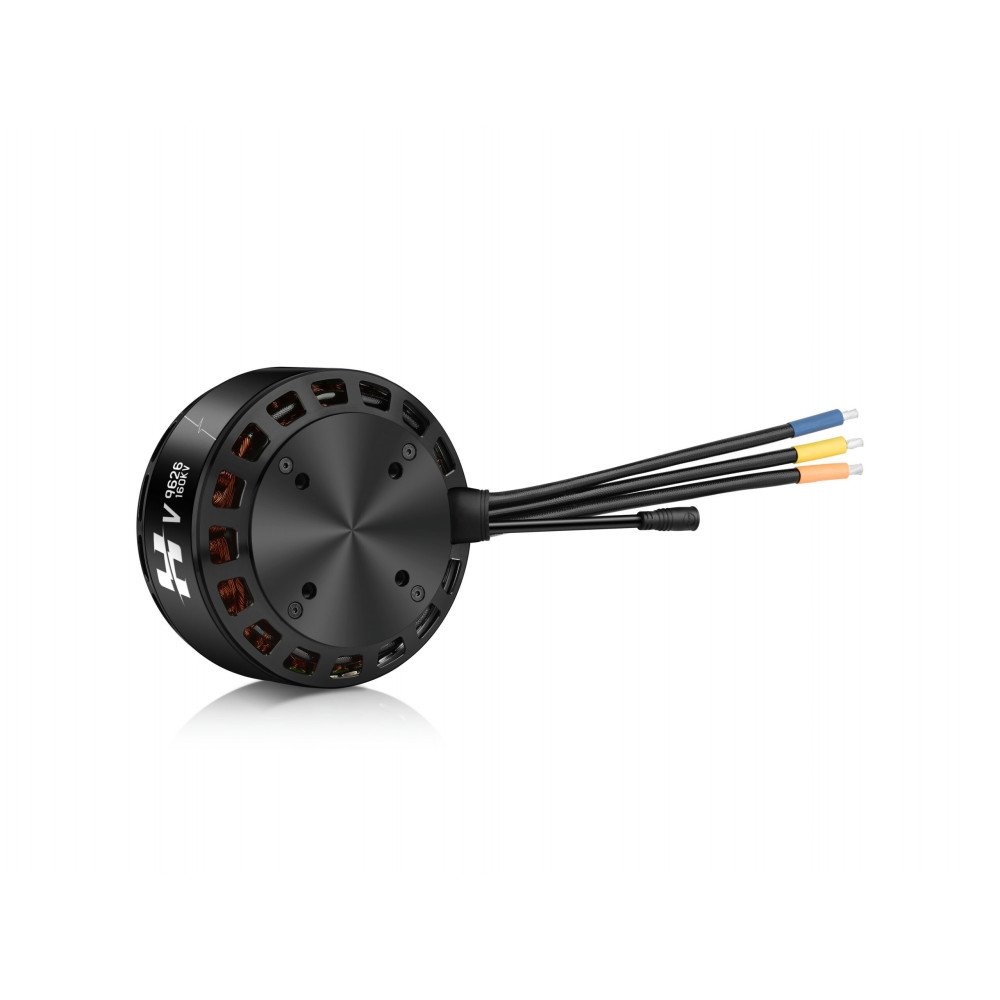

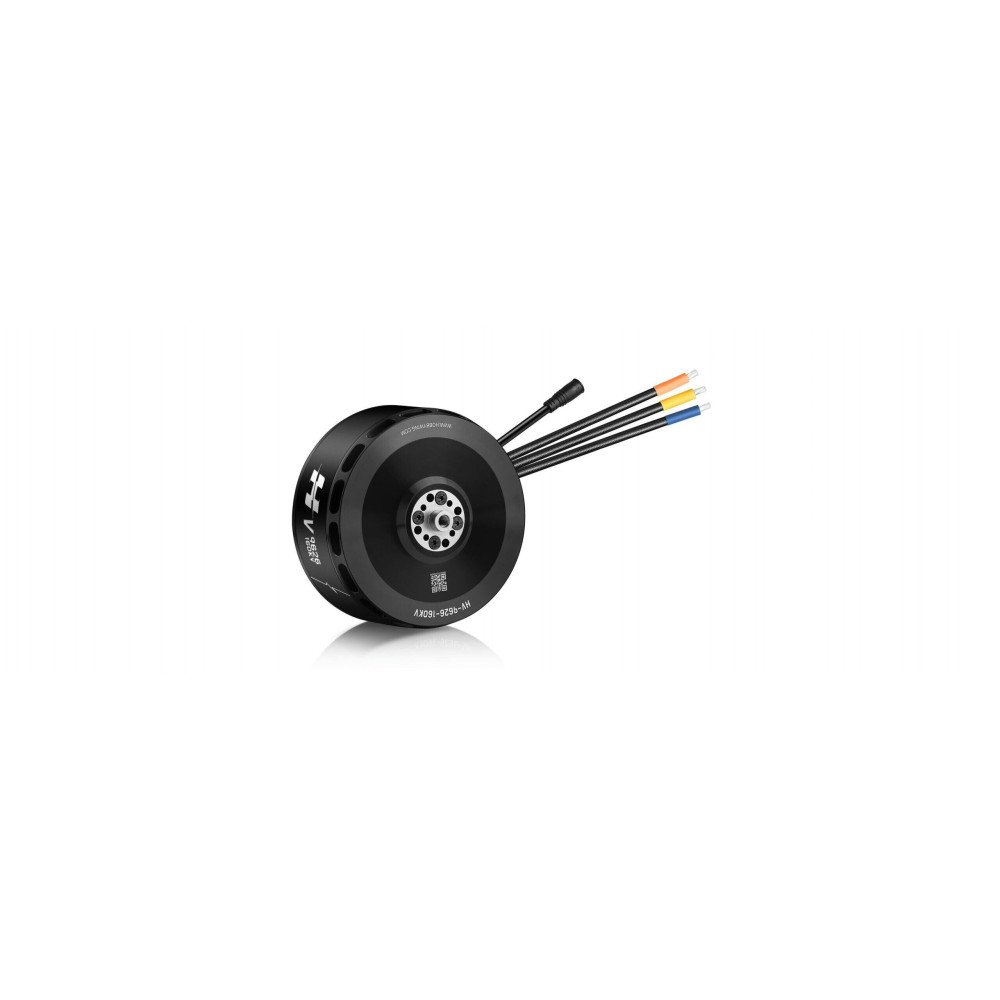

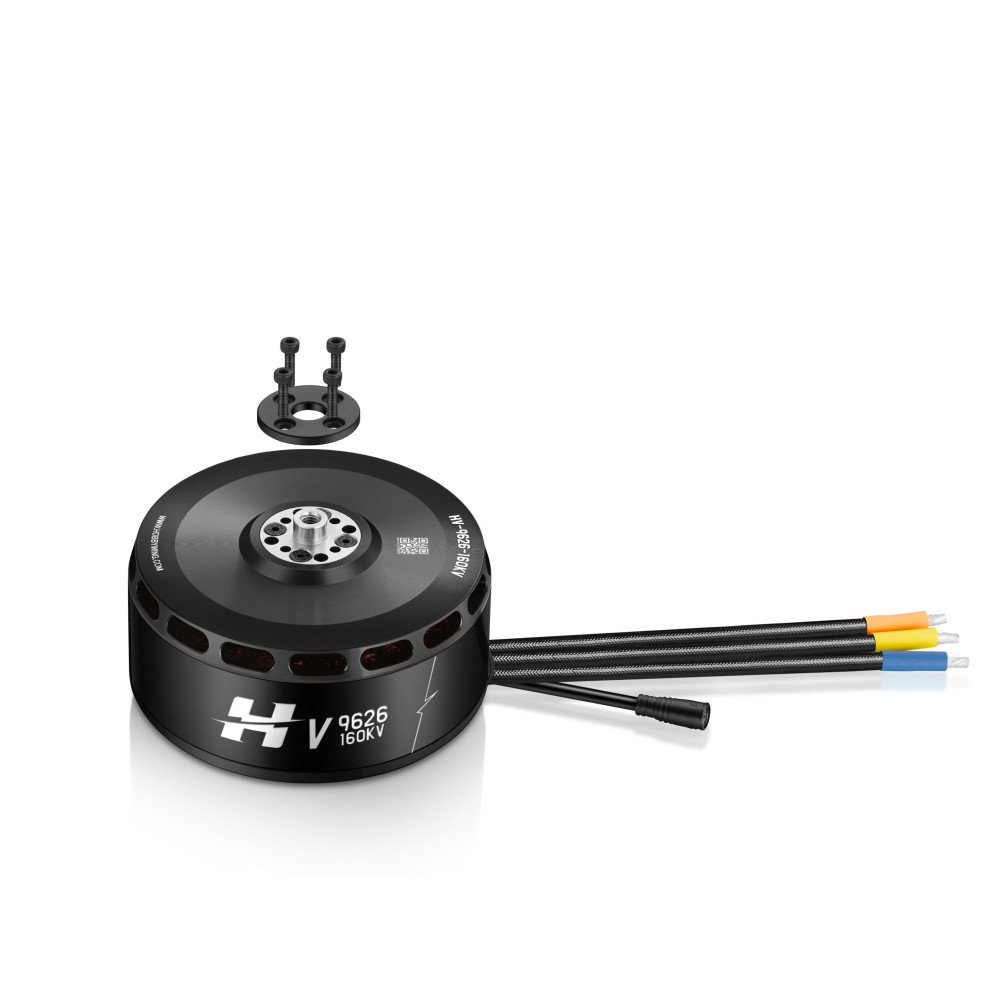

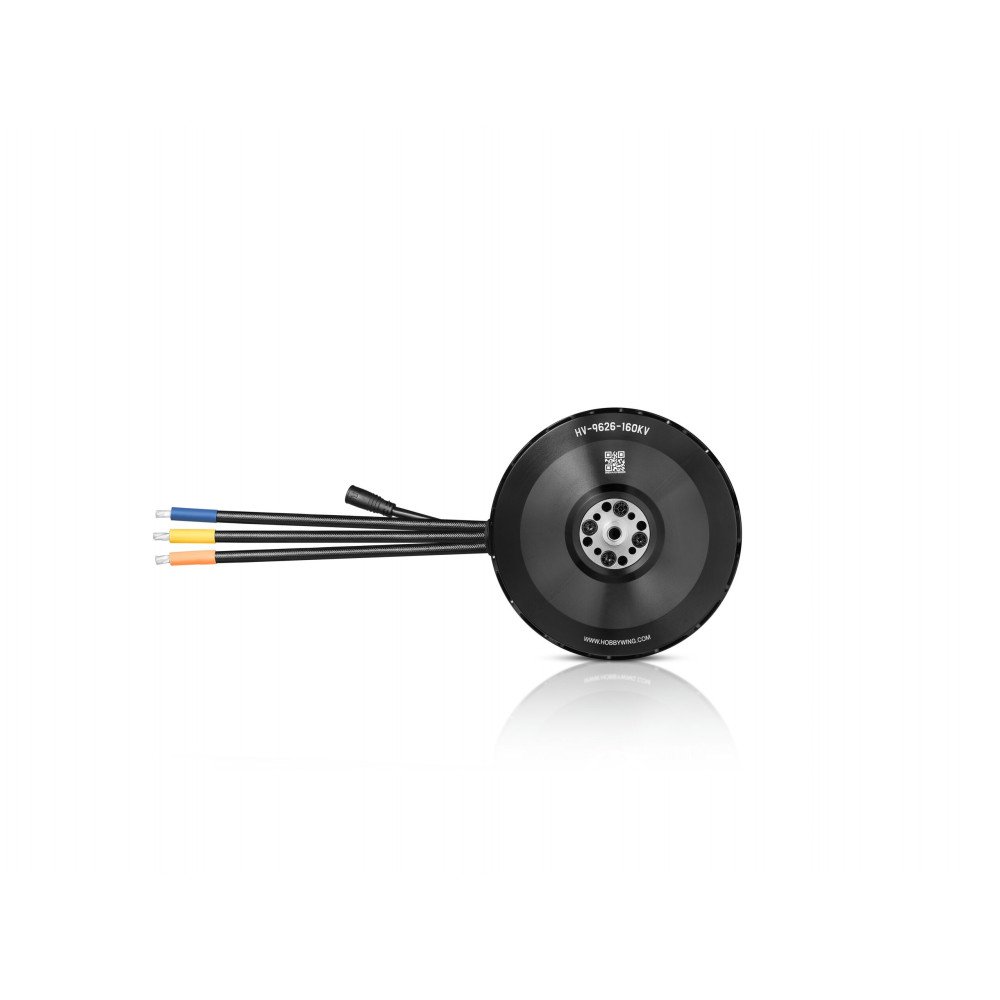

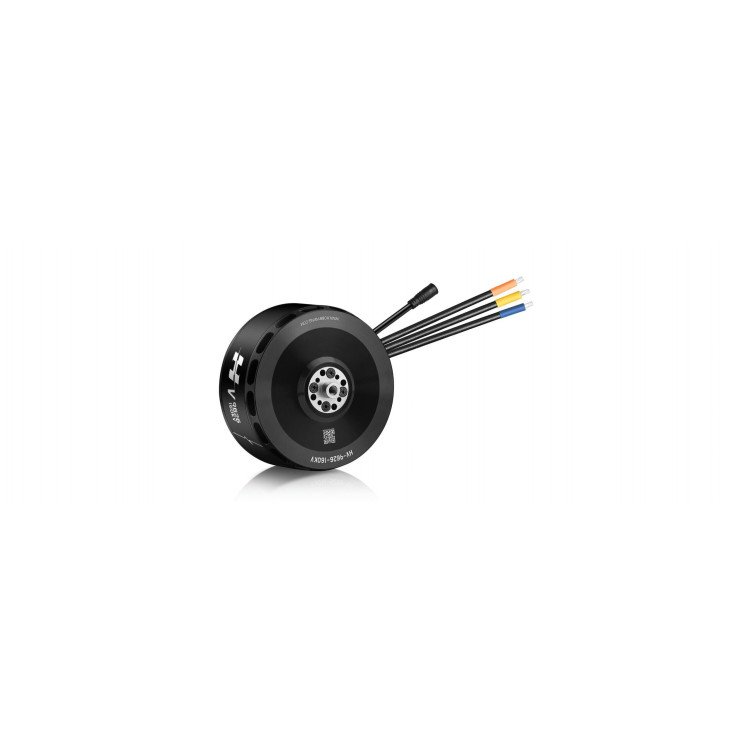

The Hobbywing V9626 160KV Brushless Motor is a high-performance propulsion solution specifically designed for heavy-lift VTOL UAVs and professional industrial drone platforms. Delivering powerful thrust, excellent efficiency, and outstanding reliability, it is perfectly suited for demanding applications such as surveying, mapping, inspection, emergency response, cargo transport, and long-endurance VTOL missions.
Available in Standard and IPC (Intelligent Propeller Control) versions, the V9626 allows UAV manufacturers and integrators to select the propulsion system that best matches their aircraft architecture and mission requirements.
Powerful & Efficient Performance
The V9626 delivers up to 38.5 kg of maximum thrust while weighing only 975 g, achieving an exceptional 39:1 thrust-to-weight ratio.
Designed for 12S LiPo power systems, the motor provides:
-
High torque output
-
Strong lifting capability
-
Excellent efficiency under heavy loads
-
Reliable continuous power for industrial operations
The recommended operating thrust is 12–16 kg per rotor, making it ideal for quadrotor VTOL aircraft with a maximum take-off weight of 50–64 kg.
Optimized Magnetic Circuit & Cooling
The V9626 features an optimized magnetic circuit combined with an efficient cooling design that delivers high torque while maintaining low operating temperatures during extended missions.
This advanced design provides:
-
Lower operating temperatures
-
Improved continuous power capability
-
Increased motor lifespan
-
Stable performance under demanding flight conditions
The motor is compatible with 30×9.8" and 32×10.5" propellers, allowing maximum flexibility depending on your aircraft configuration.
Standard Version or IPC Version
The V9626 is available in two versions to suit different VTOL propulsion systems.
Standard Version
The Standard Version is compatible with conventional high-voltage ESCs and is ideal for professional VTOL UAVs using a traditional propulsion architecture. It delivers the same outstanding thrust, efficiency, and reliability while offering seamless integration with standard BLDC ESCs.
IPC Version
The IPC (Intelligent Propeller Control) Version is designed to operate with Hobbywing IPC ESCs, including the XRotor Pro H200A 14S BLDC IPC.
The IPC system provides several advanced features:
-
Automatic propeller stop positioning
-
Reduced aerodynamic drag during fixed-wing cruise
-
Improved flight efficiency
-
Extended flight endurance
-
Precise digital motor positioning
-
Lower power consumption during propeller positioning
This makes the IPC version the ideal solution for hybrid VTOL aircraft where maximizing cruise efficiency is essential.
Industrial-Grade Reliability
Built for demanding commercial UAV operations, the V9626 incorporates premium materials and industrial-grade construction.
Key features include:
-
IPX5 protection rating
-
Waterproof bearings
-
180°C high-temperature permanent magnets
-
200°C enamelled copper windings
-
High-grade silicon steel stator
-
500V AC insulation test
-
High-precision dynamic balancing (≤15 mg)
Every motor undergoes extensive testing to ensure maximum reliability in harsh operating environments.
Technical Specifications
Product: Hobbywing V9626 160KV Brushless Motor
-
Versions: Standard / IPC
-
KV Rating: 160 KV
-
Battery: 12S LiPo
-
Maximum Thrust: 38.5 kg
-
Recommended Thrust: 12–16 kg per rotor
-
Maximum Current: 171.5 A
-
Maximum Power: 9,340 W
-
Weight: 975 g
-
Protection Rating: IPX5
-
Cooling System: Optimized airflow design
-
High-Temperature Magnets: 180°C
-
Copper Windings: 200°C
-
Recommended Propellers: 30×9.8" / 32×10.5"
-
Recommended ESC (Standard): Compatible with high-voltage BLDC ESCs
-
Recommended ESC (IPC): Hobbywing XRotor Pro H200A 14S BLDC IPC
-
Recommended Drone Configuration: Professional VTOL quadrotor with 50–64 kg MTOW
ESC and propellers are sold separately.
