Choosing the right propulsion system is one of the most important decisions when building a professional drone.

It is easy to focus first on the frame, battery, flight controller or payload, but in the end, the propulsion system is what determines how efficiently the drone can fly, how much weight it can carry, how stable it will be, and how reliable it will remain over time.

For multirotor drones, Hobbywing offers several integrated propulsion system ranges. The most common are the X Series, H Series and P Series.

At first glance, they can look quite similar. They are all designed for professional UAVs, they all combine motor, ESC and propeller technology, and they are all made for demanding applications. But in real use, each range has a very different purpose.

In this article, we explain the main differences between the Hobbywing X Series, H Series and P Series, and how to choose the right one for your drone project.

What is an integrated propulsion system?

An integrated propulsion system is a complete propulsion solution designed to work as one optimized package.

Instead of choosing a motor, ESC and propeller separately, the system is already engineered so that all components work together correctly. This reduces the risk of compatibility issues and makes integration much easier.

For a professional drone builder, this is a real advantage.

A well-matched propulsion system can help improve:

• flight efficiency;
• thrust performance;
• reliability;
• cooling;
• power consumption;
• maintenance;
• safety;
• system integration.

This is especially important on agricultural drones, industrial UAVs and heavy-lift multirotors, where the aircraft often flies with expensive payloads, high current levels and demanding operating conditions.

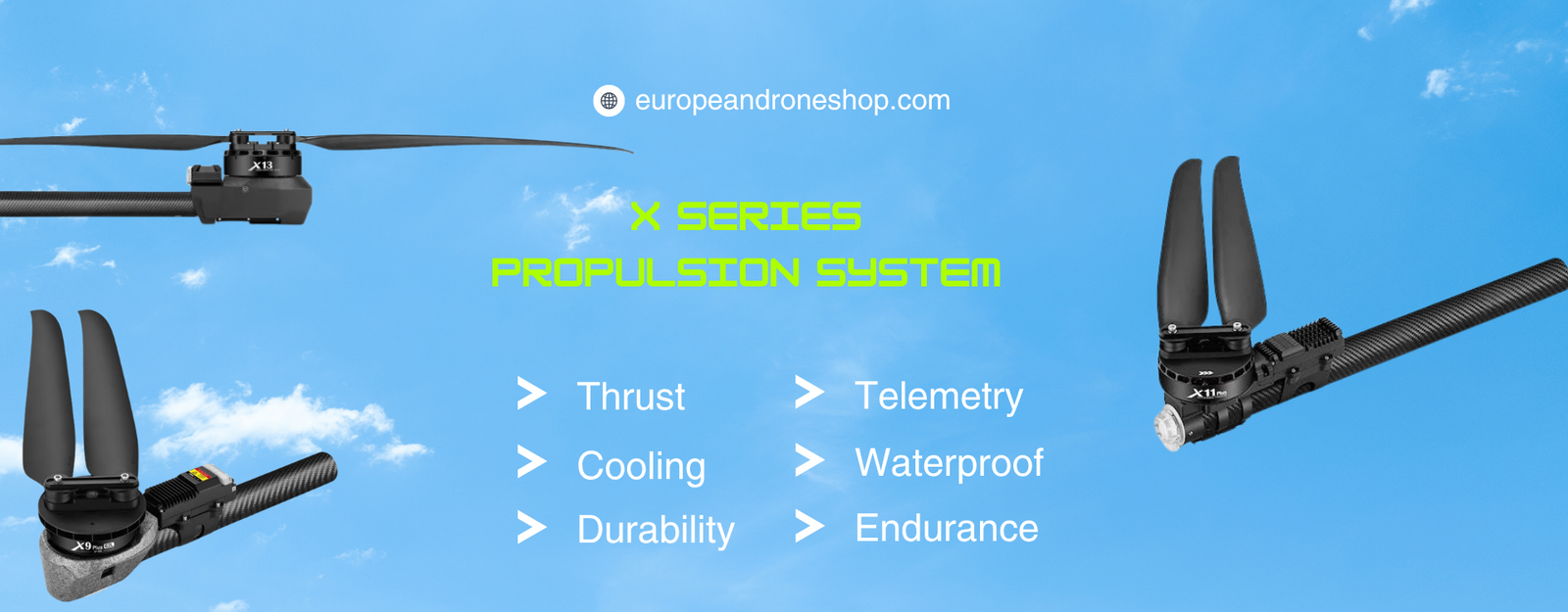

Hobbywing X Series: the versatile choice for agricultural and professional drones

The Hobbywing X Series is probably the most widely used range for agricultural drones and professional multirotor platforms.

This range is designed for drones that need a good balance between power, efficiency, reliability and ease of use. It is commonly used on spraying drones, spreading drones, inspection platforms and general industrial multirotors.

You will find systems such as X6, X8, X9, X11, X13 and X15, depending on the size of the drone and the required thrust.

When should you choose the X Series?

The X Series is usually the best choice when you need a reliable propulsion system for a professional drone, but without going into very high-voltage or extreme heavy-lift configurations.

It is a strong option for:

• agricultural spraying drones;
• spreading drones;
• inspection drones;
• professional multirotors;
• training platforms;
• industrial UAVs;
• medium to heavy payload applications.

For example, a system like the X11 is well suited for agricultural drones around the 30L category, while the X15 is made for larger platforms that require much higher thrust.

The main strength of the X Series is that it is practical. It is powerful, easy to integrate, and already widely used in the UAV market.

Why the X Series is popular

The X Series is popular because it offers a good compromise between performance and simplicity.

For most agricultural and industrial drone projects, it provides enough power, good efficiency and a proven design. It is also easier to integrate than more complex high-voltage heavy-lift systems.

Depending on the model, the X Series can include advanced features such as telemetry, fault protection, DataLink configuration, CAN communication and waterproof protection.

For many drone builders, this is the most logical starting point.

Hobbywing H Series: more industrial, more efficient, more advanced

The Hobbywing H Series is positioned more toward advanced industrial UAVs.

Compared with the X Series, the H Series is generally more focused on efficiency, stability and professional integration. It is often used on drones where reliability and long-term performance are more important than simply having a basic plug-and-play agricultural propulsion system.

The H Series includes models such as H6M, H8M, H11MD, H13MD, H15MD and H15MD Plus.

When should you choose the H Series?

The H Series is a good choice when your drone project requires a more advanced propulsion solution.

It is especially suitable for:

• industrial inspection drones;
• medium to heavy-lift UAVs;
• coaxial multirotor drones;
• long-endurance platforms;
• transport drones;
• professional UAV systems where reliability is critical.

If the X Series is the practical and versatile range, the H Series is more industrial and more optimized.

It is a good option when the drone needs to fly longer, carry heavier payloads, or operate in more demanding conditions.

What makes the H Series different?

The H Series is designed with a stronger focus on efficiency and long-term operation.

Depending on the model, the systems can support larger carbon propellers, higher thrust per axis, stronger motor structures and more advanced integration.

For example, some H Series systems are designed for heavy industrial drones and coaxial setups, where propulsion stability and power efficiency are very important.

This makes the H Series a good middle ground between the X Series and the P Series.

It is more advanced than the X Series, but still more accessible and easier to integrate than the very high-voltage P Series.

Hobbywing P Series: the heavy-lift and high-voltage range

The Hobbywing P Series is the range designed for very large drones and heavy-lift applications.

This is not the range you would normally choose for a standard agricultural drone or a medium-sized inspection UAV. The P Series is made for large industrial platforms where payload, voltage, safety and system architecture become much more critical.

The range includes systems such as P50M, P65M and P115M.

When should you choose the P Series?

The P Series is designed for serious heavy-lift projects.

It is suitable for:

• cargo drones;
• firefighting drones;
• emergency response UAVs;
• large hybrid drones;
• industrial transport platforms;
• logistics UAVs;
• very high payload multirotors.

This range is made for aircraft where the propulsion system must carry very heavy loads while maintaining efficiency and safety.

Why the P Series is different

The biggest difference with the P Series is the high-voltage architecture.

Some P Series systems use very high voltage, such as 400V or even 800V architectures. The goal is to reduce current, reduce electrical losses, improve efficiency and better control heat generation.

This is important on very large drones, because the power levels are much higher than on a standard agricultural multirotor.

The P Series also focuses heavily on safety, redundancy, industrial-grade components and long-term reliability.

In short, this is the range for heavy-duty UAV manufacturers and advanced drone projects, not for small or medium drone builds.

X Series vs H Series vs P Series: quick comparison

Which range should you choose?

The right choice depends on your drone, your payload and your mission.

There is no single “best” propulsion system. The best choice is the one that matches the aircraft weight, battery voltage, flight time target, payload and working environment.

Choose the X Series if you need a reliable all-round solution

The X Series is usually the best choice for agricultural drones and professional multirotors.

It is powerful, proven and relatively simple to integrate. It is also available in many sizes, which makes it easy to match with different drone platforms.

Choose the X Series for:

• spraying drones;
• spreading drones;
• medium-size industrial drones;
• professional multirotor builds;
• simple and reliable UAV integration.

For most drone builders, this will be the first range to consider.

Choose the H Series if you need more efficiency and industrial reliability

The H Series is better suited for advanced industrial UAVs.

It is a good choice if your drone needs more efficiency, stronger propulsion performance and a more professional architecture.

Choose the H Series for:

• industrial inspection drones;
• heavier multirotors;
• coaxial drone platforms;
• transport UAVs;
• long-endurance systems;
• drones operating in more demanding conditions.

If your project is more technical and requires better performance over time, the H Series can be a better option than the X Series.

Choose the P Series if you are building a heavy-lift UAV

The P Series is made for large drones and heavy-lift applications.

It is not the simplest range to integrate, because high-voltage systems require more engineering, better safety planning and a complete system approach.

Choose the P Series for:

• cargo drones;
• very large multirotors;
• firefighting drones;
• emergency response platforms;
• heavy industrial transport;
• high-voltage UAV projects.

If your drone needs to lift very heavy payloads, the P Series is the right category to look at.

Key points to check before choosing a propulsion system

Before choosing between X Series, H Series and P Series, you should always check a few important technical points.

1. Total take-off weight

The first thing to calculate is the real take-off weight of the drone.

This includes:

• frame;
• motors;
• ESCs;
• propellers;
• batteries;
• payload;
• landing gear;
• wiring;
• accessories;
• safety margin.

A propulsion system should never be selected only by looking at maximum thrust. The most important value is the recommended working thrust, where the system is efficient and reliable.

2. Battery voltage

Battery voltage has a direct impact on current, heat, cable size and overall efficiency.

The X Series and H Series are often used with more common UAV voltages such as 12S, 14S, 18S or 24S, depending on the model.

The P Series goes much further, with high-voltage architectures designed for large aircraft.

Higher voltage can improve efficiency, but it also makes integration more technical.

3. Type of mission

A spraying drone, an inspection drone and a cargo drone do not have the same requirements.

A spraying drone needs robustness, easy maintenance and good resistance to outdoor environments.

An inspection drone often needs stability, endurance and clean payload integration.

A cargo drone needs high thrust, strong safety margins and reliable power distribution.

The propulsion system should always match the mission.

4. Maintenance

Integrated propulsion systems make maintenance easier because the components are designed to work together.

However, the larger and more powerful the system is, the more important maintenance becomes.

A P Series heavy-lift system will require a much more serious maintenance process than a smaller X Series agricultural setup.

5. Telemetry and system data

Modern propulsion systems can provide useful data such as:

• motor speed;
• voltage;
• current;
• temperature;
• ESC status;
• fault logs;
• operating data.

For professional drones, this information is very valuable. It helps operators detect problems earlier, improve maintenance and increase flight safety.

Final summary

The X Series is the most versatile range. It is ideal for agricultural drones and professional multirotors that need reliable power and simple integration.

The H Series is more industrial. It is designed for drones that need better efficiency, stronger reliability and more advanced integration.

The P Series is the heavy-lift range. It is made for large UAVs, high-voltage architectures and very demanding missions such as cargo transport, firefighting and emergency response.

To keep it simple:

• X Series: best for agricultural and general professional drones.
• H Series: best for advanced industrial UAVs.
• P Series: best for heavy-lift and high-voltage drone platforms.

Choosing the right propulsion system is not about choosing the most powerful one. It is about choosing the system that works in the right efficiency range for your drone, your payload and your mission.

A properly selected propulsion system will make the drone more efficient, more reliable and easier to operate in the field.

FAQ

What is the difference between Hobbywing X Series and H Series?

The X Series is mainly designed for agricultural drones and general professional multirotors. The H Series is more industrial and focuses more on efficiency, reliability and advanced UAV integration.

Is the P Series suitable for a standard agricultural drone?

In most cases, no. The P Series is designed for heavy-lift and high-voltage UAVs. For a standard agricultural drone, the X Series or H Series will usually be more suitable.

Why use an integrated propulsion system?

An integrated propulsion system reduces compatibility problems between the motor, ESC and propeller. It also simplifies installation and usually improves overall reliability and performance.

Which Hobbywing range is best for spraying drones?

For spraying drones, the X Series is usually the most common choice. For larger or more industrial agricultural platforms, the H Series can also be a good option.

Which range is best for heavy-lift drones?

For heavy-lift drones, cargo UAVs and large industrial platforms, the P Series is the most suitable range.
