The SIYI HM30 Full HD Transmission System Fly More Combo is a professional long-range digital image transmission system designed for UAVs, FPV drones, industrial aircraft, robotics platforms, and professional remote-control applications.
Combining Full HD video transmission, remote control, and telemetry data link in one system, the SIYI HM30provides a reliable all-in-one communication solution for drone pilots, UAV integrators, and professional operators.
Full HD Long-Range Video Transmission
The SIYI HM30 supports 1080p Full HD video transmission at up to 60fps, providing a clear and stable real-time image for FPV flying, inspection missions, mapping, surveillance, and industrial drone operations.
With suitable antennas and clear line-of-sight conditions, the system can reach up to 30 km transmission range, making it suitable for long-distance UAV missions and professional field operations.
Low-Latency Digital Link
Designed for responsive control and real-time monitoring, the HM30 Full HD Transmission System offers low-latency video transmission, with latency typically around 150 ms depending on camera settings, resolution, encoding format, display device, and operating conditions.
This makes the system suitable for FPV flight, precision drone control, inspection work, robotic platforms, and mission-critical UAV applications where fast video feedback is important.
Remote Control, Telemetry & Video in One System
The SIYI HM30 Fly More Combo combines remote control signal, MAVLink telemetry, and digital video transmission into one integrated link.
This all-in-one design reduces the need for multiple separate systems and simplifies installation on professional drones.
It supports SBUS, PWM, and UART telemetry, making it suitable for Pixhawk, ArduPilot, PX4, and other compatible flight controller setups.
MAVLink OSD & Ground Station Compatibility
The SIYI HM30 supports MAVLink telemetry overlay through the SIYI FPV app, allowing users to display flight data directly over the video feed.
It is compatible with common ground station software and workflows, including QGroundControl, SIYI FPV, Pixhawk-based systems, ArduPilot, and PX4.
This makes the HM30 a strong choice for professional UAV integration, flight testing, mission planning, and real-time drone monitoring.
OLED Touchscreen Configuration
The HM30 ground unit includes a 0.96-inch OLED touchscreen display, allowing users to view system status and adjust key settings directly from the transmitter.
This makes field configuration easier and improves usability during outdoor drone operations.
Fly More Combo Advantage
The Fly More Combo version is designed for users who need a more complete and convenient field setup.
It includes a compatible NP-F750 quick-release battery, supporting practical outdoor use and extended operation time compared with basic configurations.
The ground unit also supports PD 30W fast charging, making it easier to recharge the system during professional drone missions.
Professional UAV Integration
The SIYI HM30 Full HD Transmission System is suitable for a wide range of platforms including multirotor drones, fixed-wing UAVs, VTOL aircraft, inspection drones, mapping drones, agricultural UAVs, robotics systems, and UGV platforms.
Its compact air unit, multiple ports, telemetry support, and Full HD video capability make it easy to integrate into demanding professional systems.
Technical Specifications

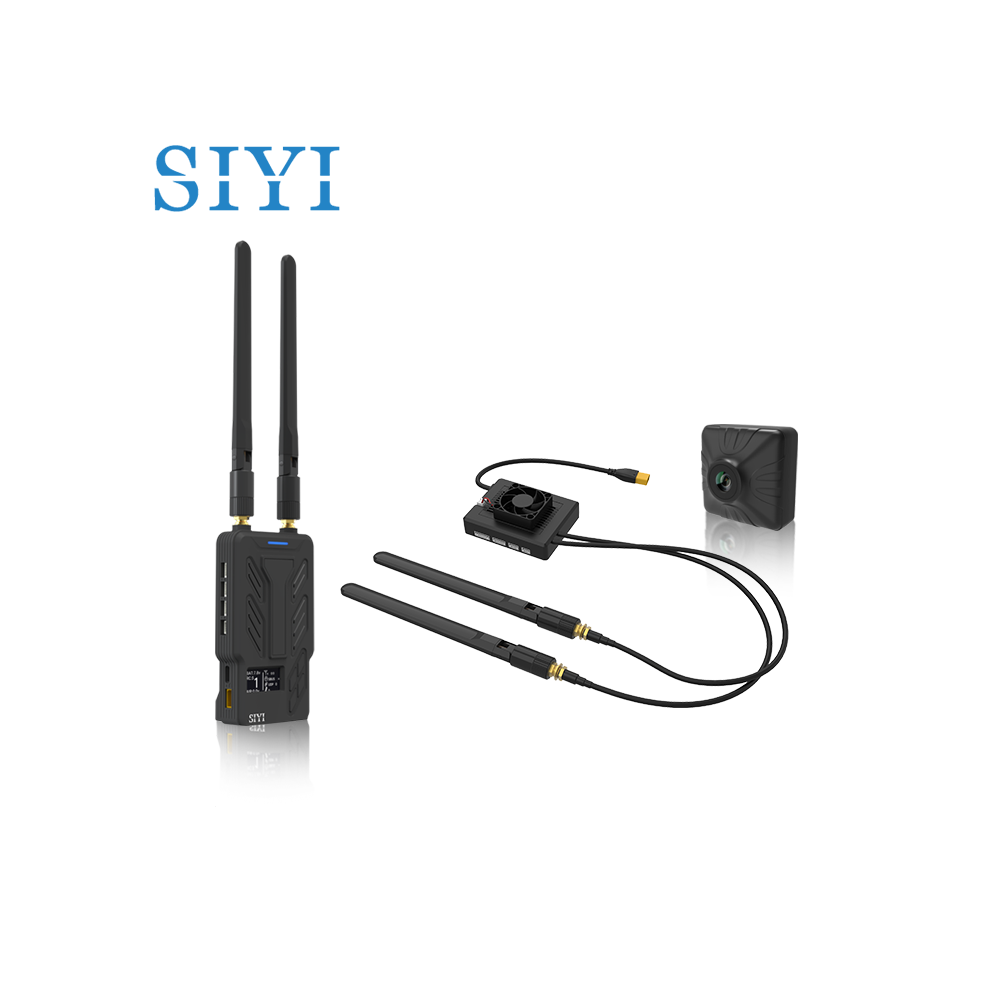

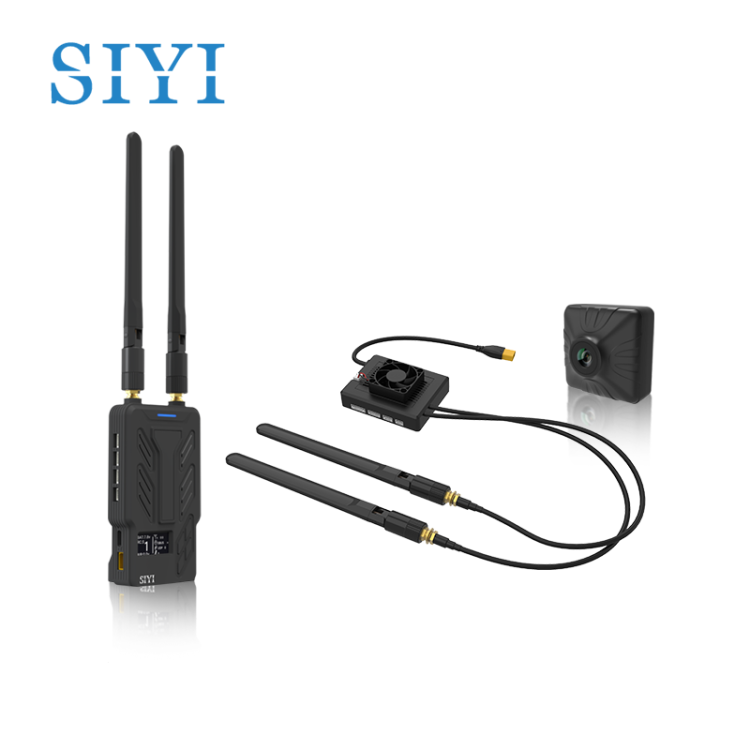

Product: SIYI HM30 Full HD Transmission System Fly More Combo
Product Type: Digital video transmission, telemetry and remote-control system
Video Transmission: 1080p Full HD up to 60fps
Maximum Transmission Range: Up to 30 km in unobstructed, interference-free conditions with suitable antennas
Latency: Around 150 ms depending on setup and operating conditions
Control Channels: Up to 16 communication channels
Telemetry Support: MAVLink telemetry via UART
Flight Controller Compatibility: Pixhawk, ArduPilot, PX4 and compatible UART datalink flight controllers
Ground Station Compatibility: QGroundControl and SIYI FPV
Signal Output: SBUS and PWM
Ground Unit Display: 0.96-inch OLED touchscreen
Ground Unit Battery Compatibility: NP-F550 / F750 / F770 / F950 / F970 series quick-release batteries
Fly More Combo Battery: NP-F750 quick-release battery
Fast Charging: PD 30W
Ground Unit Dimensions: 189 × 138 × 41 mm without antenna and battery
Ground Unit Weight: 132 g without antenna and battery
Air Unit Dimensions: 70 × 55 × 16 mm without antenna
Air Unit Weight: 74 g without antenna
Air Unit Power Input: 11–16.8V, expandable to 14–58.8V with BEC
Ground Unit Waterproof Level: IP53
Working Temperature: -10°C to 50°C
Recommended Use: FPV drones, industrial UAVs, Pixhawk systems, ArduPilot platforms, PX4 drones, mapping UAVs, inspection drones, VTOL aircraft and robotics applications
