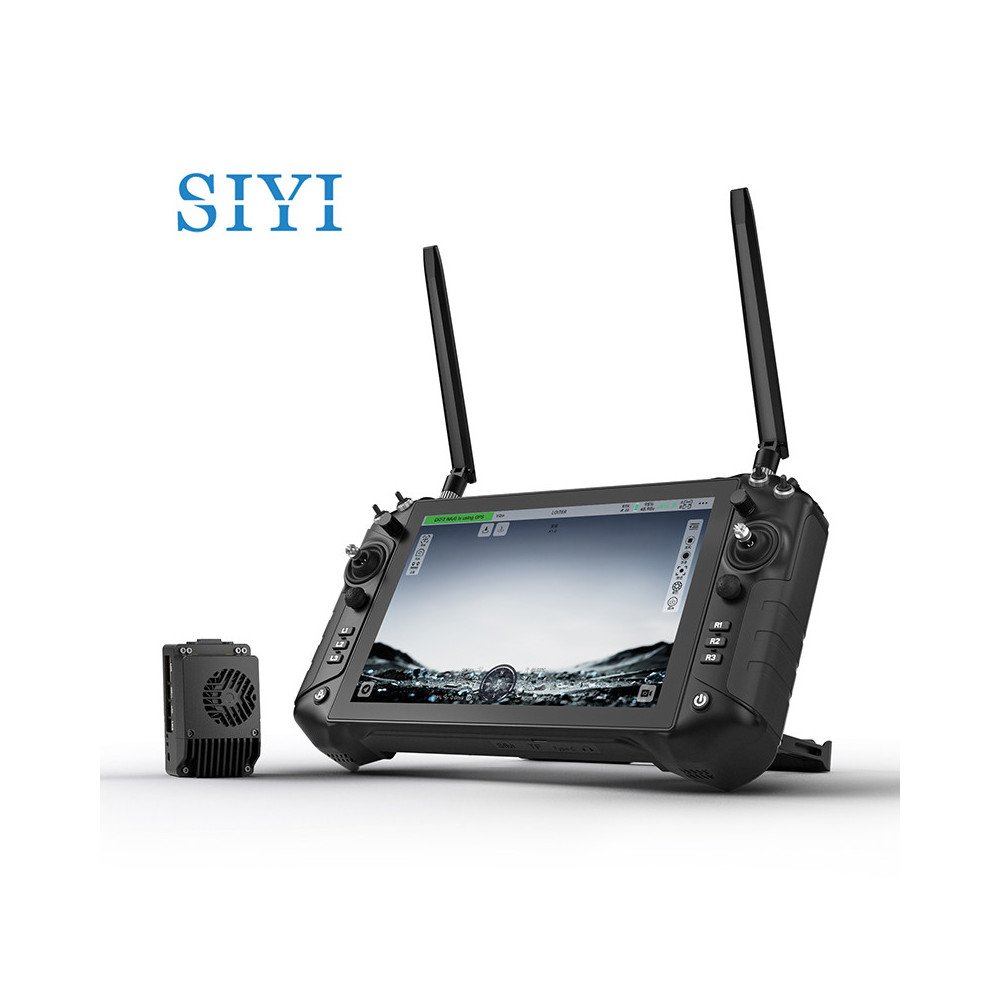

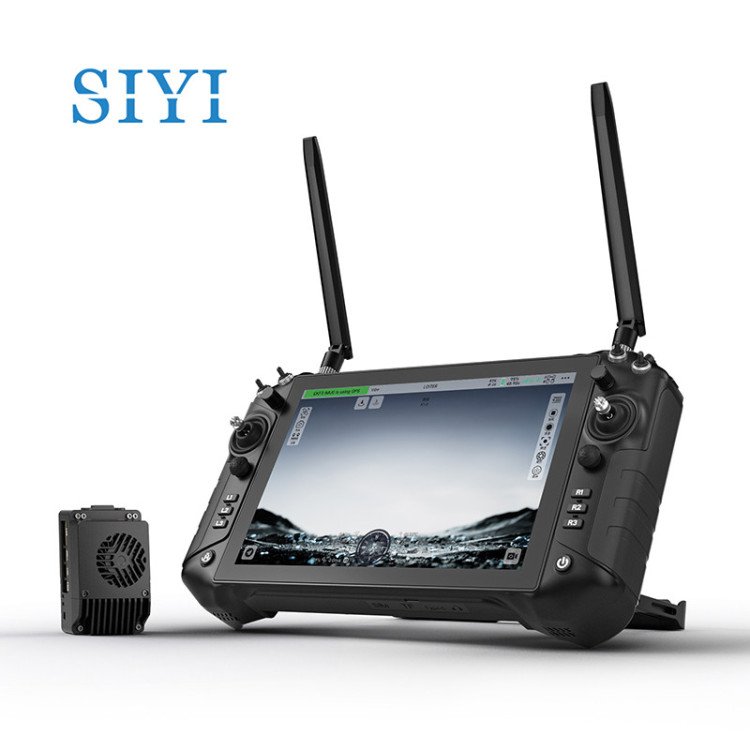

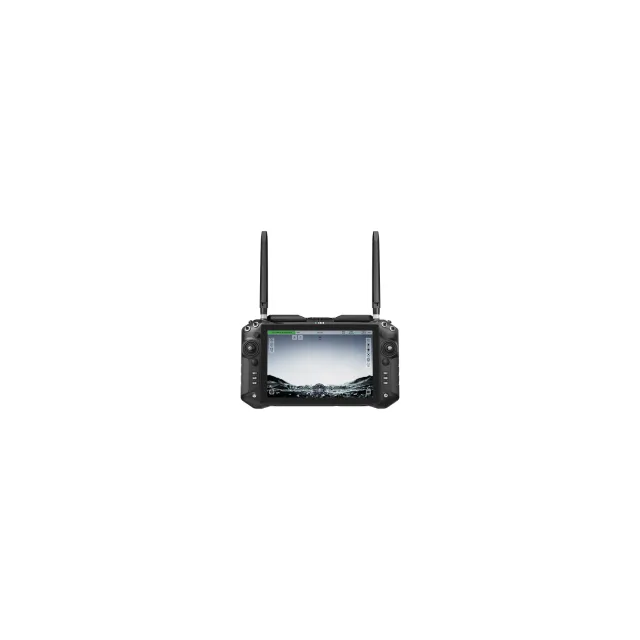

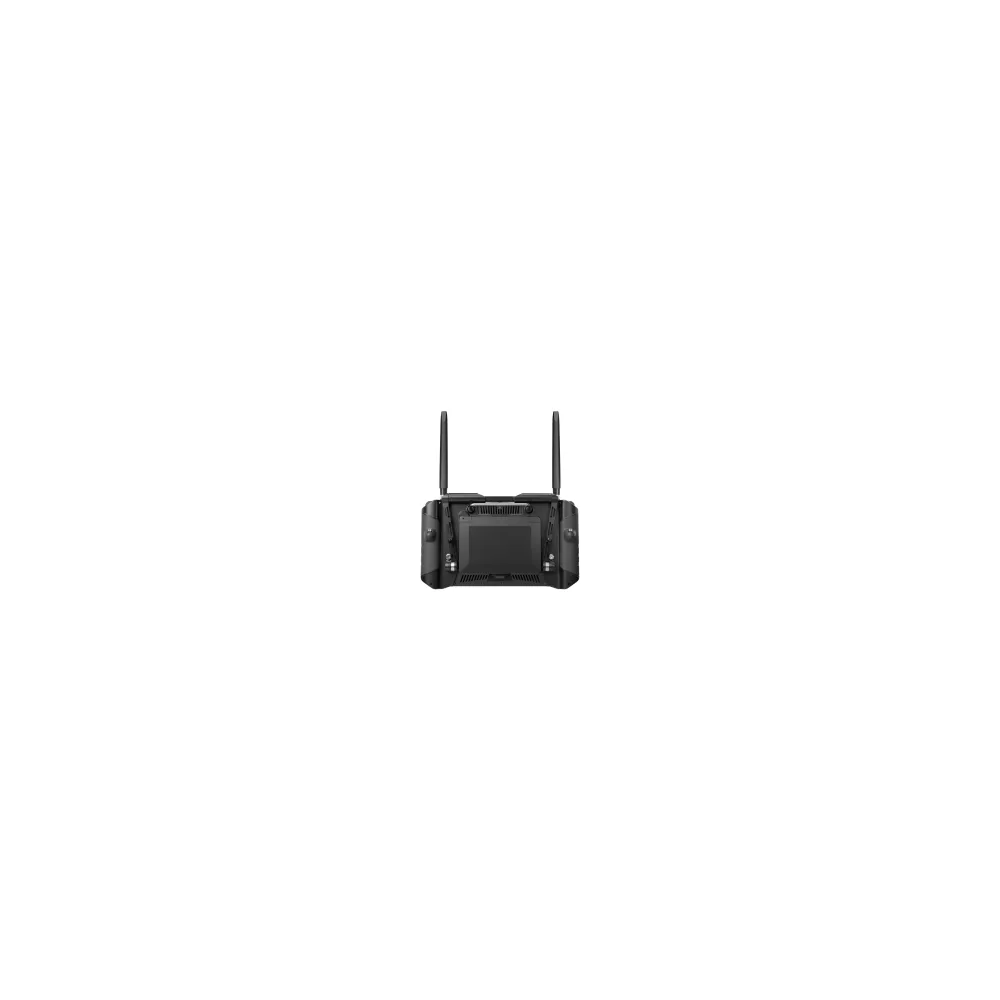

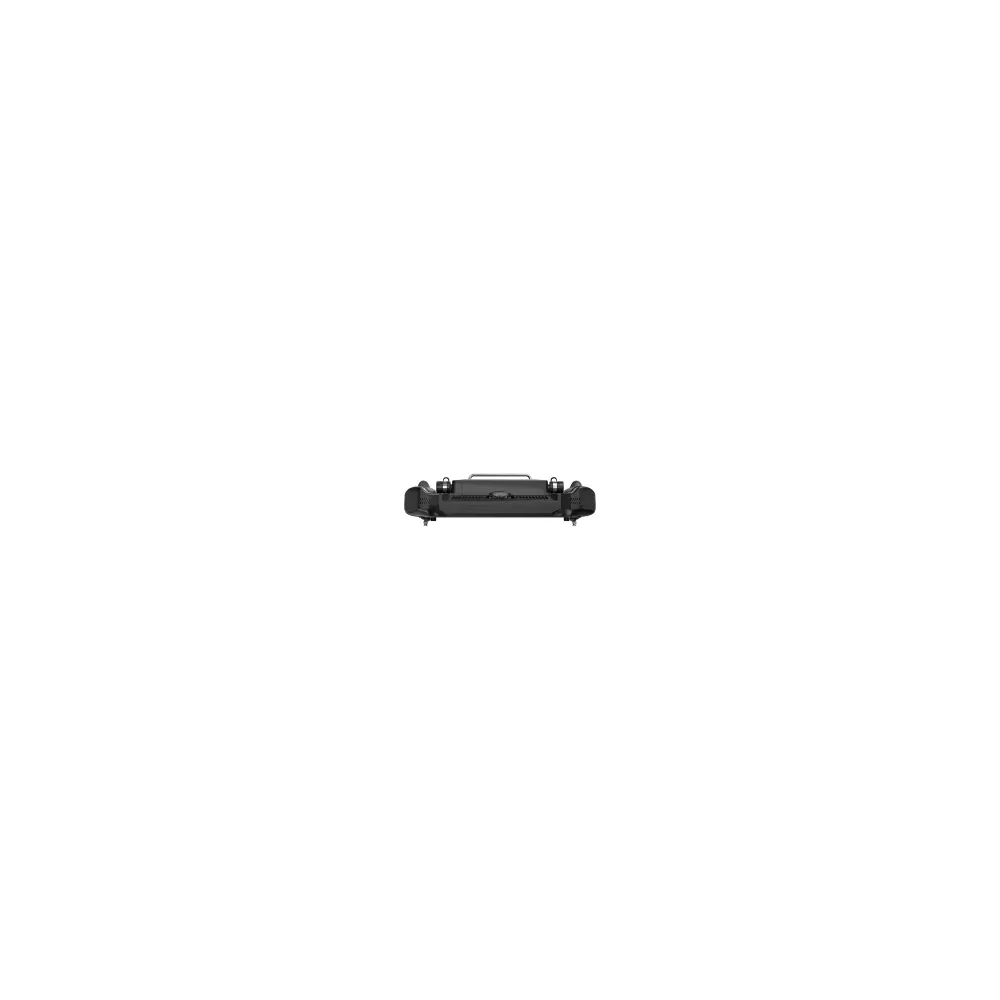

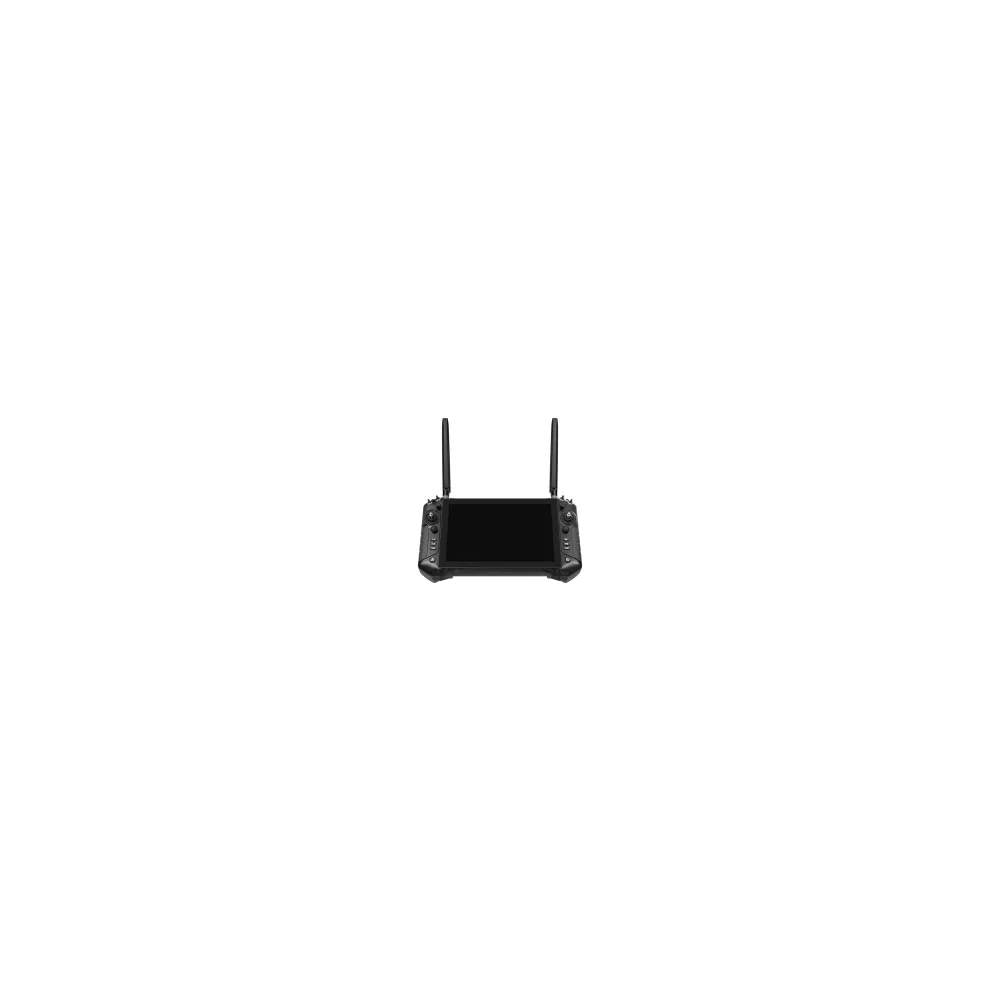

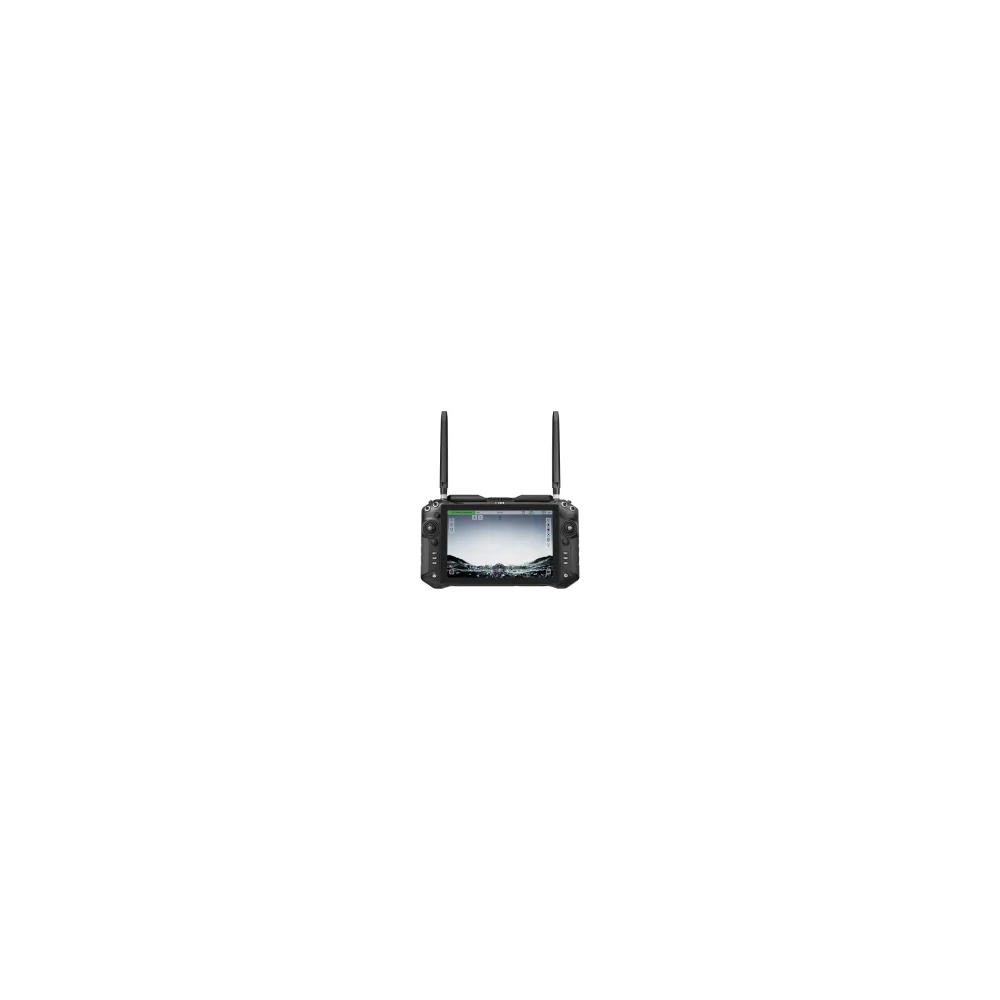

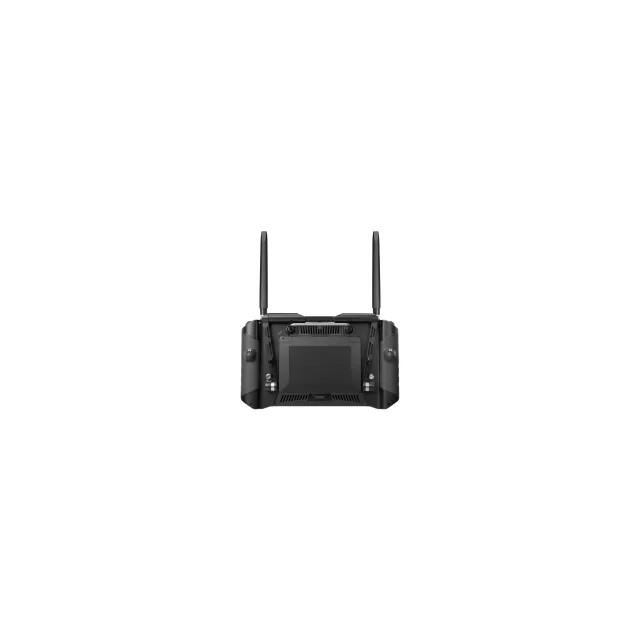

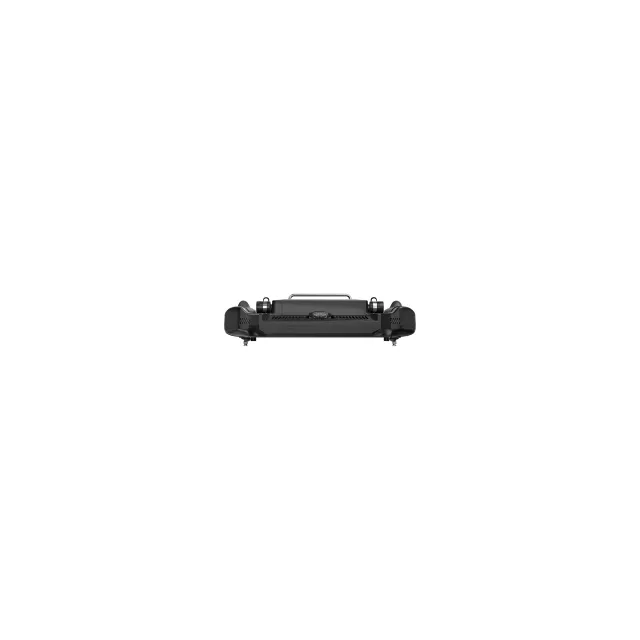

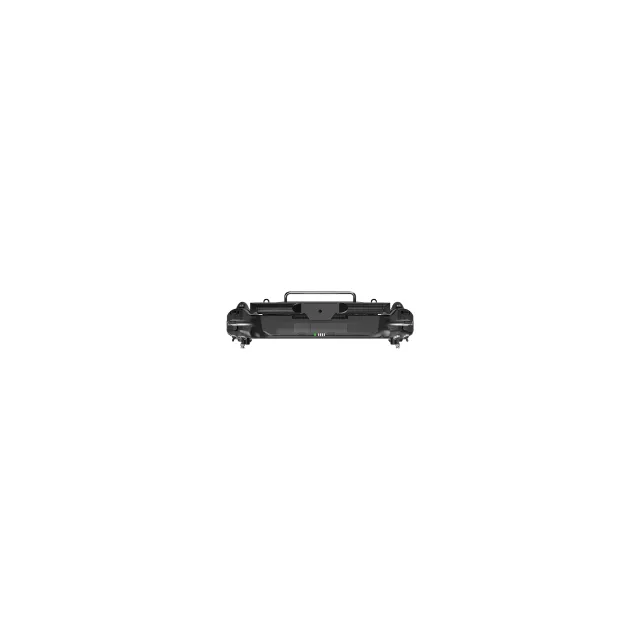

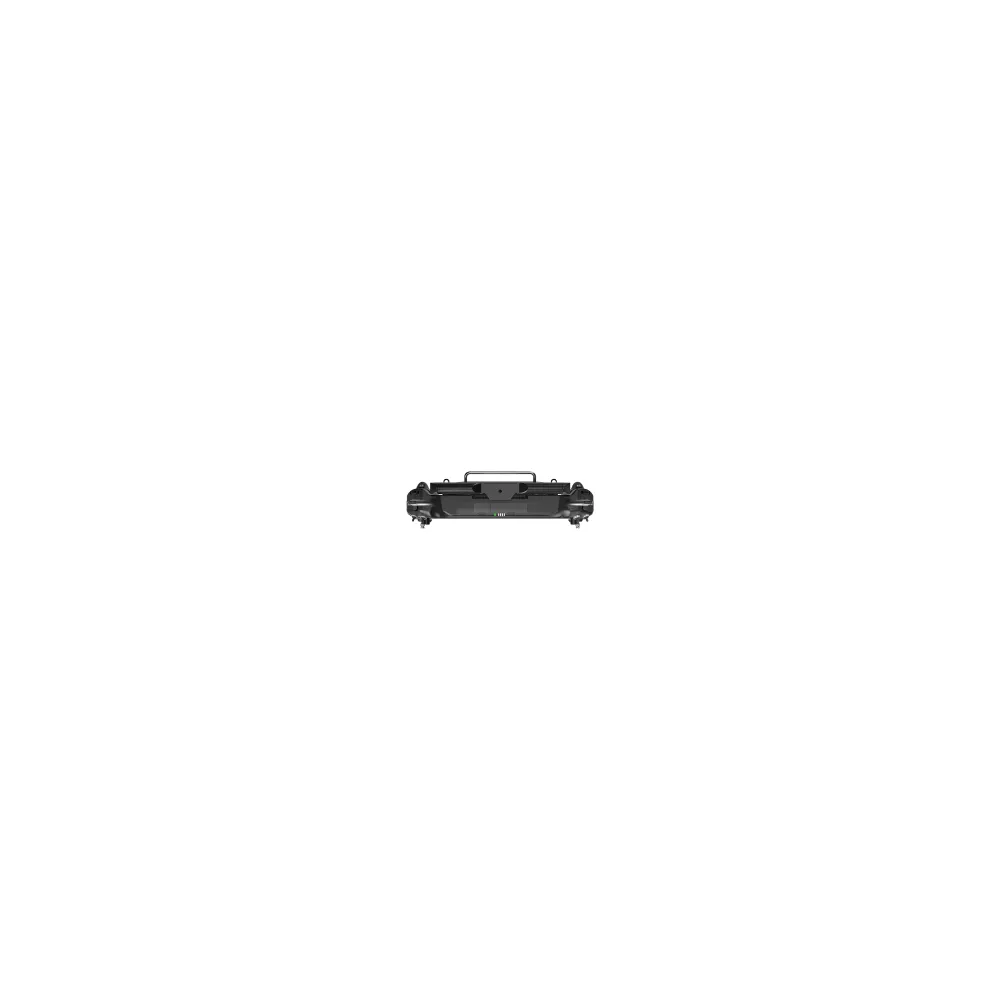

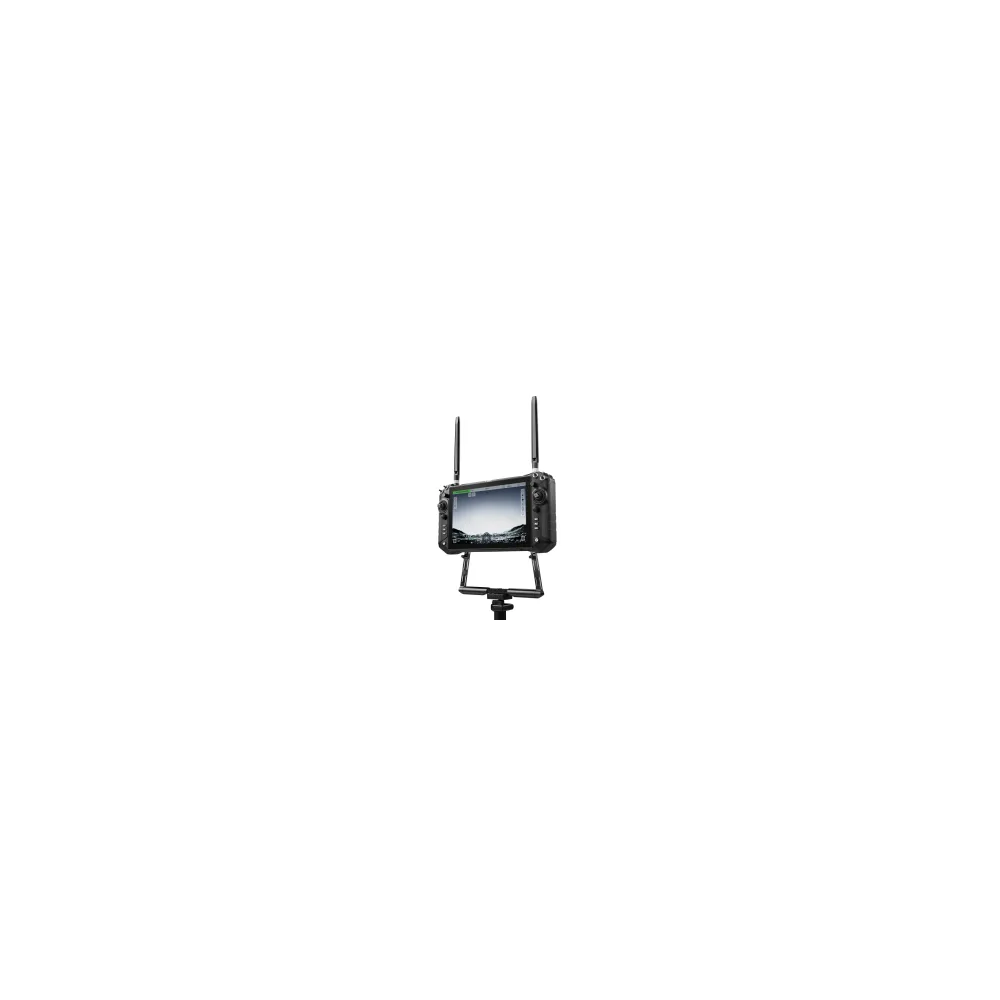

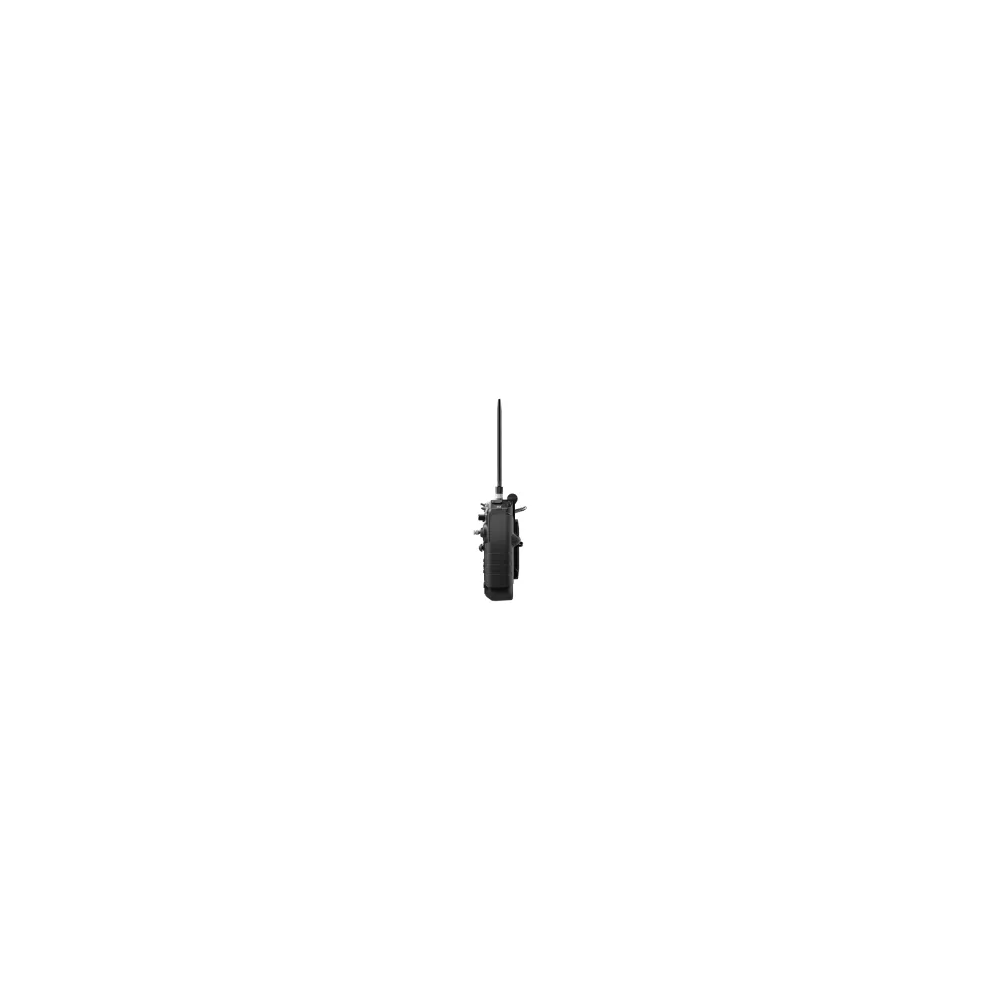

The SIYI UniRC 10 Pro Handheld Ground Station is a professional long-range smart controller designed for industrial UAVs, UGVs, USVs, robotics systems, inspection drones, mapping platforms, and advanced unmanned vehicle operations.
Built for demanding field applications, the UniRC 10 Pro combines a large high-brightness display, triple-frequency redundancy, digital video transmission, customizable control channels, and professional-grade connectivity in one rugged handheld ground station.
10.1-Inch High-Brightness Touchscreen
The SIYI UniRC 10 Pro features a large 10.1-inch touchscreen display with 1920×1200 resolution, providing a clear and detailed interface for professional unmanned system control.
With up to 2000 nits brightness, the screen remains highly visible in outdoor environments, making it ideal for field missions, inspection work, mapping operations, search and rescue, and industrial UAV flights.
Long-Range Digital Transmission
The UniRC 10 Pro Handheld Ground Station is designed for long-range professional operation.
In optimal unobstructed and low-interference conditions, the system can reach up to 35–45 km transmission range, while typical professional field conditions with some obstruction and medium interference may provide around 20–25 km.
This makes the SIYI UniRC 10 Pro suitable for BVLOS-style operations, industrial inspection, long-range UAV missions, UGV control, USV control, and robotics applications.
Triple-Frequency Redundancy
The UniRC 10 Pro uses triple-frequency redundancy to improve link stability and anti-interference performance in complex professional environments.
This communication architecture helps maintain a more reliable control and video link for drones, ground robots, unmanned boats, and mission-critical platforms operating in challenging RF conditions.
4K Digital Image Transmission
The SIYI UniRC 10 Pro supports 4K 30fps decoding capability and transmission bitrates up to 65 Mbps, delivering clear video feedback for professional operations.
This makes it suitable for high-definition inspection, surveillance, mapping, search and rescue, robotics monitoring, and multi-stream video display workflows.
Android 13 Smart Controller
Powered by Android 13, the UniRC 10 Pro provides a modern smart controller platform for professional ground station use.
With 4GB RAM and 64GB internal storage, it supports smooth operation of compatible UAV control applications, ground station software, video monitoring tools, and mission management workflows.
27 Customizable Physical Channels
The SIYI UniRC 10 Pro includes 27 customizable physical channels, giving operators advanced control flexibility for complex unmanned systems.
The controller is equipped with Hall sensor joysticks, switches, dials, knobs, and customizable controls, making it suitable for multi-function UAV payloads, gimbals, robotics systems, UGVs, USVs, and industrial mission equipment.
Hot-Swap Battery System
The UniRC 10 Pro Handheld Ground Station supports a hot-swappable battery design with up to 5 hours of battery life, helping operators continue field missions with minimal downtime.
This is especially useful for long-duration UAV operations, industrial inspection, emergency response, mapping, and outdoor robotics missions.
Rugged Professional Design
With IP54 protection, the SIYI UniRC 10 Pro is built for demanding outdoor environments.
Its rugged design makes it suitable for professional field use where resistance to dust, splashes, and harsh operating conditions is important.
Advanced Connectivity & Expansion
The UniRC 10 Pro provides a wide range of interfaces for professional integration, including Ethernet, HDMI, USB-A, Type-C, SIM card slot, TF card slot, and 3.5 mm audio port depending on configuration.
This expandability makes it suitable for integration with UAV payloads, gimbal cameras, ground station software, robotics systems, and professional unmanned equipment ecosystems.
Professional Applications
The SIYI UniRC 10 Pro Handheld Ground Station is ideal for professional UAV control, industrial drone inspection, mapping and surveying, public safety missions, search and rescue, UGV operations, USV missions, robotics control, payload control, and long-range unmanned system deployment.
Its combination of large display, long-range transmission, customizable channels, Android smart system, and rugged design makes it a strong solution for advanced unmanned vehicle operators.
Technical Specifications
Product: SIYI UniRC 10 Pro Handheld Ground Station
Product Type: Professional smart controller / handheld ground station
Display Size: 10.1-inch touchscreen
Display Resolution: 1920×1200
Brightness: 2000 nits
Operating System: Android 13
RAM: 4GB
Storage: 64GB, expandable depending on configuration
Transmission Range: Up to 35–45 km in unobstructed, low-interference conditions
Typical Range: 20–25 km in conditions with few obstructions and medium interference
Frequency System: Triple-frequency redundancy
Standard Frequency: 2.4 GHz / 5.8 GHz depending on region and configuration
Maximum Data Transfer Rate: Up to 65 Mbps
Video Decoding: Up to 4K 30fps
Physical Channels: 27 customizable physical channels
Joysticks: Hall sensor joysticks
Battery Life: Up to 5 hours with hot-swap battery support
Protection Level: IP54
Security: AES encryption
Main Interfaces: RJ45 Ethernet, HDMI, USB-A, Type-C, SIM card slot, TF card slot, 3.5 mm audio port depending on configuration
Recommended Use: UAVs, UGVs, USVs, robotics systems, industrial drones, inspection platforms, mapping drones, emergency response systems and professional unmanned vehicle control
