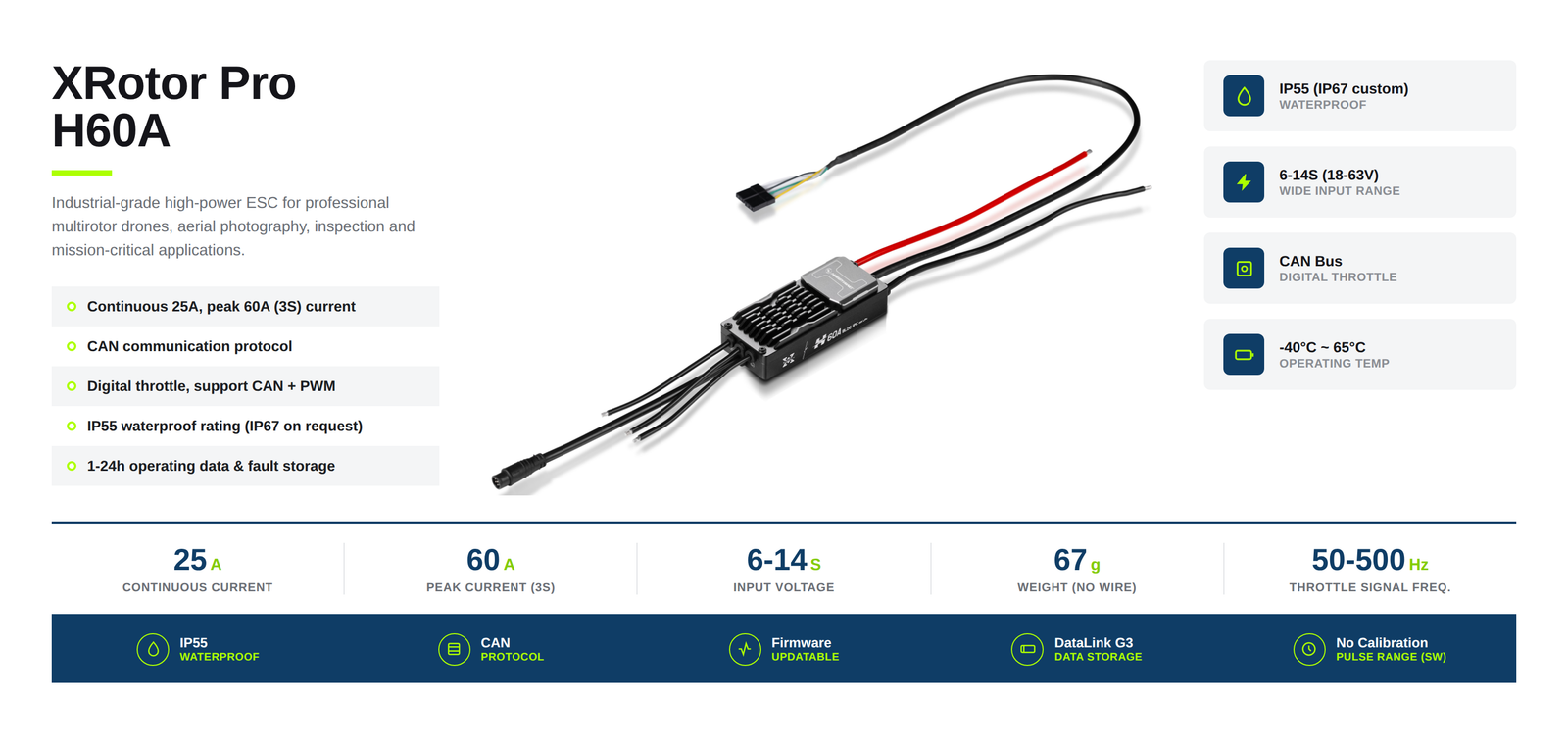

The Hobbywing XRotor Pro H60A-14S ESC is a compact high-performance electronic speed controller designed for professional UAVs, VTOL platforms, drone docks, and industrial multirotor applications. Engineered to deliver stable power output, fast throttle response, and high reliability, it is ideal for demanding drone applications where compact size, low weight, and precise motor control are essential.
Available in BLDC and BLDC IPC versions, the H60A-14S platform allows UAV manufacturers and integrators to choose the ESC configuration best suited to their aircraft architecture and mission requirements.
The BLDC version is designed for reliable and efficient standard motor control, while the BLDC IPC version adds Intelligent Propeller Control for VTOL aircraft and drone dock applications where propeller positioning is required.
Compact & Reliable Power Delivery
The XRotor Pro H60A-14S supports 6–14S LiPo battery systems, with an input voltage range of 18–63V.
The BLDC version delivers 25A continuous current with good heat dissipation and supports up to 60A peak current for 3 seconds.
The BLDC IPC version delivers 30A continuous current with good heat dissipation and also supports up to 60A peak current for 3 seconds.
Designed for professional UAV propulsion systems, the ESC provides:
-
Stable current output
-
Fast throttle response
-
High efficiency under load
-
Reliable power delivery for professional UAVs
-
Compact size and low weight for easy integration
BLDC Version
The BLDC version is designed for professional UAV platforms requiring reliable and efficient standard BLDC motor control.
It is ideal for:
-
Industrial multirotor drones
-
Professional VTOL platforms
-
Mapping and inspection UAVs
-
Surveillance drones
-
Compact cargo UAVs
-
General industrial drone propulsion systems
This version provides stable throttle response, efficient power delivery, and easy integration into professional drone systems.
BLDC IPC Version
The BLDC IPC version integrates Intelligent Propeller Control, specifically designed for VTOL aircraft and drone dock applications.
The IPC system enables intelligent propeller positioning, helping optimize propeller alignment when the motor is stopped.
The BLDC IPC version provides:
-
Intelligent propeller positioning
-
Reduced aerodynamic drag during fixed-wing cruise
-
Improved flight efficiency
-
Extended endurance
-
Precise digital motor positioning
-
Configurable propeller positioning parameters
-
Improved compatibility with VTOL and drone dock systems
This makes the BLDC IPC version the ideal choice for hybrid VTOL aircraft and autonomous UAV platforms where propeller positioning and system efficiency are important.
CAN Communication & Digital Throttle
The H60A-14S supports CAN communication and CAN digital throttle, allowing accurate motor control and reliable communication between the ESC and the flight controller.
It also supports PWM input, allowing flexible integration with different UAV architectures.
Key advantages include:
-
CAN communication protocol
-
CAN digital throttle support
-
CAN + PWM dual throttle support
-
5V / 3.3V PWM signal compatibility
-
50–500Hz throttle signal frequency
-
1100–1940μs operating pulse width
-
No throttle travel calibration required
-
Software-adjustable throttle range
Smart Black Box & Fault Diagnostics
The H60A-14S integrates a new-generation black box feature for operating data and fault code storage.
The BLDC version stores 1–24 hours of operating data and fault codes.
The BLDC IPC version stores 1–24 hours of real-time data and fault data, with millisecond-level recording for faster diagnostics.
This helps with:
Lightweight Industrial Design
The XRotor Pro H60A-14S is designed for UAV platforms where weight, space, and reliability are critical.
The BLDC version weighs only 67g without wires, with compact dimensions of 78.5 × 32.5 × 18.4 mm.
The BLDC IPC version weighs only 65g without wires, with dimensions of 78.5 × 32.5 × 18.8 mm.
This compact design provides:
-
Reduced onboard weight
-
Easy integration in compact UAV frames
-
Efficient heat dissipation
-
Reliable operation in demanding flight conditions
-
Optimized performance for professional UAV platforms
Rugged & Professional Construction
Built for harsh outdoor environments, the H60A-14S features a compact and robust design suitable for professional UAV operations.
Key durability features include:
-
IP55 protection rating
-
Custom IP67 option available
-
Operating temperature from -40°C to +65°C
-
Shielded signal cable for strong anti-interference performance
-
Firmware upgrade support
-
Compact high-power-density design
-
Professional-grade electronic components
This makes the ESC suitable for industrial UAV platforms operating in demanding environments, including inspection, mapping, logistics, surveillance, VTOL aircraft, and autonomous drone dock systems.
Technical Specifications
Product: Hobbywing XRotor Pro H60A-14S ESC
-
Versions: BLDC / BLDC IPC
-
Input Voltage: 6–14S LiPo
-
Voltage Range: 18–63V
-
Continuous Current BLDC: 25A with good heat dissipation
-
Continuous Current BLDC IPC: 30A with good heat dissipation
-
Peak Current: 60A for 3 seconds
-
Communication Protocol: CAN
-
Digital Throttle: CAN supported
-
Dual Throttle: CAN + PWM supported
-
PWM Input Signal Level: 5V / 3.3V
-
Throttle Signal Frequency: 50–500Hz
-
Operating Pulse Width: 1100–1940μs
-
Throttle Travel Calibration: Not required
-
Propeller Positioning BLDC: Not supported
-
Propeller Positioning BLDC IPC: Supported
-
Isolation Mode: Throttle and communication are non-isolated
-
Firmware Update: Supported
-
Protection Rating: IP55
-
Custom Protection Option: IP67 available
-
Operating Temperature: -40°C to +65°C
-
Black Box BLDC: 1–24h operating data and fault code storage
-
Black Box BLDC IPC: 1–24h real-time data and fault data storage
-
Weight BLDC: 67g without wires
-
Weight BLDC IPC: 65g without wires
-

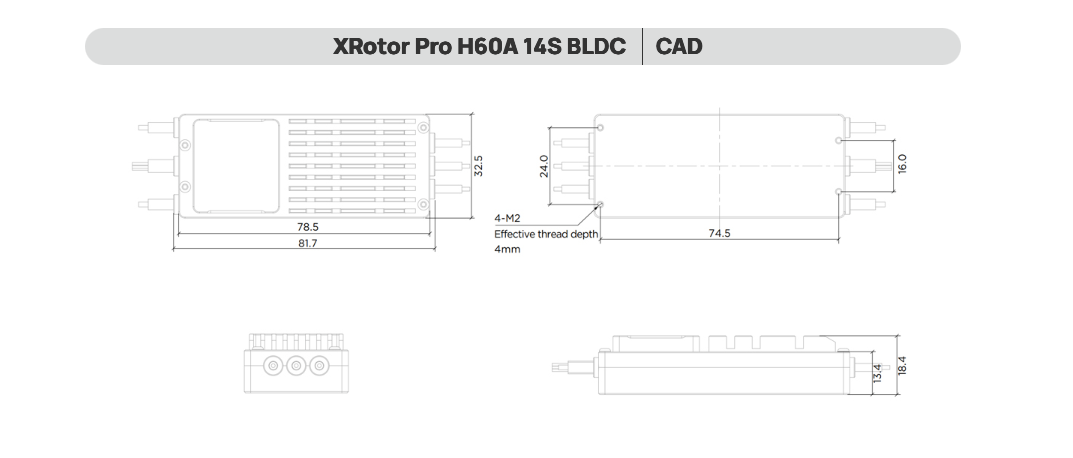

Dimensions BLDC: 78.5 × 32.5 × 18.4 mm
-

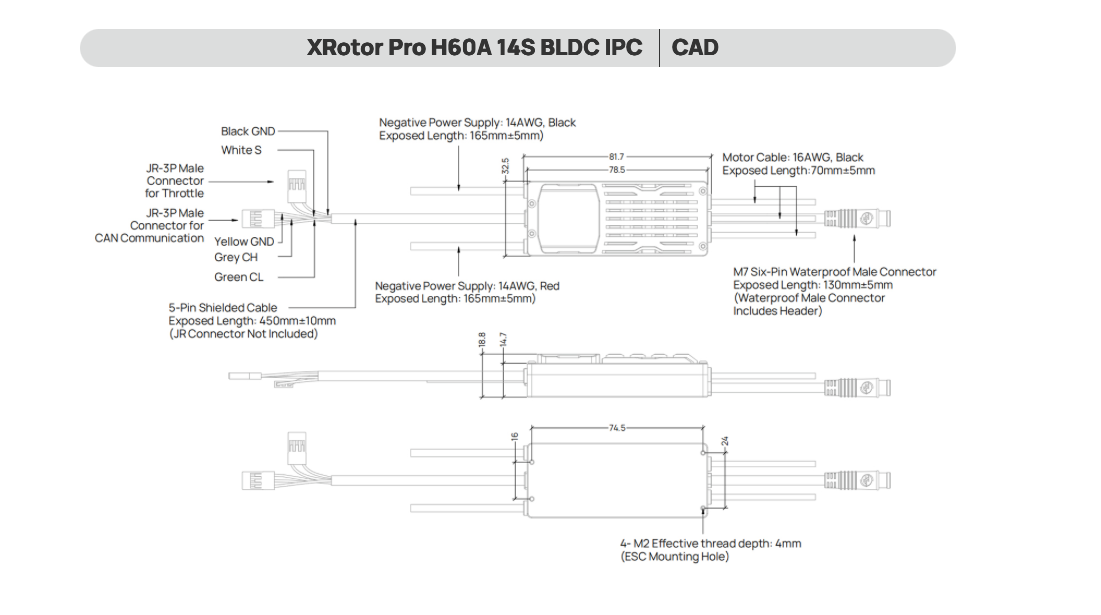

Dimensions BLDC IPC: 78.5 × 32.5 × 18.8 mm
-
Recommended Use: Industrial UAVs, VTOL platforms, drone docks, multirotor drones and professional propulsion systems
The FOC version is available on request by email at contact@europeandroneshop.com.
Motor and propellers are sold separately.
